Bently Nevada 16710-50: Interconnect Cable with Armor

Product Description

The Bently Nevada 16710-50 is a high – performance interconnect cable with armor, designed to play a crucial role in vibration monitoring systems for rotating machinery. This cable serves as a reliable link between various components within the monitoring setup, such as sensors and signal processing units. It is engineered to withstand harsh industrial environments, ensuring the integrity of the data transmission. The 16710 – 50 is part of Bently Nevada’s comprehensive range of products that aim to enhance the reliability and operational efficiency of industrial machinery by providing accurate and stable monitoring solutions.

Product Parameters

Parameter	Specification

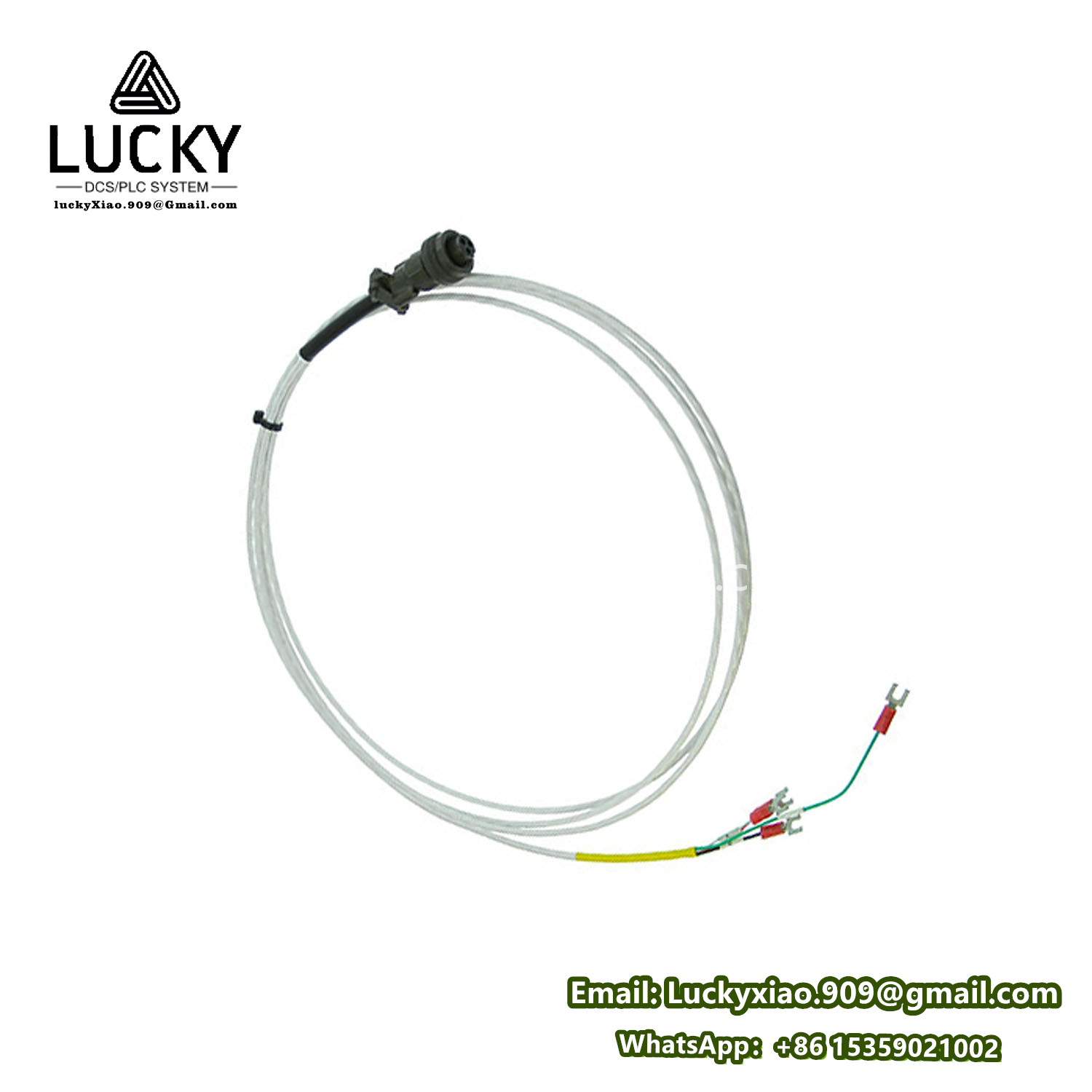

Cable Type	Interconnect cable with armor
Conductor Details	3 – conductor shielded 22 awg (0.5 mm²)
Plug/Socket Configuration	3 – socket plug at one end, terminal lugs at the other end
Cable Length	50 ft (approx. 15.24 m)
Application	For use in vibration monitoring systems
Shipping Weight	4 kg

Product Specifications

Series

The 16710-50 is likely part of Bently Nevada‘s broader range of interconnect cables, which are designed to work in tandem with their various machinery monitoring products. While not explicitly stated as part of a named series like some of their other products (such as the 3500 series), it is engineered to be compatible with Bently Nevada’s vibration monitoring sensors, signal conditioners, and other equipment. This compatibility allows for seamless integration into a complete machinery monitoring solution, ensuring that data can be accurately transmitted from the sensors to the analysis and control units.

Features

Armored Protection

The armored construction of the cable protects it from physical damage, such as cuts, scrapes, and impacts. This is particularly important in industrial environments where cables may be exposed to moving machinery, sharp objects, or heavy equipment. The armor also provides a degree of protection against electromagnetic interference, ensuring that the signal transmitted through the cable remains clean and accurate.

Secure Connection Interfaces

The 3 – socket plug and terminal lugs are designed to provide a secure connection. The 3 – socket plug fits snugly into compatible sockets on sensors or other devices, while the terminal lugs can be easily attached to terminals on signal conditioners or other components. This secure connection minimizes the risk of loose connections, which could lead to signal loss or intermittent operation.

Standardized Cable Gauge

The use of 22 awg conductors is a standard in the industry, which means that the cable is compatible with a wide range of industrial equipment. This standardization also ensures that the cable can handle the electrical load required for data transmission in vibration monitoring systems, providing reliable performance.

Function

The primary function of the Bently Nevada 16710-50 is to transmit electrical signals between components in a vibration monitoring system. It carries the signals from vibration sensors, such as accelerometers or velocity sensors, to signal processing units. These signals are then used to measure parameters like vibration amplitude, frequency, and phase. By accurately transmitting these signals, the cable enables the monitoring system to provide real – time data on the condition of the rotating machinery. This data is crucial for detecting early signs of equipment degradation, such as unbalance, misalignment, or bearing wear, allowing for preventive maintenance and reducing the risk of unplanned downtime.

Use

In industrial applications, the 16710-50 is used to connect vibration sensors to the rest of the monitoring system. Technicians first identify the appropriate sensors based on the type of machinery being monitored and the required measurement parameters. They then connect the sensors to the 3 – socket plug end of the cable. The terminal lugs at the other end of the cable are connected to the input terminals of a signal conditioner or a data acquisition unit. Once connected, the cable starts transmitting the vibration signals from the sensors to the monitoring system. Regular inspections are carried out to ensure that the cable is not damaged and that the connections remain secure.

Application Fields

Power Generation

In power plants, whether they are coal – fired, gas – fired, or nuclear, rotating machinery such as turbines, generators, and pumps are critical. The 16710-50 cable is used to connect vibration sensors to the monitoring systems for these machines. By accurately transmitting vibration data, it helps in detecting any abnormal vibrations that could indicate issues like rotor imbalance or bearing problems. This allows for timely maintenance, preventing costly power outages.

Oil and Gas

In the oil and gas industry, compressors, pumps, and drilling equipment operate in harsh environments. The armored 16710-50 cable is used to connect vibration sensors to the monitoring systems for these assets. It can withstand the physical stress and electromagnetic interference present in oil and gas plants, ensuring reliable data transmission. This data is used to monitor the health of the equipment, detect early signs of wear and tear, and prevent equipment failures that could disrupt production.

Manufacturing

In manufacturing plants, a wide range of rotating machinery, such as motors, conveyor belts, and industrial mixers, is used. The 16710-50 cable is used to connect vibration sensors to the monitoring systems for these machines. By providing accurate vibration data, it helps in ensuring smooth operation, preventing unexpected breakdowns that could halt production lines, and maintaining product quality.

In conclusion, the Bently Nevada 16710-50 interconnect cable with armor is an essential component in vibration monitoring systems for industrial rotating machinery. Its robust construction, secure connection interfaces, and reliable performance make it a valuable asset in industries where the continuous and accurate monitoring of machinery is crucial for efficient operation and preventive maintenance.
