Bently Nevada 21000-16-05-00-050-04-02: Proximity Probe Housing Assembly
Product Description

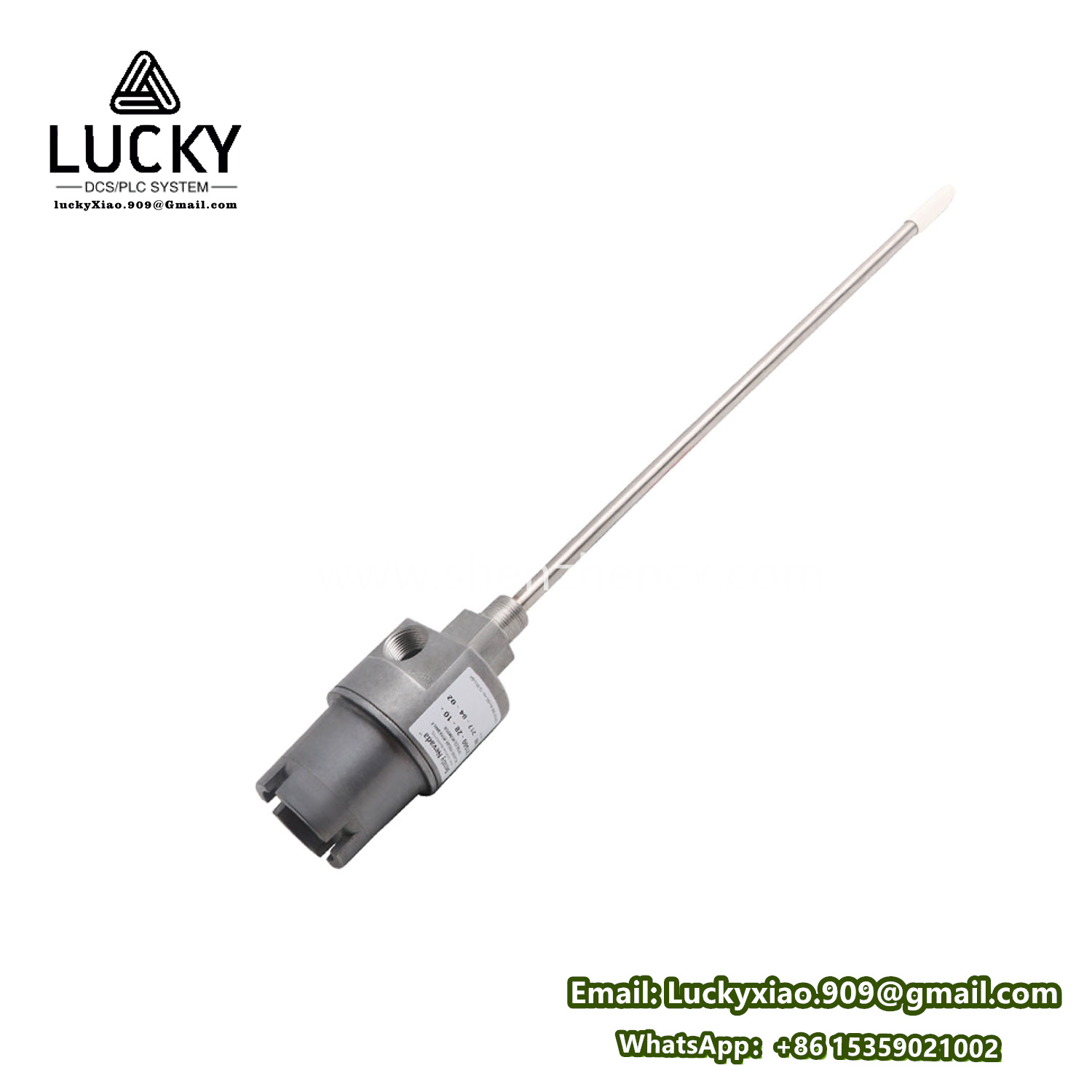

The Bently Nevada 21000-16-05-00-050-04-02 is a precision – engineered proximity probe housing assembly, designed to play a pivotal role in the reliable operation of proximity probe systems. This assembly serves as a protective and functional enclosure for proximity probes, which are essential for measuring the displacement, vibration, and position of rotating machinery components such as shafts and bearings. It is crafted with meticulous attention to detail to ensure accurate and stable performance in industrial environments.
Product Parameters
|
Parameter
|
Specification
|
|
Probe Type
|
3300 XL 8 mm probe (connector type indicated by the ’16’ in the part number)
|
|
Probe Cable Length
|
0.5 metre (20 in) as denoted by ’05’ in the part number
|
|
Standoff Adapter
|
None (represented by ’00’ in the part number)
|
|
Probe Penetration
|
0.5 in (12.7 mm) as per the ‘050’ in the part number
|
|
Fittings Option
|
One 3/4 – 14 NPT plug; one 3/4 – 14 to 1/2 – 14 NPT reducer; one cable seal grip with grommets for cable sizes: 1/8 to 3/16, 1/4 to 5/16, and 5/16 to 3/8 – in (indicated by ’04’ in the part number)
|
|
Mounting Thread Option
|
3/4 – 14 NPT (denoted by ’02’ in the part number)
|
|
Material
|
Aluminum body with 304 stainless steel sleeve
|
|
Weight
|
Approximately 1.1 kg
|
|
Shipping Weight
|
Around 2.5 kg
|
Product Specifications
- Dimensions: Compact and well – proportioned to fit standard industrial installation spaces. The overall size is designed to be compatible with common machinery bearing housings and mounting brackets, facilitating easy integration into existing monitoring setups.
- Construction: The aluminum body offers a lightweight yet durable solution, resistant to corrosion in many industrial atmospheres. The 304 stainless steel sleeve provides additional strength and protection for the probe, especially in environments where mechanical stress or abrasion is a concern.
- Mounting: Equipped with a 3/4 – 14 NPT mounting thread, it can be securely fastened to machinery using standard industrial fittings. This ensures a stable connection, minimizing vibrations that could affect probe accuracy.
- Sealing and Protection: The cable seal grip with grommets for various cable sizes ensures a tight seal, protecting the internal components of the housing from dust, moisture, and other contaminants. This is crucial for maintaining the integrity of the proximity probe system in harsh industrial conditions.
- Electrical Compatibility: Engineered to be fully compatible with Bently Nevada’s range of proximity probes and associated monitoring equipment, it enables seamless data transfer and accurate measurement.
Series
This housing assembly is part of Bently Nevada’s comprehensive range of products for machinery protection and condition monitoring. It aligns with the company’s commitment to providing high – quality, reliable solutions for industrial applications. While not part of a specific named series like the 3500 series, it is designed to work in harmony with other Bently Nevada products, such as different models of proximity probes, extension cables, and signal conditioners, to form a complete and effective machinery monitoring system.
Features
Precision – Matched Components
The housing is specifically designed to work with the 3300 XL 8 mm probe, ensuring optimal performance and accuracy. The precise dimensions and compatibility of the components within the assembly minimize signal interference and measurement errors.
Durable Construction
Combining an aluminum body with a 304 stainless steel sleeve, it offers excellent resistance to corrosion and mechanical wear. This makes it suitable for use in a wide range of industrial environments, from chemical plants to power generation facilities.
Customizable Fittings
The inclusion of specific fittings, such as the 3/4 – 14 NPT plug, reducer, and cable seal grip with grommets, allows for flexibility in installation. It can be easily adapted to different cable sizes and connection requirements, enhancing its versatility in various industrial setups.
Secure Mounting
The 3/4 – 14 NPT mounting thread provides a secure and stable connection to machinery, reducing the risk of misalignment or displacement during operation. This is essential for maintaining accurate proximity probe measurements.
Function
The primary function of the 21000-16-05-00-050-04-02 housing assembly is to protect the proximity probe and facilitate its proper installation on rotating machinery. It provides a stable platform for the probe, ensuring that it remains in the correct position relative to the target machinery component. By shielding the probe from external elements and mechanical stress, the housing helps to maintain the integrity of the probe’s electromagnetic field, which is crucial for accurate displacement and vibration measurements. Additionally, the housing’s fittings and mounting options enable easy connection to the machinery and routing of the probe cable, allowing for seamless integration into the overall monitoring system.
Use
In industrial settings, technicians first select the appropriate Bently Nevada proximity probe, in this case, the 3300 XL 8 mm probe, and insert it into the housing assembly. The housing is then mounted onto the machinery using the 3/4 – 14 NPT mounting thread, ensuring it is firmly attached and properly aligned with the area of interest, such as a shaft or bearing. The cable seal grip is used to secure the probe cable, protecting it from environmental factors. Once installed, the proximity probe, housed within the 21000-16-05-00-050-04-02 assembly, can accurately measure the displacement and vibration of the machinery component. The data collected is then transmitted via the cable to a signal conditioner and monitoring system for analysis. Maintenance teams regularly inspect the housing assembly for any signs of wear, corrosion, or misalignment to ensure continued accurate operation.
Application Fields
Power Generation
In power plants, whether they are coal – fired, gas – fired, or nuclear, proximity probe housing assemblies like this one are used to monitor the condition of turbines, generators, and pumps. By measuring the displacement and vibration of shafts and bearings, it helps to prevent catastrophic failures that could lead to costly power outages.
Oil and Gas
In the oil and gas industry, compressors, pumps, and drilling equipment operate in harsh and demanding environments. The 21000-16-05-00-050-04-02 housing assembly is used to protect proximity probes that monitor the health of these critical components. This allows for early detection of issues such as bearing wear or shaft misalignment, which could otherwise disrupt production.
Manufacturing
In manufacturing plants, rotating machinery such as motors, conveyor belts, and industrial mixers are common. Proximity probe housing assemblies are used to monitor the performance of these machines, ensuring smooth operation and preventing unexpected breakdowns that could halt production lines.
Mining
In the mining industry, large – scale equipment like crushers, conveyors, and grinding mills are essential. Proximity probes housed in assemblies like this one are used to monitor the condition of these machines, helping to optimize maintenance schedules and reduce downtime in a challenging and rugged environment.
In conclusion, the Bently Nevada 21000-16-05-00-050-04-02 proximity probe housing assembly is a vital component in the machinery monitoring toolkit. Its precision, durability, and versatility make it an ideal choice for a wide range of industrial applications, enabling industries to safeguard their critical assets and ensure efficient and reliable operation.
