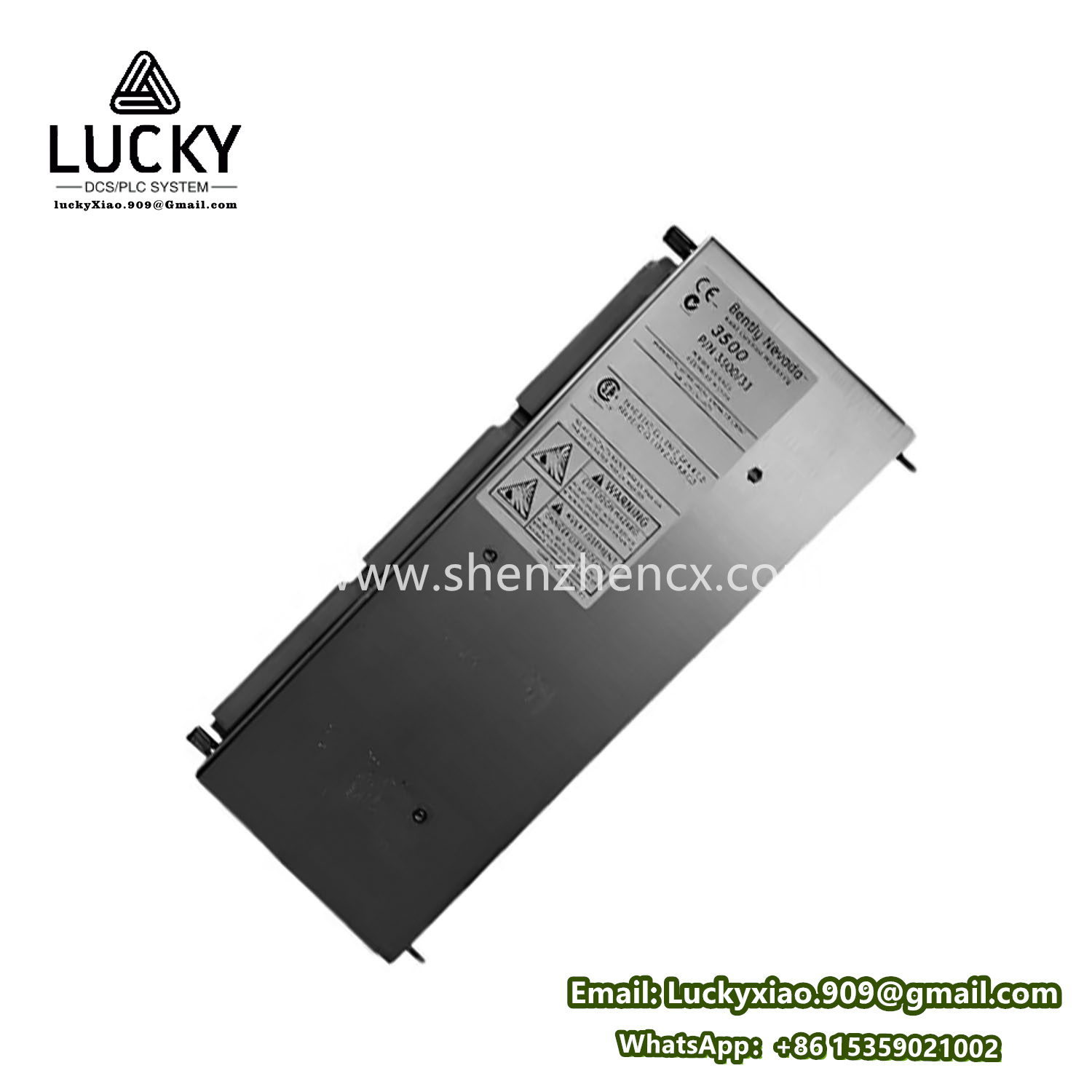

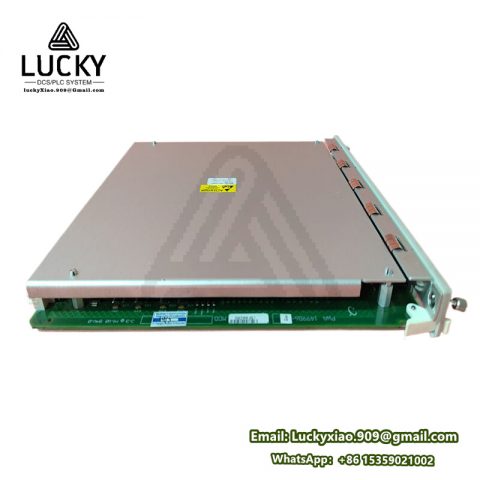

Bently Nevada 3500/33-01-00 149992-03: Multi-Function Machinery Protection Module
Product Description
The Bently Nevada 3500/33-01-00 149992-03 is a versatile multi-function machinery protection module, a core component of the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. Designed to monitor multiple critical parameters of rotating machinery, this module integrates vibration, position, and temperature measurements into a single unit, providing comprehensive insights into machinery health. With advanced signal processing and configurable alarm capabilities, it enables early detection of faults such as unbalance, misalignment, and bearing degradation, ensuring reliable operation of critical industrial assets and minimizing unplanned downtime.
Product Parameters
|
Parameter
|
Specification
|
|
Input Channels
|
3 universal input channels supporting vibration, position, and temperature sensors
|
|
Vibration Measurement Range
|
±500 mV peak (proximity probes); 0.1–100 mm/s (velocity transducers)
|
|
Position Measurement Range
|
0–2000 μm (shaft displacement, thrust position)
|
|
Temperature Measurement Range
|
-20°C to +150°C (via RTD inputs)
|
|
Frequency Response
|
0.5 Hz to 10 kHz (vibration); 0.1 Hz to 1 Hz (temperature)
|
|
Sampling Rate
|
51.2 kHz per channel
|
|
Alarm Configuration
|
Configurable alarm and danger thresholds with adjustable delays (0.1–60 s)
|
|
Output Signals
|
4–20 mA analog output per channel; digital data via 3500 backplane
|
Product Specifications
- Power Supply: 24 VDC ± 20% with a maximum current consumption of 350 mA, compatible with 3500 system redundant power supplies.
- Operating Temperature: 0°C to 60°C (32°F to 140°F), ensuring reliable performance in industrial control rooms and plant floor environments.
- Storage Temperature: -40°C to 85°C (-40°F to 185°F), maintaining durability during transportation and long-term storage.
- Humidity Resistance: 5% to 95% non-condensing, suitable for operation in humid settings such as coastal facilities and paper mills.
- Dimensions: 160 mm (width) × 100 mm (height) × 200 mm (depth) (6.3 in × 3.9 in × 7.9 in), designed to fit seamlessly into the 3500 system rack.
- Weight: Approximately 1.6 kg (3.5 lbs), lightweight for easy installation within the system framework.
- Mounting: Rack-mounted in 3500 system enclosures with secure locking mechanisms to prevent vibration-induced dislodgment.
- Certifications: Complies with API 670, IEC 61010-1, and IEC 61326, ensuring adherence to global industrial safety and EMC standards.
Series
The 3500/33-01-00 149992-03 is an integral part of the Bently Nevada 3500 series, a comprehensive suite of machinery protection and condition monitoring solutions. The 3500 series features modular components, including specialized vibration monitors, communication gateways, power supplies, and multi-function modules like the 3500/33. Renowned for scalability, reliability, and compliance with industry standards, the series is trusted worldwide to protect critical rotating machinery in sectors such as power generation, oil & gas, and chemical processing. The 3500/33 enhances the series by offering multi-parameter monitoring, reducing the need for multiple single-function modules and simplifying system architecture.
Features
Multi-Parameter Integration
3 universal input channels support vibration (proximity/velocity), position, and temperature (RTD) measurements, enabling comprehensive monitoring of rotating machinery health in a single module.
High-Resolution Data Capture
A 51.2 kHz sampling rate per channel ensures detailed signal capture, allowing detection of subtle fault patterns (e.g., early bearing wear) for precise diagnostics.
Flexible Sensor Compatibility
Compatible with a wide range of Bently Nevada and third-party sensors, adapting to diverse machinery types from turbines and compressors to pumps and motors.
Intelligent Alarm Management
User-configurable alarm and danger thresholds with adjustable delays minimize false alarms while ensuring critical faults trigger immediate alerts, supporting timely maintenance actions.
Seamless System Integration
Connects to the 3500 system backplane to share data with the system controller and communication modules, enabling centralized monitoring, remote diagnostics, and integration with SCADA/DCS systems.
Function
The primary function of the 3500/33-01-00 149992-03 is to monitor, process, and analyze multiple critical parameters of rotating machinery. It collects analog signals from vibration, position, and temperature sensors, converts them to digital data via high-speed sampling, and applies advanced filtering to extract key metrics (e.g., vibration amplitude, shaft position, temperature). It compares these metrics against user-defined thresholds, triggering alarms via relays or system alerts when anomalies are detected. By integrating multiple measurements, it provides a holistic view of machinery health, enabling operators to identify interrelated faults and take proactive action.
Use
In industrial settings, the module is installed in the 3500 system rack, connected to sensors mounted on critical rotating equipment such as turbines, compressors, and pumps. It continuously monitors vibration at bearing housings, shaft position, and component temperatures, providing real-time data to operators via local HMIs or centralized control systems. Maintenance teams use its diagnostic data to schedule repairs, optimize maintenance intervals, and prevent catastrophic failures, ensuring reliable operation of high-value industrial assets.
Application Fields
Power Generation
Monitors steam/gas turbines, generators, and feedwater pumps in coal, gas, and nuclear plants, detecting rotor instability, bearing degradation, and overheating to ensure continuous electricity production.
Oil and Gas
Protects centrifugal compressors, pipeline pumps, and gas turbines in upstream, midstream, and downstream operations, withstanding high temperatures and corrosive environments to safeguard energy assets.
Chemical Processing
Tracks vibration, position, and temperature in reactors, mixers, and agitator pumps, enabling early fault detection to prevent leaks, process disruptions, and safety hazards in chemical manufacturing.
Pulp and Paper
Monitors paper machine rollers, motors, and fans, identifying misalignment, bearing wear, or overheating to minimize production downtime and maintain product quality in high-speed manufacturing.
Mining and Metals
Safeguards crushers, conveyor motors, and slurry pumps in mining operations, withstanding dust, vibration, and temperature extremes to ensure reliable performance in rugged environments.
In summary, the Bently Nevada 3500/33-01-00 149992-03 is a versatile multi-function module that enhances the 3500 system’s capability to monitor rotating machinery health. Its integration of multiple parameters, high-resolution data capture, and seamless integration make it essential for industries seeking comprehensive, cost-effective machinery protection solutions.
