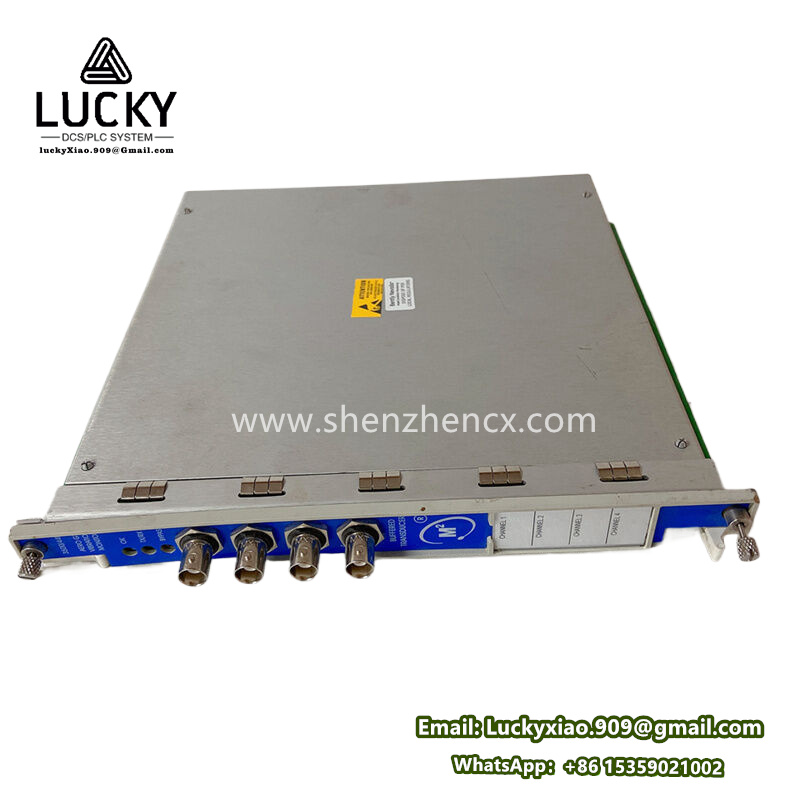

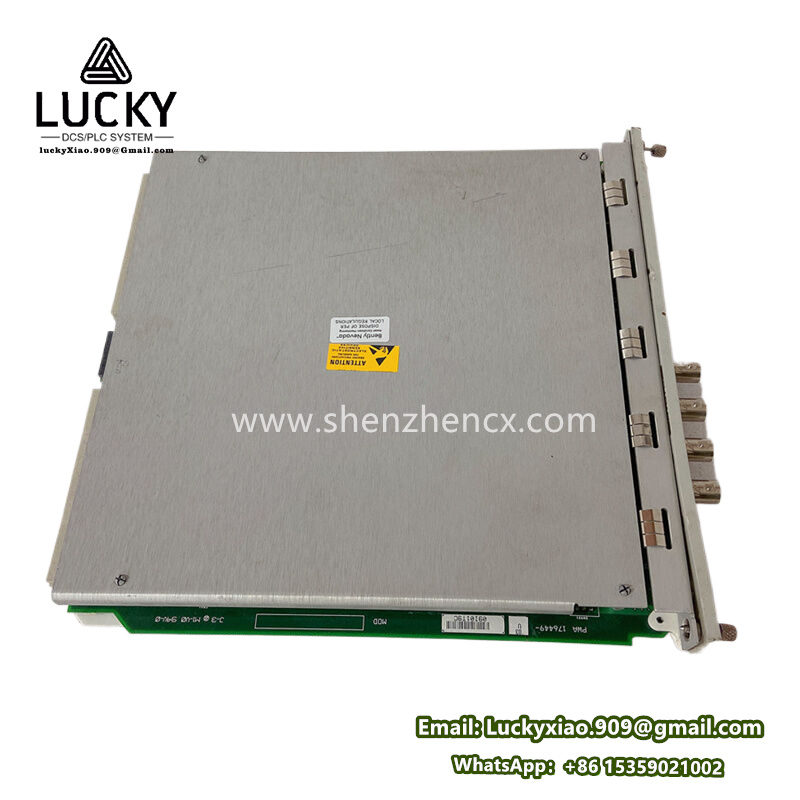

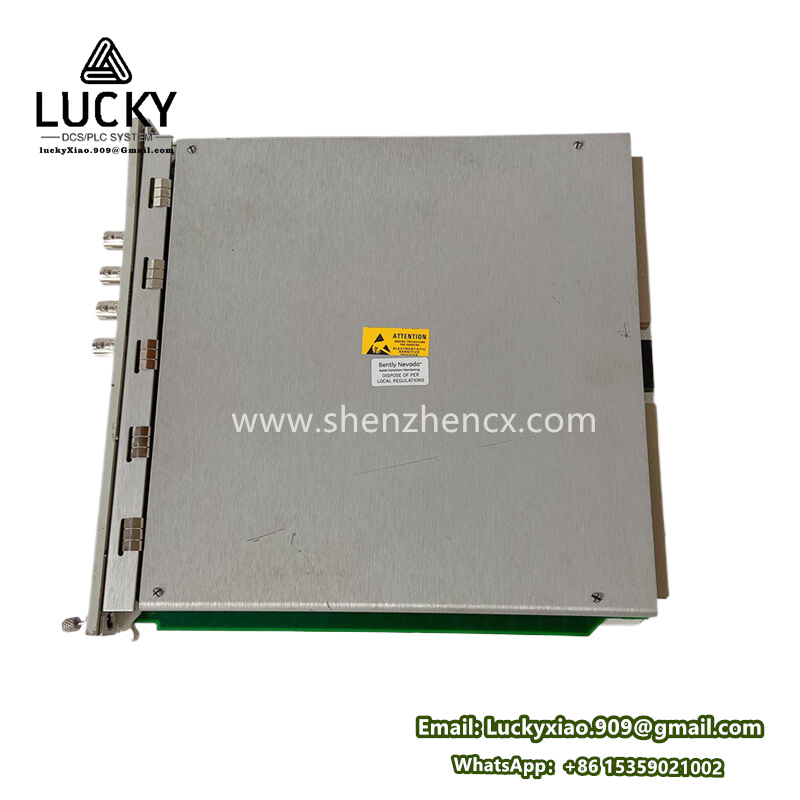

Bently Nevada 3500/44M 176449-03: Advanced Machinery Protection and Condition Monitoring Module
Product Description
The Bently Nevada 3500/44M 176449-03 is a high-performance multi-function monitoring module, a key component of the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. Designed to monitor critical parameters of rotating machinery, it integrates vibration, position, and temperature measurement capabilities into a single, compact unit. Equipped with advanced digital signal processing and flexible configuration options, this module delivers real-time data on machinery health, enabling early fault detection and proactive maintenance. Its rugged industrial design ensures reliable operation in harsh environments, making it essential for safeguarding critical assets in industries reliant on rotating equipment.
Product Parameters
- Input Channels: 4 universal input channels, supporting vibration (velocity, acceleration), position (proximity probe), and temperature (RTD) measurements.
- Vibration Measurement Range: ±500 mV peak (for proximity probes) and 0.1 mm/s to 100 mm/s (velocity), covering diverse vibration amplitude requirements.
- Position Measurement Range: 0–2000 μm, suitable for monitoring shaft position, thrust bearing clearance, and rotor displacement.
- Temperature Measurement Range: -20°C to +150°C (via RTD inputs), enabling accurate tracking of machinery component temperatures.
- Frequency Response: 0.5 Hz to 10 kHz for vibration signals, ensuring detection of both low-frequency and high-frequency anomalies.
- Sampling Rate: 51.2 kHz per channel, providing high-resolution data for detailed spectral analysis and fault diagnosis.
- Alarm Capacity: Configurable alarm and danger thresholds for each channel, with up to 8 independent relay outputs for alarm activation.
Product Specifications
- Power Supply: 24 VDC ± 20% with a maximum current consumption of 450 mA, compatible with standard industrial power systems.
- Operating Temperature: 0°C to 60°C, designed to function reliably in typical industrial environments with temperature variations.
- Storage Temperature: -40°C to 85°C, ensuring durability during transportation and long-term storage.
- Humidity Resistance: 5% to 95% non-condensing, maintaining performance in humid industrial settings without corrosion or signal degradation.
- Communication Interface: Integrates with the 3500 system backplane for high-speed data transmission to the system controller and other modules.
- Dimensions: 160 mm (width) × 100 mm (height) × 200 mm (depth), designed to fit into the 3500 system rack with standard mounting.
- Weight: Approximately 1.9 kg, lightweight for easy installation within the system framework.
- Relay Outputs: 8 Form C relays (changeover contacts) with a switching capacity of 250 VAC / 2 A or 30 VDC / 2 A, supporting flexible alarm and control actions.
Series
The 3500/44M 176449-03 belongs to the Bently Nevada 3500 series, a comprehensive lineup of machinery protection and condition monitoring solutions. The 3500 series is renowned for its modular design, scalability, and reliability, offering a wide range of modules including vibration monitors, position monitors, communication gateways, and power supplies. These modules work together to create customized monitoring systems tailored to specific industrial needs, ensuring compliance with global standards such as API 670. The series is trusted by industries worldwide for its ability to protect critical rotating machinery and minimize operational downtime.
Features
Multi-Parameter Monitoring
With 4 universal input channels, the module supports vibration, position, and temperature measurements, eliminating the need for multiple single-function modules. This integration simplifies system design, reduces installation complexity, and lowers overall costs.
Advanced Signal Processing
High-speed sampling and digital filtering enable precise analysis of machinery signals, including time-domain waveforms, frequency spectra, and trend data. This allows for early detection of subtle fault patterns such as bearing wear, rotor imbalance, or misalignment.
Flexible Configuration
Users can configure input types, alarm thresholds, and measurement units via intuitive software, tailoring the module to specific machinery requirements. This flexibility ensures compatibility with a wide range of sensors and industrial applications.
Robust Industrial Design
The module’s rugged construction resists vibration, electromagnetic interference (EMI), and temperature fluctuations, ensuring reliable operation in harsh environments such as power plants, refineries, and manufacturing facilities.
Seamless System Integration
Through the 3500 system backplane, the module communicates with the system controller and other modules, enabling centralized data management, remote monitoring, and integration with SCADA/DCS systems for comprehensive machinery health oversight.
Function
The primary function of the 3500/44M 176449-03 is to collect, process, and analyze real-time data from sensors mounted on rotating machinery. It converts analog sensor signals into digital data, performs advanced signal analysis, and compares measurements against user-defined thresholds. When abnormal conditions are detected, the module triggers alarms to alert operators and can activate safety actions such as equipment shutdowns. It also stores historical data for trend analysis, supporting predictive maintenance strategies and long-term machinery health management.
Use
In industrial settings, the module is installed in the 3500 system rack, where it connects to sensors on critical rotating equipment such as turbines, compressors, pumps, and motors. It continuously monitors parameters like bearing vibration, shaft position, and casing temperature, providing real-time insights into machinery condition. Operators use this data to assess equipment performance, schedule maintenance, and ensure safe operation. The module’s alarm outputs can be integrated with control systems to automate responses to critical faults, minimizing the risk of equipment damage and unplanned downtime.
Application Fields
Power Generation
In coal, gas, and nuclear power plants, the module monitors vibration and temperature in steam turbines, generators, and feedwater pumps. It detects early signs of rotor instability or bearing degradation, ensuring reliable electricity production and reducing the risk of costly outages.
Oil and Gas
For upstream drilling rigs, midstream pipelines, and downstream refineries, the module monitors compressors, centrifugal pumps, and gas turbines. It withstands harsh conditions such as high temperatures, corrosive environments, and heavy vibration, ensuring continuous operation of critical assets.
Chemical Processing
In chemical plants, the module tracks vibration and temperature in mixers, agitators, and reactor pumps. Early fault detection prevents leaks, equipment failures, and process disruptions, safeguarding personnel and ensuring regulatory compliance.
Pulp and Paper
Mills use the module to monitor vibration in paper machine rollers, motors, and fans. It identifies issues like roller misalignment or bearing wear, minimizing production downtime and maintaining product quality.
Mining and Metals
In mining operations, the module monitors crushers, conveyor motors, and slurry pumps. By detecting vibration anomalies, it reduces equipment downtime in rugged environments where reliability is critical for productivity and safety.
In summary, the Bently Nevada 3500/44M 176449-03 is a versatile and reliable monitoring module that plays a crucial role in protecting critical rotating machinery. Its multi-parameter measurement capabilities, advanced signal processing, and seamless integration with the 3500 system make it an indispensable tool for industries seeking to enhance operational efficiency, reduce maintenance costs, and ensure workplace safety.
