Introduction

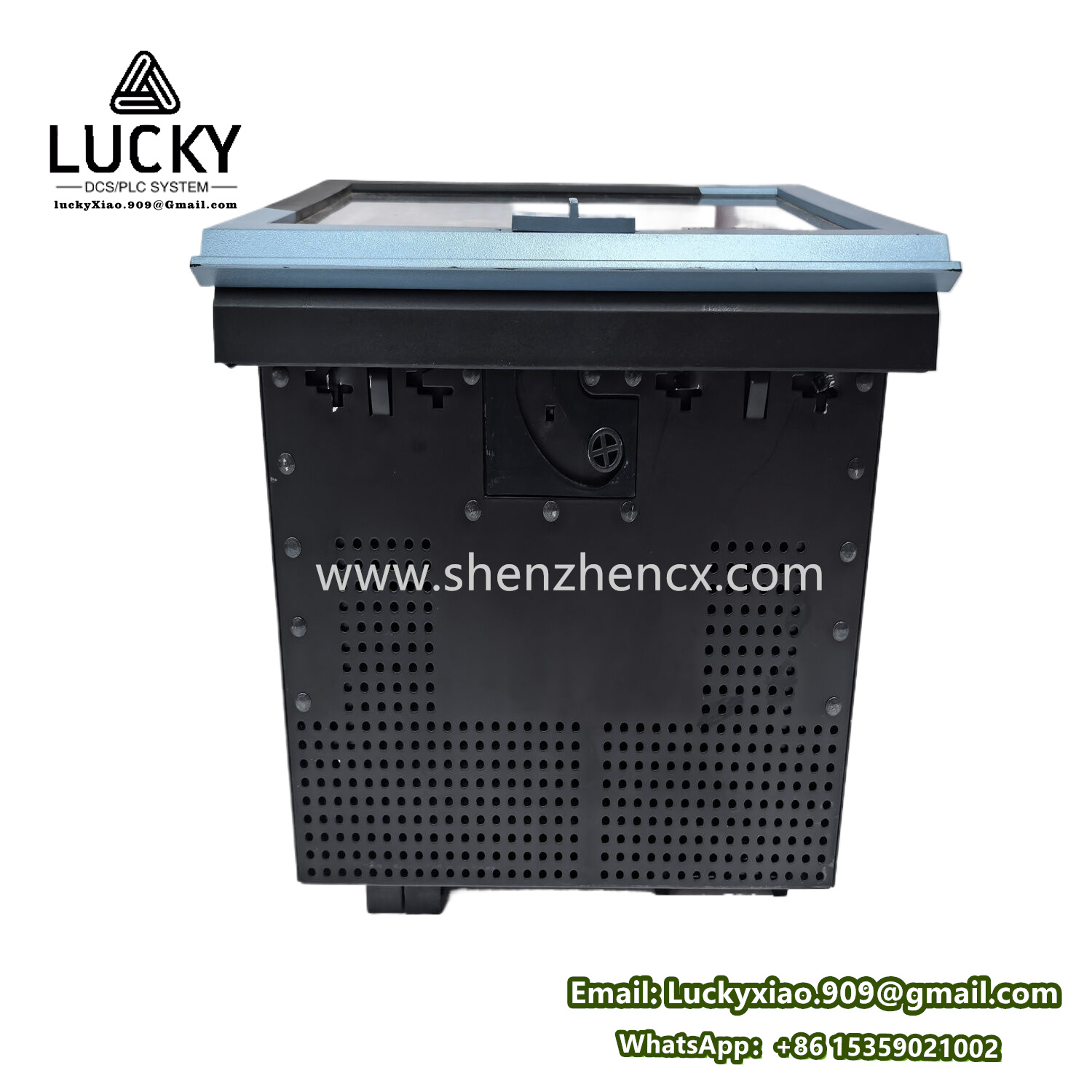

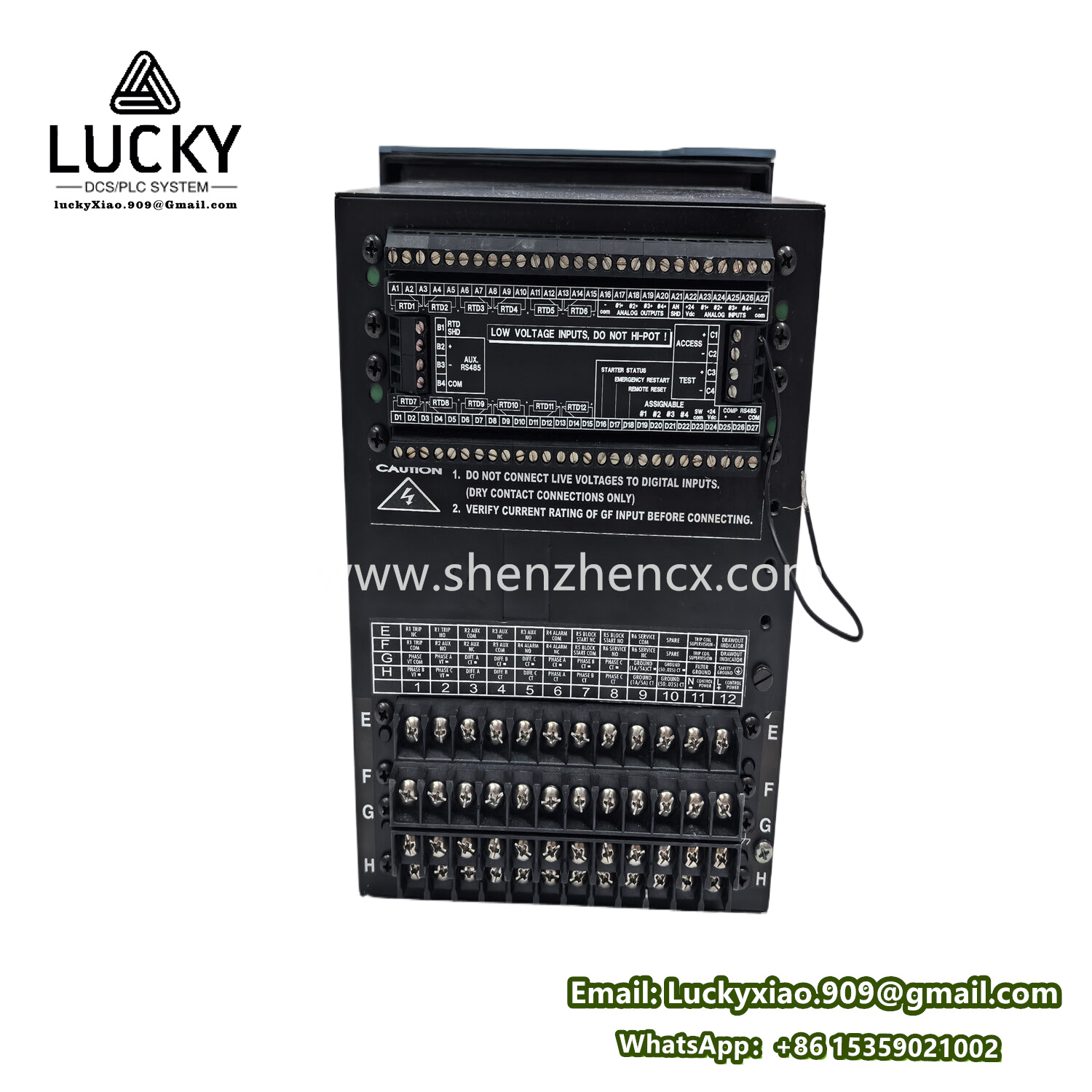

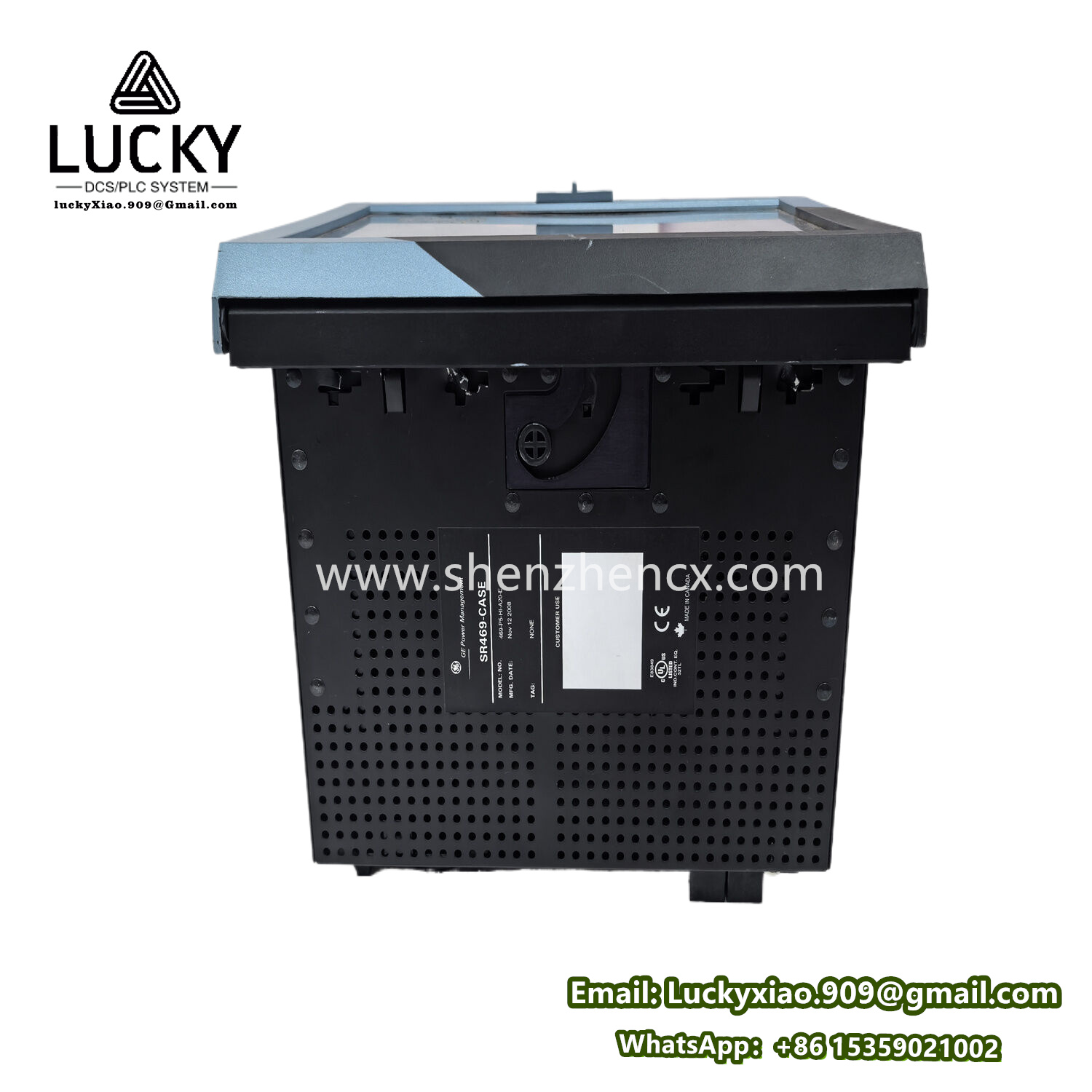

The GE 469-P5-HI-A20-E is a versatile, digital motor management relay designed for comprehensive protection, control, and monitoring of medium-voltage and critical low-voltage motors. Part of GE’s Multilin 469 series, it integrates advanced protection functions, diagnostics, and communication capabilities into a robust package suitable for demanding industrial environments. Its high-resolution display and intuitive interface simplify setup and operation.
Key Features:
- Advanced Motor Protection: Thermal overload (RTD/bi-metallic modeling), locked rotor, short-circuit, ground fault, phase imbalance, under/over voltage, under/over frequency, stall, jam, loss of load.
- Monitoring & Diagnostics: Real-time monitoring of currents, voltages, power, energy, temperatures (via RTDs), status. Event recording (sequence of events – SOE) with time-stamping. Comprehensive diagnostic capabilities.
- Control Functions: Start/stop control, restart inhibit, start supervision, undervoltage restart blocking.
- Communication: Built-in Modbus RTU (RS-485) for integration into SCADA, DCS, or PLC systems.

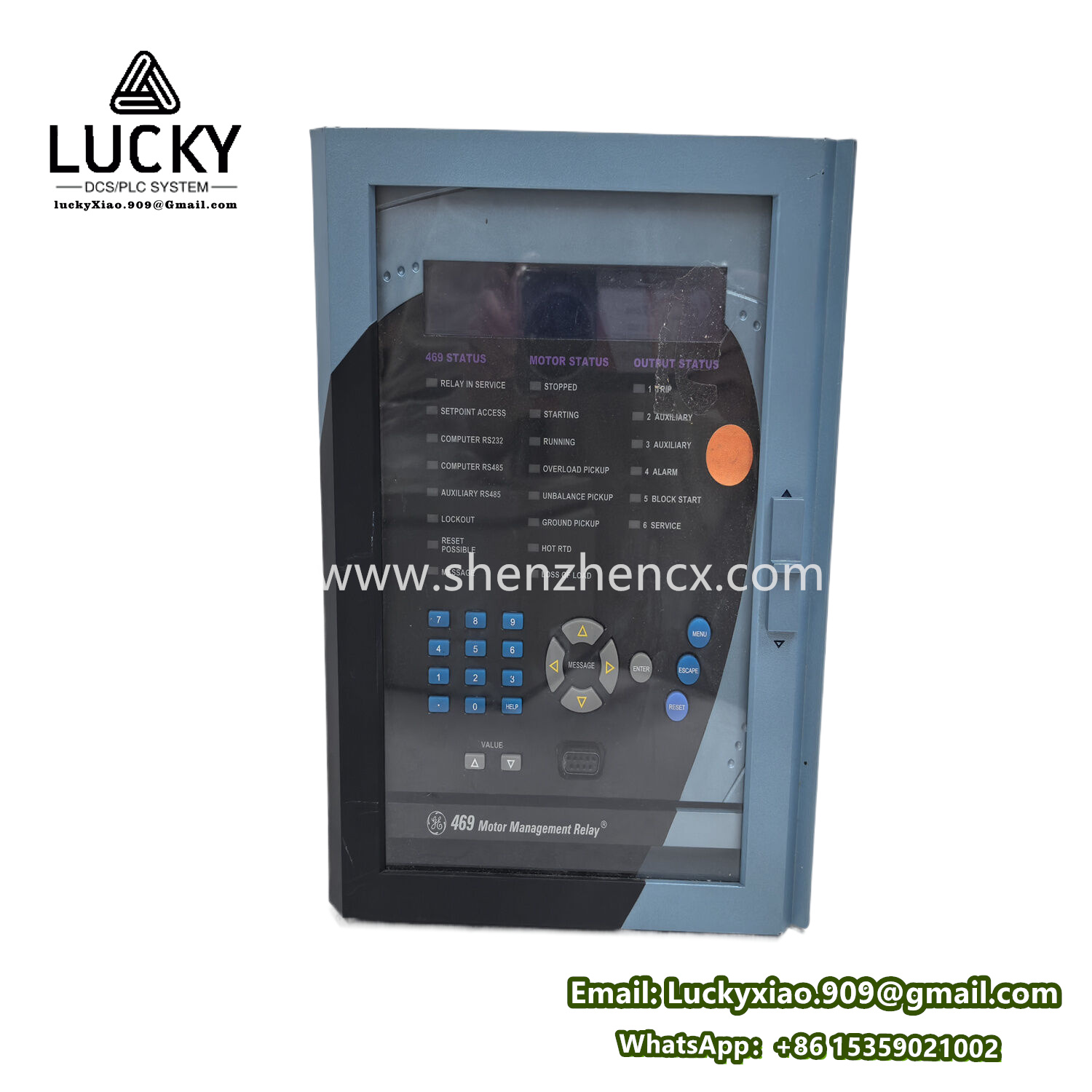

- User Interface: High-resolution backlit LCD display with intuitive menu navigation and status LEDs.
- Robust Design: Engineered for harsh industrial environments (high EMI, temperature, humidity).
Primary Functions / Role:
- Protect: Prevent motor damage from electrical faults, thermal stress, and abnormal operating conditions.
- Control: Automate motor start/stop sequences and provide supervision.
- Monitor: Provide real-time operational data (currents, voltages, power, status, temperatures).
- Diagnose: Record events, identify developing problems, and aid in troubleshooting.
- Communicate: Integrate motor data into plant control and monitoring systems.
Typical Applications & Industries:
- Industries: Oil & Gas (Pumps, Compressors), Petrochemical/Chemical (Agitators, Conveyors), Mining (Crushers, Fans), Power Generation (Boiler Feed Pumps, ID/FD Fans), Water/Wastewater (Pumps), Pulp & Paper, Manufacturing.
- Equipment: Medium Voltage Motors (Typical), Critical Low Voltage Motors, Pumps, Fans, Compressors, Conveyors, Crushers, Mixers.
GE 469-P5-HI-A20-E Specifications Summary
|
Parameter Category
|
Specification
|
|---|---|
|
Model Series
|
GE Multilin 469 Motor Management Relay
|
|
Phase Current Input
|
5A AC Nominal (Phase CT Secondary Input Rating)
|
|
Voltage Input
|
Phase-to-Phase Voltage Sensing Inputs (Optional VT Input Module usually required)
|
|
Ground Fault
|
Dedicated Zero-Sequence CT Input (Typically 0.1A or 1A or 5A)
|
|
Thermal Inputs
|
RTD Inputs (Typically 6 or more) for direct motor winding/bearing temp monitoring
|
|
Protection Functions
|
Thermal Overload, Locked Rotor, Short-Circuit, Instantaneous Overcurrent, Ground Fault (50N/51N), Phase Imbalance, Under/Over Voltage, Under/Over Frequency, Stall/Jam, Loss of Load, RTD Overtemp, Start Supervision, Restart Inhibit
|
|
Control Functions
|
2 Form-C Output Relays (Trip, Alarm typically), Start/Stop via contact inputs, Programmable Logic (FlexLogic™)
|
|
Communications
|
Integrated: 1x RS-485 (Modbus RTU protocol). Optional: Ethernet (TCP/IP Modbus, IEC 61850), Profibus DP, DeviceNet modules available.
|
|
Display/Interface
|
High-resolution backlit LCD, Navigation pushbuttons, Status LEDs
|
|
Auxiliary Power
|
Typically Available Ranges: 24-48V DC, 48-125V DC, 110-240V AC/DC, 100-240V AC/DC (Exact options depend on suffix ordering) Check specific model datasheet
|
|
Relay Outputs
|
Multiple programmable Form-C (NO/NC) contacts – Quantity depends on model/options (e.g., Trip, Alarm, Auxiliary).
|
|
Digital Inputs
|
Multiple programmable contact inputs (e.g., Start, Stop, Reset, Remote/Local) – Quantity depends on model/options.
|
|
Environment
|
Operating Temp: -40°C to +70°C (-40°F to +158°F), High Humidity, High EMI Immunity (as per industrial standards)
|
|
Approvals
|
UL, CE, IEC, etc. (Specific certifications depend on model and market)
|
|
Mounting
|
DIN Rail Mounting
|
|
Key Suffix Meanings
|
P5: Phase CT = 5A Nominal Input. HI: Human Interface (Display & Keypad). A20: Specific hardware/software feature set level within 469 series (GE internal designation). E: Voltage Rating/Suffix (Often indicates 120V AC or universal AC/DC range – Must verify exact voltage from datasheet/model code decoder). |
Important Notes:
- Specific Voltage: The
-Esuffix usually indicates an AC/DC voltage range like 100-240V AC/DC or 110-240V AC/DC, but this is critical to confirm using the official GE model code decoder or datasheet for the exact auxiliary power requirement of the specific469-P5-HI-A20-Eunit. - Detailed Specifications: The table provides a summary. For full, precise specifications (exact number of I/O, full voltage/current ranges, accuracy, communication module details, certification listings), always consult the official GE Multilin 469 Series Product Manual and the specific model’s datasheet.
- Configuration: Extensive configuration is possible via the front panel or software tools (GE EnerVista 469 Setup).
