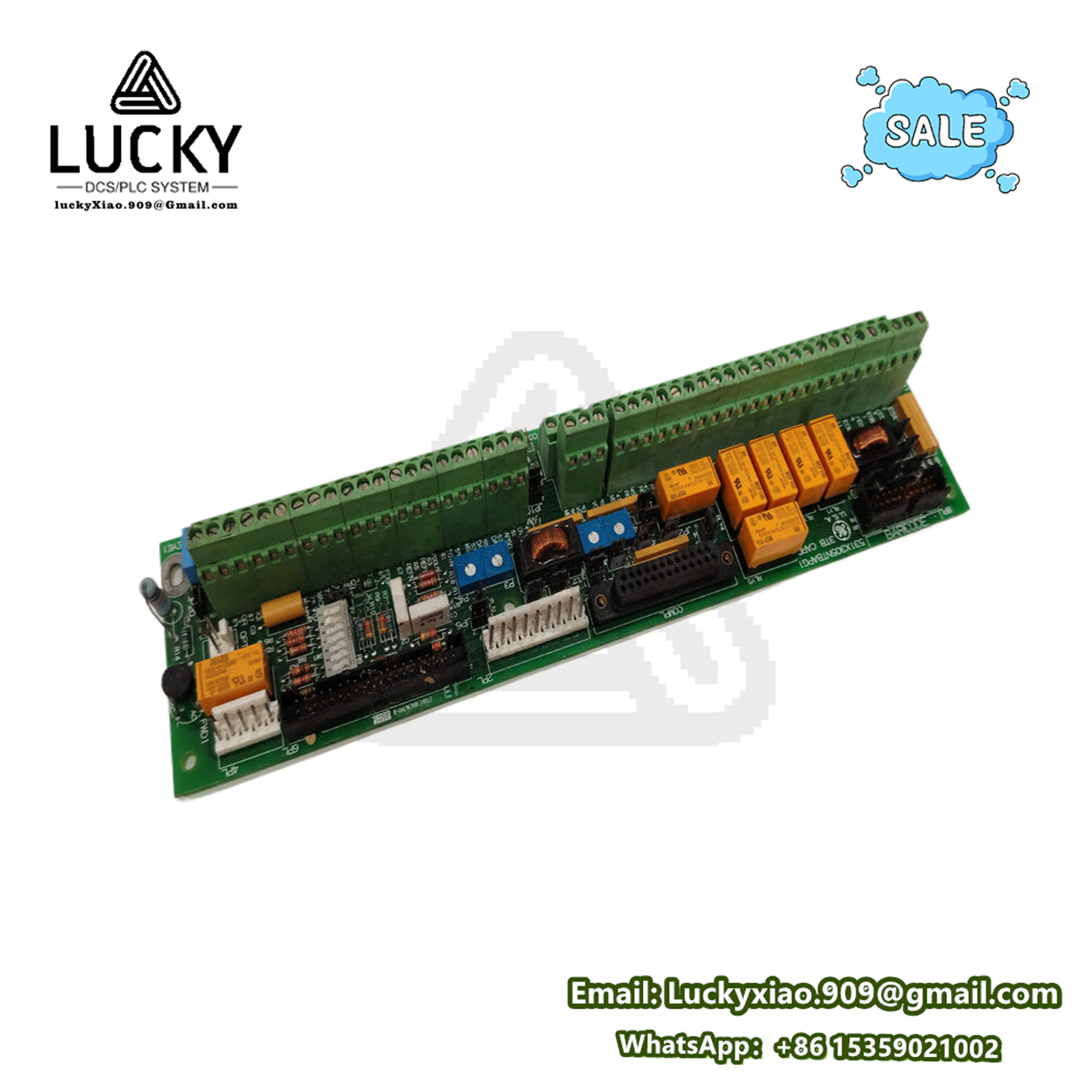

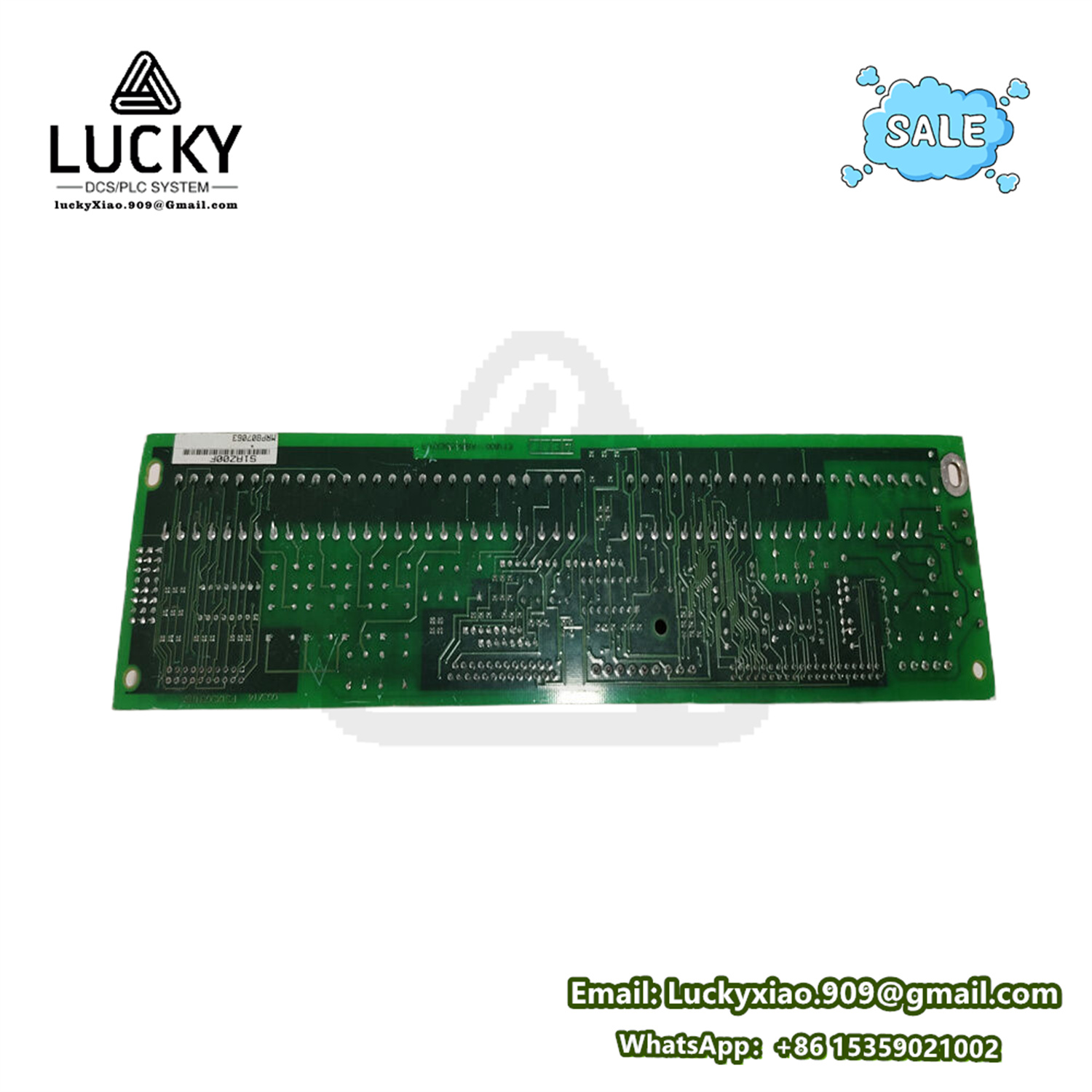

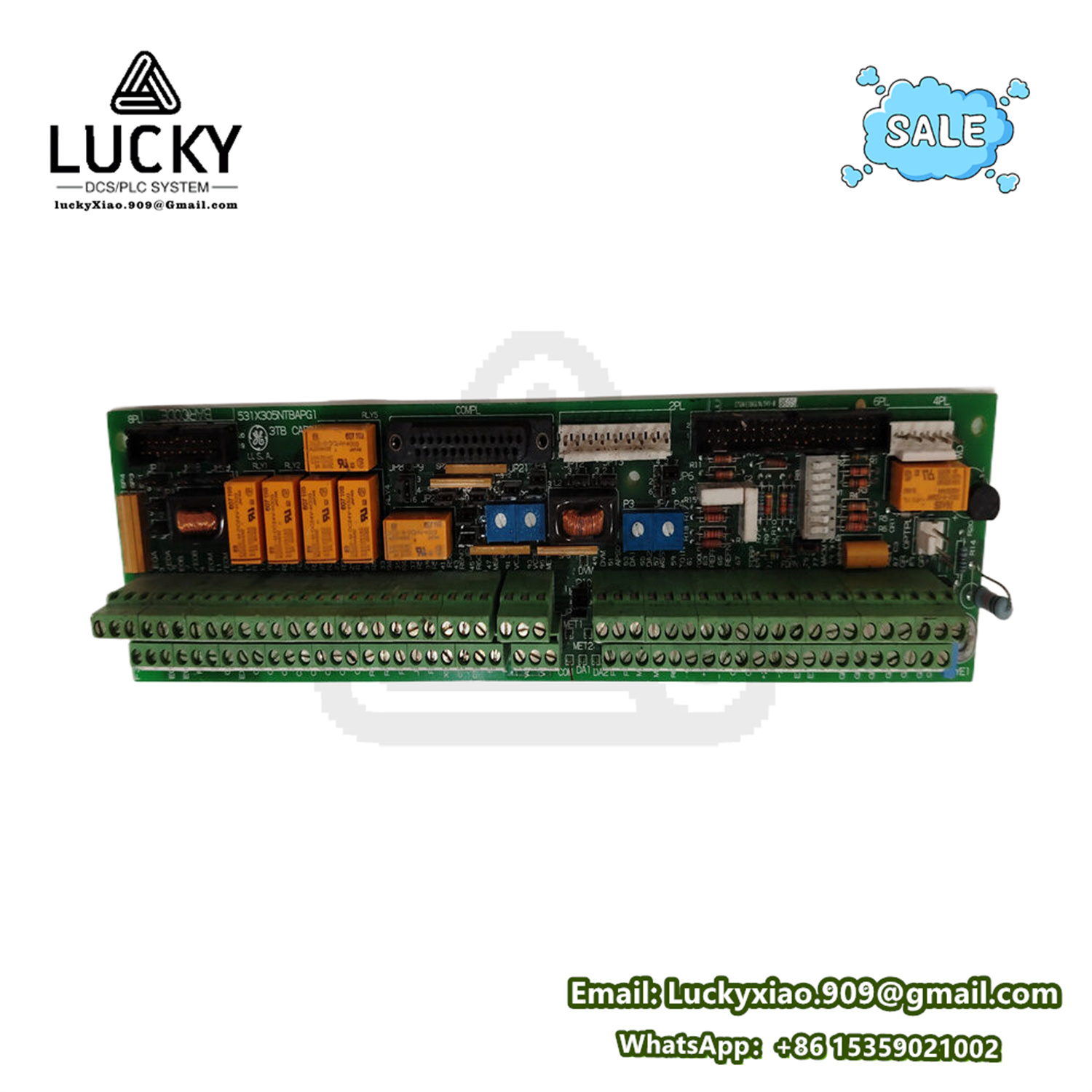

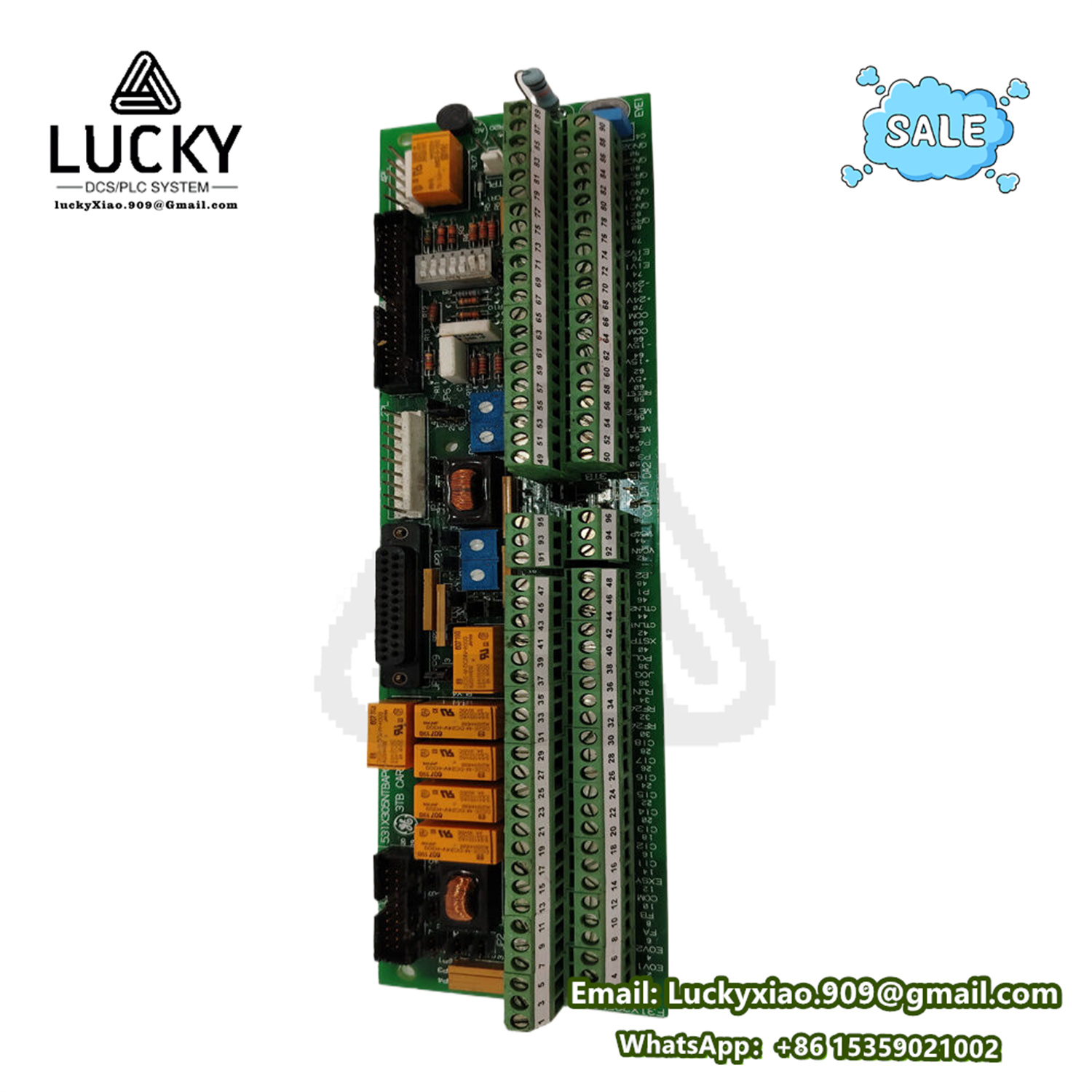

GE Electric | 531X305NTBAPG1 | Analog Input Module
Product Description:
The GE 531X305NTBAPG1 is a High-Density Universal Analog Input Module for the PACSystems™ RX3i PLC platform. It provides isolated, high-precision signal conditioning for diverse industrial sensors by converting voltage/current inputs into digital data for process monitoring and control.
Product Parameters / Specifications (531X305NTBAPG1):
|
Feature
|
Specification / Description
|
|---|---|
|
Manufacturer
|
GE Intelligent Platforms (Emerson)
|
|
Series
|
PACSystems™ RX3i (IC695 Series)
|
|
Part Number
|
531X305NTBAPG1
|
|
Module Type
|
Universal Analog Input (Voltage/Current)
|
|
Channels
|
16 channels (software-selectable per channel)
|
|
Supported Signals
|
Voltage: ±10V, ±5V, 0-5V, 0-10V
Current: 0-20mA, 4-20mA, ±20mA |
|
Resolution
|
16-bit (0.0015% full-scale)
|
|
Accuracy
|
±0.01% @ 25°C, ±0.04% full range
|
|
Sampling Rate
|
1 ms per channel (all ch. scanned in 16ms)
|
|
Input Impedance
|
Voltage: >1MΩ, Current: 50Ω
|
|
Overvoltage Prot.
|
±35V continuous
|
|
Isolation
|
250V AC channel-to-channel & channel-to-backplane
|
|
Common-Mode Rejection
|
>120 dB @ 50/60 Hz
|
|
Power Consumption
|
1.8W @ 5V DC (backplane)
|
|
Operating Temp.
|
-40°C to +70°C
|
|
Certifications
|
UL/cUL, CE, IEC 61131-2, RoHS, SIL2 (IEC 61508)
|
Key Features:
- Signal Flexibility – Per-channel software configuration for voltage/current without hardware jumpers.
- Ultra-High Precision | 16-bit ADC with auto-calibration and drift compensation.
- Diagnostics | Wire break, over-range, calibration fault, and module health alarms.
- Noise Immunity | Integrated EMI/RFI filtering and galvanic isolation.
- Hot-Swap Capability | Live insertion/removal in RX3i backplanes.
- Compact Form | 2-slot width (half the size of legacy modules).
Primary Function & Purpose:
Converts industry-standard analog signals into high-resolution digital values for:
- Real-time process monitoring (pressure, flow, level, etc.).
- Closed-loop control of actuators, valves, and drives.
- Predictive maintenance through signal trend analysis.
Typical Applications:
- Process Instrumentation – Pressure transmitters, flow meters (4-20mA signals).
- Motor Control Centers – VFD feedback, load monitoring (0-10V).
- Tank Farm Management – Level sensors in oil/chemical storage.
- Water Treatment – pH/conductivity analyzer inputs.
- Test Benches – Calibration systems for analog devices.
Application Fields:
Critical for multi-sensor industrial automation in:
- Chemical Processing: Reactor pressure monitoring, additive dosing control.
- Power Generation: Turbine governor feedback, fuel flow measurement.
- Manufacturing: Robotic position feedback, hydraulic pressure control.
- Mining: Conveyor load cells, slurry density sensors.
- Renewables: Wind turbine pitch control, solar inverter telemetry.
