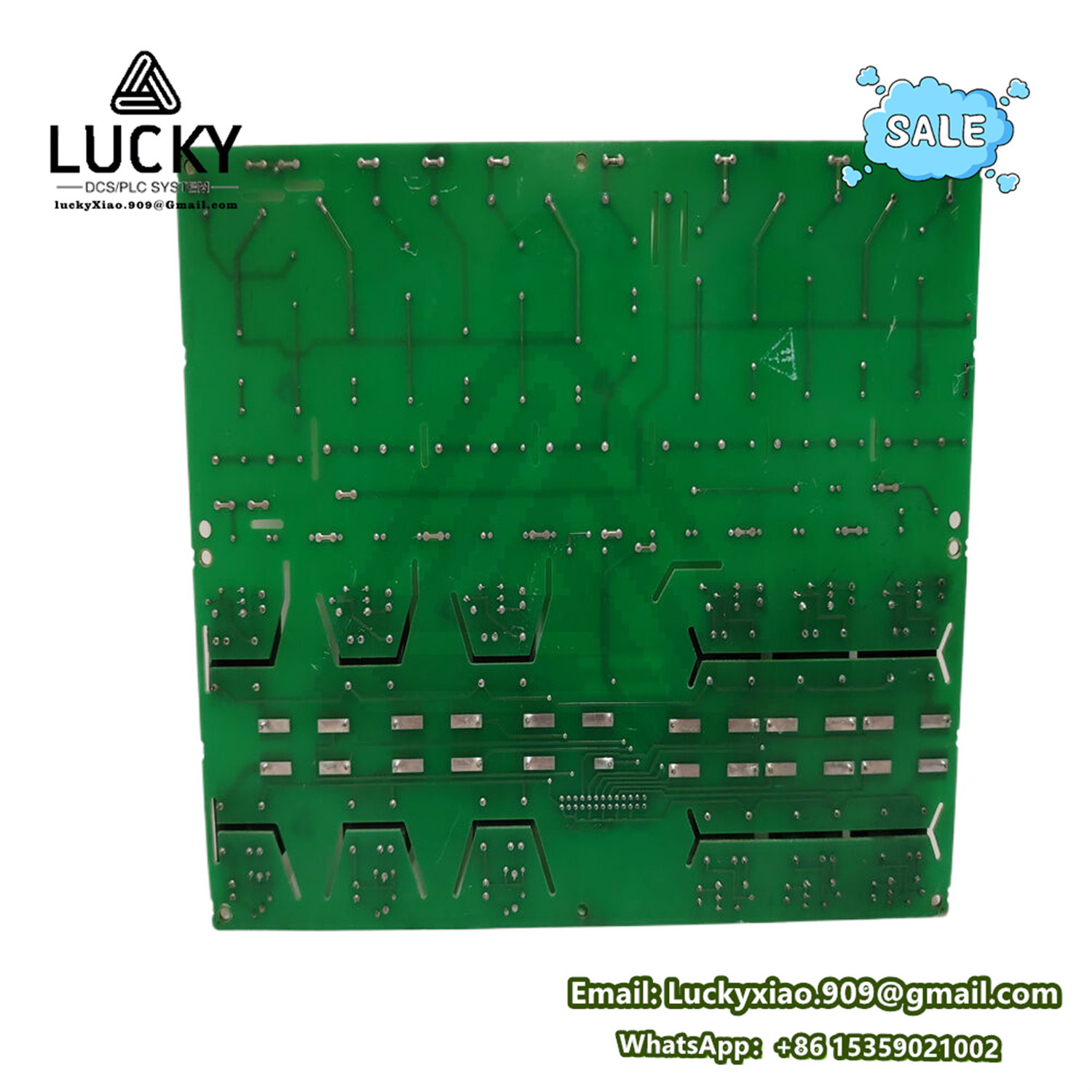

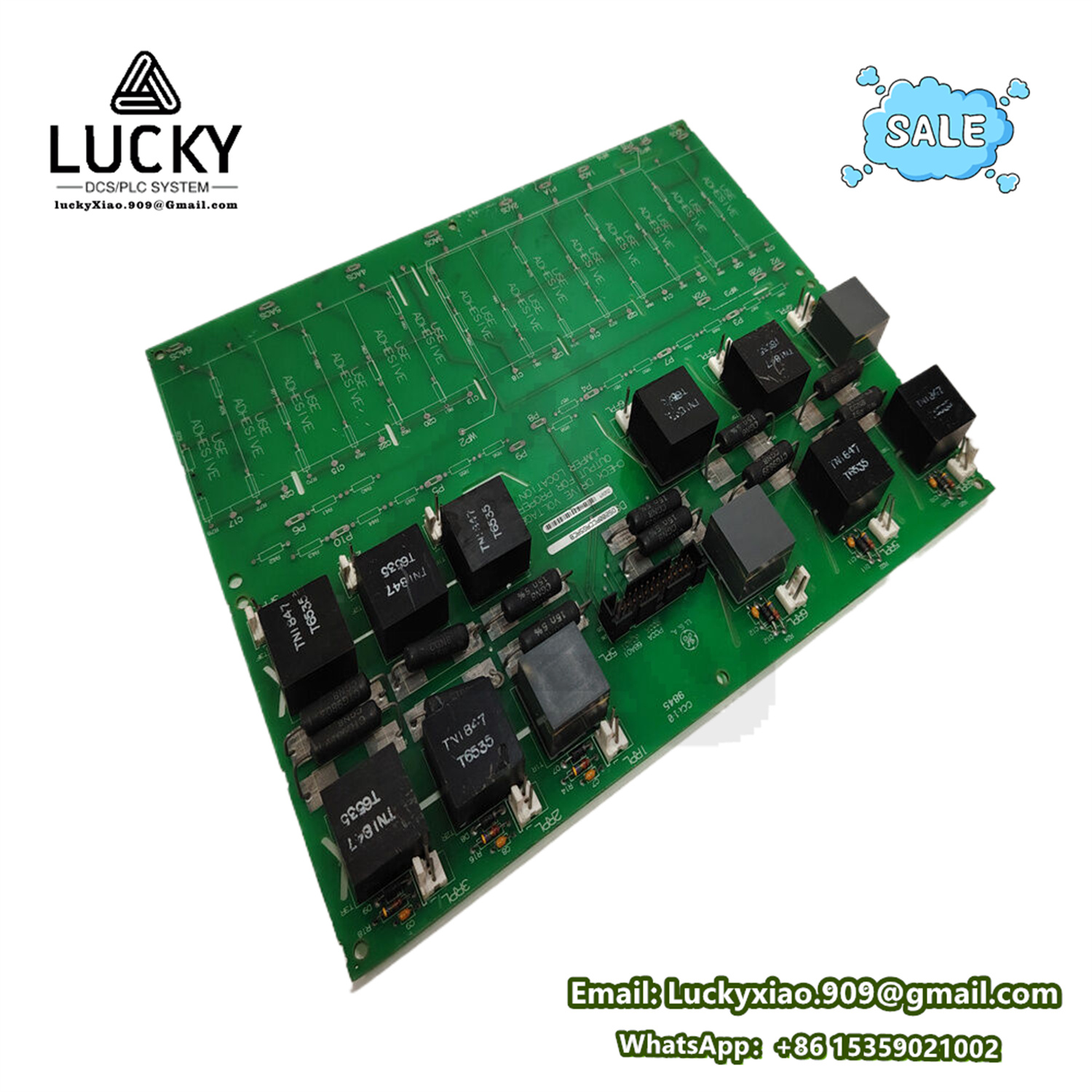

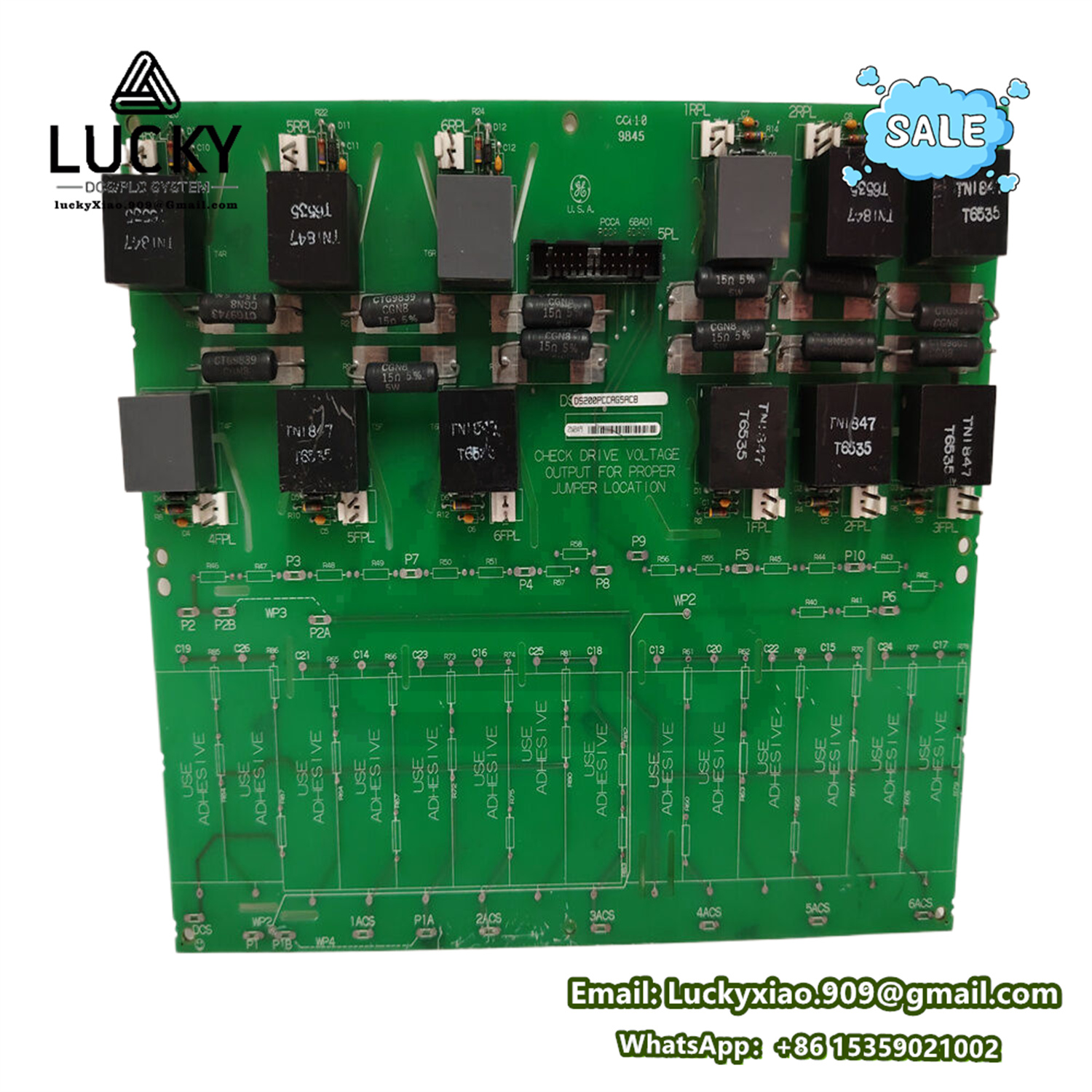

GE Electric | DS200PCCAG5ACB | Power Conditioning and Analog Signal Converter Module
Product Description:
The GE DS200PCCAG5ACB is a Power Conditioning and Analog Signal Converter Module for Speedtronic Mark V turbine systems. It provides isolated power conversion and precision analog signal conditioning (e.g., 4–20mA to ±10VDC) for critical sensors and actuators in harsh industrial environments.
Product Parameters / Specifications (DS200PCCAG5ACB):
|
Feature
|
Specification / Description
|
|---|---|
|
Manufacturer
|
GE Energy / GE Industrial Systems
|
|
Series
|
Speedtronic Mark V Turbine Control System
|
|
Part Number
|
DS200PCCAG5ACB
|
|
Module Type
|
Power Supply & Analog Signal Conditioner
|
|
Input Voltage
|
24VDC ±10% (Redundant Input Terminals)
|
|
Output Power
|
5VDC (Logic) & ±15VDC (Analog) @ 95% Efficiency
|
|
Analog Channels
|
8 Channels (Configurable I/O)
|
|
Input Types
|
4–20mA, 0–10VDC, RTD, Thermocouple (J/K/T)
|
|
Output Types
|
0–10VDC, ±10VDC, 4–20mA Sink/Source
|
|
Isolation
|
1500V AC (Channel-to-Channel & Field-to-Logic)
|
|
Accuracy
|
±0.05% FS (Signal Conversion)
|
|
Drift
|
<50ppm/°C (Temperature)
|
|
CMRR
|
>120dB @ 60Hz (Noise Rejection)
|
|
Bandwidth
|
0-1kHz (Programmable Filtering)
|
|
Diagnostics
|
LED per Channel (Power/Error/Active)
|
|
MTBF
|
>250,000 hours @ 40°C
|
|
Mounting
|
Mark V I/O Pack (C-Series Racks)
|
|
Operating Temperature
|
-40°C to +85°C
|
|
Compliance
|
UL 508, CE, IEC 61000-6-4 (EMC)
|
Key Features:
- Universal I/O Flexibility – Software-configurable input/output modes per channel.
- Galvanic Isolation – Prevents ground loops in distributed sensor networks.
- Redundant Power Inputs – Automatic failover with OR-ing diodes.
- Sensor Excitation – Provides 24VDC/10mA for 2-wire transmitters.
- Intrinsic Safety – Supports IS barriers for hazardous areas (Class I Div 2).
- Live Calibration – Field-adjustable zero/span without shutdown.
Primary Function & Purpose:
Converts and isolates analog field signals (e.g., pressure, temperature) to Mark V-compatible levels while eliminating electrical noise, ground loops, and voltage spikes to ensure control system signal integrity.
Typical Applications:
- Turbine Sensor Interfaces – Conditions signals from:
- LVDT (Valve Position)
- Pressure Transmitters (Combustion Monitoring)
- Thermocouples (Exhaust Gas Temp)
- Actuator Control – Drives servo valves, I/P converters.
- Fuel Flow Metering – Isolates pulse outputs from flow computers.
- Vibration Monitoring – Buffers accelerometer signals to analyzers.
Application Fields:
Essential for signal reliability in:
- Power Generation: Gas/steam turbines, HRSGs, balance-of-plant systems.
- Oil & Gas: Compressor control, wellhead pressure monitoring.
- Water Treatment: Pump station control loops.
- Industrial Automation: Critical process skids (e.g., chemical injection).
