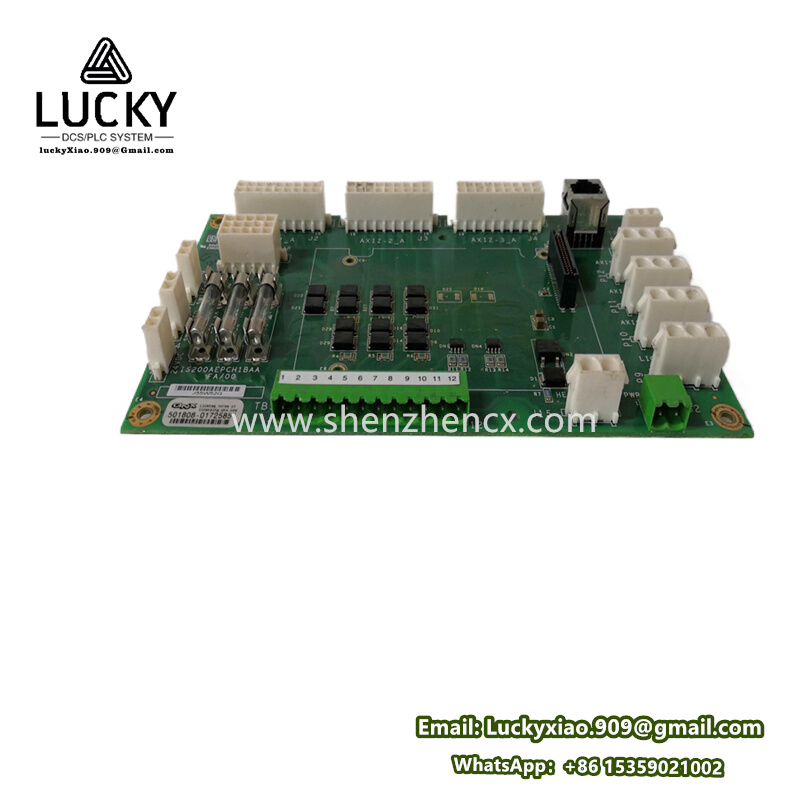

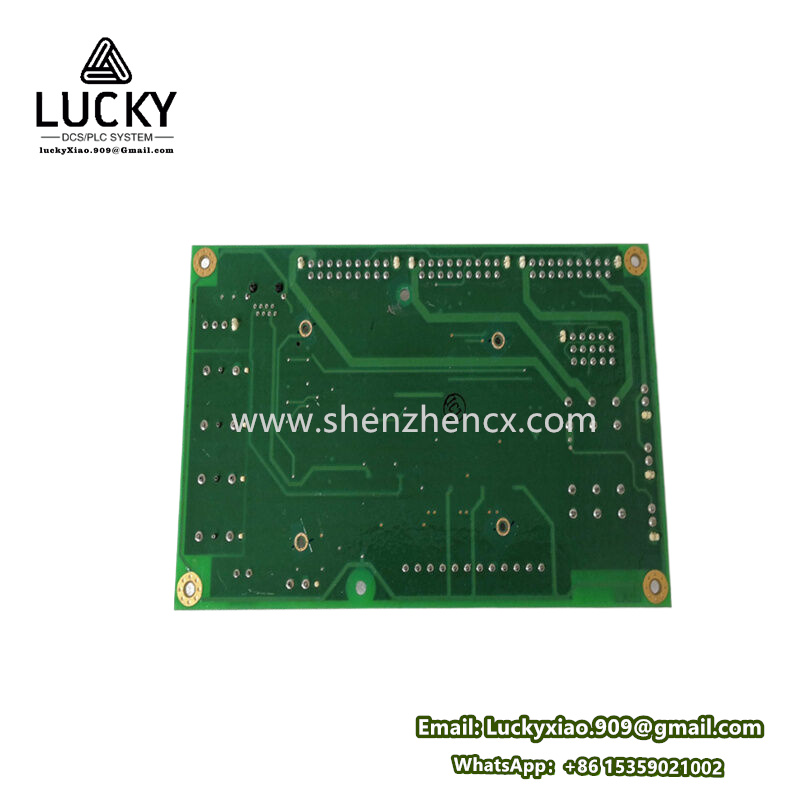

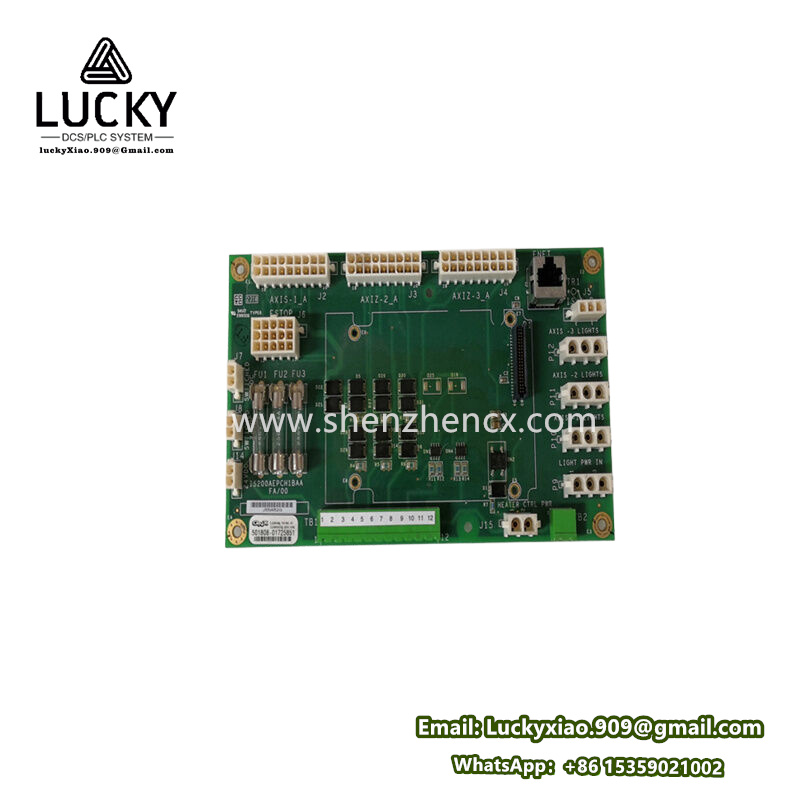

GE Electric | IS200AEPCH1BAA | Terminal Board
IS200AEPCH1BAA Product Overview
Functional Description:
The GE IS200AEPCH1BAA is a Terminal Board module for the Mark VIe gas/steam turbine control system. It provides signal conditioning and secure wiring interfaces between field devices (sensors, actuators) and Mark VIe I/O packs, enabling high-integrity data acquisition and control command routing.
Key Parameters & Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IS200AEPCH1BAA
|
|
Series
|
Mark VIe Turbine Control System
|
|
Function
|
Terminal Interface Board
|
|
Compatible I/O Packs
|
IS200/IS215 EPS* Series (e.g., EPSF, EPSM)
|
|
Connectors
|
2x 26-pin Amp Connectors (field side)
|
|
Wire Capacity
|
22 AWG (max), 0.2–1.5 mm²
|
|
Terminal Type
|
Screw terminal blocks (spring-clamp optional)
|
|
Isolation Voltage
|
250 V AC (field-to-logic)
|
|
Safety Ratings
|
SIL 3 (IEC 61508)
|
|
Operating Temp.
|
-40°C to +70°C
|
|
Humidity
|
0–95% non-condensing
|
|
Mounting
|
DIN rail or panel mount
|
|
Certifications
|
UL 508, CE, ATEX (Zone 2)
|
* EPS: Electrical Protective Signaling
Product Series
- Part of Mark VIe Terminal Board Family (compatible with EX21xx/IS20x/IS215 controllers).
Key Features
- Dual-Path Wiring: Dedicated terminals for redundant I/O packs.
- EMI Shielding: Metal casing with grounded backplate.
- Hot-Swappable: Replaceable without turbine shutdown.
- Color-Coded Terminals: Simplified wiring (green = safety, blue = analog).
- Fiber-Optic Ports: For communication with controller (via optional transceiver).
- Visual Indicators: LED status for power/signal integrity.
Functions & Roles
- Signal Routing: Bridges field devices (PT100, 4–20mA) to I/O packs.
- Galvanic Isolation: Prevents ground loops in analog circuits.
- Surge Protection: TVS diodes for transient voltage suppression.
- Safety System Integration: Interfaces with tripping modules.
- Diagnostics: Channel-level fault reporting via ToolboxST™.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Power Generation
|
Gas/steam turbine speed/valve control
|
|
Oil & Gas
|
Compressor station monitoring (pressure/temp)
|
|
Marine
|
Ship propulsion control systems
|
|
Industrial Plants
|
Critical pump/motor sequencing
|
|
Cogeneration
|
Heat recovery steam generator (HRSG) control
|
Documentation & Support
- Manual: GEH-6850 (Mark VIe Hardware Guide)
| Compatible Systems | Configuration Software |
|————————|—————————-|
| Mark VIe Controller | GE ToolboxST™ |
| EX2100e Excitation | Cimplicity HMI | - Replacements: IS200AEPCH1BBA (enhanced EMC), IS200AEPCH1BDA (high-temp)
Critical Notes:
- Safety Compliance: Requires redundant wiring per ANSI/ISA-S84.01.
- Voltage Limits: 300V peak field signals (derate above 60°C).
- Grounding: Dedicated chassis ground lug (min 4 mm² wire).
- Obsolescence: Part of legacy Mark VIe; upgrade path to Mark VIeS.
- Fiber-Optic Use: Only activates if paired with IS200FIBxx transceiver.
- Do Not Use: For vibration monitoring (requires dedicated VBAI boards).
