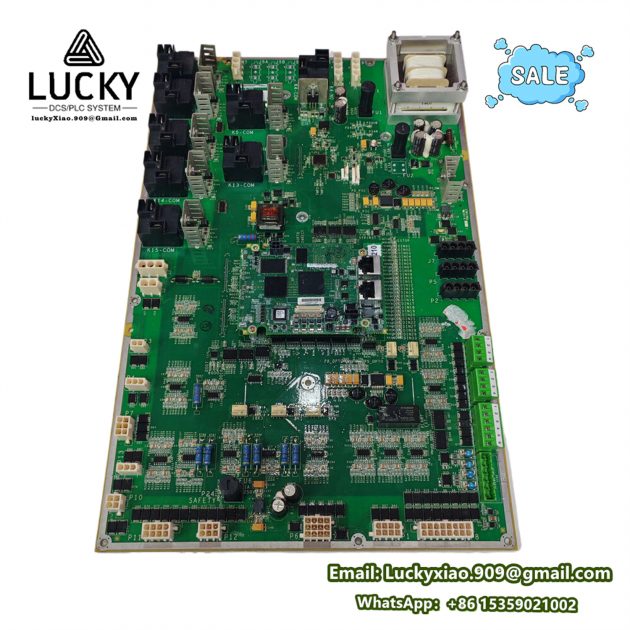

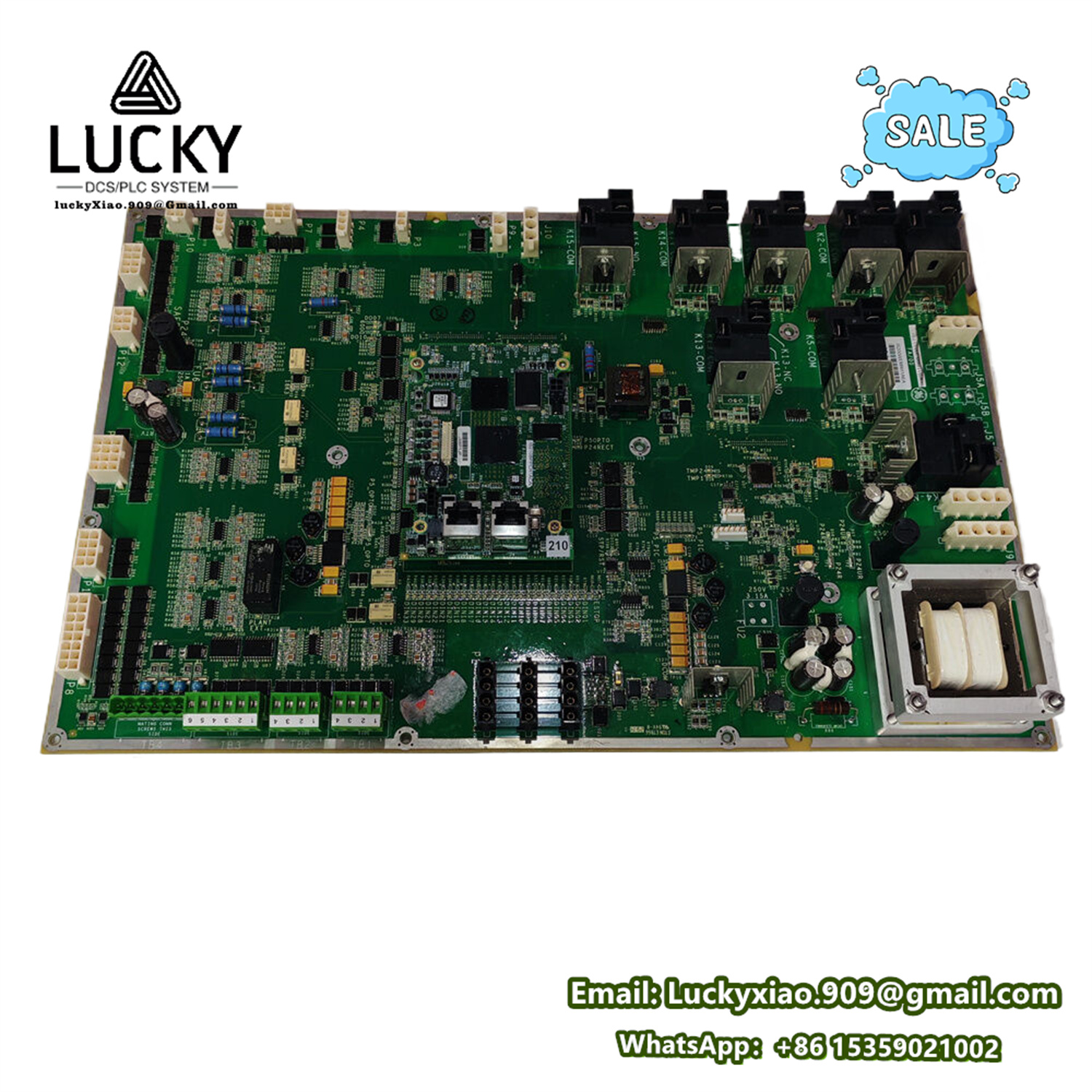

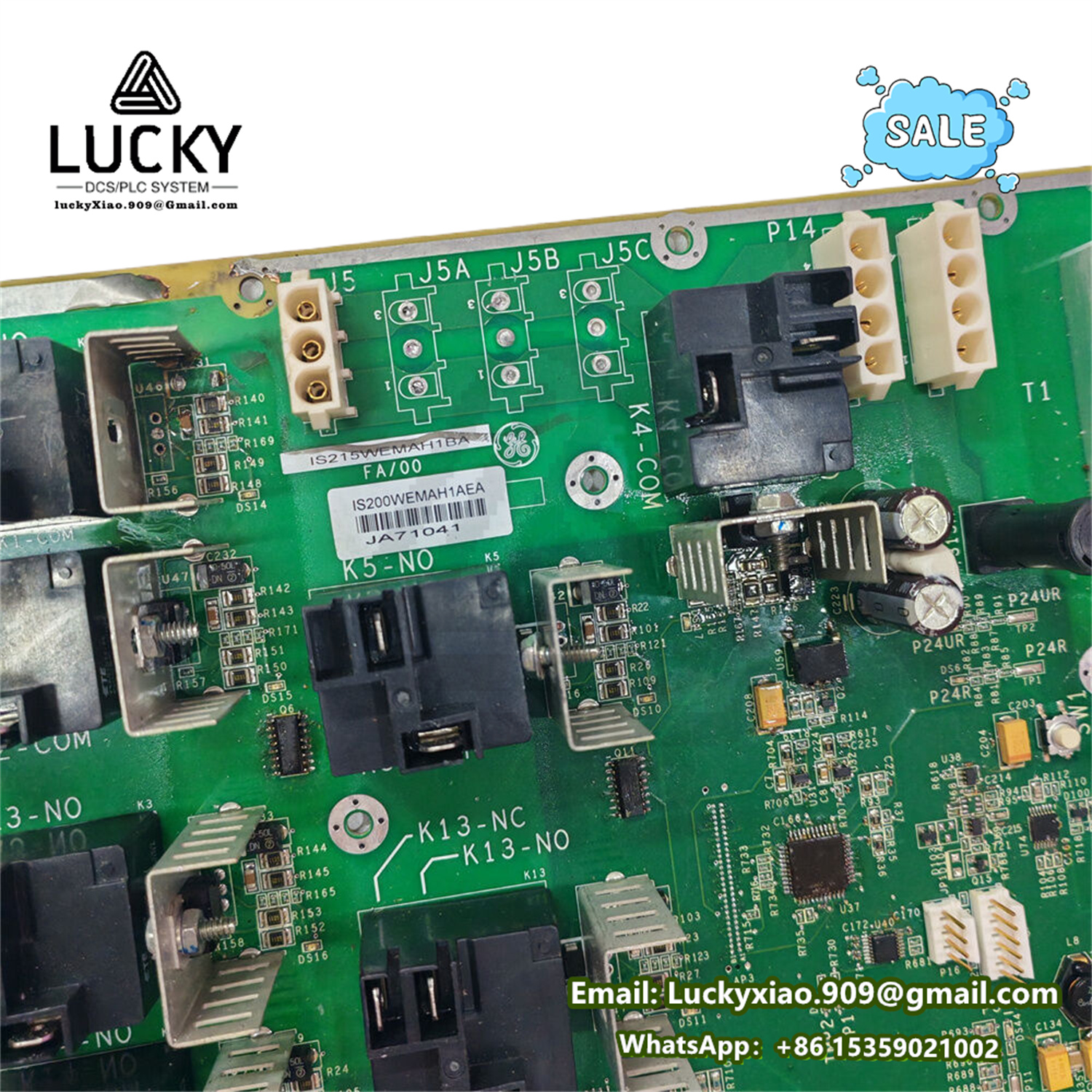

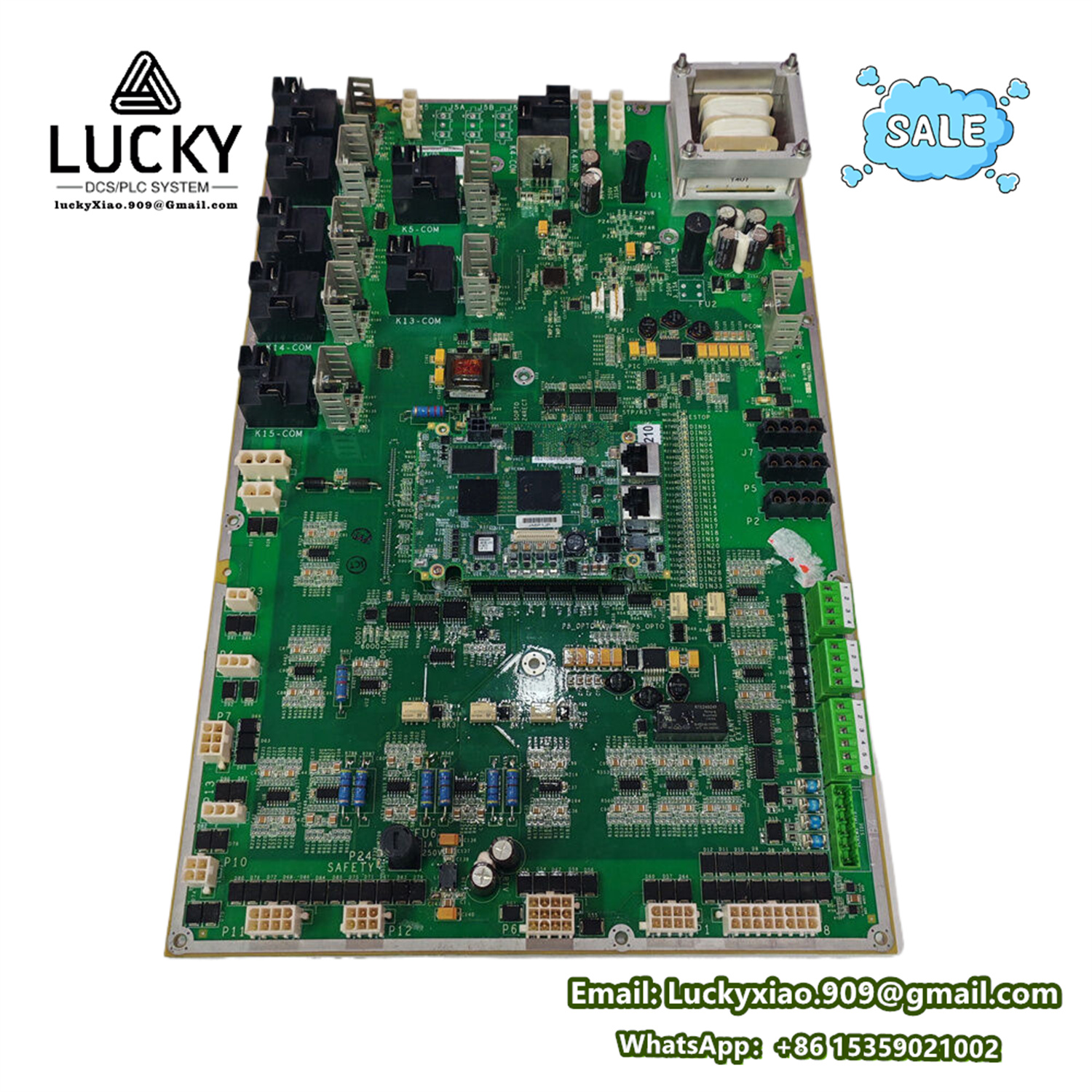

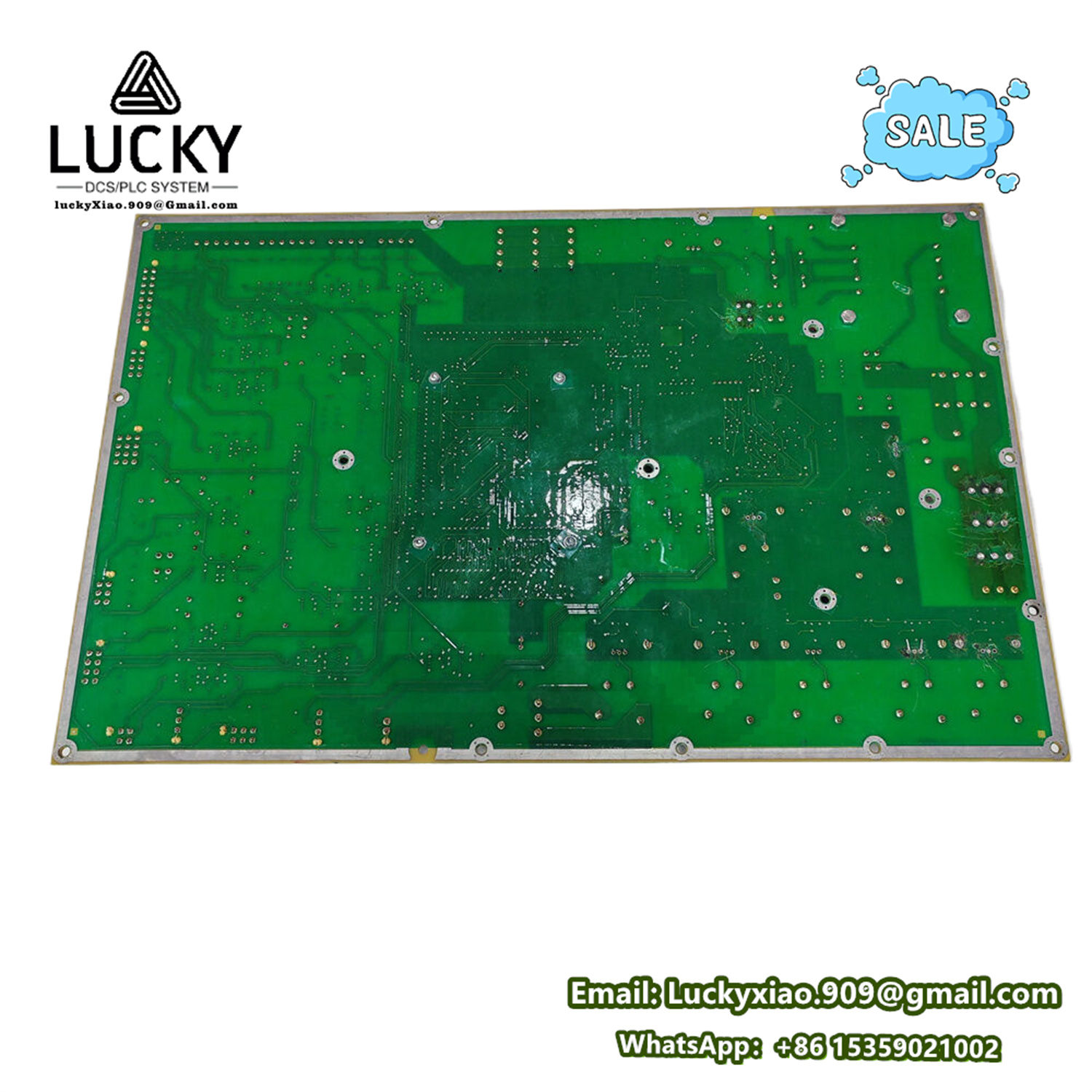

GE Electric | IS200WEMAH1AEA | Motion Feedback Interface Module
IS200WEMAH1AEA Product Overview
Functional Description:
The GE IS200WEMAH1AEA is a Motion Feedback Interface Module for GE Mark VIe turbine control systems. It processes high-speed encoder/resolver signals from rotating equipment (e.g., turbines, motors), converting shaft position/speed data into digital feedback for precision control loops.
Key Parameters & Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IS200WEMAH1AEA
|
|
Series
|
GE Mark VIe Turbine Control System
|
|
Function
|
Motion Feedback Signal Processing
|
|
Input Types
|
Encoder (TTL/HTL), Resolver (Sin/Cos)
|
|
Input Channels
|
4 channels (independent)
|
|
Max. Frequency
|
1 MHz (encoder), 10 kHz (resolver)
|
|
Resolution
|
24-bit (position), 16-bit (speed)
|
|
Accuracy
|
±1 LSB (digital), ±0.05° (resolver)
|
|
Isolation
|
2,000 V AC (channel-to-backplane)
|
|
Signal Voltage
|
5 V DC (encoder), ±10 V AC (resolver)
|
|
Terminal Type
|
Spring-clamp (AWG 22–14)
|
|
Operating Temp.
|
-40°C to +70°C
|
|
Backplane Interface
|
96-pin connector
|
|
Certifications
|
UL 508, IEC 61800-3, RoHS 2
|
Product Series
- Part of Mark VIe Motion Feedback Series (compatible with IS200/EX2100 drives).
Key Features
- Dual-Signal Support: Accepts incremental/absolute encoders & resolvers simultaneously.
- EMC Hardened: Conductive coating (suffix “EA”) for IEC 61000-6-4 compliance.
- Loss-of-Signal Detection: Alerts on broken/missing feedback pulses.
- Dynamic Filtering: Adaptive noise suppression for variable-speed applications.
- LED Diagnostics: Per-channel status (signal lock, fault, power).
- Redundancy Support: Cross-channel validation for SIL 2 safety.
Functions & Roles
- Position Decoding: Converts quadrature/A/B/Z pulses to digital position.
- Resolver-to-Digital (RDC): Excites resolvers (3–10 Vrms) and demodulates Sin/Cos.
- Velocity Calculation: Derives RPM from pulse edges with <0.1% error.
- Zero-Position Sync: Captures marker pulse for homing sequences.
- Signal Conditioning: Eliminates ground loops via transformer isolation.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Power Generation
|
Gas turbine shaft speed monitoring
|
|
Hydroelectric
|
Governor position feedback
|
|
Manufacturing
|
CNC axis position control
|
|
Marine Propulsion
|
Thrust bearing angular position
|
|
Test Rigs
|
Dynamometer torque/speed measurement
|
Documentation & Support
- Manual: GEH-6855 (Mark VIe Motion Feedback Boards)
| Compatible Controllers | Configuration Tool |
|—————————-|————————|
| Mark VIe, EX2100e | GE ToolboxST™ (v7.0+) | - Firmware Updates: Via PCMCIA slot (requires carrier IS200TBCIH1C)
- Replacement Kits: IS200WEMAH1Axx series (xx = revisions)
Critical Notes:
- Requires carrier module IS200TBCIH1C or IS200TBCIG1C.
Resolver Excitation: 7 Vrms @ 3 kHz default (software-configurable).
Encoder Supply: 5 V DC ±5% (250 mA max per channel).
Shielding: All cables must be foil-braided shields grounded at one end.
Derating: Max frequency drops to 500 kHz above 60°C ambient.
Legacy Replacement: Upgrades DS200DCFBG1 boards in Mark V systems.
