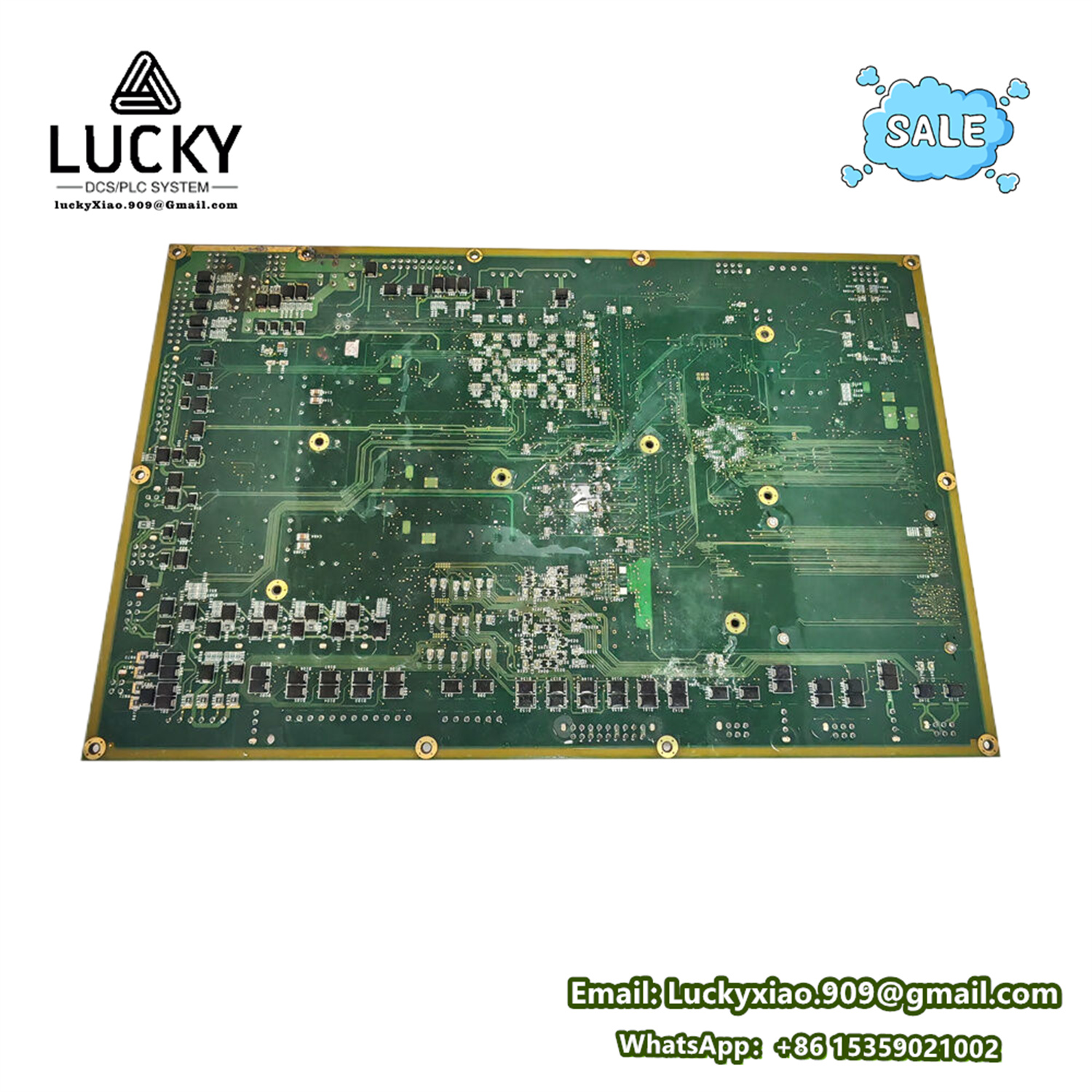

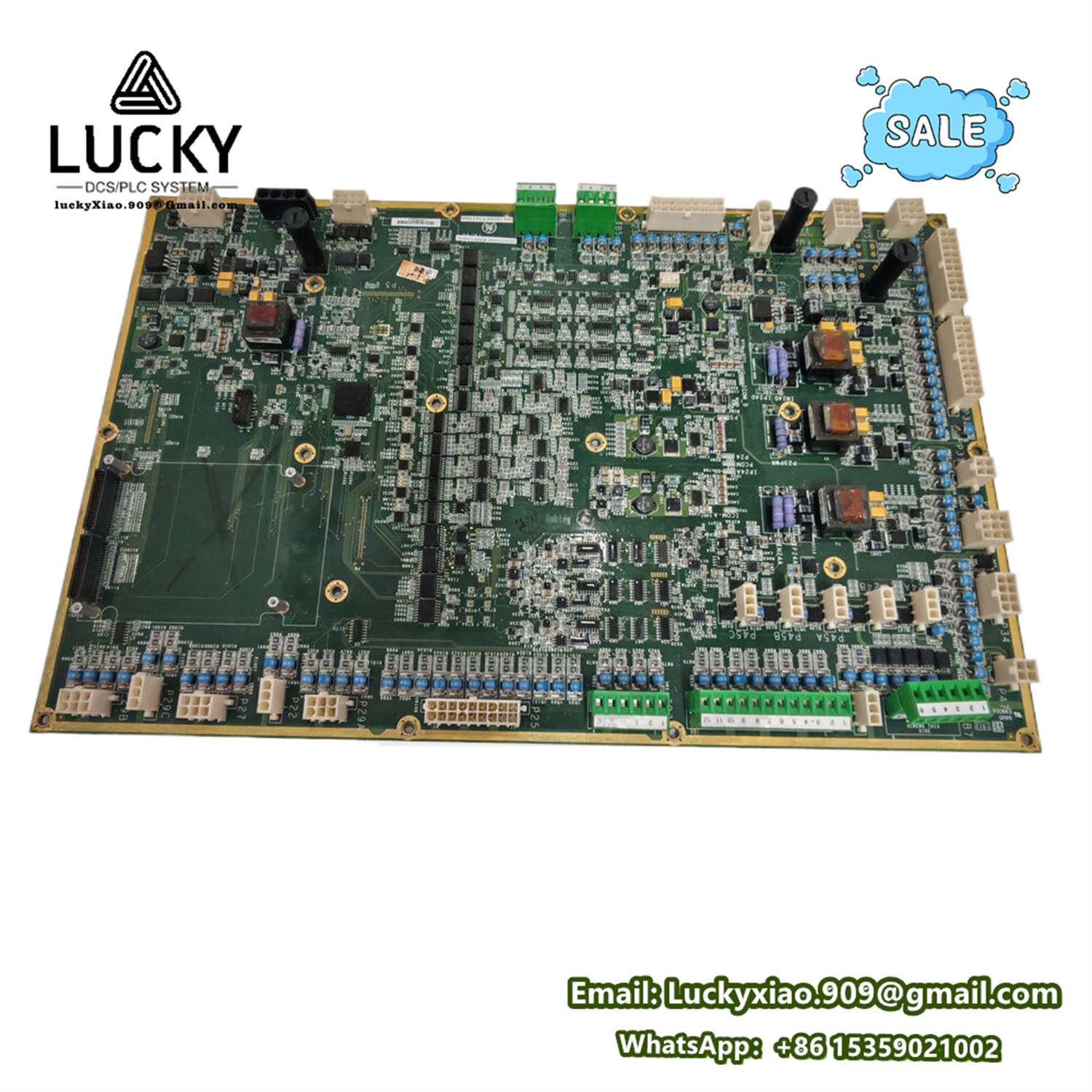

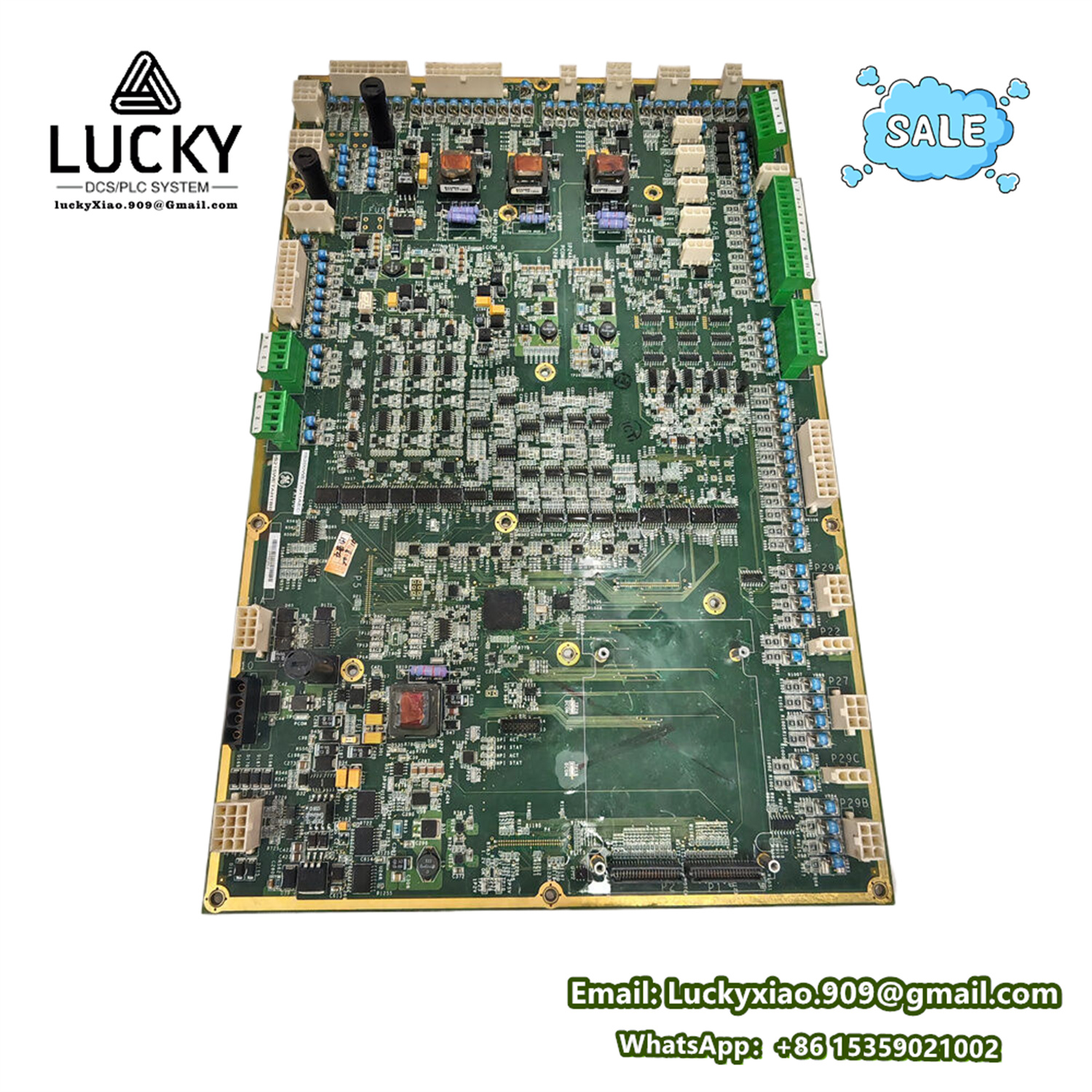

GE Electric | IS200WETAH1AEC | Analog Input Termination Board
IS200WETAH1AEC Product Overview
Functional Description:
The GE IS200WETAH1AEC is a High-Density Analog Input Termination Board designed for GE Mark VIe turbine control systems. It provides signal conditioning, isolation, and terminal interfacing for analog sensors (e.g., temperature, pressure) by converting field signals to digital data for the controller.
Key Parameters & Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IS200WETAH1AEC
|
|
Series
|
GE Mark VIe Turbine Control System
|
|
Function
|
Analog Signal Termination & Conditioning
|
|
Input Voltage
|
24 V DC (19–30 V DC range)
|
|
Analog Inputs
|
32 channels
(±10V, 4–20mA, RTD, TC) |
|
Resolution
|
16-bit ADC
|
|
Accuracy
|
±0.05% (voltage), ±0.1% (current)
|
|
Isolation
|
1,500 V AC (channel-to-backplane)
|
|
Sampling Rate
|
100 samples/sec per channel
|
|
Terminal Type
|
Spring-clamp (AWG 24–12)
|
|
Operating Temp.
|
-40°C to +70°C
|
|
Backplane Interface
|
96-pin connector
|
|
Certifications
|
UL 508, IEC 61010, RoHS 2
|
Product Series
- Member of Mark VIe I/O Termination Assembly Series (compatible with IS200/EX2100 hardware).
Key Features
- Universal Input Support: Auto-ranges between voltage/current/RTD/thermocouple signals.
- EMC Shielding: Conductive coating (suffix “EC”) for RFI/EMI immunity per IEC 61326.
- Open-Wire Detection: Alerts on broken sensor connections.
- Hot-Swappable: Tool-less replacement via DIN rail mounting.
- Diagnostic LEDs: Per-channel health monitoring (green/red status).
- Surge Protection: TVS diodes on all inputs (compliant with IEEE C37.90.1).
Functions & Roles
- Sensor Interface: Connects PT100/PT1000 RTDs, J/K/T-type thermocouples.
- Signal Linearization: Converts nonlinear TC/RTD curves to digital values.
- Noise Filtering: 50/60 Hz notch filtering for industrial environments.
- Cold Junction Compensation: Integrated for thermocouple inputs.
- Ground Isolation: Prevents ground loops in distributed systems.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Power Generation
|
Gas turbine exhaust temp monitoring
|
|
Hydroelectric
|
Bearing temperature monitoring
|
|
Oil & Gas
|
Pipeline pressure transducer interface
|
|
Chemical Plants
|
Reactor vessel level sensing
|
|
HVAC
|
Chiller plant temperature control
|
Documentation & Support
- Manual: GEH-6853 (Mark VIe Termination Boards)
| Compatible Controllers | Configuration Tool |
|—————————-|————————|
| Mark VIe, EX2100e | GE ToolboxST™ (v7.0+) | - Firmware Updates: Via USB port (P/N IS200TBCIH1C carrier module required)
- Replacement Kits: IS200WETAH1Axx series (xx denotes revisions)
Critical Notes:
- Requires carrier module IS200TBCIH1C or IS200TBCIG1C.
- RTD Excitation: 1 mA constant current (3-wire/4-wire support).
- Thermocouple Cold Junction: ±0.5°C accuracy.
- Derating: Reduce channel count by 25% above 60°C ambient.
- Legacy Replacement: Upgrades DS200TBAAG1 boards in Mark V systems.
