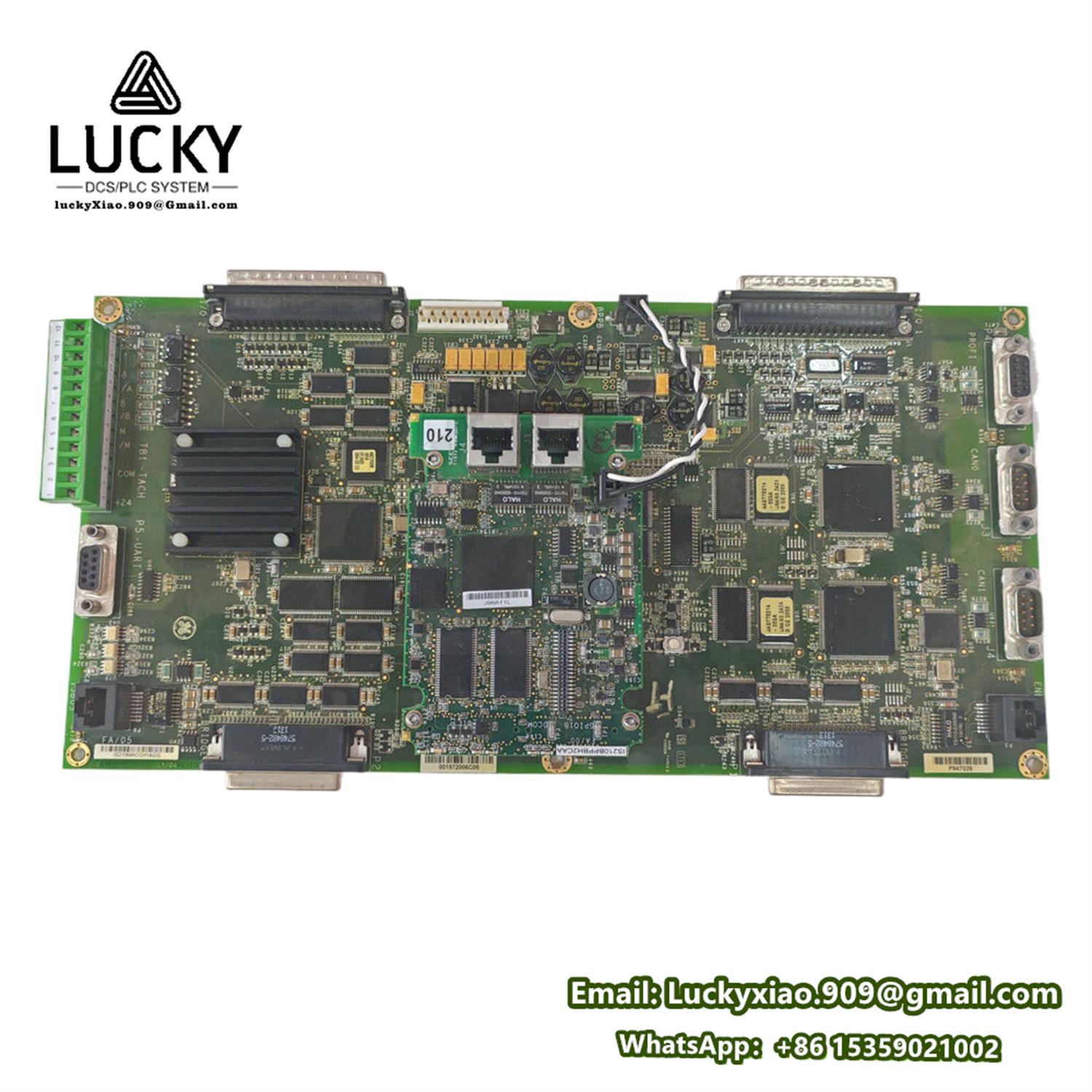

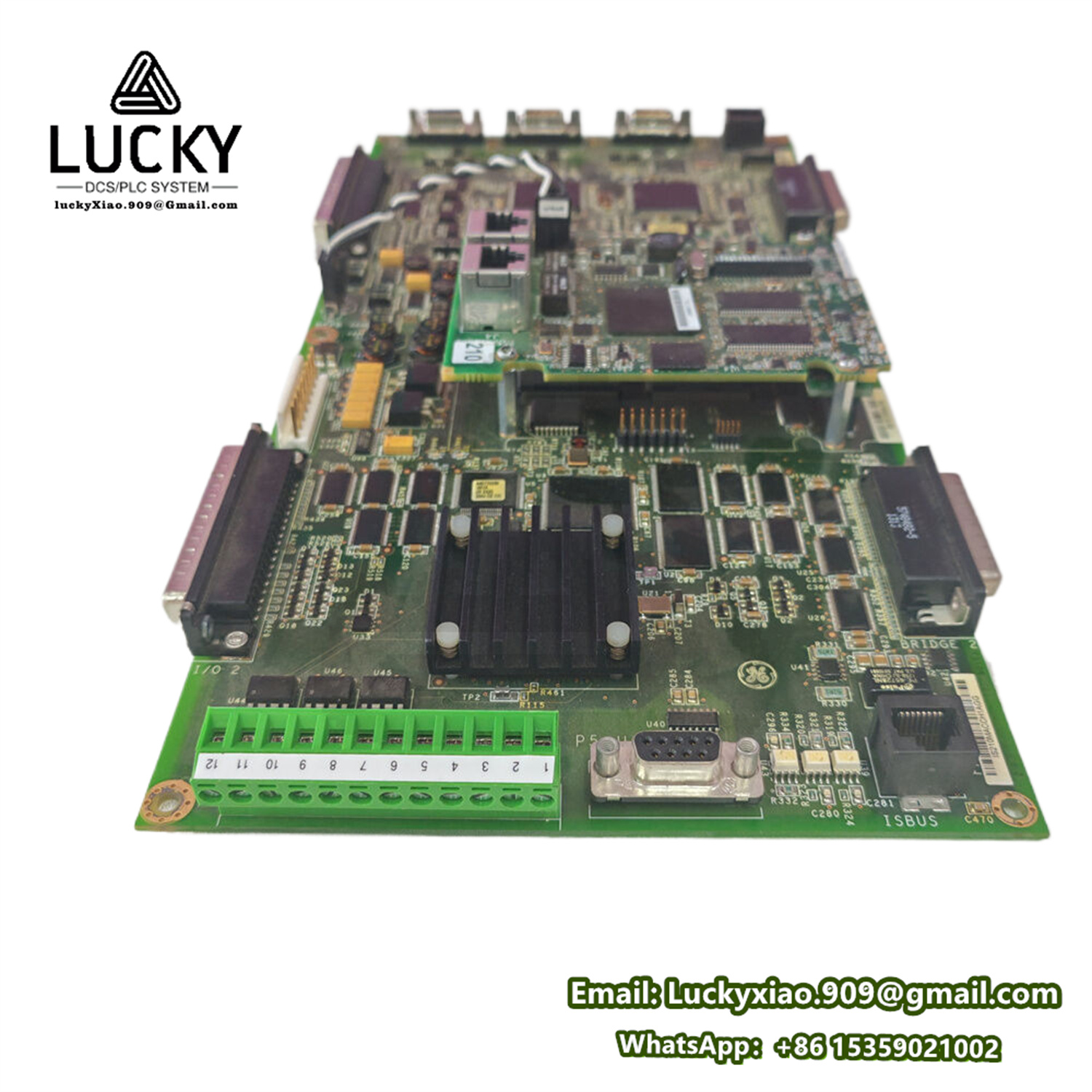

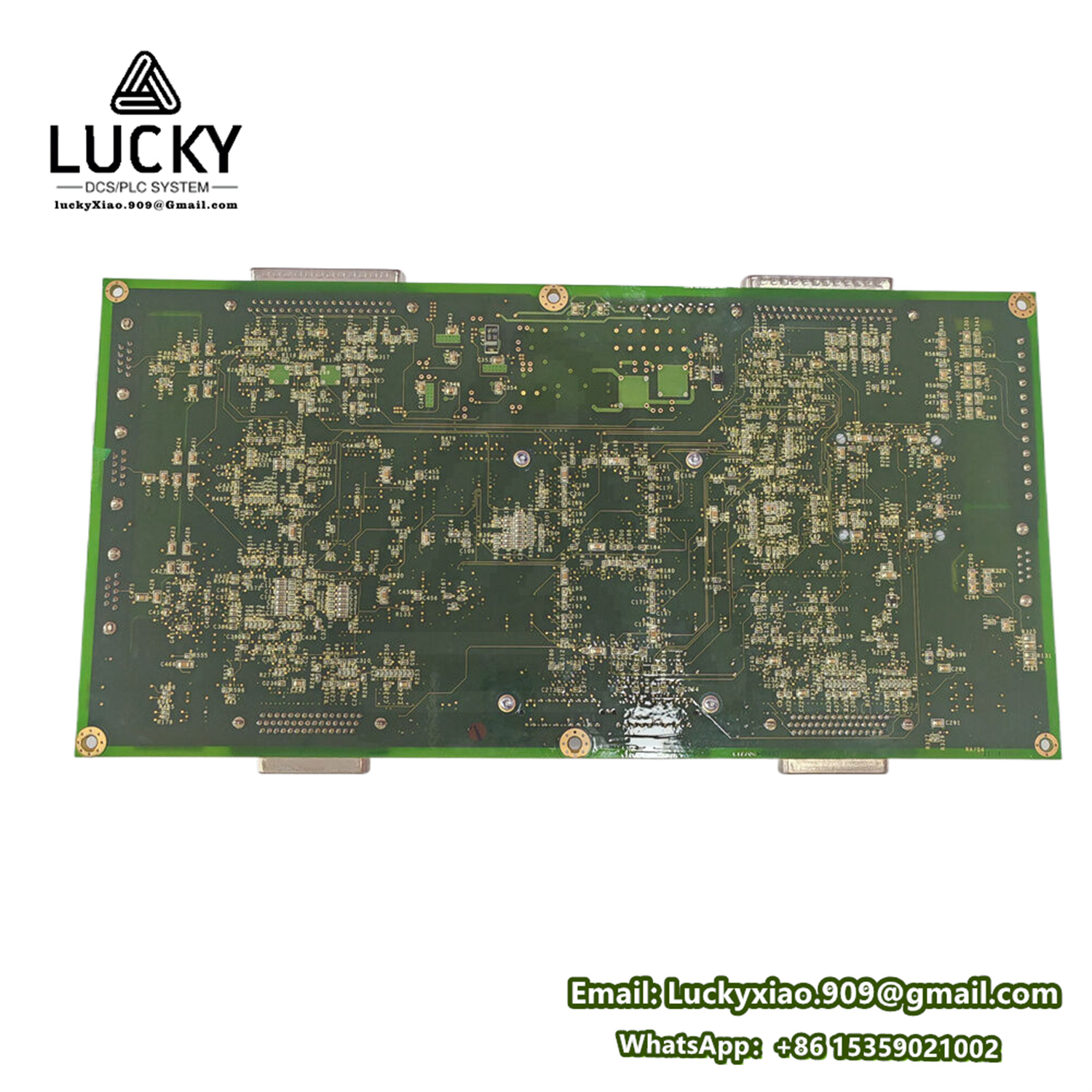

GE Electric | IS210MACCH1AGG | Single axis motion control module
IS210MACCH1AGG Product Overview
Functional Description:
The GE IS210MACCH1AGG is a Single-Axis Motion Control Module for GE’s Mark VIe Speedtronic™ systems. It provides precision servo control for industrial actuators, valves, and positioning mechanisms critical to turbine/compressor operations.
Key Parameters & Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IS210MACCH1AGG
|
|
Series
|
GE Mark VIe Turbine Control System
|
|
Function
|
Single-Axis Servo Controller
|
|
Input Voltage
|
24 V DC (±10%) via backplane
|
|
Control Axes
|
1 Axis
|
|
Feedback Resolution
|
20-bit LVDT/RVDT/Encoder input
|
|
Output Signals
|
±10V analog, 3A continuous PWM drive
|
|
Communication
|
1 Gbps Ethernet + VME64x backplane
|
|
Loop Update Rate
|
500 µs
|
|
Operating Temp.
|
-25°C to +60°C (-13°F to +140°F)
|
|
Protection
|
Overcurrent, overtemperature, signal loss
|
|
Safety Rating
|
SIL 2 (IEC 61508)
|
|
MTBF
|
> 200,000 hours
|
Product Series
- Part of GE’s Mark VIe I/O Pack family for turbine auxiliary control.
Key Features
- High-Resolution Control: 20-bit feedback sampling.
- Adaptive PID Tuning: Auto-calibrates for nonlinear mechanisms.
- Diagnostic LEDs: Real-time status/error indication.
- Hot-Swap Support: Replace without system shutdown.
- EMI/RFI Shielding: Industrial-grade noise immunity.
- Firmware Lock: Password-protected configuration.
Functions & Roles
- Actuator Positioning: Controls fuel valves, bleed valves, or dampers.
- Closed-Loop Regulation: PID control with velocity/acceleration limits.
- Torque Control: Direct drive signals to servo amplifiers.
- Fault Response: Auto-safing on signal loss or over-travel.
- Synchronization: Integrates with Mark VIe controllers (e.g., IS210ERTKGH1A).
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Power Generation
|
Gas turbine fuel valve control
|
|
Oil & Gas
|
Compressor recycle valve positioning
|
|
Hydroelectric
|
Runner blade adjustment
|
|
Industrial
|
Boiler feedwater control valves
|
|
Marine Propulsion
|
Throttle actuator control
|
Documentation & Support
- Manual: GEH-6859 (Mark VIe I/O Modules Guide)
- Software: GE ToolboxST™ (v6.0+ for configuration)
- Compatibility: Interfaces with DS3800HExA servo drives
- Certifications: UL 508, CE, RoHS
- Lifecycle Status: Active (GE P/N: 8BAF0MACCH1AGG)
Critical Notes:
- Requires Mark VIe controller for operation.
- Supports SERCOS III via expansion modules.
- Max cable length: 30m (shielded twisted pair).
- Typical calibration time: < 10 minutes via ToolboxST™.
- Replacement for legacy DS200 series control cards.
