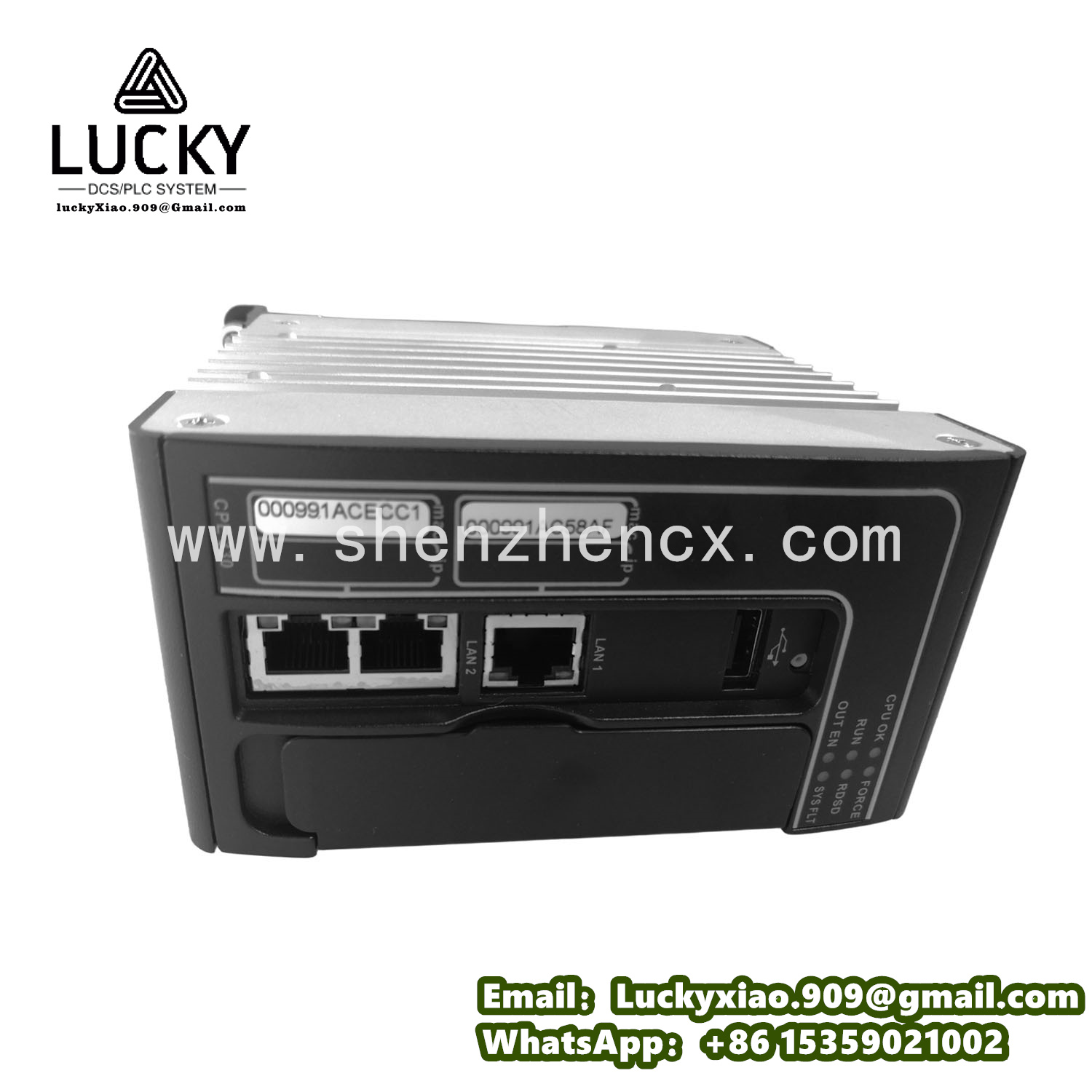

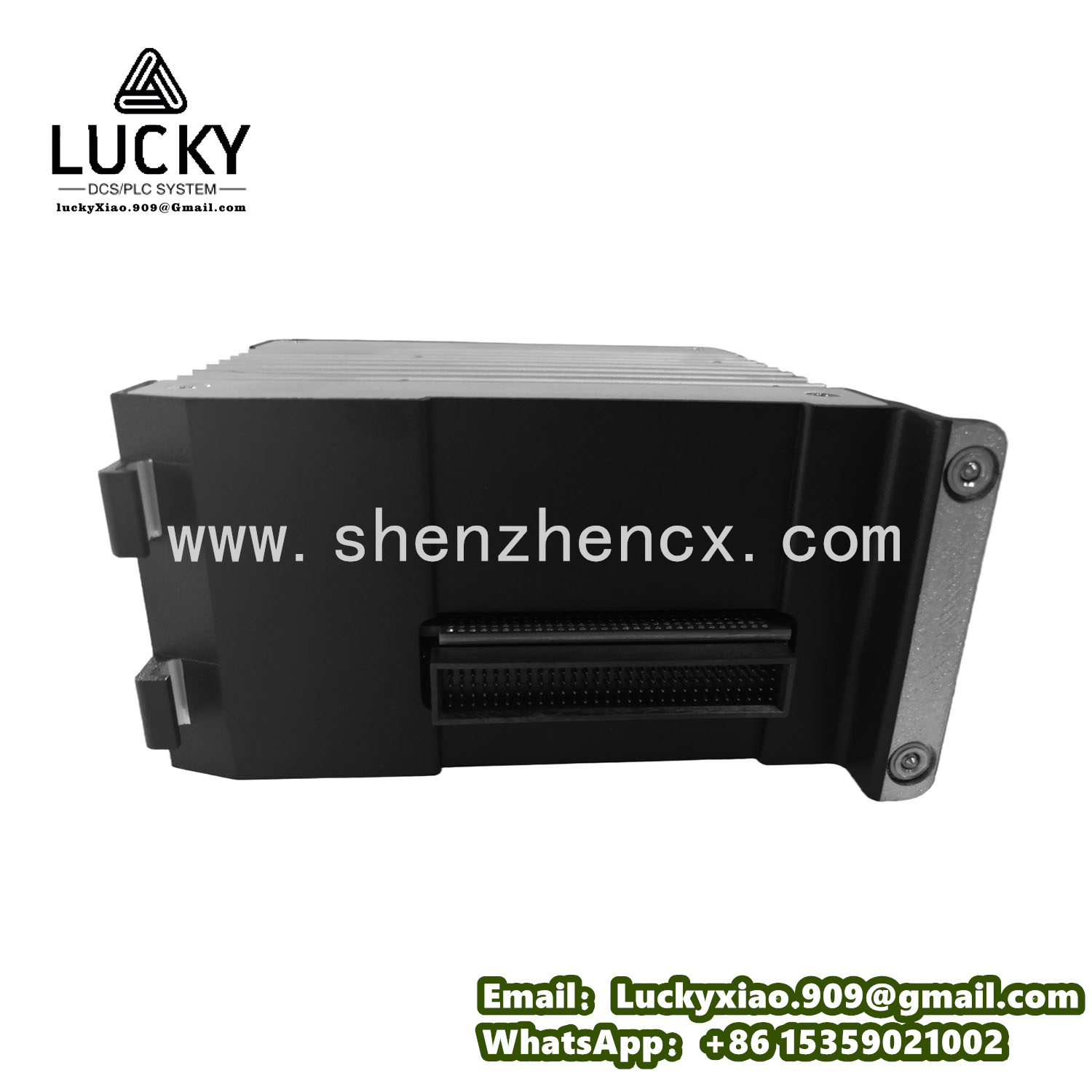

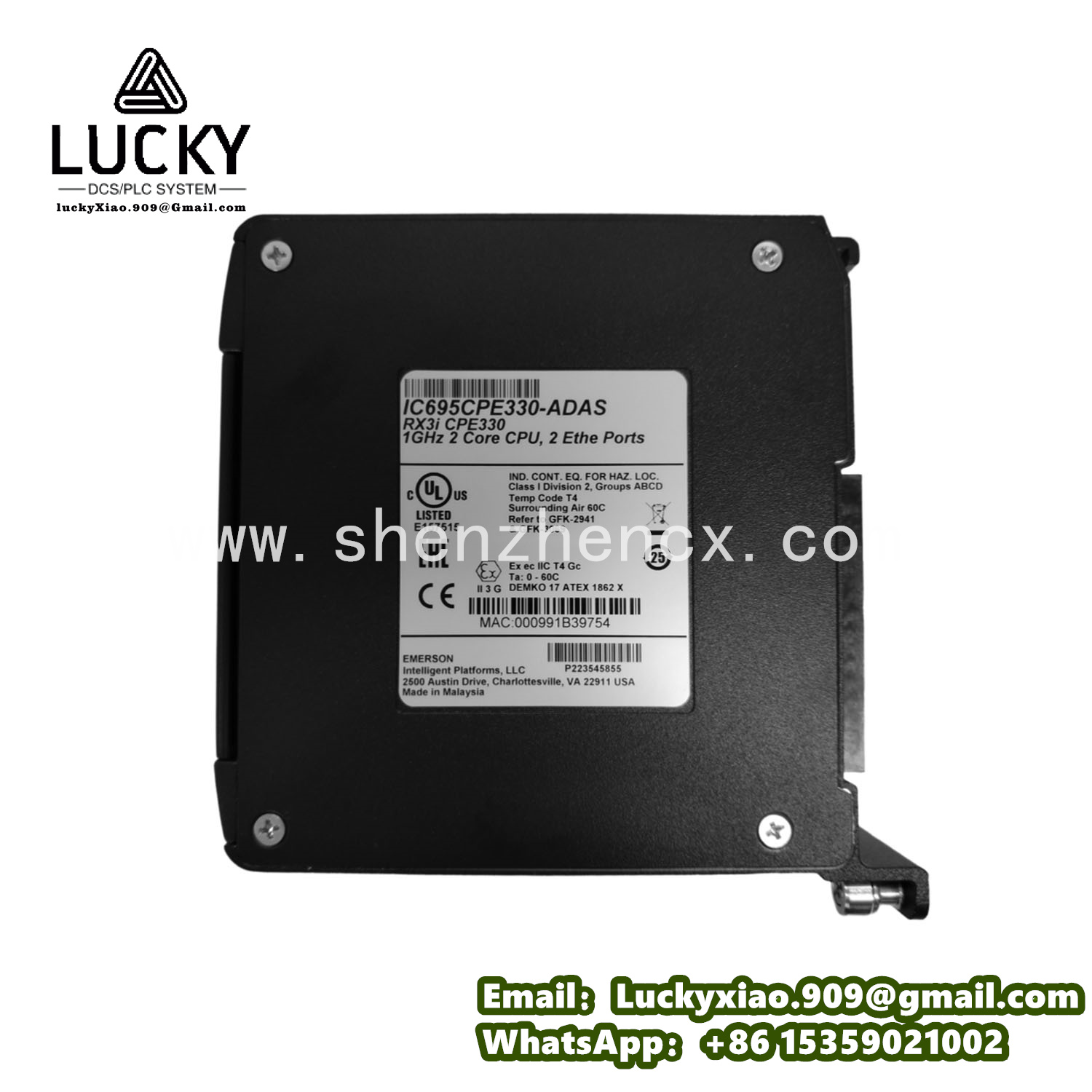

GE IC695CPE330 Industrial CPU Module
1. Product Description
GE IC695CPE330 is an industrial-grade Central Processing Unit (CPU) module from GE, built to be the “brain” of mid-to-large-scale industrial automation systems. It’s ideal for use in factory production lines (e.g., automotive assembly), process control plants (like chemical or water treatment facilities), and multi-robot workcells—scenarios where you need to coordinate dozens of devices (sensors, motors, valves) and run complex, uninterrupted automated tasks.
What makes it practical:
- Strong Coordination Ability: Runs custom automation programs to process data from connected modules (e.g., “part aligned” from a vision sensor) and send precise commands to actuators (e.g., “tighten bolt to 50 Nm” or “start conveyor at 0.5 m/s”), keeping the whole system in sync.
- High Performance for Complex Tasks: Handles multiple jobs at once (e.g., monitoring 30+ sensors, controlling 15 motors, and logging production data) without lag, ensuring no delays in production or process quality.
- Durable for Industrial Use: Has a rugged metal housing that resists dust, vibration, and mild moisture. It works reliably in busy factory floors or enclosed control cabinets, even when temperatures fluctuate.
It’s perfect for managing a fully automated automotive component assembly line (coordinating robots, feeders, and quality checks) or controlling a large water treatment plant’s pumps, filters, and chemical dosing systems.
2. Key Technical Specifications
|
Parameter Category
|
Specific Details
|
|
Processing Speed
|
1.5 GHz (fast for complex multi-tasking)
|
|
Memory Capacity
|
4 GB RAM (for program operation), 16 GB flash memory (for data logging/storage)
|
|
Communication Ports
|
4 Ethernet ports (for HMIs/modules/remote control), 2 RS485 ports (for legacy devices like old sensors)
|
|
Supported Protocols
|
Modbus TCP, Ethernet/IP, GE Proprietary Protocols (works seamlessly with GE modules)
|
|
Expansion Compatibility
|
Works with GE IC695 I/O modules (digital/analog inputs/outputs, specialty modules like temperature controllers)
|
|
Power Supply
|
24V DC (18V-30V DC wide range, fits most industrial power systems)
|
|
Operating Temperature
|
0°C to +60°C (suitable for factory/plant environments)
|
|
Mounting
|
DIN rail (35mm standard) / panel mount
|
|
Size (W×H×D)
|
45mm×150mm×110mm (compact for its performance)
|
|
Certifications
|
IEC 61131-2, UL 508, CE (meets global industrial standards)
|
3. System Integration
The IC695CPE330 acts as the “command center” in industrial systems:
- Data Processing & Command Execution: Receives real-time data from connected I/O modules (e.g., pressure from a transducer, position from an encoder) and uses pre-set logic to make decisions (e.g., “if pressure > 10 bar, open relief valve”). It then sends these commands to actuators to keep processes on track.
- Easy Expansion: Connects to additional GE IC695 modules via Ethernet ports—no complex rewiring needed if you add new devices (like extra sensors or a new robot). This lets the system grow with your production needs.
- Simple Programming: Uses GE’s user-friendly software (e.g., Proficy Machine Edition) to write or edit automation programs. It supports ladder logic (a common industrial programming language), so technicians don’t need advanced coding skills.
- Fault Protection: Detects issues (e.g., a disconnected sensor or a motor overload) and triggers alerts (via HMI warnings or LED lights). If paired with a backup CPU, it can switch to backup mode to avoid production downtime.
4. Related Models in the Same Series
|
Model
|
Key Differences & Uses
|
|
GE IC695CPE310
|
Lower processing speed (1.0 GHz) + smaller memory (2 GB RAM/8 GB flash) – for smaller systems (e.g., a single robotic workcell with 10-15 devices).
|
|
GE IC695CPE320
|
Medium performance (1.2 GHz, 3 GB RAM/12 GB flash) – for mid-sized lines (e.g., a packaging line with 20 sensors/motors).
|
|
GE IC695CPE330A
|
Extended temperature range (-25°C to +70°C) – for harsh environments (e.g., cold storage automation or high-heat steel mill control systems).
|
|
GE IC695CPE330C
|
Enhanced communication (adds Wi-Fi/Bluetooth) – for wireless monitoring (e.g., technicians checking system status via a tablet).
|
|
GE IC695CPE330D
|
Redundant power input – for critical systems (e.g., emergency stop circuits or medical device production lines) where power loss risks safety or quality.
|
|
GE IC695CPE330E
|
Large data logging (64 GB flash memory) – for long-term data storage (e.g., 3 years of process trends) needed for compliance (e.g., pharmaceutical manufacturing).
|
|
GE IC695CPE330F
|
Compact size (35mm width) – for tight control panels with limited DIN rail space (e.g., small-scale process control cabinets).
|
