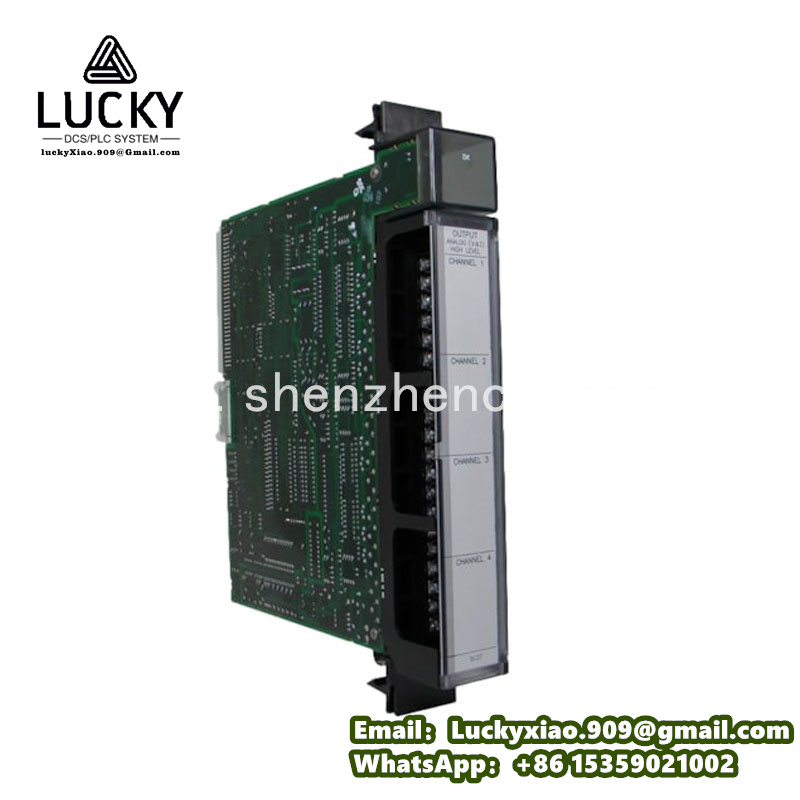

GE IC697ALG320 analog output module
Brand: GE (General Electric / GE Fanuc)
Product Model: IC697ALG320
Product Name: 4-Channel Industrial High-Precision Analog Output Module
Origin: United States
Overall Dimensions (L × W × H): 110 × 100 × 82 mm (4.33 × 3.94 × 3.23 inches)
Net Weight: 0.84 kg (1.85 lbs)
Warranty Period: 12-month official manufacturer warranty
GE IC697ALG320
1. IC697ALG320 Product Overview & Core Functions
The GE IC697ALG320 is a high-performance industrial analog output module designed for the GE Series 90-70 PLC control system. As a core analog signal conversion and output component in industrial automation systems, this module converts digital control signals from the main PLC CPU into standard industrial analog voltage and current signals. It is mainly used to drive field actuators, regulators, frequency converters and other analog control equipment, realizing precise closed-loop adjustment of industrial process parameters such as temperature, pressure, flow and speed. Featuring 12-bit high-resolution conversion, ultra-high output accuracy and complete electrical isolation design, it ensures stable, linear and interference-free analog output, supporting long-term 24/7 uninterrupted operation in complex industrial scenarios.
2. IC697ALG320 Applicable System & Working Principle
The IC697ALG320 is fully compatible with the GE Series 90-70 PLC platform, supporting seamless docking with 90-70 series CPU modules, power supply units and backplane expansion racks. In actual system operation, the module receives digital command data issued by the main controller, performs high-precision DAC digital-to-analog conversion, and outputs standard analog signals to field industrial equipment. Meanwhile, it adopts independent channel isolation and fault self-detection mechanism to avoid signal crosstalk and equipment damage caused by external interference. It can work independently or expand in groups, with a maximum expandable capacity of 252 output channels, meeting the analog control requirements of large-scale automated production lines.
3. Core Technical Parameters
Total Output Channels: 4 independent configurable analog output channels
Conversion Resolution: 12-bit high-precision DAC digital-to-analog conversion
Output Accuracy: ±0.1% FSR ultra-low full-scale error
Voltage Output Range: 0–5 VDC, 0–10 VDC adjustable
Current Output Range: 4–20 mA, 0–20 mA standard industrial signal
Signal Update Rate: 10 ms per channel high-speed response
Isolation Grade: 1500 VAC channel-to-field electrical isolation protection
Voltage Output Load Impedance: ≥2 kΩ stable load adaptation
Current Output Load Impedance: ≤500 Ω maximum bearing load
Input Power Voltage: 12 VDC / 24 VDC industrial universal power supply
Single-Slot Design: Occupies only 1 standard PLC rack slot
4. Environmental Adaptability & Industrial Grade Performance
Long-Term Operating Temperature Range: -10°C to +60°C
Storage Temperature Range: -20°C to +70°C
Adaptable Humidity: 5%–95% Non-Condensing Relative Humidity
Industrial Protection Grade: IP20 dust-proof and moisture-resistant grade
Anti-Interference Performance: Built-in filter circuit to suppress industrial electromagnetic crosstalk
Structural Reliability: Anti-vibration, anti-corrosion industrial grade design
5. Product Advantages
The GE IC697ALG320 features outstanding precision control capability and strong system compatibility. The 12-bit high-resolution conversion and ±0.1% ultra-high accuracy ensure consistent and reliable analog output, effectively improving the precision of industrial process control. The 1500 VAC high-isolation design completely isolates field interference signals, protecting the main control system from surge and static damage. The compact single-slot structure saves cabinet space and supports flexible system expansion. Equipped with real-time fault diagnosis function, it can quickly locate abnormal channels, greatly reducing equipment maintenance time and production downtime. It has stable performance, long service life and low failure rate, fully meeting the rigorous operation requirements of industrial automation systems.
6. Wide Application Fields
This GE original analog output module is widely used in industrial automation control scenarios that require high-precision analog signal regulation. Typical applications include thermal power plant control systems, petrochemical process automation, metallurgical equipment linkage control, water treatment intelligent monitoring systems, packaging and printing automated production lines, and factory intelligent PLC transformation projects. It is the preferred core analog control component for GE 90-70 series PLC industrial control systems.
