1. Basic Information
Brand: GE
Model: IC754VGF15CTD-DF
Product Name: 15-inch Industrial Touch Screen HMI Terminal, also recognized as QuickPanel Operator Interface, Industrial Human Machine Interface and Process Monitoring Display Terminal, specializing in on-site equipment operation, real-time data visualization, parameter configuration and industrial system monitoring for factory automation control systems.
Place of Origin: USA
Shipping Location: China (in-stock products are shipped from China, supporting worldwide delivery)
Warranty Period: 365 days

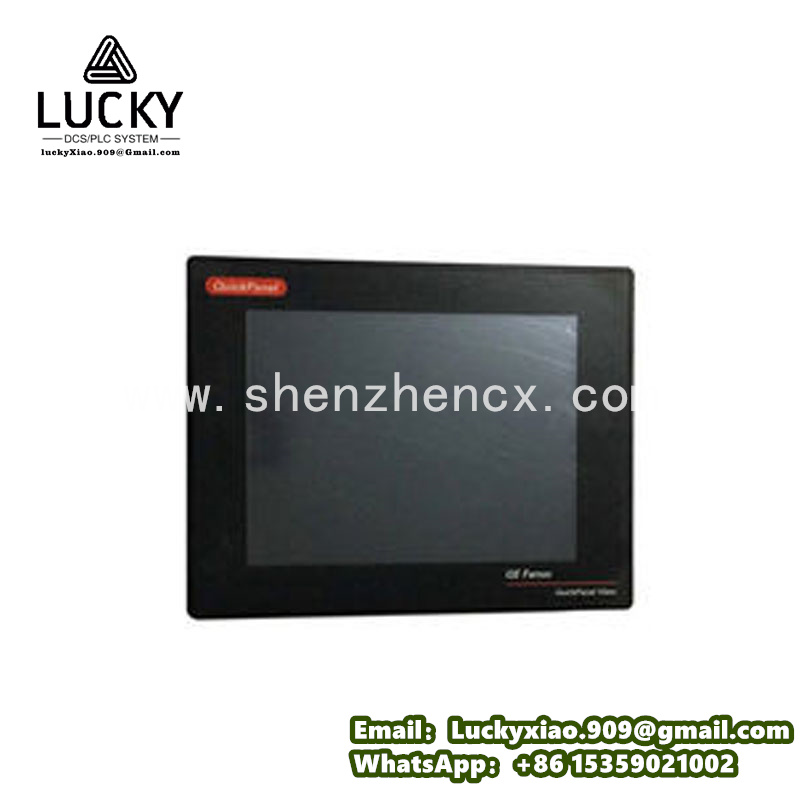

GE IC754VGF15CTD-DF
2. GE IC754VGF15CTD-DF Product Overview
The GE IC754VGF15CTD-DF is a high-performance 15-inch industrial touchscreen human-machine interface terminal belonging to the GE QuickPanel series. Designed to serve as the core man-machine interaction portal for industrial automation systems, this HMI terminal integrates powerful data processing capability, high-definition display performance and multi-channel communication functions. Built with industrial-grade hardware structure and reinforced casing, it adapts to harsh factory environments featuring vibration, dust and frequent temperature changes. The terminal supports real-time equipment data collection, operating parameter modification, running status visualization and fault alarm display, enabling operators to intuitively monitor and control on-site automated production equipment. With rich built-in communication protocols and excellent cross-device compatibility, it can seamlessly connect with GE PLC systems and mainstream third-party industrial control equipment, effectively simplifying on-site system deployment and improving overall production operation efficiency and management convenience.
3. Core Functions
-
Intuitive On-site Operation Control: Equipped with sensitive industrial touch screen, supporting manual parameter setting, equipment start and stop control, and operating mode switching. It provides convenient and intuitive on-site operation methods for automated production lines.
-
Real-time Data Visualization: Continuously collects operating data from connected industrial control equipment, presenting production parameters, equipment operating status and system running data through graphical and digital interfaces to realize transparent production monitoring.
-
Multi-protocol Communication Interaction: Integrates multiple universal industrial communication protocols, achieving stable data connection and bidirectional signal interaction with PLCs, sensors and various automation control modules to ensure consistent system data synchronization.
-
Equipment Fault Monitoring and Alarm: Automatically captures abnormal operating signals of connected equipment, triggers on-site visual alarms and records fault information, assisting maintenance personnel in quickly locating and resolving equipment failures.
-
Data Recording and Trend Analysis: Supports long-term on-site production data storage, historical record query and operating trend curve generation, providing reliable data support for production analysis, equipment maintenance and production optimization.
-
Powerful System Compatibility: Perfectly matches GE industrial automation control platforms while adapting to most mainstream brand industrial control systems, featuring flexible deployment and strong system expandability.
4. GE IC754VGF15CTD-DF Technical Parameters
|
Parameter Category
|
Specifications
|
|
Display Size
|
15-inch industrial high-definition touch display screen
|
|
Processor Configuration
|
Industrial dedicated high-speed processor, supporting stable operation of complex graphical programs and multi-task processing
|
|
Communication Interface
|
Built-in Ethernet and multiple serial communication ports for flexible device connection
|
|
Power Supply
|
24 VDC industrial standard input voltage, adapting to industrial power supply fluctuation
|
|
Operating Temperature
|
-20 °C to +60 °C industrial working range
|
|
Storage Temperature
|
-40 °C to +85 °C
|
|
Working Humidity
|
5% – 95% RH under non-condensing working conditions at 40 °C
|
|
Protection Rating
|
NEMA 4X and IP65 protection grade after standardized installation
|
|
Certification Standard
|
Compliant with CE and UL industrial safety certification standards
|
5. Specifications
-
Dimensions: Standard industrial panel mounting size, designed for embedded installation on industrial control cabinets and equipment panels
-
Weight: Integrated lightweight body structure, reducing installation load and facilitating embedded layout arrangement
-
Structure: Reinforced integrated industrial casing with dustproof and waterproof design, wear-resistant touch panel and anti-interference internal circuit layout
-
Warranty Period: 365 days
-
Product Status: Original new and factory sealed, available in stock with global shipping support from China
-
Product Quality: Adopts industrial-grade display screens and core electronic components, passing rigorous environmental adaptability and stability tests to support long-term uninterrupted industrial operation
-
Packaging: Adopts professional factory sealed packaging with shockproof, dustproof and moisture-proof materials to prevent structural and component damage during cross-regional transportation
