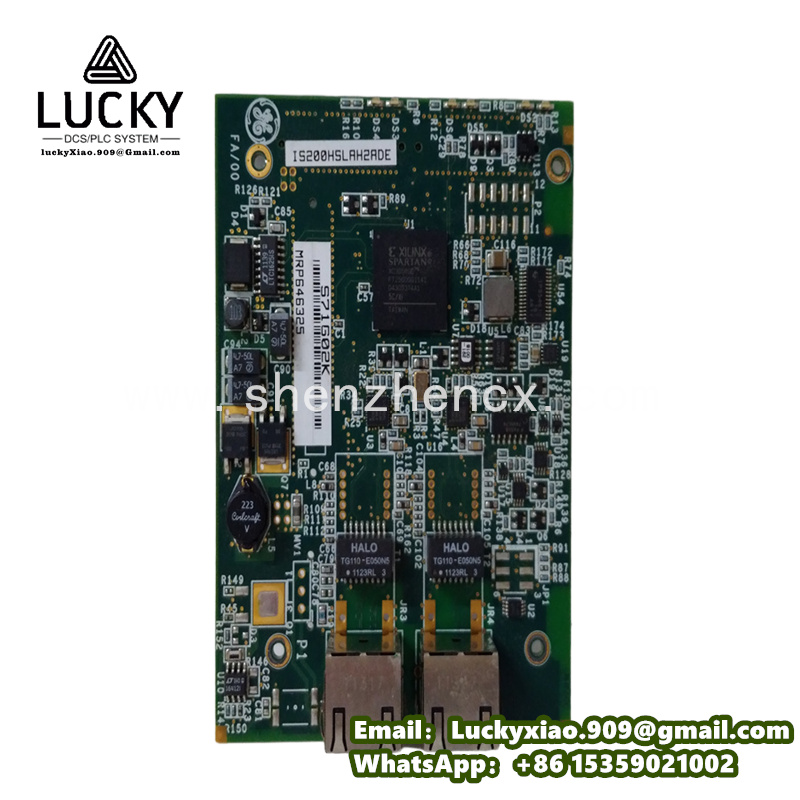

GE IS200HSLAH2ADE is a high-performance high-speed analog input module belonging to GE’s Mark VIe Speedtronic series, specifically engineered for critical turbine control and industrial automation applications. It features 8 high-speed analog input channels with 24-bit resolution, supporting ±10V DC and 4–20mA signal types to accurately capture fast-changing data from sensors (e.g., vibration probes, pressure transducers, speed pickups) in gas/steam turbines. The module offers 2500Vrms galvanic isolation, advanced noise filtering, and a sampling rate of up to 1kHz per channel, ensuring precise signal acquisition even in harsh industrial environments (-40°C to +85°C operating range). Seamlessly integrating with GE Mark VIe controllers and Proficy software for remote configuration and diagnostics, it supports hot-swappable installation to minimize downtime, making it a vital component in power generation, oil & gas, and petrochemical sectors—enabling real-time monitoring of turbine performance and reliable execution of control logic.
STAI INSTALLATION:
A sheet metal carrier that is mounted on a DIN rail carries the STAI together with a plastic insulator. The STAI plus insulator can alternatively mount to a sheet metal assembly before being fastened directly to a cabinet. There are two different varieties of Euro-block terminal blocks available:
- A permanently mounted terminal block with 48 terminals is present on STAI 1.
- A right-angle header on STAI 2 accepts a variety of pluggable terminal blocks that are readily accessible and have a total of 48 terminals.
- Typically, shielded twisted pair (#18 AWG) wires are utilized. There is an I/O cable shield terminal available next to the terminal blocks.
It is possible to accept the following analog input and output types:
- Two-wire transmitter with analog input.
- Three-wire transmitter with analog input.
- Four-wire transmitter with analog input.
- An externally powered transmitter with an analog input.
- Analog input, 5 and 10 volts direct current.
- 0-20 mA current analog output.
- Analog output, current of 0-200 mA.
Stock model:
IS200TREGH1BEC
IS200EROCH1ABB
IS200ERIOH1AAA
IS200ERDDH1ABA
IS200EPSMG2ADC
IS200DSPXH1DBC
IS200STAOH2AAA
IS200TDBTH6ABC
IS200JPDDG1AAA
IS200VTCCH1CBB
IS200EPSMG2ADC
IS200EPSMG2AEC
IS200EROCH1ABB
IS200ERIOH1AAA
IS200ERDDH1ABA
IS200DSPXH1DBC
IS200DSPXH1DBD
IS200TVBAH2ACC
IS200TSVCH1AJE
IS200EXHSG3AEC
IS200TBCIH2CAA
IS200EPSMG1AEC
IS200EGPAG1BCA
IS200EPSMG1AED
IS200TRPAH2AHE
