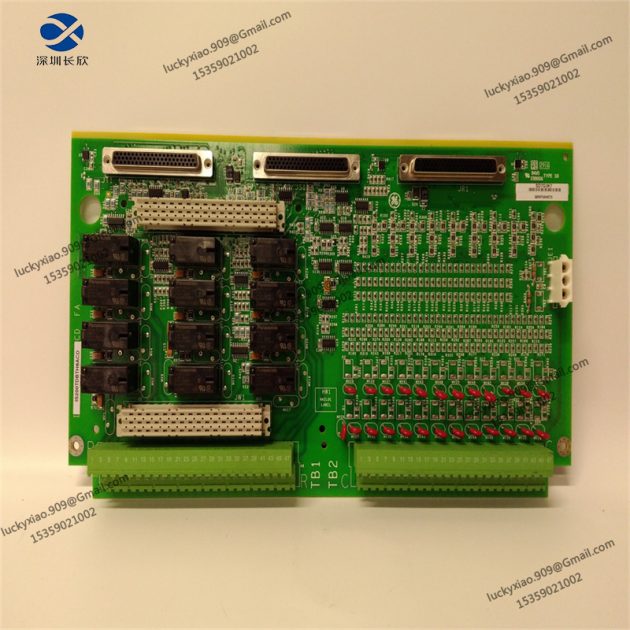

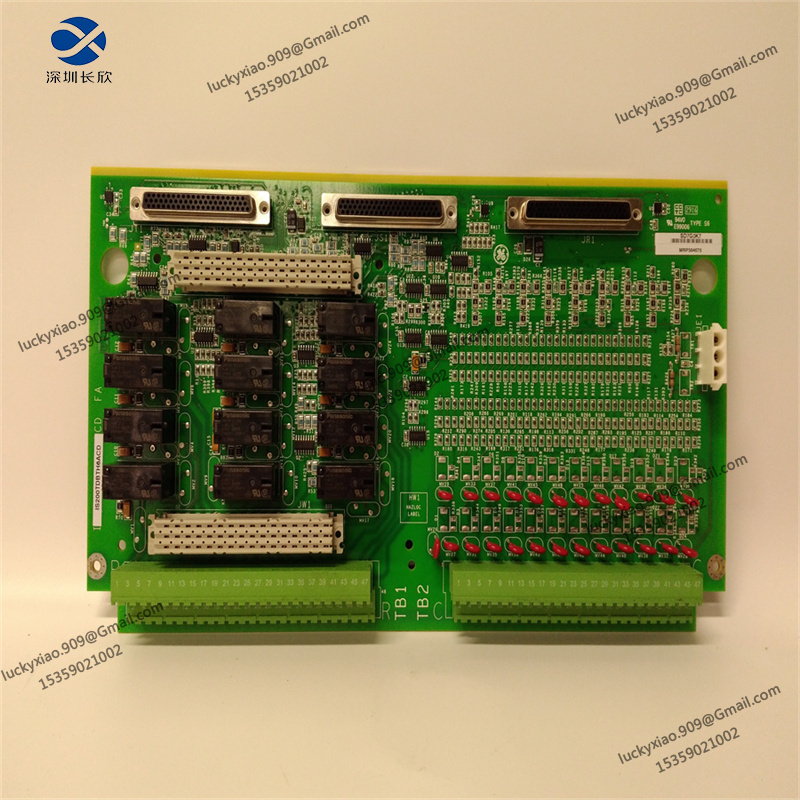

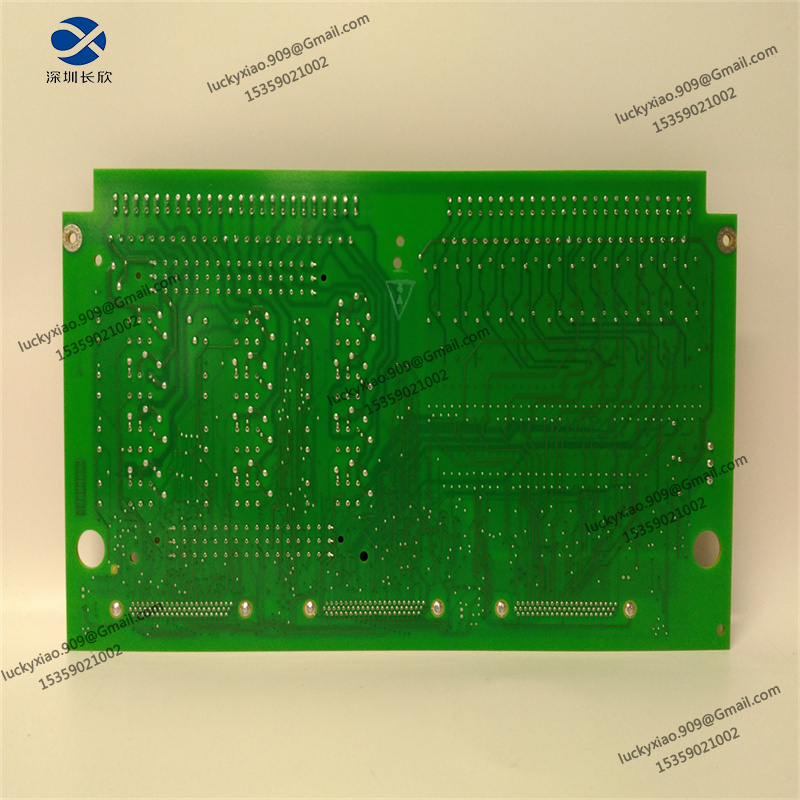

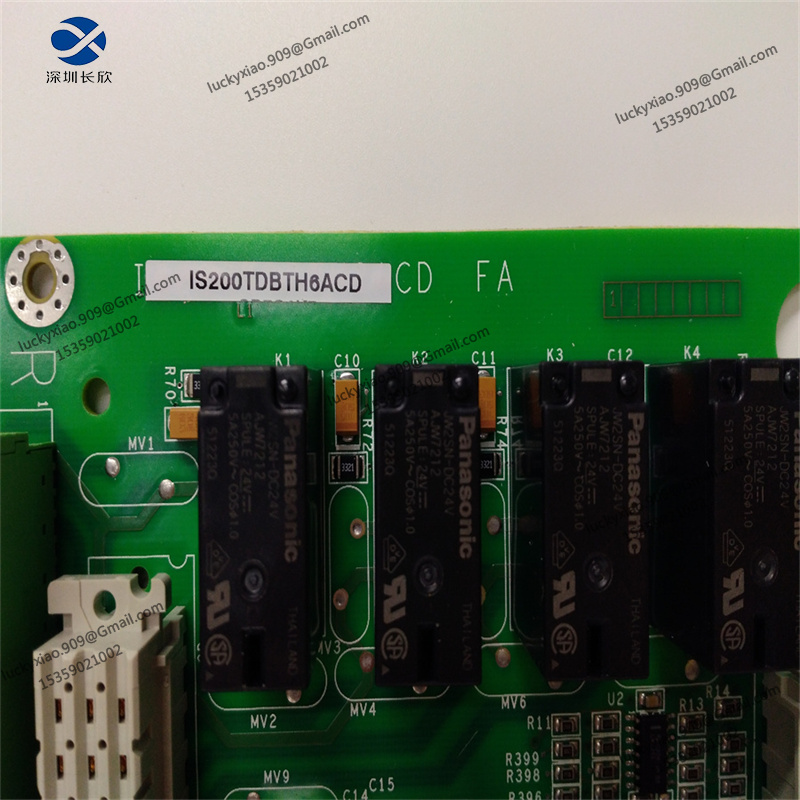

Name: GE IS200TDBTH6ACD analog I/O board
SKU: 8063
Price: 1699.00 USD
Availability: InStock

GE IS200TDBTH6ACD is a high-performance analog I/O board that fits into GE’s Mark V, Mark VI, and Mark VIe Speedtronic series, mainly tailored for gas and steam turbine control systems. It excels at scaling and conditioning various analog signals like LVDT inputs, thermocouple signals, and 4–20 mA signals from terminal boards on I/O cores R1, R2, and R3, and communicates with STCA and TCQC boards via 3PL and JE connectors respectively. Equipped with photoelectric isolation technology and strong noise suppression, it operates stably in harsh industrial environments with an operating temperature range of -40°C to +70°C. Supporting protocols such as Modbus and OPC, it seamlessly integrates with other GE modules and offers built-in diagnostic functions and indicator lights for easy troubleshooting. It is widely applied in power generation, petrochemical, and oil & gas sectors to manage turbine speed, load and fault detection, safeguarding reliable operation of turbine systems.

STAI INSTALLATION:

A sheet metal carrier that is mounted on a DIN rail carries the STAI together with a plastic insulator. The STAI plus insulator can alternatively mount to a sheet metal assembly before being fastened directly to a cabinet. There are two different varieties of Euro-block terminal blocks available:

A permanently mounted terminal block with 48 terminals is present on STAI 1.
A right-angle header on STAI 2 accepts a variety of pluggable terminal blocks that are readily accessible and have a total of 48 terminals.
Typically, shielded twisted pair (#18 AWG) wires are utilized. There is an I/O cable shield terminal available next to the terminal blocks.

It is possible to accept the following analog input and output types:
