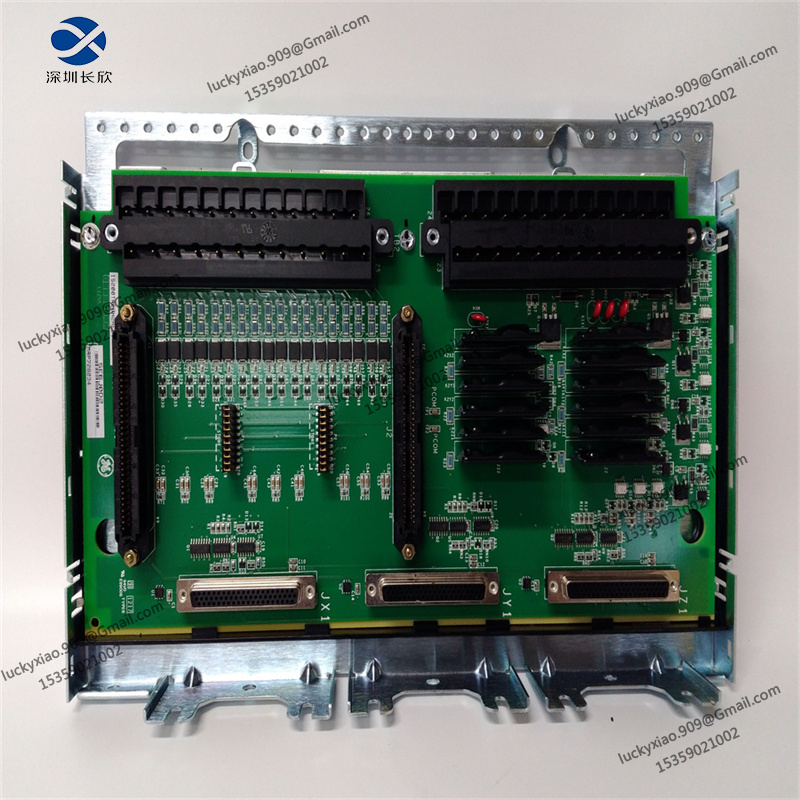

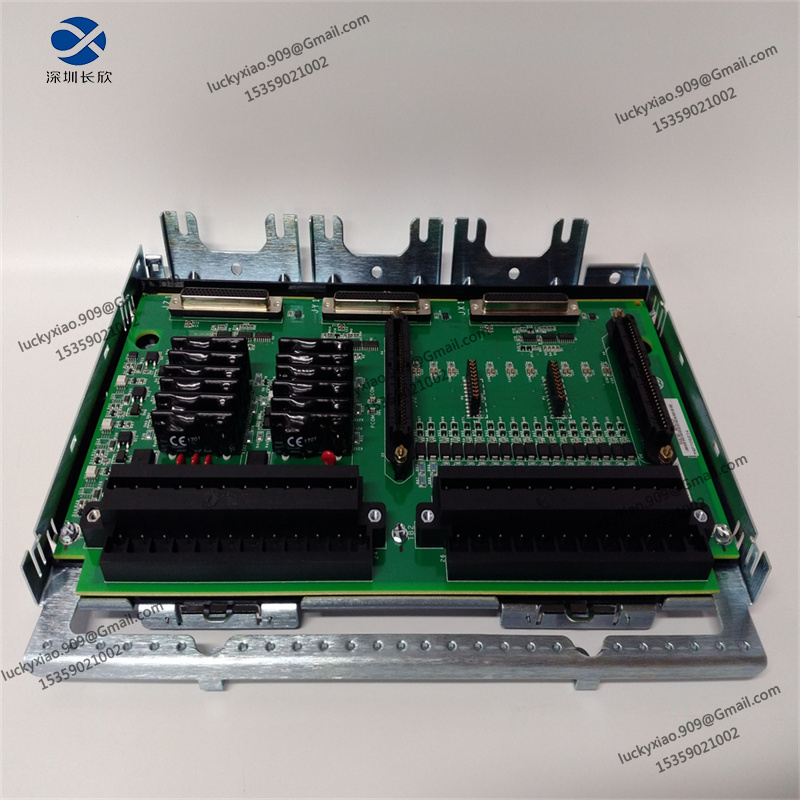

GE IS200TREAH2AED is an acoustic monitoring terminal board belonging to GE’s Mark VI Speedtronic series, specially designed for gas and steam turbine control systems. It works seamlessly with the IS200VAMB acoustic monitoring input board and supports third – party vendors like Bentley – Nevada, featuring two terminal boards (TB1 and TB2) with 24 connection points each and a total of 9 channels controlled by DIN connector inputs. The board is built with 18 jumpers to regulate current and voltage inputs, receives millivolt outputs from CCSA boards or third – party charge amplifiers, and its high – impedance DC bias enables detection of open connections between charge amplifiers and the board. With a modular design, pluggable terminals, and functions like signal isolation and power protection, it simplifies wiring and maintenance, and reliably operates in harsh industrial settings such as power generation and petrochemical sectors to safeguard turbine operational stability.
STAI INSTALLATION:

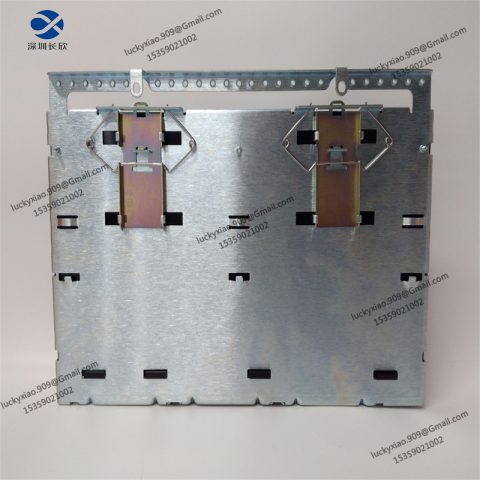

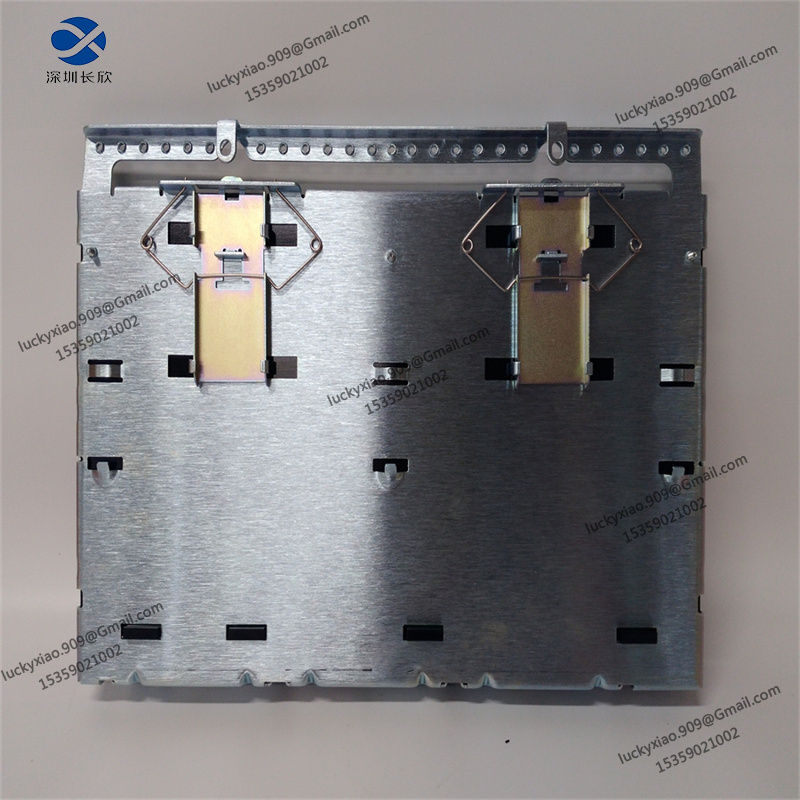

A sheet metal carrier that is mounted on a DIN rail carries the STAI together with a plastic insulator. The STAI plus insulator can alternatively mount to a sheet metal assembly before being fastened directly to a cabinet. There are two different varieties of Euro-block terminal blocks available:
- A permanently mounted terminal block with 48 terminals is present on STAI 1.
- A right-angle header on STAI 2 accepts a variety of pluggable terminal blocks that are readily accessible and have a total of 48 terminals.
- Typically, shielded twisted pair (#18 AWG) wires are utilized. There is an I/O cable shield terminal available next to the terminal blocks.
It is possible to accept the following analog input and output types:
- Two-wire transmitter with analog input.
- Three-wire transmitter with analog input.
- Four-wire transmitter with analog input.
- An externally powered transmitter with an analog input.
- Analog input, 5 and 10 volts direct current.
- 0-20 mA current analog output.
- Analog output, current of 0-200 mA.
Stock model:
IS200TREGH1BEC
IS200EROCH1ABB
IS200ERIOH1AAA
IS200ERDDH1ABA
IS200EPSMG2ADC
IS200DSPXH1DBC
IS200STAOH2AAA
IS200TDBTH6ABC
IS200JPDDG1AAA
IS200VTCCH1CBB
IS200EPSMG2ADC
IS200EPSMG2AEC
IS200EROCH1ABB
IS200ERIOH1AAA
IS200ERDDH1ABA
IS200DSPXH1DBC
IS200DSPXH1DBD
IS200TVBAH2ACC
IS200TSVCH1AJE
IS200EXHSG3AEC
IS200TBCIH2CAA
IS200EPSMG1AEC
IS200EGPAG1BCA
IS200EPSMG1AED
IS200TRPAH2AHE
