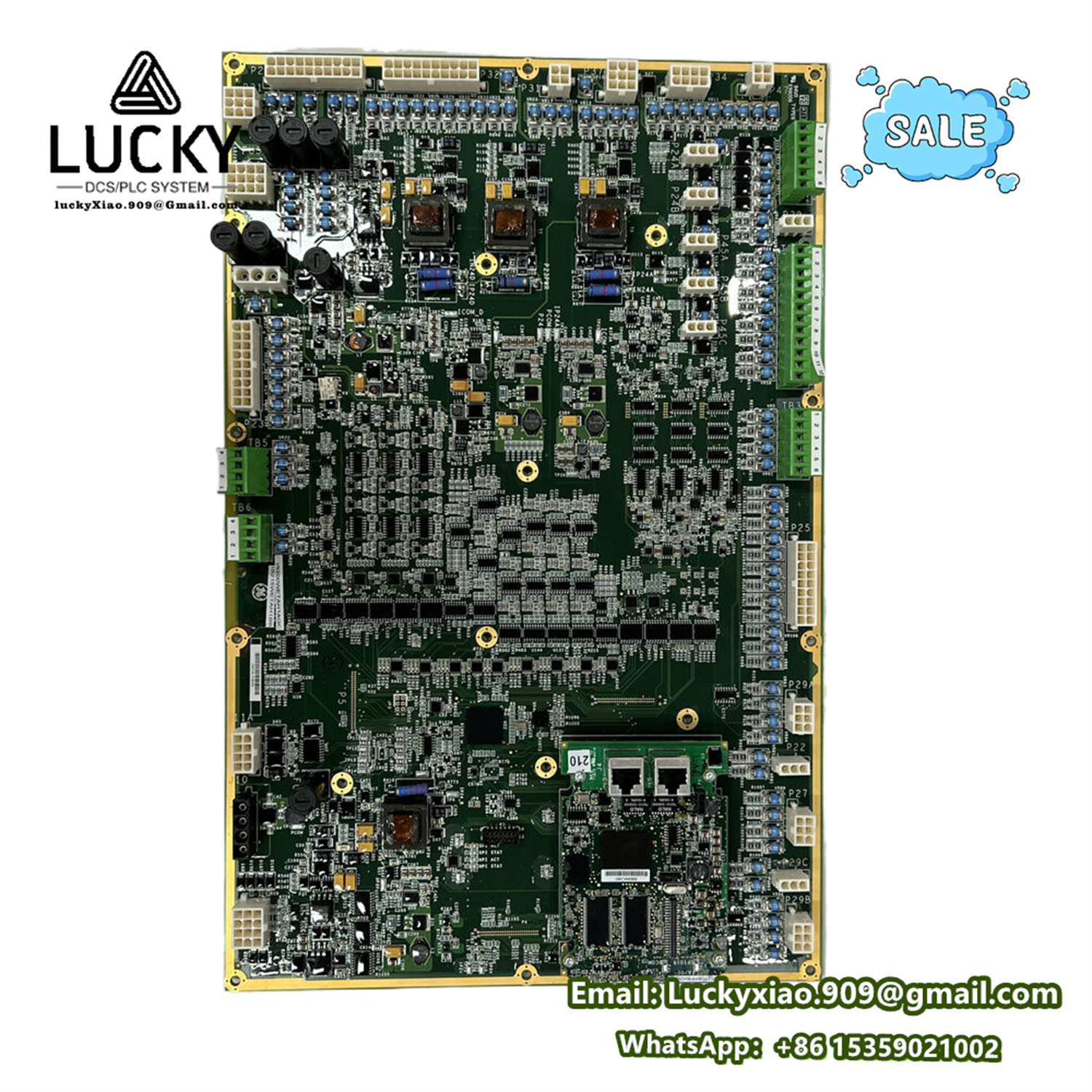

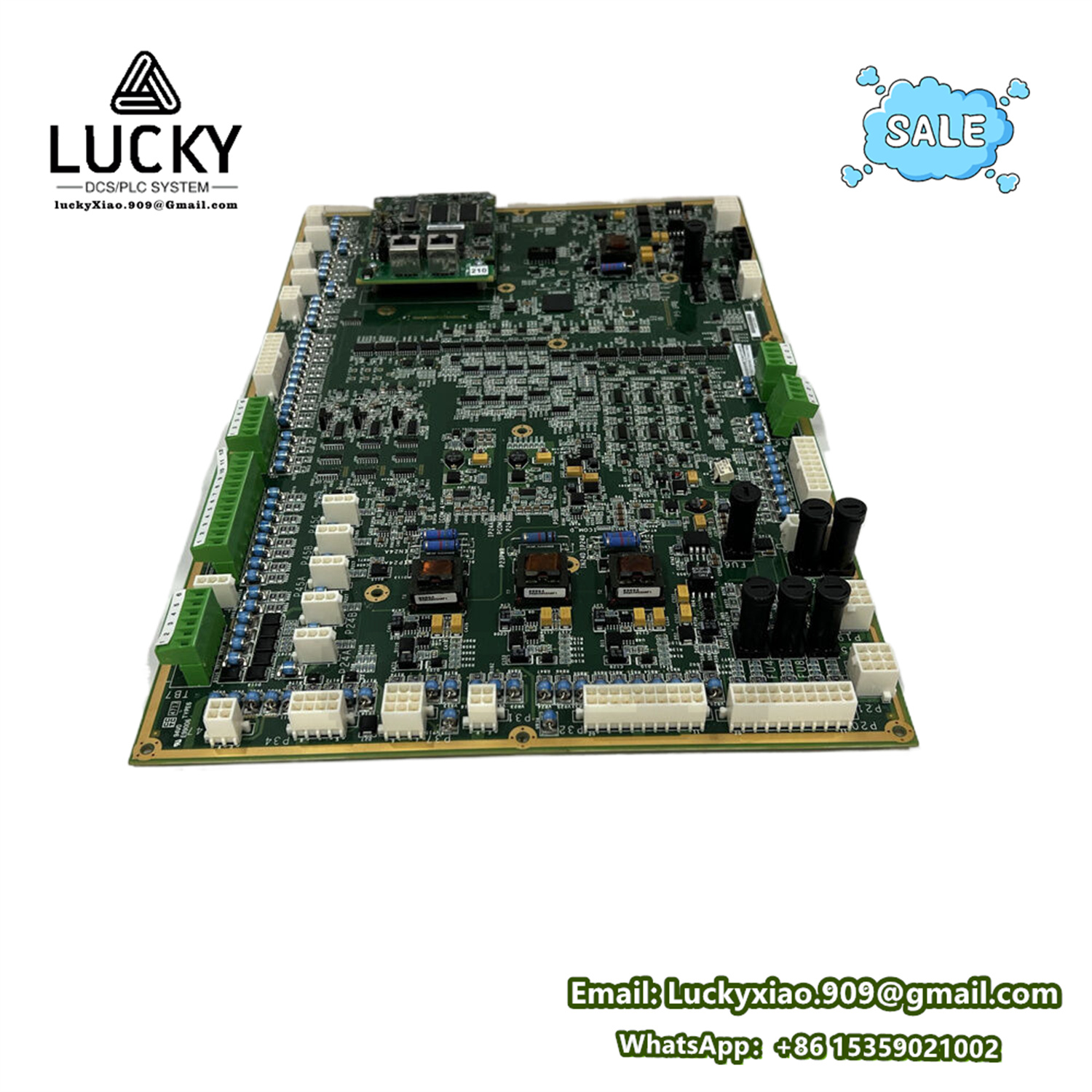

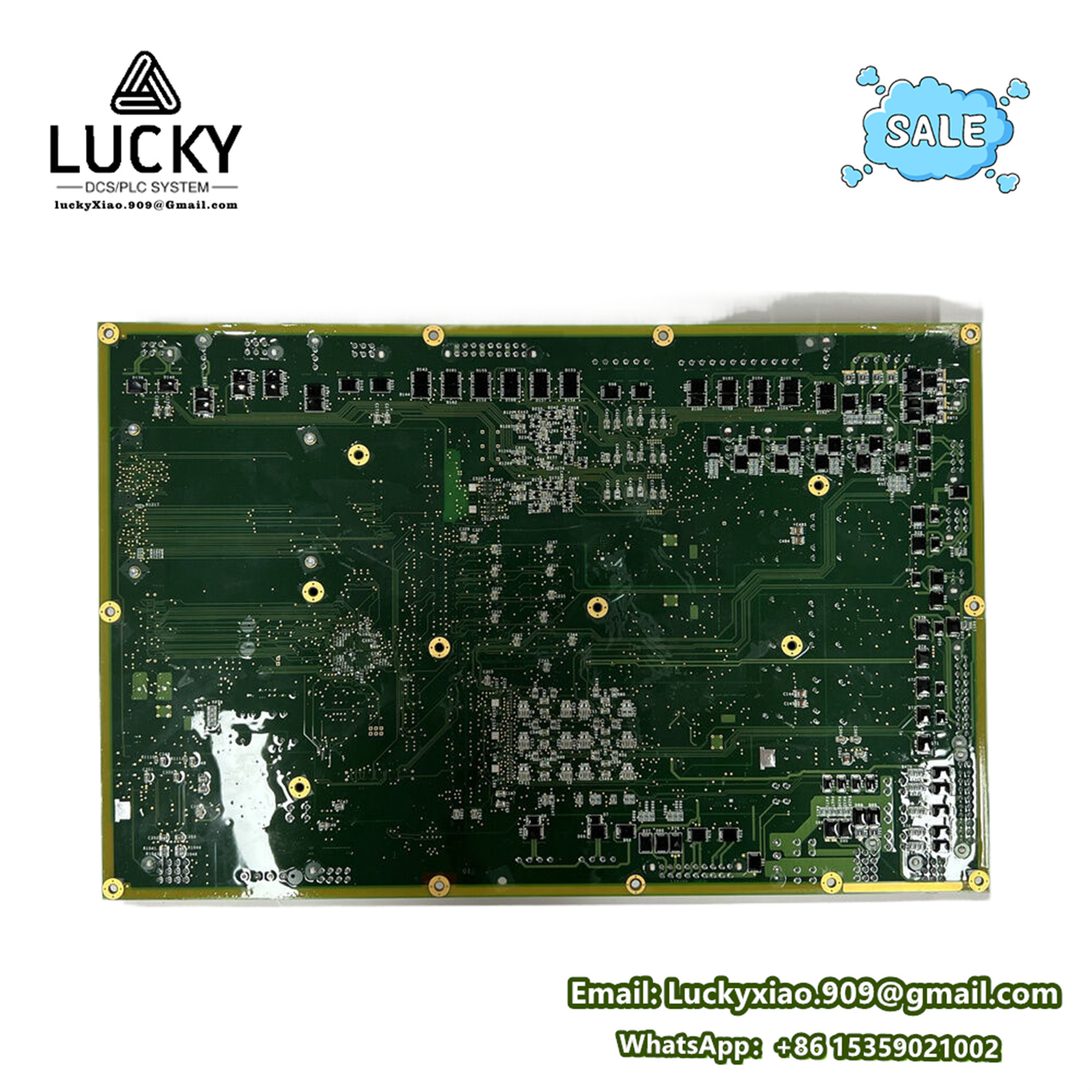

GE IS215WETAH1BB IS200WETAH1AGC Environmental monitoring module
GE IS215WETAH1BB / IS200WETAH1AGC Technical Specification
(Turbine Enclosure Water Detection Module)
Specification
|
Attribute
|
Detail
|
|---|---|
|
Part Number
|
IS215WETAH1BB (Mark VIe) / IS200WETAH1AGC (Mark VI)
|
|
Functional Code
|
WETAH
|
|
Manufacturer
|
General Electric (GE)
|
|
Platform
|
Mark VIe / Mark VI Speedtronic™ Turbine Control
|
|
Country of Origin
|
USA
|
|
Function
|
Multi-Zone Water Intrusion Detection
|
Description
The GE IS215WETAH1BB (Mark VIe) and IS200WETAH1AGC (Mark VI) are environmental monitoring modules designed to detect water accumulation in turbine control enclosures. Utilizing conductive probes, they monitor up to 8 independent zones (e.g., cabinet sumps, conduit entries) with programmable latch/reset logic. Triggers critical alarms ( fault) to prevent electrical shorts in control systems.
Features
- Sensing Technology:
- 8× isolated probe inputs (0–30V DC wetting voltage)
- Configurable resistance threshold (5–50 kΩ default)
- Probe short/open circuit diagnostics
- Control Logic:
- Programmable latching/non-latching alarms
- Remote reset via Ethernet/IP (IS215) or VME (IS200)
- Zone-specific delay timers (0–300 sec)
- Robust Design:
- ±15kV ESD protection on probe inputs
- -40°C to +85°C operational range
| Model Comparison | IS215WETAH1BB (Mark VIe) | IS200WETAH1AGC (Mark VI) |
|—————————-|——————————|——————————|
| Communication | Ethernet/IP to | VME to |
| Power Supply | 24V DC (redundant) | 125V DC (non-redundant) |
| Probe Voltage | 15V DC regulated | 24V DC unregulated |
Electrical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Sensitivity
|
5 kΩ (alarm) / >500 kΩ (normal)
|
|
Probe Current
|
1 mA max (per zone)
|
|
Contact Rating
|
2A @ 30V DC (internal relay)
|
|
Isolation
|
1500V AC (probe-to-backplane)
|
|
Response Time
|
<100 ms (fault detection)
|
Product Properties
|
Property
|
Specification
|
|---|---|
|
Enclosure Rating
|
IP20 (module) / IP68 (probes)
|
|
Connectors
|
10-pin captive screw (probes) / RJ45 (IS215)
|
|
LED Indicators
|
Power (green), Fault (red), per-zone status (yellow)
|
|
Compliance
|
UL 508, IEC 61010-1, ATEX Zone 22
|
|
Dimensions
|
120 × 30 × 100 mm (4.7 × 1.2 × 3.9 in)
|
|
Weight
|
0.3 kg (0.66 lbs)
|
Performance Metrics
|
Metric
|
Value
|
|---|---|
|
False Alarm Immunity
|
Immune to condensation (<2 kΩ transient)
|
|
Fault Reporting Delay
|
Programmable 0–60 sec (debounce)
|
|
MTBF
|
>250,000 hours (SIL 2)
|
|
Calibration Stability
|
±1% threshold drift over 5 years
|
Key Applications
- Turbine Control Protection:
- Detection of water in console pedestals
- exciter cabinet flood monitoring
- Substation Safety:
- Battery room floor leakage
- Cable trench flooding (switchgear buildings)
- Industrial Environments:
- Data center raised floor moisture
- Pump seal failure detection
⚠️ Critical Integration Notes:
- Probe Selection: Use GE Probe Kit WA-001 (316SS tips, 20m cable) – generic probes cause calibration drift.
- Grounding: Isolate probe cables from enclosure ground – bond ONLY at module terminal (prevents ground loops).
- False Trigger Prevention:
- Set threshold >10 kΩ if deionized water is present
- Avoid routing probes near 480V AC conductors (>6″ clearance)
- IS215 (Mark VIe) Specific:
- Requires ToolboxST v7.05+ for configuration
- Assign ETH_IP address in controller before commissioning
- IS200 (Mark VI) Specific:
- Install in Slot J14/J15 of rack – other slots lack WETAH firmware
- Enable DCSWET=YES in configuration
- Maintenance:
- Clean probes annually with isopropyl alcohol (salt deposits lower resistance)
- Validate calibration with 10 kΩ resistor across probe terminals
- Safety: Latch alarms until MANUAL reset – automatic reset risks undetected flooding.
