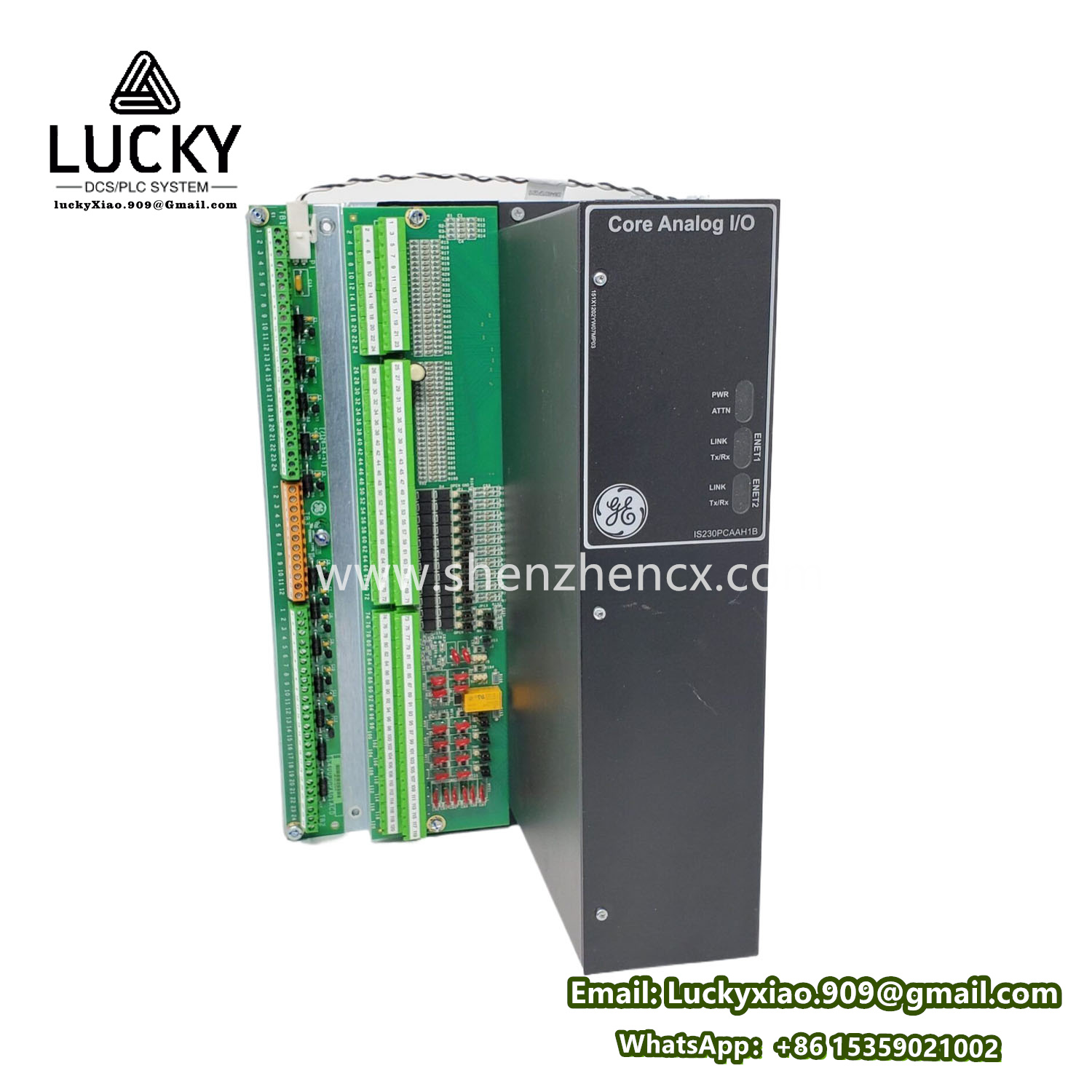

GE | IS230PCAAH1B | Analog input/output core assembly board
GE IS230PCAAH1B Product Introduction
1. Product Description
The GE IS230PCAAH1B is a crucial component within the General Electric product lineup, specifically designed for applications within industrial control systems, particularly in the context of turbine control. It is a type of analog input/output core assembly board. This board plays a significant role in handling and processing analog signals related to the operation of turbines, ensuring accurate monitoring and control of various parameters.
2. Product Parameters
|
Parameter
|
Details
|
|
Input Signal Range
|
Supports a wide range of analog input signals, typically in the range relevant to industrial sensor outputs, such as 4 – 20 mA for current – based sensors and 0 – 10 V for voltage – based sensors
|
|
Output Signal Range
|
Can generate analog output signals within a specified range, for example, 4 – 20 mA to control actuators or other output devices
|
|
Signal Resolution
|
High – resolution processing capabilities, capable of accurately distinguishing small changes in input signals, often with a resolution of 12 – 16 bits
|
|
Communication Interface
|
Equipped with standard communication interfaces like RS – 485 for data transfer and communication with other components in the control system
|
|
Power Supply Requirements
|
Operates on a specific DC power supply, usually around 24V DC, with a certain tolerance range to accommodate power fluctuations in industrial environments
|
3. Product Specifications
- Physical Dimensions: Compact design to fit into standard industrial enclosures. Its dimensions are carefully engineered to optimize space utilization within control cabinets.
- Mounting Method: Features a secure mounting mechanism, such as DIN – rail mounting or panel – mount options, ensuring stable installation in various industrial settings.
- Environmental Conditions: Designed to withstand harsh industrial environments. It can operate within a wide temperature range, typically from – 20°C to + 60°C. Additionally, it has good resistance to humidity, vibration, and electromagnetic interference.
- Electrical Isolation: Incorporates high – quality electrical isolation techniques to prevent electrical interference between different parts of the control system and to protect the board from voltage surges.
4. Series
The IS230PCAAH1B belongs to GE’s series of industrial control products. These products are known for their high reliability, performance, and compatibility within GE’s broader industrial automation and control ecosystems. They are designed to meet the stringent requirements of industrial applications, especially in the power generation and industrial machinery sectors.
5. Features
- High – Precision Signal Processing: Utilizes advanced analog – to – digital and digital – to – analog conversion technologies to ensure accurate signal processing. This high precision is crucial for the precise control of turbine – related operations.
- Robust Design: Built with high – quality components and a rugged housing, it can endure the harsh conditions commonly found in industrial plants, including high temperatures, vibrations, and electrical noise.
- Flexible Configuration: Allows for flexible configuration of input and output channels, enabling it to adapt to different application requirements. Users can customize the board’s settings to match the specific needs of their turbine control systems.
- Redundant Functionality: Some versions of the board may incorporate redundant features, such as redundant power inputs or signal paths. This redundancy enhances the reliability of the system, minimizing the risk of downtime due to component failures.
6. Function
The main function of the IS230PCAAH1B is to interface between various analog sensors and actuators in a turbine control system and the central control unit. It receives analog signals from sensors that monitor parameters such as temperature, pressure, and flow rate in the turbine system. These signals are then processed, converted into digital data, and sent to the control unit for further analysis. Conversely, it can receive digital control signals from the control unit, convert them into analog output signals, and send them to actuators to adjust the operation of the turbine, such as controlling the fuel flow or adjusting the blade pitch.
7. Use
In a turbine control system, the IS230PCAAH1B is used to collect real – time data from sensors distributed throughout the turbine. This data is used to monitor the turbine’s performance, detect any abnormal conditions, and make necessary adjustments to ensure efficient and safe operation. For example, it can be used to control the speed of the turbine by adjusting the fuel supply based on the input signals from speed sensors. It can also be used to monitor and control the temperature of the turbine’s components to prevent overheating.
8. Application Fields
- Power Generation: Widely used in gas turbine and steam turbine power plants. In gas turbine power plants, it helps in monitoring and controlling the combustion process, fuel flow, and turbine speed to optimize power generation efficiency. In steam turbine power plants, it is used to manage the steam flow, pressure, and temperature to ensure stable and efficient operation.
- Industrial Manufacturing: Applied in industrial facilities that use turbines for mechanical drive applications, such as in large – scale manufacturing plants where turbines are used to drive compressors, pumps, or other industrial machinery. It helps in maintaining the proper operation of these turbines, ensuring the smooth running of the entire manufacturing process.
- Oil and Gas Industry: Used in oil and gas production facilities where turbines are used for various purposes, such as powering compressors for gas transportation or driving pumps for oil extraction. The IS230PCAAH1B enables accurate control and monitoring of these turbines in the harsh and demanding environment of the oil and gas industry.
