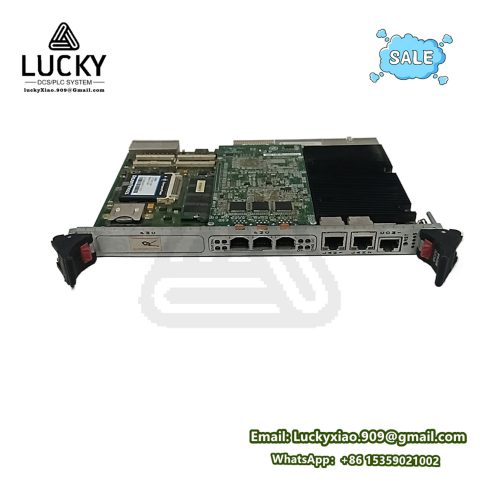

GE IS415UCVHH1A Vibration Monitoring Processor
GE IS415UCVHH1A Technical Specification
1. Product Description
The GE IS415UCVHH1A is a Vibration Monitoring Processor for GE’s Mark VIe turbine control system. It provides real-time machinery protection by processing vibration and speed signals from sensors, enabling critical shutdown decisions for rotating equipment.
2. Key Parameters & Specifications
|
Category
|
Specification
|
|---|---|
|
Part Number
|
|
|
Series
|
Mark VIe Speedtronic™ Safety System
|
|
Type
|
Vibration/Speed Monitoring Processor
|
|
Processor
|
Dual-core PowerPC, 800 MHz
|
|
Input Channels
|
8x Analog Inputs (Velocity/Acceleration), 2x Speed Inputs (MPU sensors)
|
|
Signal Resolution
|
24-bit ADC
|
|
Sampling Rate
|
Up to 10 kHz per channel
|
|
Communication
|
Dual Ethernet (RJ45), RS-485, USB 2.0
|
|
Protection Functions
|
ISO 10816/7919 compliance, Overspeed detection, Customizable alarm thresholds
|
|
Power Requirement
|
24V DC (±10%) via backplane; 12W max
|
|
Operating Temperature
|
-30°C to +65°C (-22°F to +149°F)
|
|
Safety Certification
|
IEC 61508 SIL 2/3, ISO 13849 PL e
|
|
Dimensions
|
160 x 130 x 45 mm (6.3 x 5.1 x 1.8 in)
|
3. Series & Variants
- Series: Core component of GE Mark VIe UCVH Series (Vibration Health Monitoring).
- Compatible Modules:
- IS200VRTDH1A: Vibration Signal Conditioner
- IS215VCMIH2B: Vibration Sensor Interface
- Variant Comparison:
ModelKey DifferenceIS415UCVHH1BEnhanced seismic sensing (10g range)IS415UCVHJ1AJet engine monitoring version
4. Key Features
- Multi-Channel Analysis: Simultaneous processing of 8 vibration + 2 speed signals.
- Advanced Diagnostics: FFT spectrum analysis, orbit plots, phase measurements.
- Redundancy Support: Dual-module hot backup for critical applications.
- Real-Time Alarms: Programmable trip thresholds (Danger/Alert levels).
- Secure Data Logging: Stores 90+ days of waveform history.
- Sensor Health Check: Automatic detection of faulty accelerometers/MPUs.
5. Function & Role
- Machinery Protection: Triggers emergency shutdowns on vibration/overspeed events.
- Condition Monitoring: Tracks bearing wear, imbalance, misalignment.
- Data Integration: Streams vibration data to Mark VIe controllers and plant historians.
- Compliance Reporting: Generates ISO 10816-compliant machine health reports.
6. Applications & Use Cases
|
Application Domain
|
Implementation
|
|---|---|
|
Power Generation
|
Steam/Gas turbine vibration protection (coal, nuclear, combined-cycle plants).
|
|
Oil & Gas
|
Compressor train monitoring (offshore platforms, pipelines).
|
|
Hydroelectric
|
Hydro turbine shaft runout and bearing health analysis.
|
|
Industrial Manufacturing
|
Critical pump/motor protection (chemical, paper mills).
|
|
Aerospace Test Rigs
|
Jet engine spin testing with overspeed safeguards.
|
7. System Integration
[Accelerometers/Proximitors] → IS200VRTDH1A (Signal Conditioning)
↓
IS415UCVHH1A (Processing)
↓
[Ethernet] → Mark VIe Controller → SCADA/Asset Performance Management (APM)
↓
[Relay Outputs] → Emergency Shutdown System
8. Protocol Support & Data Flow
|
Direction
|
Protocol
|
Function
|
|---|---|---|
|
Input
|
IEPE (Analog)
|
Sensor signal acquisition
|
|
Output
|
Modbus TCP
|
Integration with DCS/SCADA
|
|
Diagnostics
|
GE SRTP
|
ToolboxST™ connectivity
|
|
Time Sync
|
IEEE 1588 PTP
|
Precision timestamping for events
|
Summary
The GE IS415UCVHH1A delivers mission-critical machinery protection for rotating equipment in energy and industrial sectors. With SIL 3 safety certification and advanced vibration analysis capabilities, it prevents catastrophic failures while enabling predictive maintenance strategies.
⚙️ Configuration Note: Requires ToolboxST™ (v07.08+) with VDOK Configurator. Firmware updates via USB. Compliant with API 670 machinery protection standards. Lifecycle support by GE Bently Nevada Services.
