Product System Introduction
GE DS200TCEAG1BTF is a core emergency oversaturation protection board in the GE Speedtronic Mark V turbine control system. It is installed in the P core area of the system and undertakes key signal processing tasks for gas turbine safety protection. Centering on real-time monitoring of turbine speed and flame conditions, the module will immediately trigger a trip protection signal once abnormal working conditions such as overspeed and flame failure are detected. It can cut off gas supply rapidly and perform emergency shutdown, preventing equipment damage and safety hazards fundamentally. Integrated with a microprocessor and programmable firmware storage unit, the board is equipped with 30 configuration jumpers and multiple protection circuits to flexibly adapt to the protection logic of different gas turbine models. With excellent industrial anti-interference performance, it ensures the stable and safe operation of turbine units in harsh industrial environments such as power and energy industries.

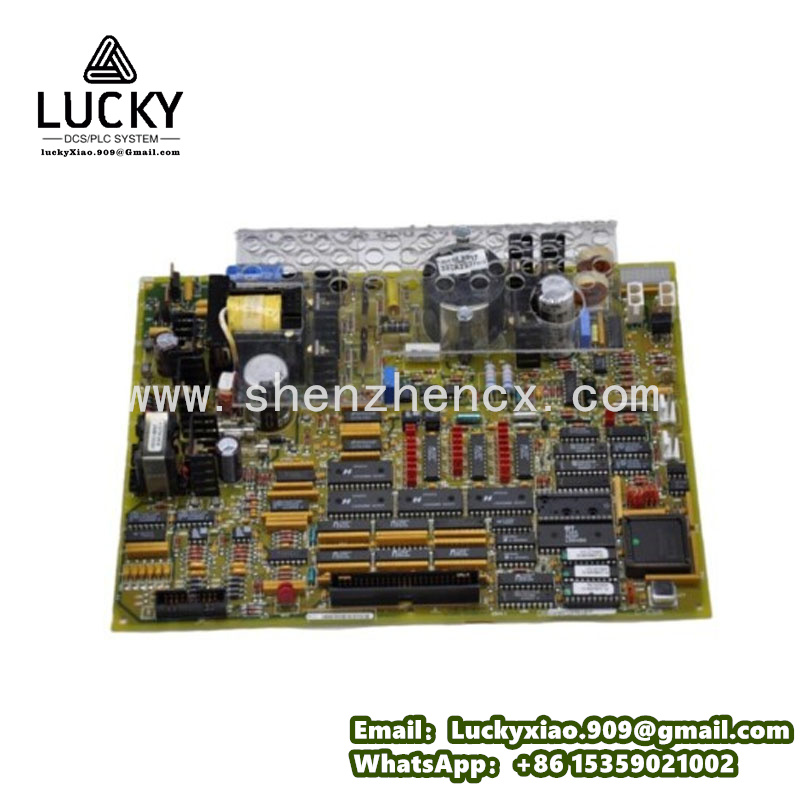

GE DS200TCEAG1BTF
Product Technical Parameters
- Applicable System: GE Speedtronic Mark V Turbine Control System
- Core Functions: Turbine overspeed monitoring, flame detection, emergency trip signal output
- Processor: Intel 80196 microprocessor for real-time signal calculation and logic judgment
- Storage Unit: Multiple programmable PROM modules for storing protection firmware and control commands
- Configuration Components: 30 Berg jumpers for board function and position configuration
- Protection Circuit: 3 independent fuses for overcurrent and short-circuit hardware protection
- Physical Interface: 2 bayonet connectors for system bus and signal connection
- Operating Voltage: 220V AC, compatible with 50/60Hz grid frequency
- Operating Temperature: -40℃ ~ +85℃, suitable for extreme industrial environments
- Installation Method: Standard Mark V rack slot mounting
- Weight: Approximately 0.11kg
Same Series Model Recommendations
- DS200TCEBG1BAA: Control expansion module, used with overspeed protection boards to realize complex safety logic control
- DS200TCCAG2A: Turbine control processor module, responsible for speed regulation and load distribution control
- DS200PTBAG1ABA: Protection terminal module with high sampling rate for high real-time safety signal collection
- DS200DCFBG2BNC: DC feedback board, collecting DC feedback signals to support closed-loop speed control
- DS200IMCPG1CCA: Pulse amplifier board, providing high-precision gate drive signals for rectifier units
- DS200SLCCG3ACC: LAN communication board, realizing high-speed data interaction between the control system and host equipment
- DS200TCQEG1B: Steam turbine control processor module, receiving protection signals and issuing unified control commands
