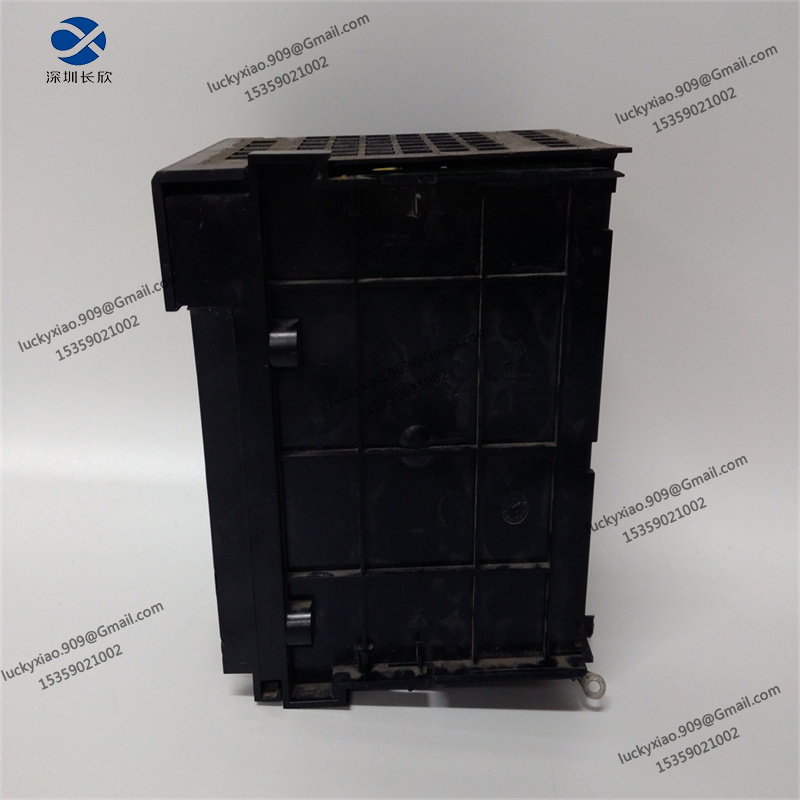

Introduction to HONEYWELL TK-FPDXX2
TK-FPDXX2 Product Overview
The HONEYWELL TK-FPDXX2 is a high-performance high-speed Ethernet communication module from the TK series, tailored for industrial control systems. As a key data transmission component, it enables fast and reliable data exchange between Honeywell DCS controllers, I/O modules, and upper monitoring platforms. It supports gigabit Ethernet transmission, ensuring low-latency and high-bandwidth transfer of large-volume industrial process data. With built-in EMI shielding and surge protection, the module maintains stable performance in harsh industrial environments with electrical noise and voltage fluctuations. It features plug-and-play functionality and supports multiple industrial protocols like Modbus TCP/IP and EtherNet/IP, allowing seamless integration into existing Honeywell control systems. Compact in design, it facilitates easy installation and is equipped with intuitive status indicators for real-time monitoring of communication status, simplifying on-site maintenance. Ideal for petrochemical, power generation, and large-scale manufacturing industries, it provides a stable and efficient Ethernet communication solution.
TK-FPDXX2 Technical Specifications
-
Product Model: TK-FPDXX2
-
Product Type: High-speed Ethernet Communication Module (TK Series)
-
Core Functions: High-bandwidth industrial data transmission; Real-time communication between control components; Multiple industrial protocol support; EMI shielding and surge protection; Communication status monitoring; Fault diagnosis and alarm
-
Network Specifications: Ethernet Standard: IEEE 802.3; Data Transfer Rate: 1000Mbps (Gigabit Ethernet); Supported Protocols: Modbus TCP/IP, EtherNet/IP, TCP/IP, UDP; Communication Interface: 2 x RJ45 ports (redundant configuration)
-
Performance Parameters: Latency: ≤1ms; Packet Loss Rate: 0% (normal industrial environment); Concurrent Connections: Up to 64
-
Power Supply: Operating Voltage: 24VDC (±10%); Power Consumption: Typical 6W, Maximum 8W
-
Protection Performance: Surge Protection: 6kV (contact discharge); ESD Protection: ±15kV (air discharge); EMI Protection: EN 55022 Class A compliant
-
Environmental Ratings: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Vibration Resistance: 5g (10-500Hz)
-
Mechanical Details: Mounting Type: 35mm standard DIN rail; Dimensions (L×W×H): Approx. 120mm × 80mm × 45mm; Net Weight: Approx. 0.35kg; Protection Rating: IP20
Recommended HONEYWELL Similar Series Models
-
TK-FPDXX1: 100Mbps Fast Ethernet communication module
-
TK-FPDXX3: Gigabit Ethernet module with fiber optic interface
-
TK-FTEB01: FTE (Fault-Tolerant Ethernet) bridge module
-
TK-CCR014: Redundant network interface module
-
TK-IOLI01: I/O link isolation module compatible with TK series Ethernet systems
-
TK-PRR021: Redundant power supply module with low current consumption, supporting C200 redundancy
-
TK-PRS021: Power supply monitoring module for TK series communication systems
-
TK-OAV081: 8-channel analog output module with Modbus RTU and CAN communication
-
TK-FPDXX4: Ethernet communication module with extended protocol support
-
TK-FPDXX5: Redundant Ethernet module for high-reliability systems
-
TK-FPDXX6: Compact Ethernet module for space-constrained installations
-
TK-FPDXX7: Ethernet module with remote monitoring function
-
TK-FPDXX8: High-isolation (3000VAC) Ethernet communication module
-
TK-FPDXX9: Ethernet module with data encryption function
