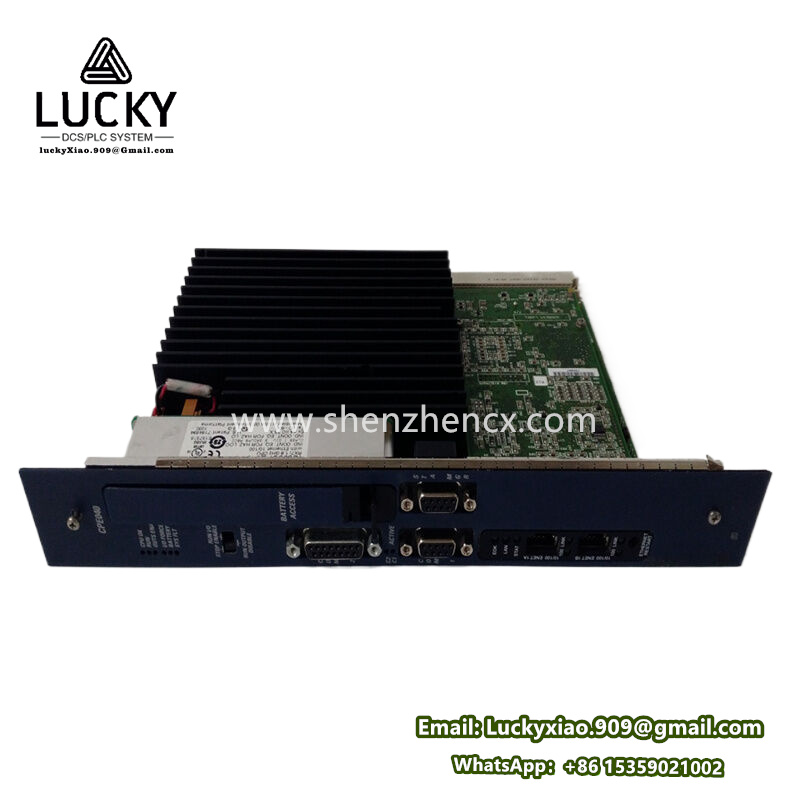

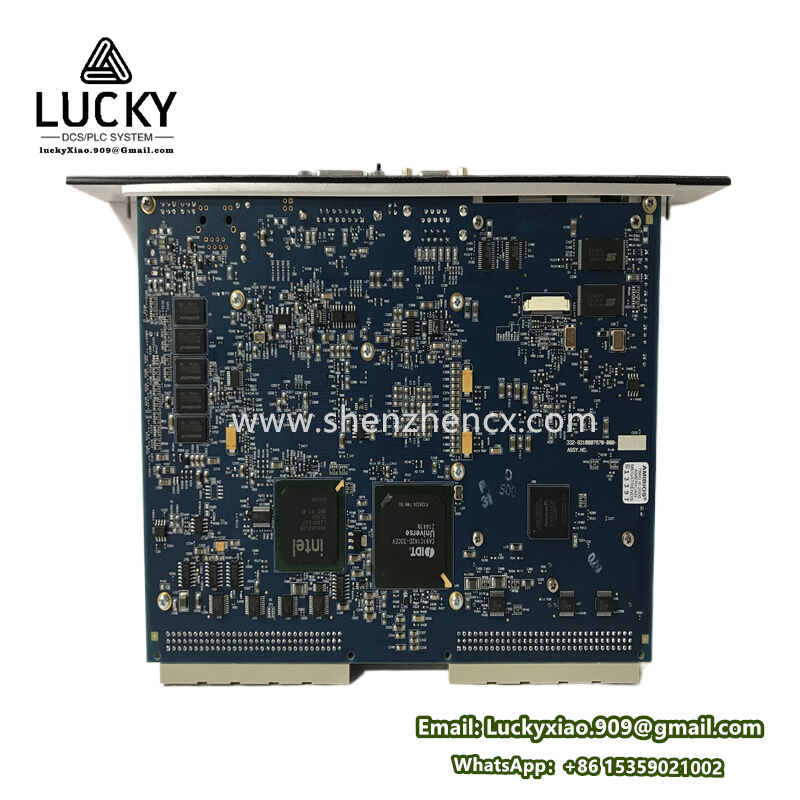

IC698CPE010-JU | GE Electric Central Processing Unit (CPU)
Product Function
The IC698CPE010-JU is a high-performance Central Processing Unit (CPU) for GE’s PACSystems™ RX3i PLC platform. It executes real-time control logic, processes I/O data, manages communications, and supports advanced functions like motion control, data logging, and SIL 2 safety applications. Featuring a 1.0 GHz dual-core processor, it enables rapid scan times (<0.1 ms/KB) and deterministic operation for complex automation tasks.
Product Specifications & Parameters
|
Category
|
Specification
|
|---|---|
|
Manufacturer
|
GE Intelligent Platforms (Now Emerson Automation Solutions)
|
|
Series
|
PACSystems™ RX3i
|
|
Module Type
|
CPU (310 Series)
|
|
Processor
|
1.0 GHz dual-core Intel® Atom™
|
|
Memory
|
40 MB User Memory (20 MB Logic, 20 MB Data)
|
|
I/O Capacity
|
Up to 32,000 Digital / 8,000 Analog Points
|
|
Safety Certification
|
SIL 2 (IEC 61508)
|
|
Redundancy Support
|
Hot Standby (with IC695RED001/002)
|
|
Comm. Ports
|
1x Serial RS-485, 2x Ethernet (10/100 Mbps)
|
|
Motion Control
|
≤8 axes (with dedicated modules)
|
|
Programming Software
|
Proficy™ Machine Edition (PME)
|
|
Operating Temp.
|
-20°C to 65°C (-4°F to 149°F)
|
|
Power Supply
|
100-120V AC (-JU variant for Japan)
|
|
Backplane Current
|
1.1A @ +5V DC
|
|
Certifications
|
CE, UL, cUL, ATEX, IECEx
|
Series Information
Part of the PACSystems™ RX3i platform – GE/Emerson’s modular, high-speed programmable automation controller (PAC) series. Designed for seamless integration with RX3i I/O modules (IC69x series) and compatibility with legacy Series 90-30 hardware.
Key Features
- High-Speed Processing: 1.0 GHz dual-core CPU for <0.1 ms/KB logic scan rates.
- Integrated Safety: SIL 2-certified for functional safety applications.
- Dual Ethernet Ports: Support PROFINET, Modbus TCP/IP, and SRTP protocols.
- Hot Standby Redundancy: <50 ms switchover for critical processes.
- Embedded Serial Port: RS-485 for Modbus RTU/SNP, SNP-X master/slave.
- Large Memory Capacity: 40 MB for complex logic, HMI screens, and data storage.
- Motion Control: Synchronized multi-axis control via RMCi modules.
Role & Purpose
- Core Controller: Executes ladder logic, function blocks, and structured text.
- Data Management: Logs process data, alarms, and events.
- Communication Hub: Interfaces with HMIs, SCADA, drives, and remote I/O.
- Safety System Enabler: Implements safety instrumented functions (SIFs).
- Legacy Integration: Replaces Series 90-30 CPUs with enhanced performance.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Automotive
|
Robotic assembly control, paint shop automation, conveyor synchronization.
|
|
Energy
|
Wind turbine pitch control, substation automation, solar farm management.
|
|
Food & Beverage
|
Batch processing, packaging line control, CIP/SIP systems.
|
|
Water Treatment
|
Pump station control, chemical dosing, filtration monitoring.
|
|
Pharmaceutical
|
SIL 2-compliant reactor control, cleanroom environmental monitoring.
|
|
Discrete Mfg.
|
CNC machine interfacing, quality inspection systems, tooling automation.
|
Technical Notes
- 🔄 Firmware Updates: Requires Proficy Machine Edition v8.0+ for configuration.
- ⚙️ I/O Compatibility: Works with RX3i Universal Backplane (IC698CHSxxx) and legacy 90-30 I/O (with adapter).
- 🌐 Network Protocols: Supports PROFINET I/O Controller, EtherNet/IP, OPC UA.
- ⚠️ Voltage Note: “-JU” suffix denotes Japan-specific 100-120V AC input range.
