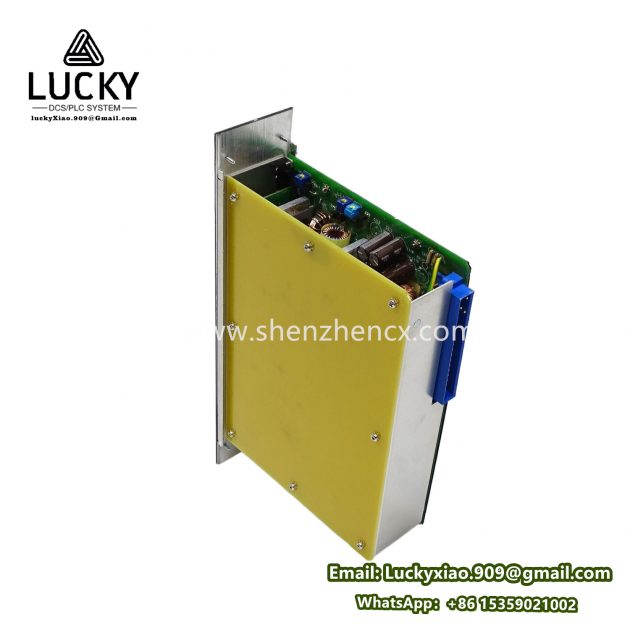

IC698PSA100E | GE Electric Central PACSystems™RX3i PLC module

$899.00

In stock

💥Name: Module/Controller/Touchpad/Driver/Load cell

Model: IC698PSA100E

🚚Delivery time: goods in stock

3️⃣6️⃣5️⃣Warranty: 12 months

Shipping fee: Shipping fee: Please contact customer service.

📦Product packaging: The seller provides complete packaging

🌐Customs clearance fee: not included

☎️Phone/WeChat:15359021002

📧Email: LuckyXiao.909@Gmail.com

📲WhatsApp+86 15359021002

 🆔Skype:+86 15359021002

❤️Other websites: www.szcxgk.com

(Note: The actual price is subject to the quotation.)

IC698PSA100E | GE Electric Central PACSystems™RX3i PLC module

Product Function

The IC698PSA100E is a primary AC/DC power supply module designed for PACSystems™ RX3i PLC racks. It converts 85-264V AC/88-375V DC input voltage to regulated +5V DC output for backplane power distribution. Featuring hot-swappable redundancy support and integrated diagnostics, it ensures continuous operation of critical control systems during power fluctuations or module failure.


Product Specifications & Parameters

Category
Specification
Manufacturer
GE Intelligent Platforms (Emerson Automation Solutions)
Series
PACSystems™ RX3i
Module Type
Power Supply (Primary)
Input Voltage
85–264V AC (47–63 Hz) / 88–375V DC
Output Voltage
+5V DC (±1%)
Output Power
100W continuous (140W peak for 500ms)
Redundancy Support
Yes (N+1 with IC698PSA100/PSD100 modules)
Efficiency
>85% (typical at full load)
Protections
Over-voltage, over-current, short-circuit, thermal shutdown
Status Indicators
AC OK, DC OK, Fault LEDs
Backplane Connection
Via RX3i Universal Backplane (IC698CHSxxx)
Operating Temp.
-20°C to 70°C (derated above 40°C)
Dimensions
Standard single-slot RX3i module (HxWxD: 132 x 40 x 125 mm)
Certifications
UL 508, CE, cULus, ATEX Zone 2
Safety Standards
IEC 61131-2, EN 50178

Series Information

Part of the PACSystems™ RX3i platform – Emerson’s flagship modular automation controller series. Compatible with all RX3i CPU, I/O, and communication modules. The “-E” suffix denotes enhanced input voltage range for European/global markets.


Key Features

  • Wide Input Range: Supports unstable mains voltage (85-264V AC) and DC sources.
  • Redundancy Ready: OR-ing diodes enable seamless N+1 backup with ≤1ms switchover.
  • Diagnostic LEDs: Real-time status monitoring (AC input, DC output, faults).
  • Hot-Swappable: Replace modules without shutting down the PLC rack.
  • High Efficiency: >85% conversion efficiency minimizes heat generation.
  • Universal Mounting: Horizontal/vertical installation in RX3i racks.

Role & Purpose

  • Backplane Power Source: Delivers stable +5V DC to CPU, I/O, and communication modules.
  • System Integrity: Redundant configuration prevents downtime in critical processes.
  • Electrical Protection: Safeguards PLC components from voltage surges and shorts.
  • Energy Management: Optimizes power usage in multi-module racks.

Applications & Use Cases

Industry
Application
Oil & Gas
Offshore platform control systems, pipeline SCADA backup power.
Power Generation
Turbine control cabinets, grid stability relays.
Automotive
Robotic assembly line controllers, paint shop PLC cabinets.
Water/Wastewater
Pump station PLCs, chemical dosing control panels.
Discrete Manufacturing
CNC machine controllers, high-speed packaging lines.
Pharmaceutical
Cleanroom environmental control, batch reactor safety systems.

Technical Notes

  • 🔌 Redundancy Wiring: Requires external redundancy cables (IC698CBLxxx series).
  • ⚠️ Derating Curve: Output power reduces to 70W at 60°C ambient temperature.
  • 🔄 Compatibility: Works with all RX3i backplanes (IC698CHS101, CHS111, etc.).
  • ⚡ Peak Capacity: Supports inrush currents during simultaneous module startup.
