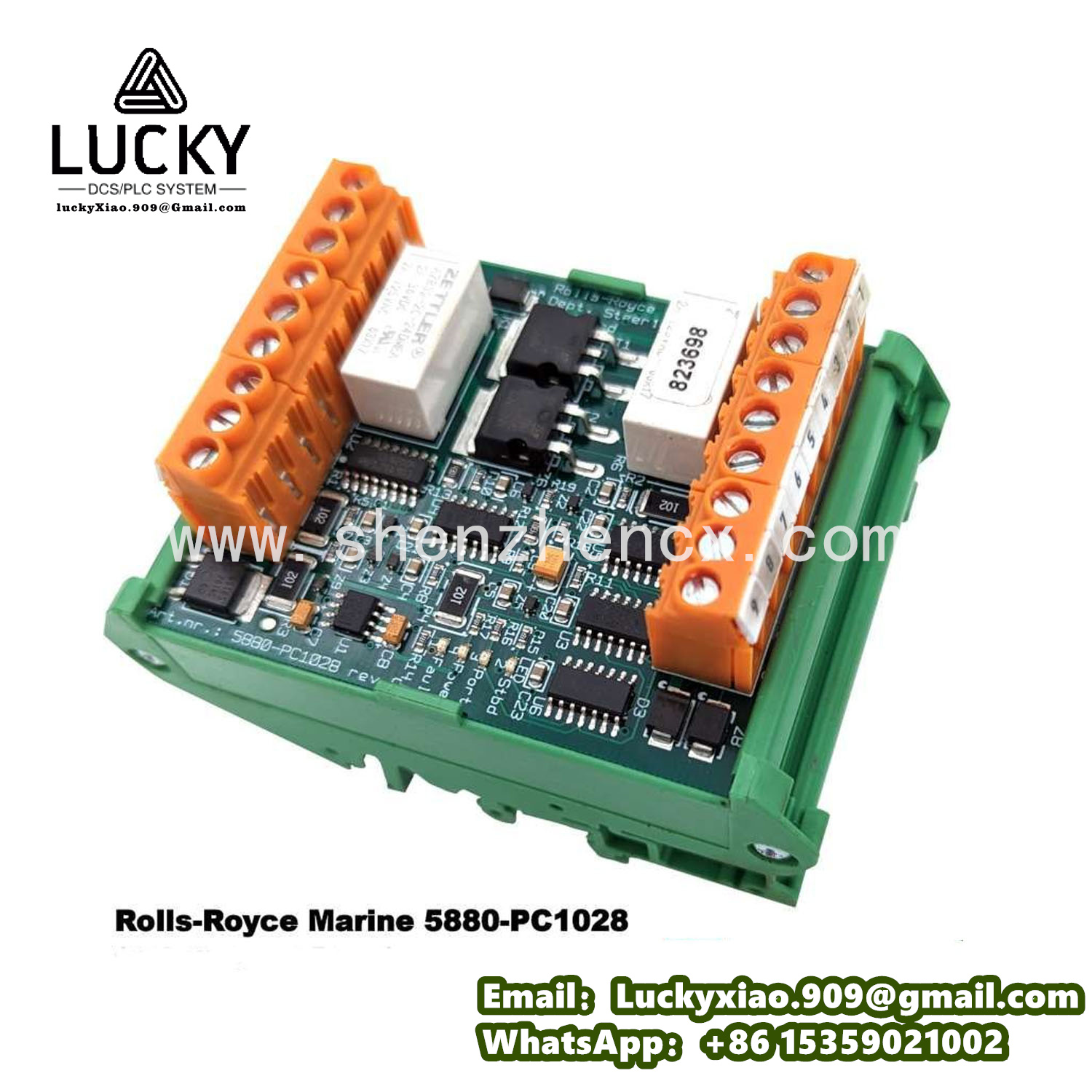

Detailed Introduction to Rolls-Royce Marine AS 5880-PC1028 Propulsion Gear Control Module
1. Product Description
The Rolls-Royce Marine AS 5880-PC1028 is a specialized, high-reliability propulsion gear control module belonging to Rolls-Royce Marine’s 5880 Series—a product line engineered exclusively for the precise regulation and monitoring of marine propulsion gear systems, including reduction gears, clutches, and thrust units in merchant ships, offshore support vessels, and naval craft. As the “control ” of a vessel’s propulsion chain, this module bridges the gap between the ship’s bridge control system and the mechanical gear components, enabling seamless adjustment of gear ratios, clutch engagement/disengagement, and thrust direction (forward/reverse) to optimize propulsion efficiency and maneuverability.
What distinguishes the 5880-PC1028 from conventional marine gear controllers is its integrated 传动 system coordination capability and Rolls-Royce’s proprietary “Adaptive Gear Mapping” algorithm. Unlike basic gear-switching devices, it synchronizes gear operations with main engine speed and propeller load in real time—critical for dynamic maritime operations such as docking, narrow waterway navigation, or offshore platform positioning, where precise control of thrust and speed is essential to avoid mechanical stress on the gear system. Its intelligent fault-detection logic also monitors gear oil temperature, clutch pressure, and gear tooth contact wear, providing early warnings of potential failures to minimize unplanned downtime.
Built to endure the harsh conditions of marine environments, the module features an IP66-rated corrosion-resistant enclosure that withstands saltwater spray, high humidity, and extreme temperature fluctuations (-40°C to +75°C). It offers seamless compatibility with Rolls-Royce’s Integrated Propulsion Control System (IPCS) and third-party vessel automation platforms (e.g., Kongsberg K-Chief, Wärtsilä IAS) via maritime-certified protocols (CANopen DS 402, Modbus TCP/IP). Certified by ABS, LR, DNV GL, and compliant with IMO SOLAS and MARPOL Annex VI regulations, the 5880-PC1028 is trusted in applications where propulsion system reliability directly impacts vessel safety and operational efficiency—from large container ships’ main propulsion gears to offshore supply vessels’ azimuth thruster gearboxes.
2. Product Technical Specifications
|
Specification Category
|
Details
|
|
Core Control Capabilities
|
– Primary Functions: Propulsion gear ratio adjustment, clutch engagement/disengagement control, thrust direction (forward/reverse) regulation, gear system status monitoring- Protection Features: Gear oil over-temperature protection (programmable 60-90°C), clutch over-pressure protection (25-40 bar), gear overspeed protection (110-120% of rated speed), tooth wear detection- Control Modes: Auto (integrated with bridge propulsion control), Semi-auto (local manual gear adjustment), Remote (integrated with vessel IPCS)
|
|
Electrical Parameters
|
– Power Supply: 24 VDC (wide input range: 18-32 VDC) compliant with marine electrical standards- Power Consumption: Typical 15 W; Max 25 W (during clutch engagement cycles)- Fuse Rating: 2 A slow-blow for power input; 1.5 A for I/O circuits
|
|
Input/Output (I/O) Interfaces
|
– Analog Inputs: 8 channels (16-bit resolution) for gear oil temperature sensors (0-100°C, 4-20 mA), clutch pressure transducers (0-50 bar, 4-20 mA), gear speed sensors (0-3000 RPM, pulse input)- Digital Inputs: 12 channels (24 VDC) for gear position signals, clutch status switches, emergency stop commands, bridge thrust direction requests- Digital Outputs: 8 channels (24 VDC, 4 A max) for gear actuator control, clutch solenoid valves, gear oil pump activation, alarm indicators- Communication: CANopen (DS 402 for motion control), Ethernet (Modbus TCP/IP), RS-485 (Modbus RTU); optional 4G/LTE for remote diagnostic data transmission
|
|
Performance Metrics
|
– Gear Ratio Adjustment Accuracy: ±0.5% of target ratio- Clutch Engagement Response Time: <200 ms (from command to full engagement)- Temperature Monitoring Accuracy: ±1°C (0-100°C range)- Speed Regulation Precision: ±5 RPM (0-3000 RPM range)
|
|
Physical & Environmental
|
– Dimensions: 240 mm (W) × 200 mm (H) × 100 mm (D) (panel-mountable)- Weight: 2.5 kg- Operating Temperature: -40°C to +75°C- Storage Temperature: -55°C to +90°C- Protection Rating: IP66 (enclosure); IP65 (connectors)- Vibration Resistance: IEC 60068-2-6 (10-500 Hz, 18 g peak); Shock Resistance: IEC 60068-2-27 (60 g, 11 ms half-sine)
|
|
Reliability & Compliance
|
– Certifications: ABS, LR, DNV GL marine type approval; CE (EMC/EMI compliance); IMO SOLAS compliant- Mean Time Between Failures (MTBF): >120,000 hours (per IEC 61709)- Fault Logging: 250-event memory with timestamp (oil temperature alarms, clutch pressure anomalies, communication errors)
|
3. Usage Instructions
3.1 Installation & Setup
- Pre-Installation Checks
-
- Verify compatibility with the vessel’s propulsion gear system (e.g., confirm gear ratio range, clutch type matches module’s control capabilities); cross-check part number 5880-PC1028 with the gear system’s technical data sheet.
-
- Inspect the module for shipping damage (cracked enclosure, bent connector pins) and ensure marine certification marks (ABS/DNV GL) are intact.
-
- Prepare tools: Torque screwdriver (1.0-2.5 N·m), ESD wristband, marine-grade shielded cables (16 AWG for power, 22 AWG for signals), and Rolls-Royce-approved wiring harness (part no. 5880-HAR-004).
- Mechanical Mounting
-
- Location: Install in the vessel’s propulsion control room or near the gear system’s local control panel; maintain 60 mm clearance on all sides for ventilation. Avoid mounting near heat sources (e.g., gear oil coolers) or direct saltwater exposure.
-
- Securing: Fasten the module to the panel using four M5 × 12 mm screws torqued to 1.8 N·m; use the provided nitrile gasket to enhance IP66 protection against dust and water ingress.
- Wiring Connections
-
- Power Wiring: Connect 24 VDC (positive to terminal PWR+, ground to PWR-) with a 2 A inline fuse; use color-coded marine cables (red for positive, black for ground) per SOLAS regulations.
-
- Sensor Wiring:
-
-
- Gear Oil Temperature Sensors: Connect 4-20 mA signals to analog inputs AI1-AI2; use twisted-pair shielded cable, ground shield at sensor end.
-
-
-
- Clutch Pressure Transducers: Wire 4-20 mA signals to AI3-AI4; ensure compatibility with transducer pressure range (0-50 bar).
-
-
-
- Gear Speed Sensors: Connect pulse signals to AI5-AI6; match sensor pulse count (e.g., 60 pulses/rev) to module configuration.
-
-
- Control Wiring:
-
-
- Gear Actuators: Connect digital outputs DO1-DO2 to actuator control coils; use relay isolation for high-current circuits (≥5 A).
-
-
-
- Clutch Solenoids: Wire DO3-DO4 to clutch engagement/disengagement solenoids; confirm polarity to avoid reverse operation.
-
-
-
- Emergency Stop: Connect E-stop button to digital input DI1 (24 VDC); ensure it triggers immediate gear lockup and clutch disengagement.
-
-
- Communication Wiring: Connect CANopen terminals (CAN_H/CAN_L) to the vessel’s IPCS bus; terminate with 120 Ω resistor at the last module in the chain. For Ethernet, use Cat5e shielded cable to the propulsion control network switch.
- Post-Installation Verification
-
- Power on the module; check the “STATUS” LED (solid green = normal, flashing red = fault).
-
- Test sensor inputs: Heat gear oil to 50°C and verify AI1 reads 12 mA (mid-range); apply 25 bar pressure to clutch transducer and confirm AI3 shows 12 mA.
-
- Validate control outputs: Send a “forward gear” command via test software and confirm DO1 activates (gear actuator engages); check clutch solenoid activation via DO3.
-
- Confirm communication: Use a laptop to ping the module’s Ethernet IP (default: 192.168.1.25) and verify data transmission to the IPCS.
3.2 Configuration & Operation
- Initial Configuration via Rolls-Royce Gear Control Manager (RRGCM)
-
- Software Setup: Install RRGCM (v6.1+ for Windows) and connect to the 5880-PC1028 via USB service port or Ethernet. Launch the “Gear System Wizard” to auto-detect connected sensors and actuators.
-
- Parameter Configuration:
-
-
- Enter gear system specifications: Number of gear ratios (e.g., 3 forward, 1 reverse), rated speed (e.g., 1800 RPM), clutch pressure range (25-35 bar), gear oil temperature setpoint (55°C).
-
-
-
- Set protection limits: Oil over-temperature trip (85°C), clutch over-pressure trip (40 bar), gear overspeed trip (115% of rated speed).
-
-
- Control Logic Setup: Configure gear shift sequencing (e.g., disengage clutch → adjust gear ratio → re-engage clutch) and synchronization parameters (engine speed vs. gear speed matching tolerance: ±10 RPM).
- Normal Operation
-
- Auto Mode (Bridge Control): Activate “Auto Mode” via RRGCM or the vessel’s IPCS. The module receives thrust direction and speed commands from the bridge, automatically adjusts gear ratios and engages clutches to match the requested propulsion output. Real-time data (gear position, oil temperature, clutch pressure) is relayed to the bridge HMI.
-
- Local Monitoring: Use the module’s front-panel LCD (2-line × 24-character) to track key parameters: Current gear ratio, clutch engagement status, gear oil temperature, and active alarms. Press the “MODE” button to cycle through display screens.
-
- Semi-Auto Mode (Local Control): For maintenance or troubleshooting, switch to “Semi-Auto Mode” via the front-panel button. Manually adjust gear ratios using the “UP/DOWN” keys and engage clutches via the “CLUTCH” button; the module enforces safety limits (e.g., prevents gear shifting with engaged clutch).
-
- Emergency Response: If a critical fault (e.g., gear oil over-temperature >85°C) is detected, the module triggers immediate clutch disengagement (DO3-DO4 de-energize), locks gears in neutral, and activates a visual/audio alarm (DO5). Reset via RRGCM after resolving the fault (e.g., repairing oil cooler).
- Maintenance & Troubleshooting
-
- Routine Checks:
-
-
- Monthly: Inspect wiring terminals for corrosion; clean connectors with marine-grade contact cleaner (Rolls-Royce Spec. RR-C-800).
-
-
-
- Quarterly: Calibrate sensor inputs via RRGCM—use a precision signal generator to apply 0%, 50%, and 100% of sensor ranges (e.g., 0°C = 4 mA, 100°C = 20 mA for temperature sensors) and adjust offsets if deviations exceed ±1%.
-
-
-
- Semi-Annually: Download fault logs via RRGCM to analyze trends (e.g., frequent clutch pressure fluctuations may indicate a faulty pressure regulator).
-
-
- Common Faults:
-
-
- Gear Shift Failure: Check gear actuator wiring and power supply; verify actuator mechanical alignment. Reconfigure shift sequencing in RRGCM if needed.
-
-
-
- Clutch Engagement Delay: Inspect clutch solenoid for wear; adjust clutch pressure setpoint in RRGCM (increase by 1-2 bar if within safety limits).
-
-
-
- Communication Loss with IPCS: Verify CANopen/Ethernet wiring; reset the module by cycling power. Update firmware via RRGCM if compatibility issues persist.
-
-
- Firmware Update: Download the latest firmware (v4.2+) from Rolls-Royce Marine Service Portal; install via RRGCM’s “Firmware Manager” to enhance gear control algorithms and protocol compatibility.
4. System Introduction
The 5880-PC1028 is a key component of Rolls-Royce’s Integrated Propulsion Control System (IPCS)—a scalable, modular ecosystem designed to unify control of a vessel’s propulsion system, including main engines, propulsion gears, propellers, and thrusters. Deployed across container ships, offshore support vessels, and naval vessels, IPCS optimizes propulsion efficiency, enhances maneuverability, and simplifies maintenance by centralizing control and monitoring.
4.1 System Architecture
- Sensing Layer: Comprises gear oil temperature sensors, clutch pressure transducers, gear speed sensors, and position switches that collect real-time data on the propulsion gear system. Redundant sensors are used for critical inputs (e.g., gear speed) to ensure fault tolerance.
- Control Layer: The 5880-PC1028 processes sensor data, executes gear control algorithms (shift sequencing, clutch synchronization), and sends commands to gear actuators and clutch solenoids. It coordinates with other 5880 Series modules (e.g., 5880-PC1025 for power control) to align gear operations with engine power output.
- Integration Layer: Connects to the vessel’s IPCS and bridge automation system via CANopen/Ethernet. Data is shared with the ship’s energy management system to optimize fuel efficiency (e.g., adjusting gear ratios to match engine load). Remote access via 4G/LTE enables on-shore technical support and predictive maintenance.
- Safety Layer: Embeds independent safety logic compliant with IMO SOLAS regulations—triggers emergency gear lockup and clutch disengagement in case of critical faults (e.g., gear overspeed, oil temperature exceedance), preventing damage to the propulsion system and ensuring vessel safety.
4.2 Key System Features
- Propulsion Efficiency Optimization: The 5880-PC1028’s adaptive gear mapping algorithm adjusts gear ratios based on engine load and vessel speed, reducing fuel consumption by up to 10% compared to fixed-ratio gear systems.
- Maneuverability Enhancement: Precise clutch control and fast gear shifting (≤200 ms) enable smooth thrust transitions, critical for docking, narrow waterway navigation, and dynamic positioning of offshore vessels.
- Fault Tolerance: Redundant sensors and fail-safe control logic ensure the propulsion gear system operates safely even if a sensor or actuator fails—e.g., switches to backup speed sensor if primary sensor malfunctions.
- Predictive Maintenance: RRGCM software analyzes module data (e.g., clutch engagement cycles, gear oil temperature trends) to predict component wear—e.g., alerts for gear oil filter replacement based on contamination levels inferred from temperature fluctuations.
5. Recommended Related Models in the Same Series
For applications requiring specialized propulsion gear control capabilities (e.g., high-power gears, azimuth thrusters), the following 5880 Series models are recommended:
- Rolls-Royce Marine AS 5880-PC1029: High-power variant designed for large propulsion gears (up to 10 MW) in container ships and cruise liners. Features enhanced actuator control outputs (8 A max) and support for dual-clutch systems.
- Rolls-Royce Marine AS 5880-PC1031: Azimuth thruster gear control module. Optimized for azimuth thruster gearboxes, with integrated thrust vectoring control and dynamic positioning synchronization.
- Rolls-Royce Marine AS 5880-PC1028-EX: Explosion-proof variant (ATEX Zone 1, IECEx) with intrinsic safety barriers. Suitable for chemical tankers and LNG carriers where flammable vapors are present in the propulsion compartment.
- Rolls-Royce Marine AS 5880-PC1032: Hybrid propulsion gear control module. Integrates with battery-powered propulsion systems, enabling seamless gear coordination between diesel and electric propulsion modes for hybrid ferries and offshore support vessels.
