WARTSILA MCM-11 Marine Control Module – Product Details
Basic Product Information (Independent Line Display)
Brand: WARTSILA
Product Model: MCM-11
Product Name: Marine Engine Monitoring & Control Module
Origin: Finland
Overall Dimensions (L × W × H): 225 × 115 × 55 mm (8.86 × 4.53 × 2.17 inches)
Net Weight: 0.75 kg (1.65 lbs)
Warranty Period: 12-month official manufacturer warranty

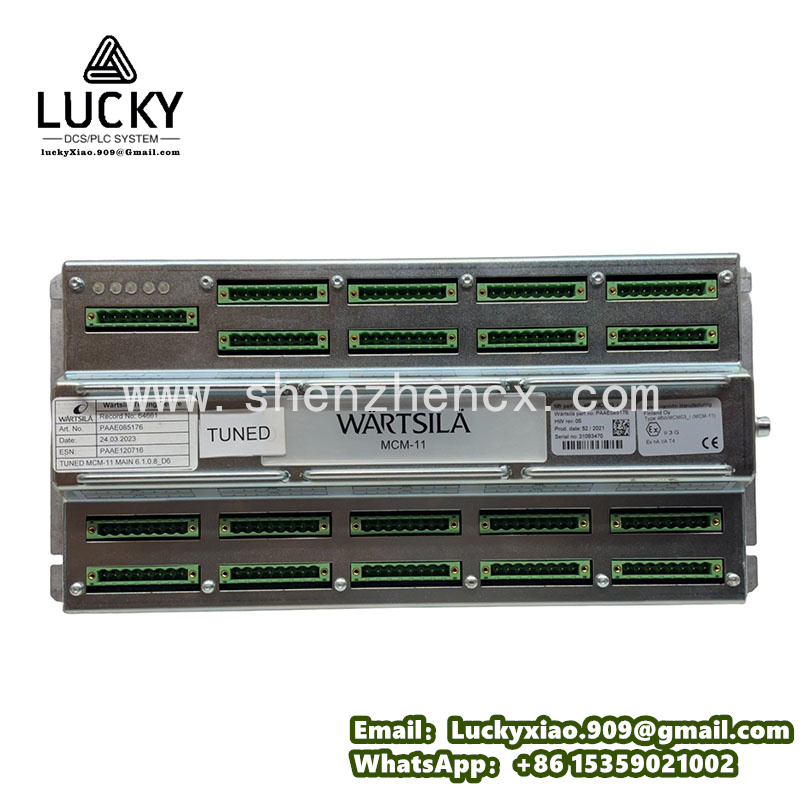

WARTSILA MCM-11
1. MCM-11 Product Overview & Core Functions
The WARTSILA MCM-11 is a professional marine-grade monitoring and control module specially developed for Wartsila marine diesel engine and power generation systems. As a core signal acquisition, data processing and logic control unit for ship power equipment, this module is designed to adapt to extreme marine working conditions. It undertakes key functions including real-time operating parameter collection of marine main engines and auxiliary engines, operational status monitoring, fault diagnosis and alarm output, and closed-loop control of engine auxiliary systems. Built with marine anti-vibration, moisture-proof and salt-spray resistant design, it supports 24/7 continuous stable operation during long-distance navigation, effectively ensuring safe, efficient and reliable operation of ship power systems.
2. MCM-11 Applicable System & Working Principle
The MCM-11 module is perfectly compatible with WARTSILA series marine diesel engines, marine generator sets and ship automation power management systems. It serves as an important intermediate link between marine field sensors and the main ship control system. During operation, the module collects real-time data of engine temperature, pressure, speed, vibration and fuel parameters through multi-channel signal ports, performs high-precision data sorting, analysis and logic judgment, and uploads valid operating data to the ship’s main control platform. Meanwhile, it outputs alarm signals and protection instructions for abnormal working conditions, realizing automatic monitoring, early warning and safety protection of marine engine operating status, and supporting intelligent management of ship power equipment.
3. Core Technical Parameters
Rated Operating Voltage: 24 VDC marine standard power supply
Working Voltage Range: 18–32 VDC wide voltage fluctuation adaptation
Signal Acquisition Channels: Multi-channel configurable marine sensor signal ports
Signal Sampling Precision: High-precision real-time data acquisition and analysis
Response Speed: Millisecond-level fast abnormal signal response and alarm output
Communication Protocol: Compatible with marine dedicated bus communication protocol
Built-In Function: Real-time status monitoring, fault self-diagnosis and data recording
Isolation Performance: Complete signal isolation to avoid marine power system interference
Working Mode: Long-term continuous cyclic monitoring and control operation
4. Environmental Adaptability & Industrial Certification
Long-Term Stable Operating Temperature Range: -25°C to +70°C marine wide temperature adaptation
Storage Temperature Range: -30°C to +80°C
Maximum Tolerable Humidity: 95% Non-Condensing Relative Humidity
Marine Protection Grade: Professional salt-spray proof, moisture-proof and mildew-proof grade
Industry Compliance: Marine ABS, DNV, CE international ship equipment certification
Environmental Resistance: Anti-vibration, anti-salt spray, anti-corrosion, anti-electromagnetic interference marine grade performance
5. Product Advantages
The WARTSILA MCM-11 features exclusive original matching performance for Wartsila marine power equipment with zero compatibility deviation. Adopting professional marine-grade manufacturing technology, it can effectively resist harsh marine environmental factors such as salt spray corrosion, strong vibration and high humidity, avoiding equipment failure caused by environmental interference. The high-precision signal acquisition and fast fault response capability ensure real-time and accurate monitoring of engine operating status, greatly improving ship navigation safety. The compact integrated structure simplifies on-board installation, wiring and daily maintenance, reducing ship equipment downtime and operation and maintenance costs, and meeting the long-term uninterrupted operation requirements of marine power systems.
6. Wide Application Fields
This WARTSILA marine control module is widely used in marine power system monitoring and control fields, including cargo ship and container ship main engine monitoring, marine generator set automatic control, offshore engineering ship power management system, ship auxiliary engine safety protection system and marine automation equipment upgrading and maintenance. It is an indispensable core monitoring and control component for WARTSILA marine diesel engine supporting systems.
