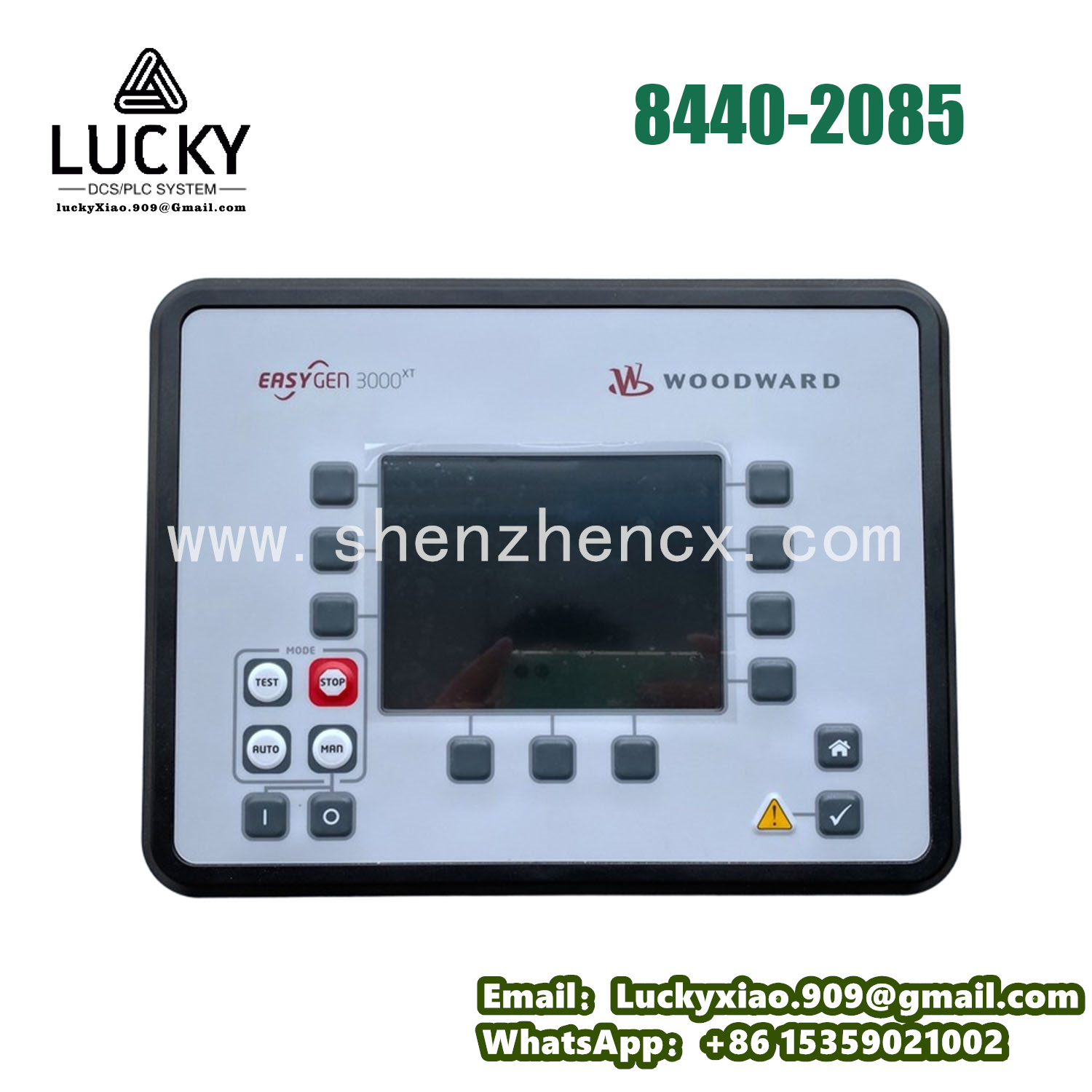

WOODWARD EASYGEN-3500XT 8440-2085 Product Introduction
1. Product Overview
The WOODWARD EASYGEN-3500XT 8440-2085 is a high-performance industrial generator set controller engineered for synchronous generators in standby, prime, and cogeneration applications. It serves power generation, data centers, healthcare, and industrial backup sectors—focusing on tasks like generator voltage regulation, load sharing, grid synchronization, and fault protection, which are critical for ensuring stable power supply and preventing generator damage.
Integrating advanced control algorithms and multi-protocol communication, it adapts to dynamic load changes (e.g., sudden backup power demand) while complying with global power standards. Compatibility with Woodward excitation systems and standard industrial sensors ensures seamless integration into generator set ecosystems, making it a trusted choice for mission-critical power control.
2. Technical Parameters (Table)
|
Category
|
Specification
|
|
Device Type
|
Digital generator set controller (for synchronous generators)
|
|
Control Functions
|
Voltage regulation; Load sharing (droop/isochronous); Grid synchronization; Under/overvoltage protection; Under/overfrequency protection
|
|
Generator Compatibility
|
Single/parallel generators; Power rating: 10–2000 kVA; Frequency: 50/60 Hz (switchable)
|
|
Input Signals
|
6 analog inputs (4–20 mA/0–10 V: speed, current, pressure); 12 digital inputs (24 V DC: status, emergency stop); 2 RTD inputs (PT100: temperature)
|
|
Output Signals
|
4 analog outputs (4–20 mA: fuel actuator, excitation); 8 digital outputs (24 V DC, 2 A: relays, alarms); 2 relay outputs (SPDT, 250 V AC/5 A)
|
|
Communication Ports
|
2×Ethernet (Modbus TCP/IP, IEC 61850); 2×RS485 (Modbus RTU); Optional: CANopen
|
|
Power Supply
|
12/24 V DC (10–32 V DC); Power consumption: ≤15 W (operating)
|
|
Environmental Ratings
|
Operating temperature: -40°C to +70°C (-40°F to +158°F); Storage temperature: -55°C to +85°C (-67°F to +185°F); Humidity: 5%–95% (non-condensing); Protection class: IP65 (enclosure)
|
|
Programming & Monitoring
|
Woodward PowerSuite software; Built-in 3.5-inch color HMI (touchscreen optional)
|
|
Mechanical Design
|
Mounting: Panel-mounted; Housing material: Aluminum alloy; Dimensions: 180 mm (W) × 120 mm (H) × 80 mm (D); Weight: ~1.2 kg (2.65 lbs)
|
|
Certifications
|
CE; UL 508; CSA C22.2 No. 14; ATEX Zone 2; IECEx; RoHS compliant
|
3. Product Specifications & Features
3.1 Core Specifications
The WOODWARD EASYGEN-3500XT 8440-2085 is optimized for mid-to-large generator sets (10–2000 kVA), with dual-frequency support (50/60 Hz) fitting global power systems. Its load sharing function enables parallel operation of multiple generators (e.g., data center backup arrays), balancing power distribution and preventing overload. The built-in HMI (with touchscreen option) allows on-site parameter configuration and real-time monitoring of key metrics (voltage, frequency, temperature), simplifying operation.
Dual Ethernet ports separate safety and non-safety communication (e.g., IEC 61850 for grid integration, Modbus TCP/IP for HMI), while wide-temperature operation (-40°C to +70°C) ensures reliability in extreme environments (e.g., cold storage backup, desert power plants).
3.2 Key Features
- Comprehensive Control: Combines voltage regulation, load sharing, and synchronization in one unit, reducing system complexity for generator sets.
- Grid-Ready Design: IEC 61850 compliance enables seamless integration with utility grids, critical for prime power applications.
- Harsh Environment Resilience: IP65 protection and -40°C to +70°C operating range handle dust, water splashes, and extreme temperatures.
- Dual Communication Layers: Redundant Ethernet/RS485 ports ensure secure data transmission, minimizing downtime from communication failures.
- User-Friendly Operation: PowerSuite software and built-in HMI simplify programming, monitoring, and fault troubleshooting for on-site and remote teams.
4. Other WOODWARD Generator Control Products
Woodward offers complementary generator controllers for diverse power needs:
- WOODWARD EASYGEN-1500 8440-1050: Entry-level controller (1–10 kVA generators) for small standby systems (e.g., residential backup).
- WOODWARD EASYGEN-5000XT 8440-3120: High-power controller (2000–5000 kVA) for industrial prime power (e.g., manufacturing plants).
- WOODWARD EASYGEN-3500 8440-2050: Non-XT variant (no touchscreen HMI) for cost-sensitive applications (e.g., agricultural backup).
- WOODWARD EASYGEN-2500 8440-1880: Compact controller (5–50 kVA) for mobile generators (e.g., construction site power).
- WOODWARD EASYGEN-6000 8440-4020: Redundant controller (dual CPU) for safety-critical systems (e.g., hospital emergency power).
