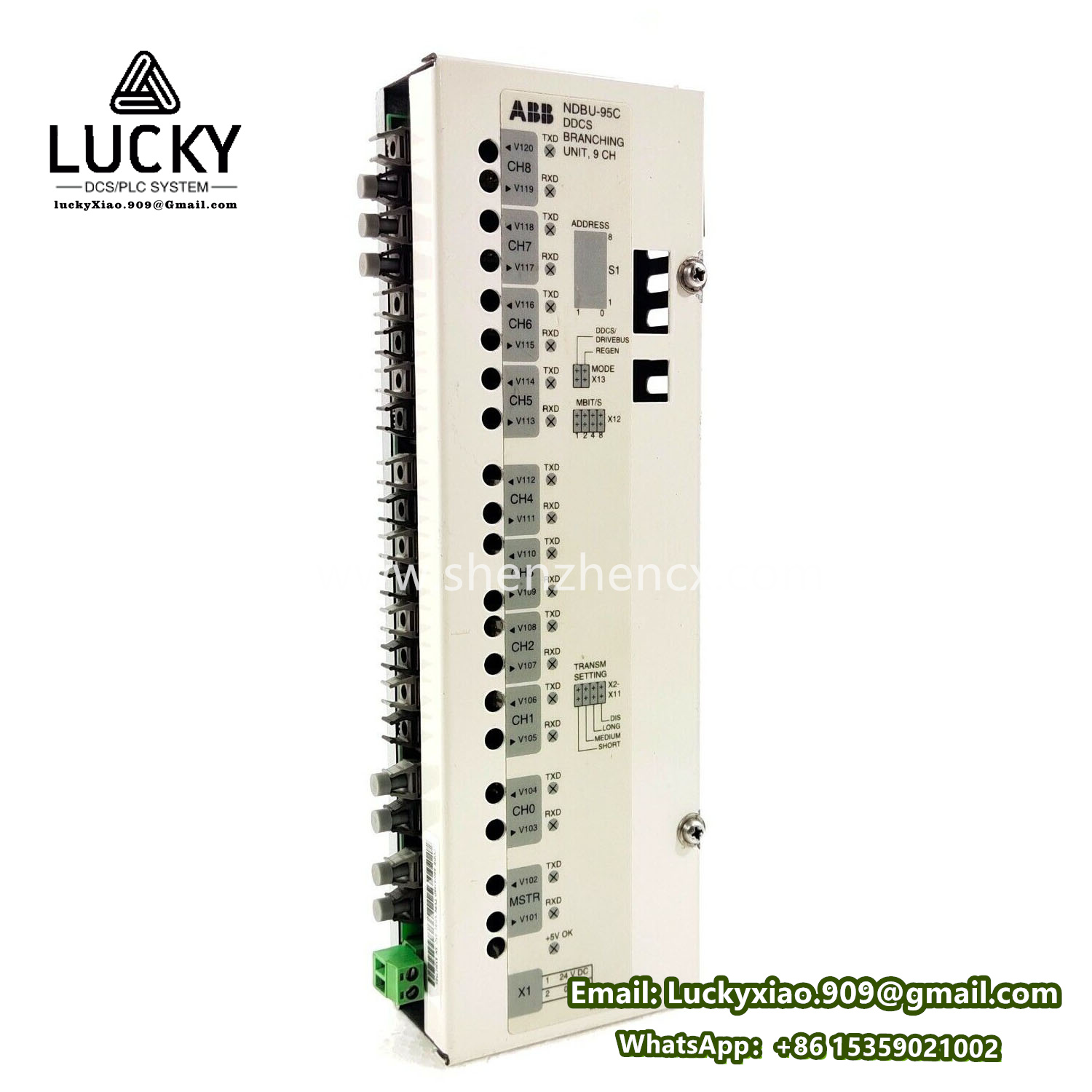

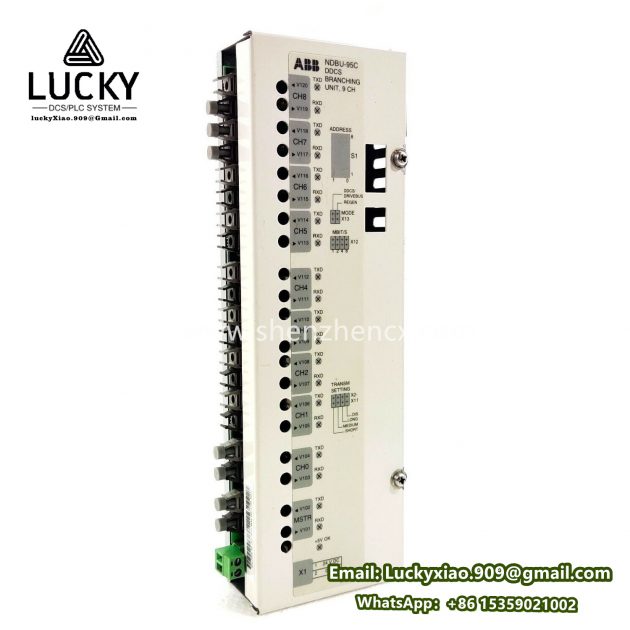

ABB NDBU-95 64008366 network interface module

The ABB NDBU-95 (64008366) is a network interface module designed for integration into industrial automation and power systems, particularly within ABB’s Relion® protection relay and Symphony Plus control system families. It serves as a critical communication and configuration interface, enabling seamless data exchange between protection relays, control systems, and supervisory networks. Below is a detailed overview of its features, applications, and technical specifications:

Key Features

1. Communication Gateway
   • Acts as a bridge between ABB protection relays (e.g., REF615, REL670) and higher-level control systems (e.g., SCADA, DCS).
   • Supports industrial protocols such as IEC 61850, Modbus TCP/RTU, and DNP3 for standardized data transmission.
2. Configuration and Diagnostics
   • Compatible with ABB’s PCM600 software for relay configuration, parameter setting, and real-time diagnostics.
   • Enables firmware updates and event log retrieval for maintenance and troubleshooting.
3. Redundant Connectivity
   • Dual Ethernet ports for redundant network connections, ensuring high availability in critical power systems.
   • Optional fiber-optic interfaces for noise-immune communication in harsh environments.
4. Robust Design
   • Built to withstand industrial conditions, including temperature ranges of -25°C to +70°C and high electromagnetic interference (EMI) resistance.
   • Compact, DIN-rail-mountable housing for easy integration into control cabinets.
5. Security and Compliance
   • Implements cybersecurity features such as role-based access control and encrypted communication.
   • Complies with international standards (e.g., IEC 61850-3, IEEE 1613 for substation environments).

Technical Specifications

• Power Supply: 24–48V DC (dual redundant inputs).
• Communication Ports:
  • 2x 10/100 Mbps Ethernet (RJ45 or fiber-optic).
  • 1x RS-485 serial port for Modbus RTU.
• Protocols: IEC 61850, DNP3, Modbus TCP/RTU, IEC 60870-5-103/104.
• Certifications: CE, UL, IEC 61000-6-2/6-4 (EMC), and IEC 60255 (protection relays).
• Dimensions: 120 x 80 x 60 mm (H x W x D).

Typical Applications

• Substation Automation: Integration of protection relays into IEC 61850-compliant substation networks.
• Power Grid Management: Real-time data exchange for grid stability, fault detection, and load balancing.
• Industrial Power Systems: Configuration and monitoring of motor protection relays in manufacturing plants.
• Renewable Energy: Communication interface for solar/wind farm protection and control systems.

Advantages

• Interoperability: Seamlessly connects ABB Relion® relays with third-party SCADA and control systems.
• Future-Proof: Supports modern protocols like IEC 61850 for digital substation readiness.
• Ease of Use: Intuitive configuration via PCM600 software reduces commissioning time.
• Reliability: Redundant power and communication paths minimize downtime in critical applications.

Configuration and Compatibility

• Software: Configured using ABB’s PCM600 or DigiVis tools for parameterization and diagnostics.
• Compatibility: Designed for use with ABB Relion® 615/670 series, Symphony Plus controllers, and other IEC 61850-enabled devices.
• Integration: Fits into ABB’s System 800xA for unified automation and electrical control.

The ABB NDBU-95 (64008366) exemplifies ABB’s commitment to advancing grid reliability and industrial automation through robust, standards-driven communication solutions.
