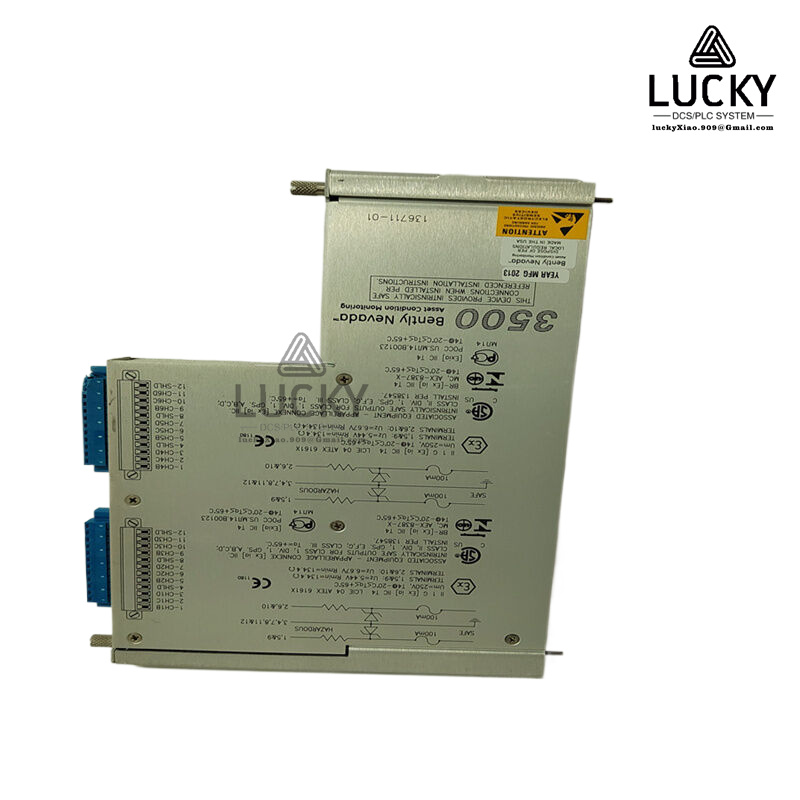

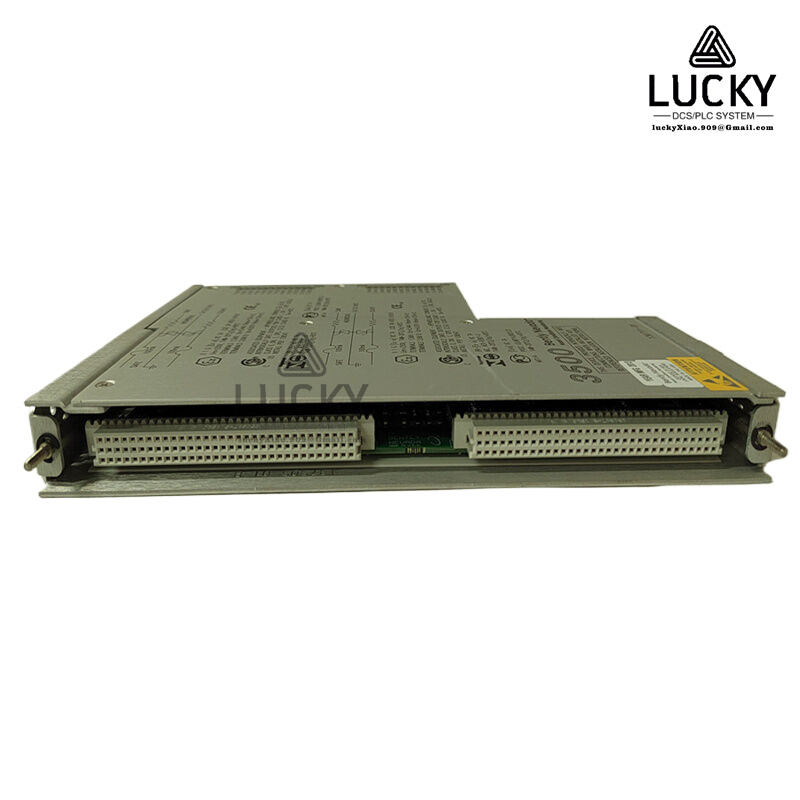

Bently Nevada 136711-01: Temperature Monitor I/O Module for 3500 Monitoring System
Product Description
The Bently Nevada 136711-01 is a high – performance temperature monitor I/O module, meticulously designed for seamless integration within the Bently Nevada 3500 monitoring system. In industrial settings, the temperature of critical machinery is a crucial parameter for assessing its operational health. This module serves as a bridge, interfacing with resistance temperature detectors (RTDs) and thermocouples (TCs). By doing so, it enables accurate temperature monitoring of machinery components, such as bearings, motors, and compressors. With the capacity to support up to six temperature input channels, it provides a comprehensive data acquisition solution. This data is not only vital for preventive maintenance but also for continuous condition monitoring, allowing industries to detect early signs of equipment degradation and take proactive measures.
Product Parameters
|
Parameter
|
Specification
|
|
Module Type
|
Temperature Monitor I/O Module for 3500 System
|
|
Input Types
|
Supports Resistance Temperature Detectors (RTDs) and Thermocouples (TCs)
|
|
Number of Input Channels
|
Up to 6
|
|
Temperature Range (RTD)
|
Depends on the type of RTD used (e.g., for Pt100, typically – 200°C to + 850°C)
|
|
Temperature Range (TC)
|
Varies by TC type (e.g., Type K: – 270°C to + 1372°C)
|
|
Measurement Accuracy (RTD)
|
± 0.1°C to ± 0.3°C depending on RTD quality and module calibration
|
|
Measurement Accuracy (TC)
|
± 1°C to ± 2°C depending on TC type and module calibration
|
|
Output Signal
|
Conditioned data output for connection to 3500 system’s data processing units
|
|
Operating Temperature (Internal/External Termination I/O Modules)
|
– 30 °C to + 65 °C (- 22 °F to + 150 °F)
|
|
Operating Temperature (Internal Barrier I/O Modules)
|
0 °C to + 65 °C (32 °F to + 150 °F)
|
Product Specifications
- Dimensions: Compact design with dimensions of 160 mm (width) × 100 mm (height) × 200 mm (depth) (6.3 in × 3.9 in × 7.9 in), allowing for easy single – slot installation in the 3500 system racks. This space – efficient design is beneficial in crowded control cabinets where space is at a premium.
- Weight: Approximately 1.5 kg (3.3 lbs), making it lightweight yet robust enough for industrial use. The manageable weight simplifies the installation and maintenance process, reducing the physical strain on technicians.
- Mounting: Rack – mounted in the 3500 system enclosures using secure locking rails. This mounting method ensures that the module remains firmly in place even in environments with high levels of vibration, such as in manufacturing plants or power generation facilities.
- Connectors: Equipped with specialized connectors for RTD and TC inputs, ensuring a secure and reliable connection. The connectors are designed to withstand the rigors of industrial use, including exposure to dust, moisture, and temperature variations.
- Diagnostics: Features built – in diagnostic capabilities that continuously monitor the health of the module. This includes checking for sensor faults, communication errors, and abnormal temperature readings. The diagnostic information is then transmitted to the 3500 system for easy access by operators.
- Certifications: Complies with international standards such as IEC 61000 – 6 (EMC standards for industrial environments), ensuring its reliable operation in electrically noisy settings. It also adheres to safety standards like UL 508, which is crucial for use in industrial control applications.
Series
The 136711-01 is an integral part of the Bently Nevada 3500 series. This series is a comprehensive and highly regarded suite of machinery protection and condition monitoring solutions. The 3500 series encompasses a wide range of modular components, including vibration monitors, communication modules, power supplies, and of course, the temperature monitor I/O module we are discussing. These components are engineered with a high degree of compatibility, allowing for seamless integration. The series is well – known for its scalability, which means it can be tailored to meet the needs of small – scale industrial setups as well as large – scale, complex industrial plants. Its redundancy features enhance system reliability, and it complies with global standards such as API 670, making it a trusted choice in industries worldwide, especially in power generation, oil & gas, and chemical processing.
Features
Multiple Input Compatibility
The ability to interface with both RTDs and TCs provides flexibility. Different industrial applications may require the use of either type of temperature sensor based on factors such as accuracy requirements, temperature range, and cost. This module can accommodate these diverse needs.
High – Precision Measurement
Leveraging advanced signal conditioning and calibration techniques, it offers high – precision temperature measurement. This accuracy is essential for detecting even the slightest temperature variations in machinery components, which could be an early indication of a developing problem.
Real – Time Monitoring
With its real – time monitoring capabilities, the module continuously tracks the temperature of connected machinery. This allows operators to be immediately alerted to any abnormal temperature changes, enabling prompt action to prevent equipment failure.
Robust Design
Built with industrial – grade materials, it can withstand harsh environmental conditions. Whether it’s exposure to high temperatures, humidity, or vibrations, the module is designed to maintain its performance and reliability.
Easy Integration
As part of the 3500 series, it integrates seamlessly with other modules in the system. This simplifies the overall system setup and operation, reducing the complexity for end – users.
Function
The primary function of the 136711-01 is to collect temperature data from RTDs and TCs. Once the raw temperature signals are received, the module applies sophisticated signal conditioning algorithms. These algorithms remove any noise or interference from the signals and convert them into accurate temperature values. The conditioned data is then transmitted to the 3500 system’s data processing units. In the data processing units, the temperature data is analyzed in the context of other machinery parameters, such as vibration and speed. Operators can set programmable alarm thresholds for temperature. If the measured temperature exceeds these thresholds, the 3500 system can trigger alarms, which may be visual, audible, or sent as digital notifications to operators’ devices. This allows for timely intervention to prevent equipment damage.
Use
In industrial settings, the module is installed in the 3500 system rack. Technicians carefully connect RTDs or TCs to the module’s input connectors, ensuring proper wiring and calibration. The module is then powered up, and its settings are configured using the 3500 rack configuration software. Operators can use the software to define the type of temperature sensors being used (RTD or TC), set the alarm thresholds, and view real – time temperature data. Maintenance teams regularly check the module’s diagnostic information to ensure its proper functioning. In case of a sensor or module failure, the modular design of the 3500 system allows for easy replacement, minimizing downtime.
Application Fields
Power Generation
In power plants, whether coal – fired, gas – fired, or nuclear, the temperature of turbines, generators, and cooling systems is critical. The 136711-01 can monitor the temperature of turbine bearings, generator windings, and coolant temperatures. By doing so, it helps prevent overheating, which could lead to equipment failure and costly power outages.
Oil and Gas
In the oil and gas industry, compressors, pumps, and engines operate in harsh environments. The module can monitor the temperature of compressor bearings, pump seals, and engine components. This is crucial for preventing equipment failures that could disrupt the production, transportation, or refining of hydrocarbons.
Chemical Processing
Chemical reactors, distillation columns, and heat exchangers in chemical plants need to be closely monitored for temperature. The 136711-01 can measure the temperature of these components, ensuring that chemical reactions occur within the optimal temperature range and preventing overheating, which could lead to safety hazards or product quality issues.
Manufacturing
In manufacturing plants, motors, conveyor belts, and industrial ovens are common pieces of equipment. The module can monitor the temperature of motor windings, conveyor bearings, and oven interiors. This helps in maintaining the efficiency of the manufacturing process and preventing equipment breakdowns that could halt production.
In conclusion, the Bently Nevada 136711-01 temperature monitor I/O module is a vital component in the 3500 monitoring system. Its advanced features, wide range of applications, and compatibility with the 3500 series make it an essential tool for industries aiming to ensure the reliable operation of their critical machinery through accurate temperature monitoring.
