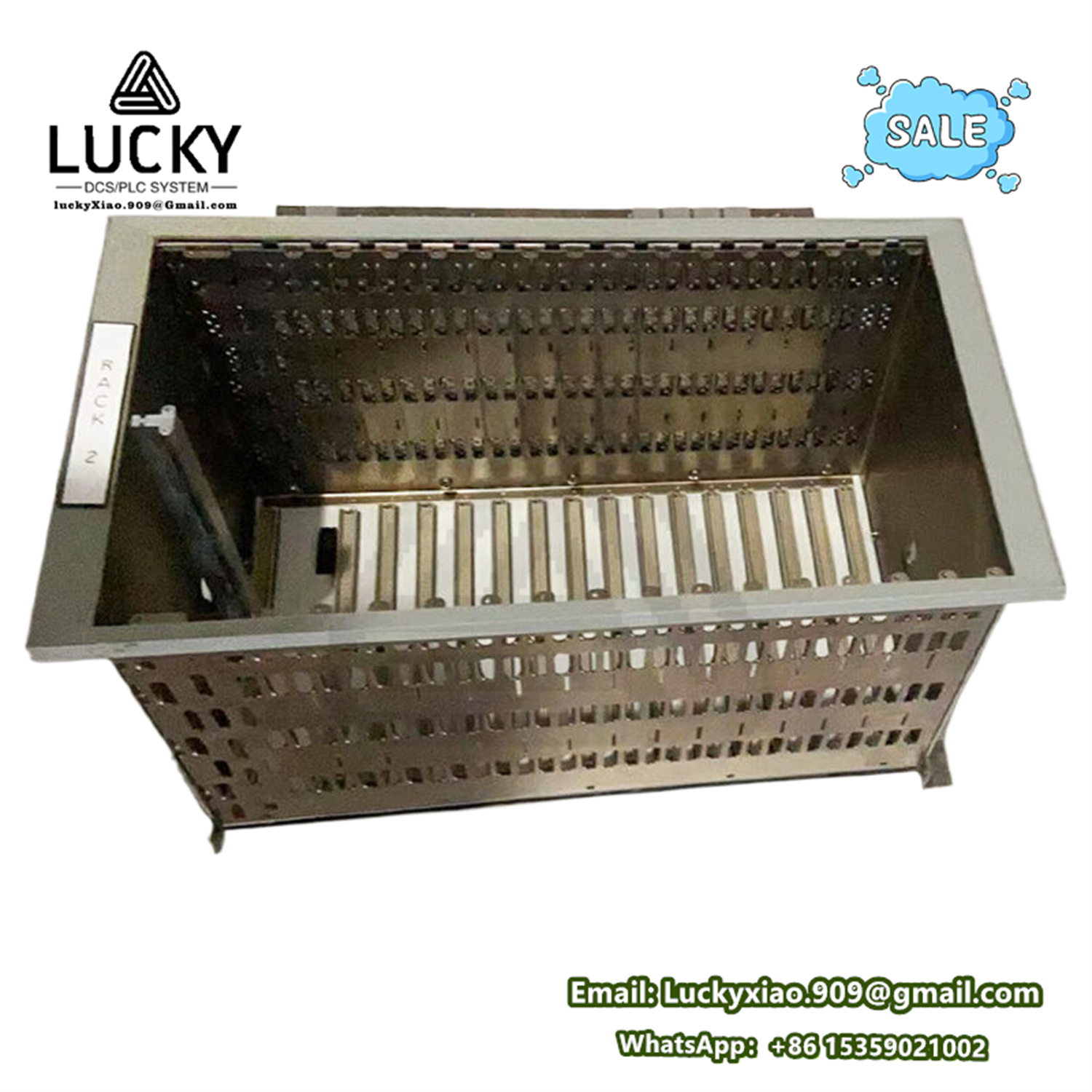

Bently Nevada 3500/05-02-04-00-00-00: 12 – inch Mini – rack for 3500 Monitoring System
Product Description
The Bently Nevada 3500/05-02-04-00-00-00 is a 12 – inch mini – rack designed as a fundamental component of the Bently Nevada 3500 monitoring system. This system is globally recognized for its continuous, online monitoring capabilities, making it highly suitable for machinery protection and asset condition monitoring across diverse industries. The 3500/05 – 02 – 04 – 00 – 00 – 00 mini – rack serves as the physical housing and communication backbone for the 3500 series monitor modules and rack power supplies. It provides a structured and organized platform where various modules can be installed, ensuring seamless communication among them. Additionally, it enables the power supplies to efficiently distribute power to each individual module according to their requirements. This mini – rack is an essential part of creating a comprehensive and reliable machinery monitoring solution.
Product Parameters
|
Parameter
|
Specification
|
|
Rack Type
|
12 – inch mini – rack
|
|
Module Slots
|
7
|
|
Mounting Option
|
Panel mount
|
|
Weight
|
3.6 kg
|
|
Product Origin
|
USA
|
|
Manufacturer
|
Bently Nevada
|
|
Part Number
|
3500/05 – 02 – 04 – 00 – 00 – 00
|
|
HS Code
|
8537101190
|
|
Warranty
|
12 months
|
|
Operating Temperature Range
|
– 40 °C to + 85 °C
|
|
Working Humidity
|
0% – 95%
|
|
Working Voltage
|
24 VDC
|
Product Specifications
- Dimensions: With a length of 12 inches, the 3500/05-02-04-00-00-00 mini – rack has a compact yet functional size. Its dimensions are carefully designed to fit into various industrial setups, even those with limited space. The available 7 module slots are sized and spaced in a way that allows for easy installation and removal of different 3500 series modules.
- Weight: At 3.6 kg, it is relatively lightweight, which simplifies the installation process. The weight is optimized to be manageable for technicians during installation, while still providing a sturdy and stable base for the modules.
- Construction and Durability: The rack is constructed with high – quality materials, ensuring durability and reliability in industrial environments. It is built to withstand the vibrations, temperature variations, and electrical noise commonly found in industrial settings.
- Mounting: The panel mount option provides flexibility in installation. It can be easily mounted on control panels, cabinets, or other suitable surfaces, allowing for convenient access and monitoring.
- Electrical Specifications: Operating on a 24 VDC power supply, it is compatible with standard industrial power sources. The wide temperature range of – 40 °C to + 85 °C and working humidity of 0% – 95% make it suitable for use in a variety of harsh environmental conditions.
Series
The 3500/05-02-04-00-00-00 is an integral part of the Bently Nevada 3500 series. The 3500 series is renowned for its advanced machinery monitoring capabilities. It offers a wide range of modules for different monitoring functions, such as vibration monitoring, speed monitoring, and position monitoring. All the components in the 3500 series are designed to work in harmony, providing a comprehensive and integrated solution for machinery health assessment. The series is trusted by industries worldwide for its reliability, accuracy, and flexibility in adapting to various industrial applications.
Features
Compact Design
The 12 – inch mini – rack design makes it suitable for installations where space is at a premium. It can be easily integrated into existing control systems without taking up excessive space.
Multiple Module Slots
With 7 available module slots, it offers flexibility in configuring the monitoring system according to specific requirements. Different types of 3500 series modules can be installed to monitor various parameters of the machinery.
Efficient Power Distribution
The rack enables the power supplies to distribute power effectively to each module. This ensures that all modules operate at their optimal performance levels, reducing the risk of power – related issues.
Seamless Communication
It provides a platform for seamless communication among the installed modules. This allows for the efficient transfer of data and control signals, enhancing the overall functionality of the monitoring system.
Wide Temperature and Humidity Tolerance
The ability to operate in a temperature range of – 40 °C to + 85 °C and a humidity range of 0% – 95% makes it highly adaptable to different industrial environments, from cold storage facilities to hot and humid manufacturing plants.
Function
The main function of the 3500/05-02-04-00-00-00 mini – rack is to house and facilitate the operation of the 3500 series monitor modules. It acts as a central hub where different modules can be installed to perform various monitoring tasks. For example, vibration monitoring modules can be installed to measure the vibration levels of rotating machinery, speed monitoring modules can track the rotational speed, and position monitoring modules can determine the position of critical components. The rack enables these modules to communicate with each other and with external systems, such as control rooms or data acquisition systems. It also provides power to the modules, ensuring their continuous operation. By housing these modules, the rack plays a crucial role in collecting, processing, and transmitting data related to the condition of the machinery, which is essential for preventive maintenance and ensuring the reliable operation of industrial equipment.
Use
In industrial applications, technicians first select the appropriate 3500 series modules based on the machinery being monitored and the specific parameters to be measured. These modules are then installed into the 7 – slot mini – rack. The rack is mounted on a suitable panel or surface, ensuring easy access for maintenance and monitoring. Once the modules are installed, they are connected to the relevant sensors, such as proximity probes for vibration measurement or magnetic pickups for speed measurement. The power supply is connected to the rack, and the modules are configured according to the machinery’s operating specifications. The rack then starts collecting data from the sensors through the installed modules and transmits this data to a control system or data acquisition unit. Operators can monitor the data in real – time and receive alerts if any abnormal conditions are detected. Regular maintenance of the rack and its installed modules is carried out to ensure accurate readings and reliable operation.
Application Fields
Power Generation
In power plants, turbines, generators, and pumps are critical components. The 3500/05-02-04-00-00-00 mini – rack, along with the 3500 series modules, can be used to monitor the vibration, speed, and position of these machines. By detecting abnormal conditions early, it helps prevent issues like blade failures in turbines or bearing damage in generators, ensuring continuous and reliable power generation.
Oil and Gas
In the oil and gas industry, compressors, pumps, and drilling equipment operate in harsh conditions. The 3500 series monitoring system, with the 3500/05-02-04-00-00-00 mini – rack, can be used to monitor the health of these assets. It can detect early signs of wear and tear, preventing equipment failures that could lead to costly production disruptions. For example, it can monitor the vibration of compressors to ensure their efficient operation and prevent gas leaks.
Manufacturing
In manufacturing plants, a wide range of rotating machinery, such as motors, conveyor belts, and industrial mixers, is used. The 3500/05 – 02 – 04 – 00 – 00 – 00 mini – rack, along with the relevant modules, can be used to monitor the performance of these machines. By ensuring that vibration levels, speeds, and positions are within acceptable limits, it helps maintain product quality and prevent production line stoppages due to machinery breakdowns. In a food manufacturing plant, for instance, it can monitor the vibration of conveyor belts to prevent product spillage.
In conclusion, the Bently Nevada 3500/05-02-04-00-00-00 12 – inch mini – rack is a vital component of the 3500 monitoring system. Its compact design, multiple module slots, and ability to facilitate seamless communication and power distribution make it an essential part of any industrial machinery monitoring setup. With its wide range of applications and high – performance capabilities, it helps industries enhance the reliability and efficiency of their operations by providing accurate and timely data on machinery conditions.
