Bently Nevada 3500/32M 149986-02 Product Overview
3500/32M 149986-02 Product Introduction

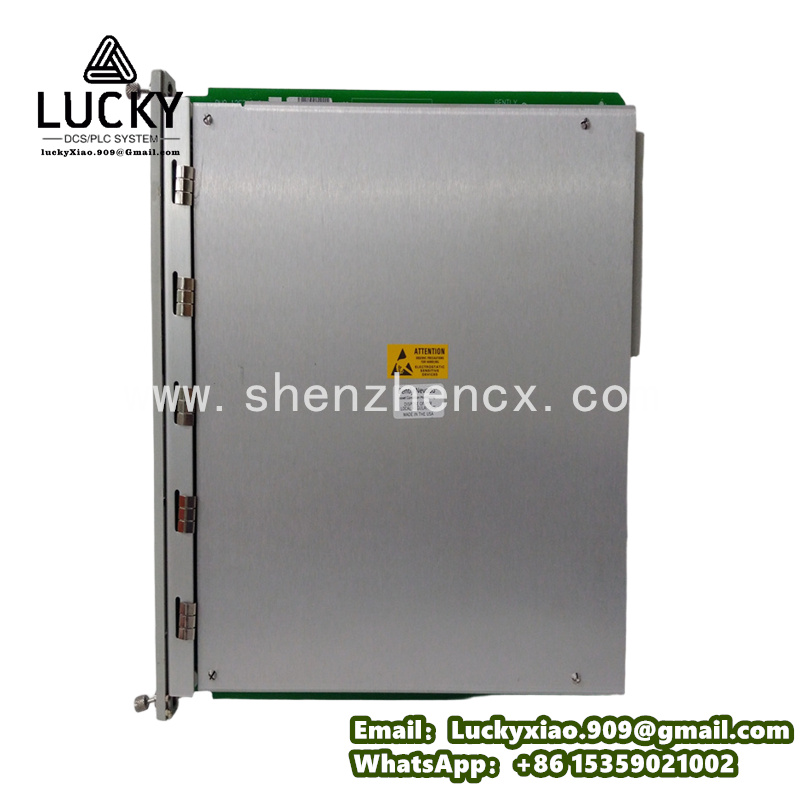

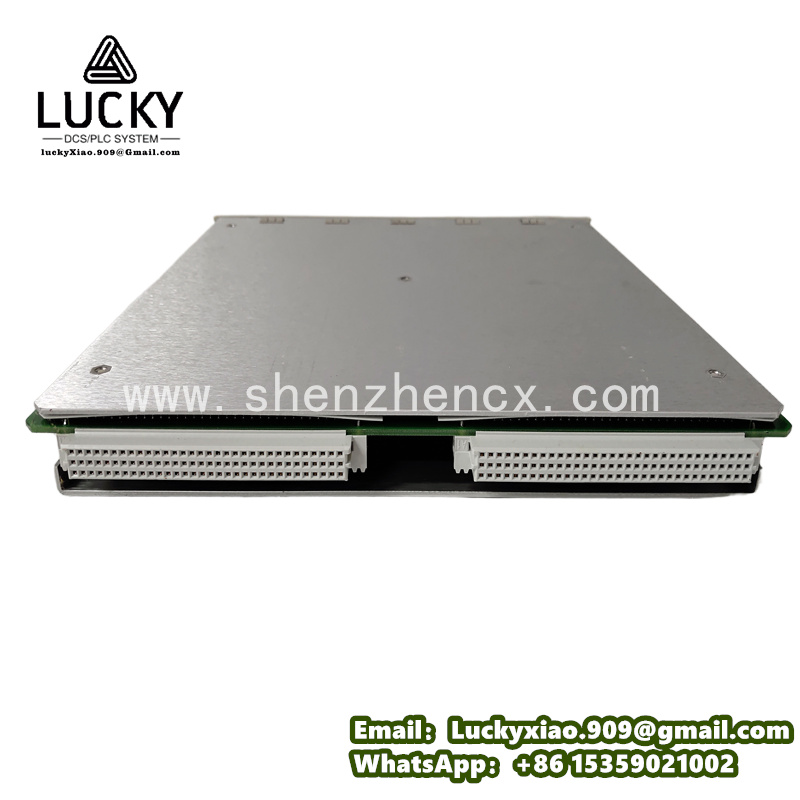

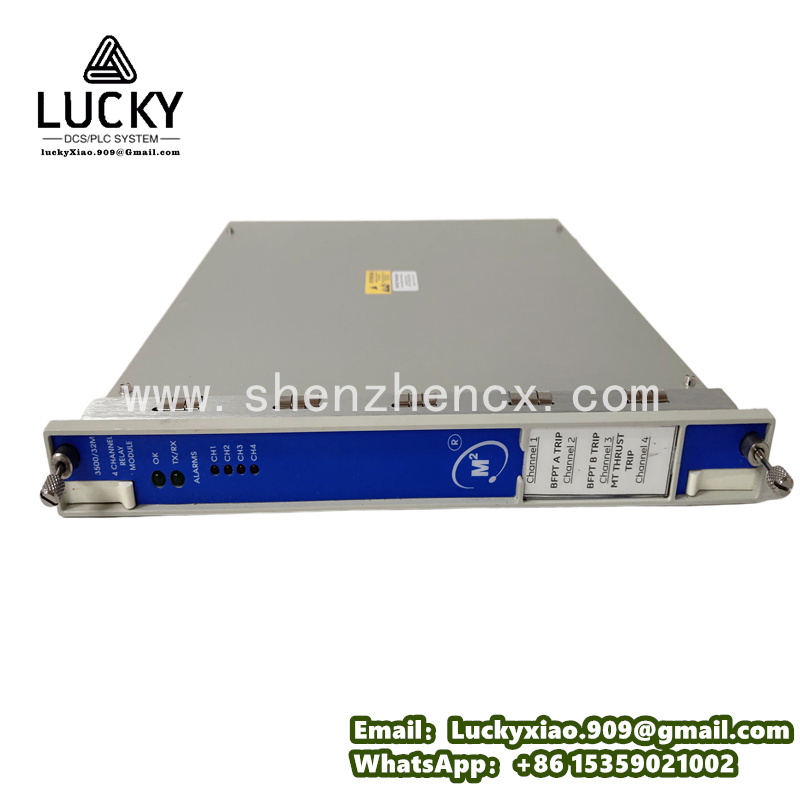

Bently Nevada 3500/32M 149986-02 is a high-performance four-channel relay control module designed for the 3500 series machinery protection platforms. Serving as a critical execution unit for industrial safety logic, it converts internal system monitoring judgments into physical switch outputs for field alarm and equipment interlock control. Each relay channel supports independent programming with flexible AND/OR voting logic, allowing customized configuration to match diverse on-site protection strategies. Featuring epoxy-sealed relay construction and built-in arc suppression, it delivers stable switching performance and long service life in complex industrial environments. Widely applied in turbines, compressors and other key rotating machinery, it provides reliable safety response to prevent abnormal operating conditions from triggering equipment damage or unplanned production shutdowns.
3500/32M 149986-02 Technical Specifications
-
Product Model: 3500/32M, Part Number 149986-02 (4-Channel Relay Control Module)
-
Module Structure: Full-height rack-mounted design for standard 3500 system racks
-
Channel Configuration: Four independent SPDT relay output channels
-
Logic Function: Customizable AND/OR voting logic and alarm drive configuration
-
Relay Mode: Switch-selectable normally energized or normally de-energized operation
-
Contact Rating: Supports 2A maximum load for common industrial AC/DC circuits
-
Service Life: Up to 100,000 stable switching cycles under rated load
-
Power Consumption: Typical operating power consumption of 5.8W
-
Operating Temperature: -30°C to +65°C for standard industrial cabinet environments
-
Environmental Resistance: 95% non-condensing humidity tolerance with built-in arc suppression protection
-
System Requirement: Matches 3500 series rack configuration software and TDI communication modules
Recommended Bently Nevada Same-Series Models
-
3500/15: Redundant power supply module providing stable continuous power for full rack operation
-
3500/20: Rack interface module responsible for system initialization and internal resource management
-
3500/22: Transient data interface module enabling high-speed waveform data acquisition and network transmission
-
3500/25: Keyphasor module for precise shaft phase reference and rotational timing signal collection
-
3500/40M: Multi-functional monitoring module for vibration and axial displacement condition detection
-
3500/42M: High-precision seismic module for mechanical vibration fault analysis and early warning
-
3500/53: Overspeed detection module for real-time rotational speed monitoring and emergency protection
-
133819-01: Temperature input module for real-time thermal parameter acquisition of industrial equipment
-
125720-01: Standard four-channel relay module for conventional alarm and interlock output scenarios
-
125736-01: Communication gateway module supporting multi-protocol data interaction and remote access
-
125760-01: Digital input module for collecting discrete field equipment status signals
