Bently Nevada 3500/34 125696-01 Product Overview
3500/34 125696-01 Product Introduction

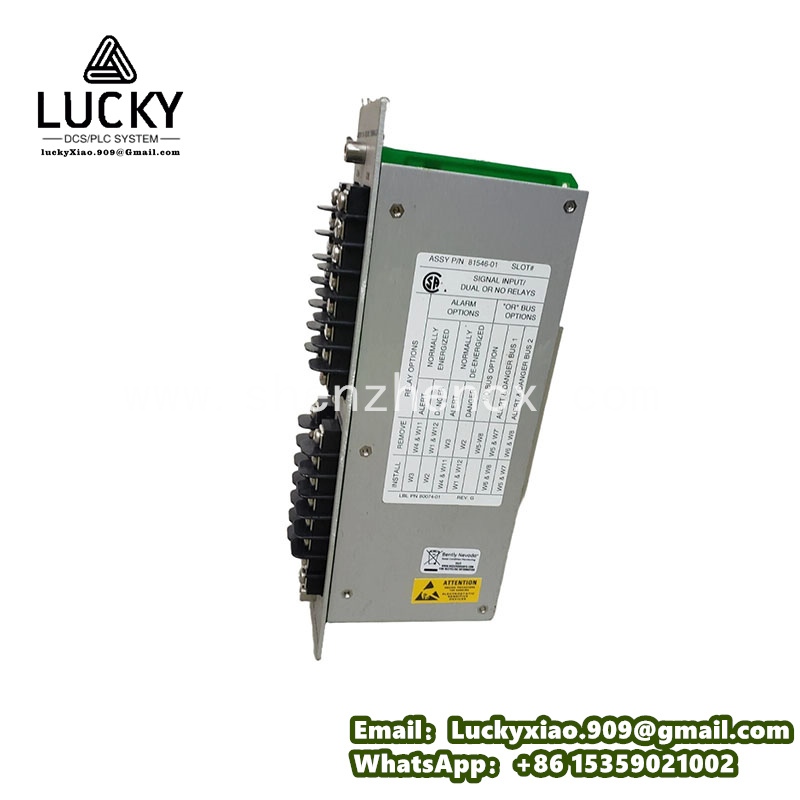

Bently Nevada 3500/34 125696-01 is a high-density sixteen-channel relay output module developed for the 3500 series machinery protection and condition monitoring systems. As a high-capacity signal execution unit, it expands system alarm and interlock output capacity to meet large-scale equipment monitoring and multi-point protection control demands. Each channel supports independent logic programming and flexible alarm configuration, enabling customized linkage strategies for complex industrial monitoring systems. Adopting industrial-grade sealed design and reliable switching components, it delivers stable long-term operation in harsh factory environments with strong anti-interference capability. It is widely used in large turbine units, multi-compressor clusters and other core equipment scenarios, providing accurate and timely safety alarm and interlock responses for industrial production systems.
3500/34 125696-01 Technical Specifications
-
Product Model: 3500/34, Part Number 125696-01 (16-Channel High-Density Relay Output Module)
-
Module Structure: Full-height rack-mounted design compatible with standard 3500 system racks
-
Channel Scale: 16 independent relay output channels for multi-point signal expansion
-
Logic Configuration: Supports flexible AND/OR voting logic and independent alarm drive settings
-
Relay Working Mode: Switchable normally energized and normally de-energized operation
-
Contact Load Capacity: Adaptable to conventional industrial AC and DC circuit loads
-
Operational Stability: Long switching cycle service life for long-term continuous monitoring
-
Operating Temperature: -30°C to +65°C, suitable for standard industrial cabinet deployment
-
Environmental Adaptability: Tolerates 5%–95% non-condensing relative humidity
-
System Compatibility: Fully matched with Bently Nevada 3500 series rack systems and configuration software
Recommended Bently Nevada Same-Series Models
-
3500/15: Redundant power supply module providing stable and continuous power for system racks
-
3500/20: Rack interface module responsible for system configuration and internal rack resource management
-
3500/22: Transient data interface module for high-speed waveform acquisition and network data transmission
-
3500/25: Keyphasor module for shaft phase reference and rotational timing signal collection
-
3500/32M: Four-channel relay control module for conventional alarm and safety interlock output
-
3500/40M: Multi-functional monitoring module for vibration and axial displacement condition detection
-
3500/42M: High-precision seismic module for mechanical vibration fault analysis and early warning
-
3500/53: Overspeed detection module for real-time rotational speed monitoring and emergency equipment protection
-
133819-01: Temperature input module for real-time thermal parameter collection of industrial equipment
-
125720-01: Standard four-channel relay module for basic on-site protection signal output
-
125736-01: Communication gateway module supporting multi-protocol data interaction and remote system access
-
125760-01: Digital input module for collecting discrete field equipment operating status signals
