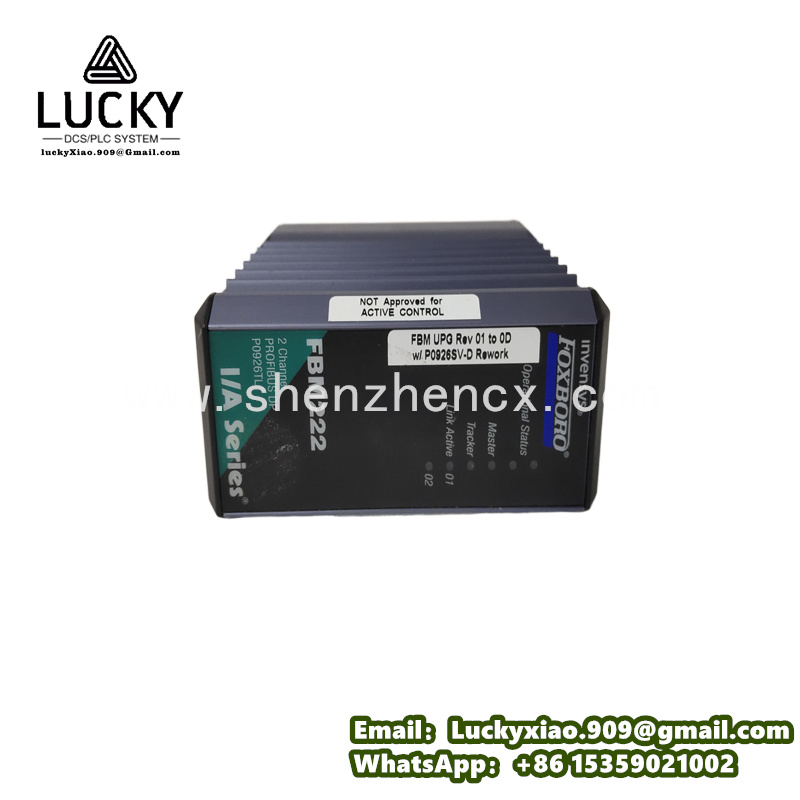

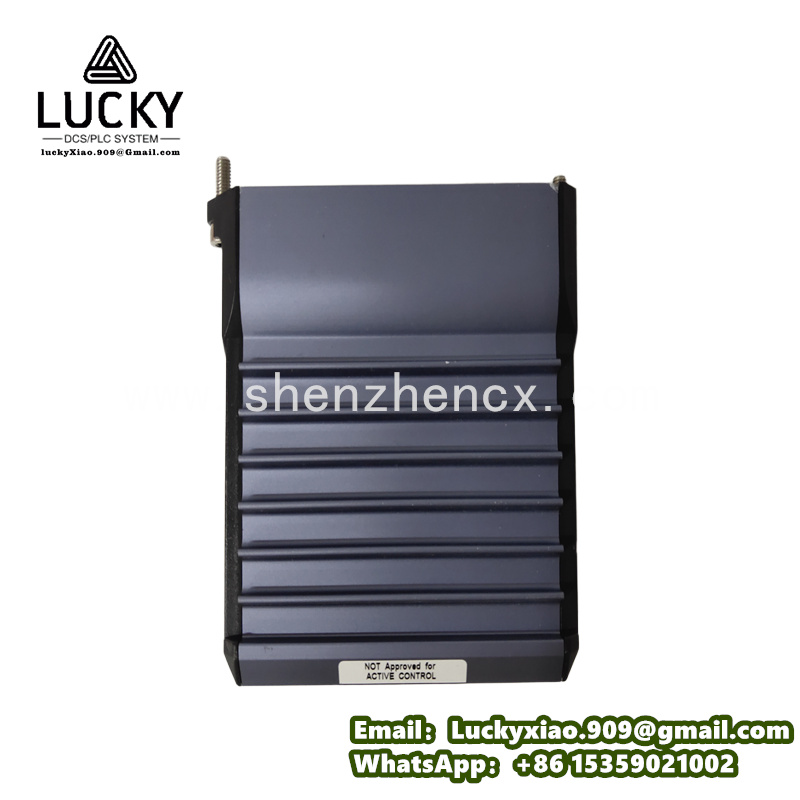

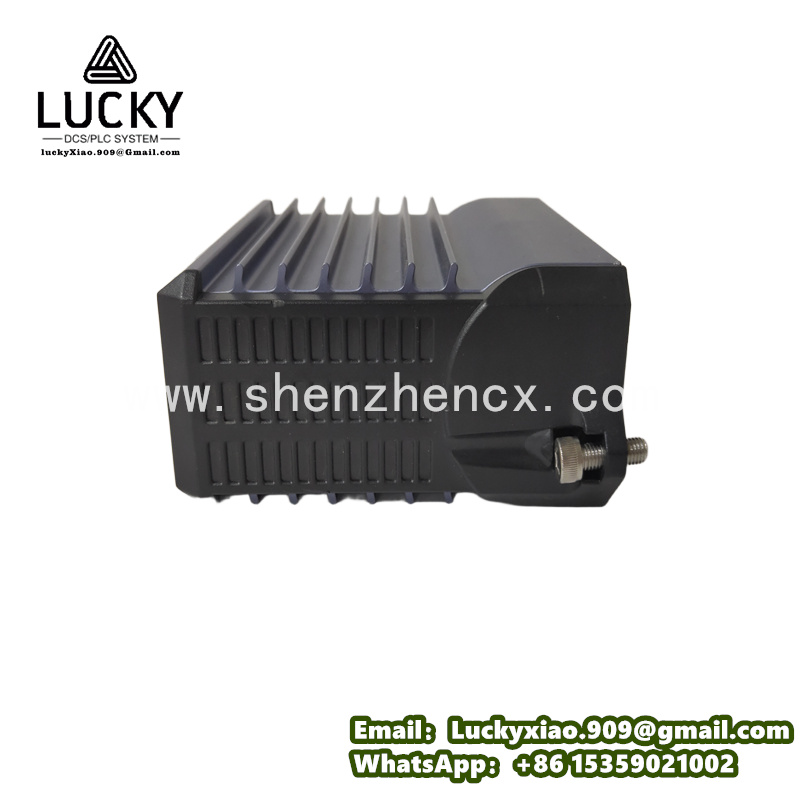

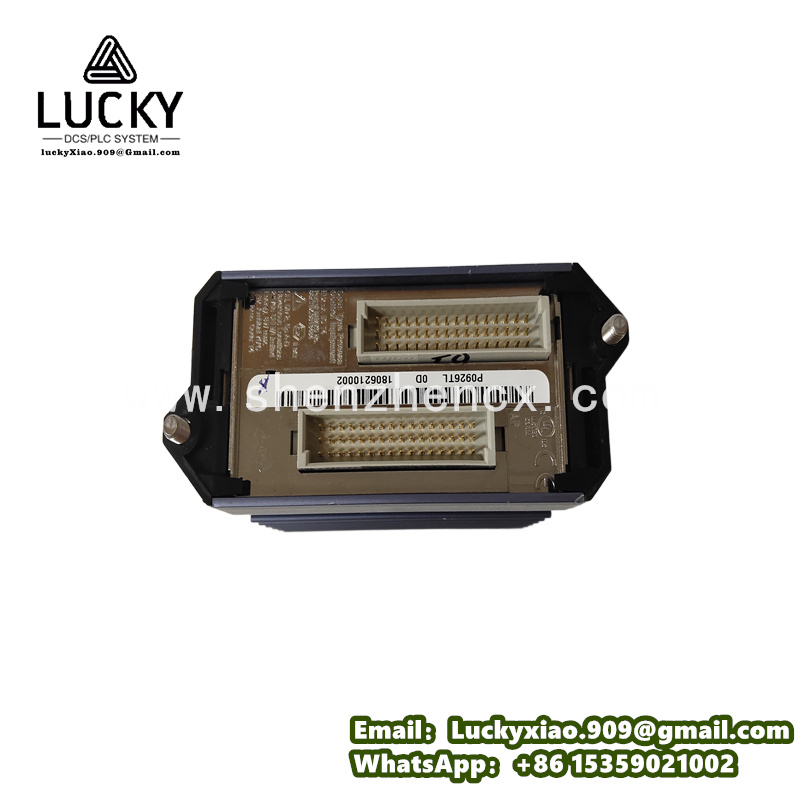

FOXBORO FBM222 P0926XM Product Introduction
1. P0926XM Product Description
FOXBORO FBM222 P0926XM is a high-performance redundant PROFIBUS communication module for industrial DCS control systems. It acts as a stable data transmission interface between the main control system and field slave devices. The module supports single and redundant working modes to avoid communication interruption. It features low power consumption, compact structure and strong environmental adaptability, which ensures long-term stable operation in factory and process industrial sites. It is widely used for connecting drives, remote I/O units and various field intelligent equipment.
2. System Introduction
The FBM222 P0926XM module is an important part of the FOXBORO Evo distributed control system. It establishes standard PROFIBUS DP communication links to collect real-time field data and transmit control commands from the host system. The redundant link design supports seamless fault switching and greatly improves system communication reliability. It can work independently or cooperate with other FBM series modules to build a complete field bus control network. The system supports simple configuration and fast debugging, and matches various process control application scenarios.
3. P0926XM Product Technical Parameters
Communication Protocol: PROFIBUS DP V1 Max Data Transmission Rate: 12 Mbps Power Supply: 24 VDC industrial power supply Power Consumption: ≤ 1 W Max Slave Devices: 125 per communication port Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Communication Channel: Dual PROFIBUS redundant links Data Frame Length: Maximum 244 bytes per cycle Installation Method: Standard system card slot installation Industrial Grade: Support long-term continuous operation Anti-interference: Built-in industrial anti-electromagnetic interference design
4. FOXBORO Other Series Model Recommendations
FBM201: Analog input module, used for collecting on-site temperature, pressure and flow analog signals.
FBM202: Analog output module, responsible for outputting analog control signals to adjust field actuators.
FBM204: Digital input module, stably acquiring switch state signals of field equipment.
FBM207: Digital output module, used for on-site equipment switch control and logic output.
FBM214: High-speed pulse acquisition module, suitable for frequency and speed signal monitoring.
FBM230: Ethernet communication module, supporting network data transmission and remote system debugging.
FBM242: Redundant analog processing module, improving signal acquisition stability for key process points.
