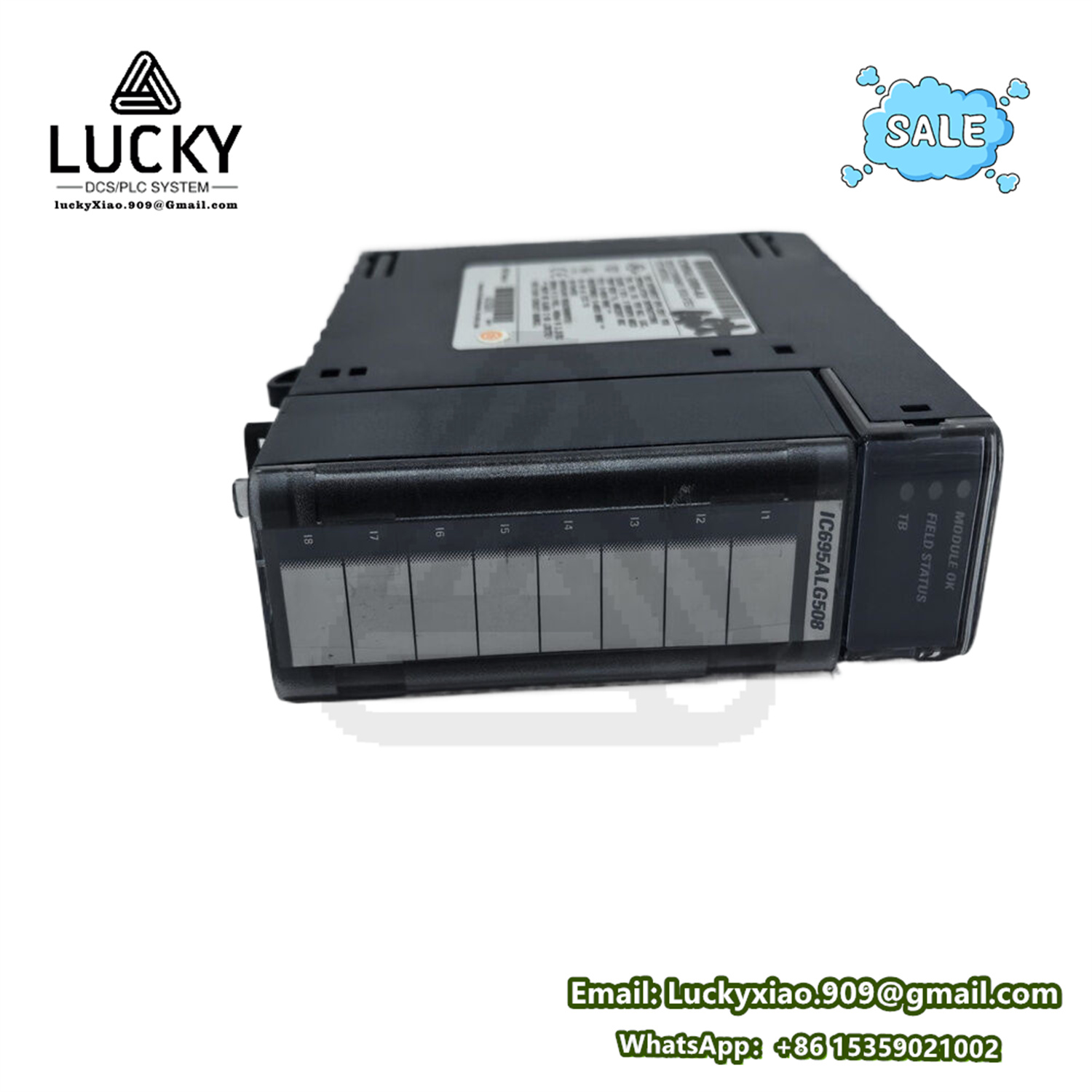

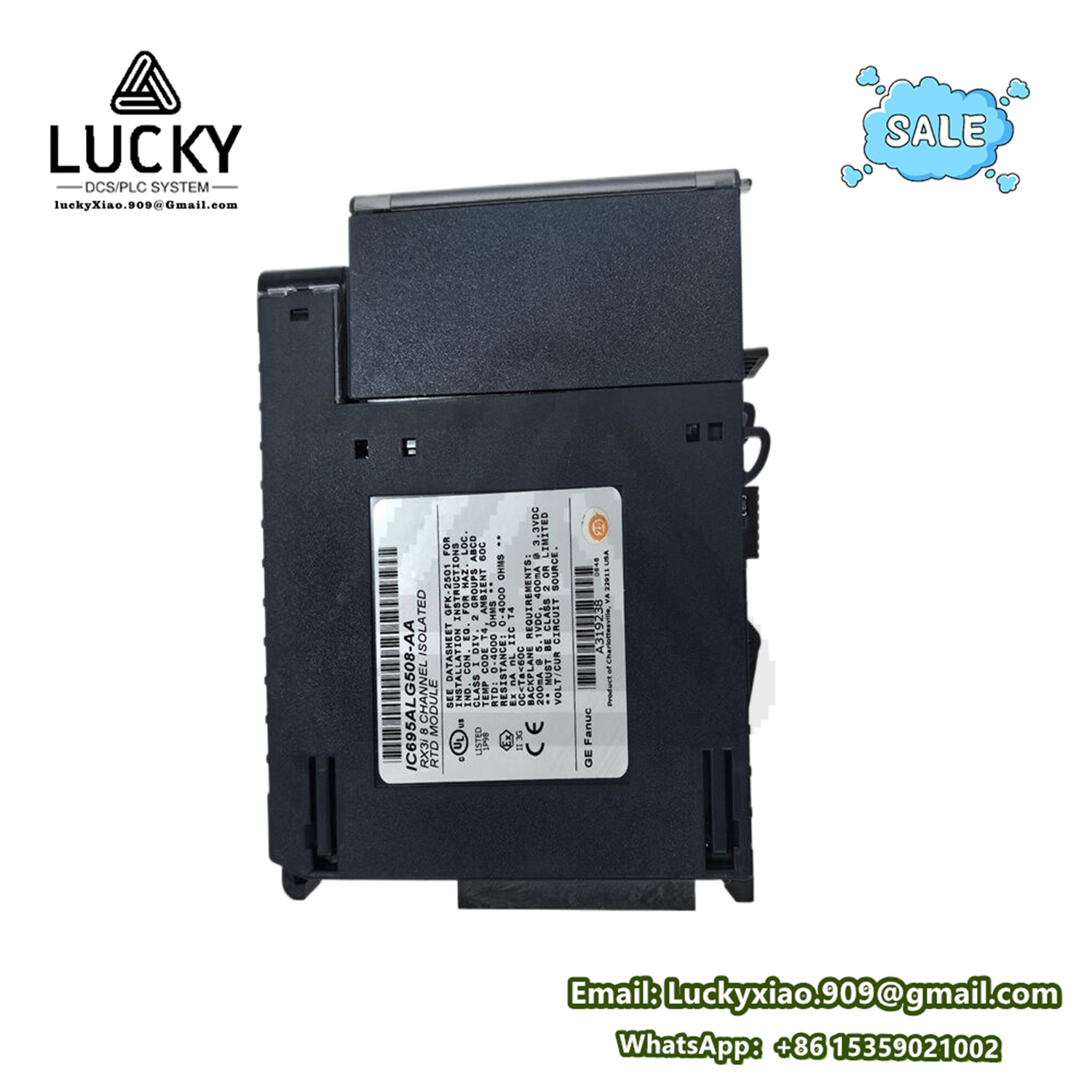

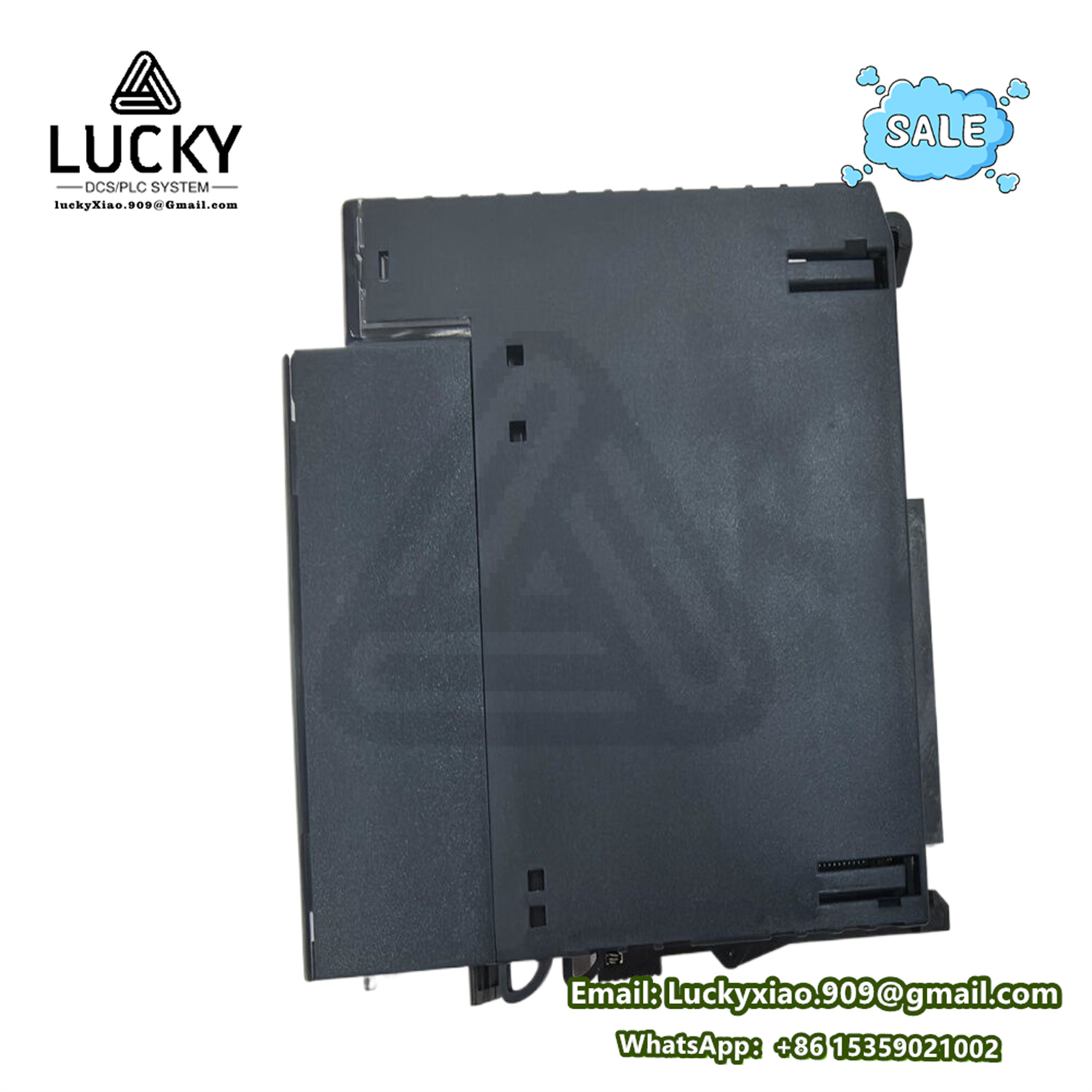

GE Electric | IC695ALG508-AA | 32-Channel Analog Input Module
IC695ALG508-AA Product Overview
Functional Description:
The GE IC695ALG508-AA is a 32-Channel Analog Input Module for PACSystems RX3i PLCs. It converts analog voltage/current signals from field sensors (e.g., pressure transducers, thermocouples) into high-resolution digital values for industrial process control.
Key Parameters & Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IC695ALG508-AA
|
|
Series
|
PACSystems RX3i I/O Modules
|
|
Function
|
Analog Input (32 channels)
|
|
Input Types
|
Voltage: ±10V, 0-5V, 0-10V; Current: 0-20mA, 4-20mA
|
|
Resolution
|
16-bit (65,536 counts)
|
|
Accuracy
|
±0.1% FSR @ 25°C
|
|
Sampling Rate
|
10 ms/channel (all channels scanned in 320 ms)
|
|
Isolation
|
500 V AC (channel-to-bus)
|
|
Input Impedance
|
1 MΩ (voltage), 250 Ω (current)
|
|
Overvoltage Protection
|
±35 V DC (continuous)
|
|
Power Consumption
|
1.2 W (5V DC from backplane)
|
|
Operating Temp.
|
-40°C to +70°C
|
|
Connector Type
|
Removable spring-clamp terminal (IC694ACC309)
|
|
Certifications
|
UL 508, CE, RoHS, cULus Class I Div 2
|
Product Series
- Part of PACSystems RX3i Analog I/O Series (compatible with RX3i CPU racks).
Key Features
- Universal Inputs: Software-selectable voltage/current per channel.
- Open-Wire Detection: Alerts on 4-20mA sensor failures.
- High-Density Design: 32 channels in single-slot form factor.
- Automatic Cold-Junction Compensation: For thermocouple inputs (requires IC695ALGxxx-TC variant).
- Diagnostic LEDs: Per-module status (OK, Active, Fault) + channel-by-channel alerts.
- Software Filtering: Configurable averaging for noise reduction.
Functions & Roles
- Signal Conditioning: Linearizes raw sensor data to engineering units (e.g., PSI, °C).
- Scaling: Programmable scaling via PLC logic (e.g., 4-20mA → 0-100%).
- Alarm Generation: High/low limits with programmable deadbands.
- Data Logging: Buffered sampling for trend analysis.
- Fault Reporting: Detects overrange, underrange, and sensor disconnect.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Manufacturing
|
Process variable monitoring (flow, pressure)
|
|
Water Treatment
|
pH/conductivity sensor interfacing
|
|
Energy
|
Turbine temperature/vibration sensing
|
|
Chemicals
|
Reactor level/chemical concentration control
|
|
HVAC
|
Building temperature/humidity management
|
Documentation & Support
- Manual: GFK-2314 (RX3i Analog I/O Modules)
| Compatible Hardware | Configuration Software |
|————————–|———————————|
| PACSystems RX3i CPUs | GE Proficy Machine Edition™ |
| RX3i Backplanes | VersaMax I/O Carrier (IC694) | - Firmware Updates: Via PCMCIA or Ethernet (using IC695PEM001)
- Replacement: IC695ALG508-AB (enhanced EMC version)
Critical Notes:
- Wiring: Field wiring not included (order IC694ACC309 terminals separately).
- Grounding: Shielded twisted pairs required for noise immunity.
- Current Inputs: External 24V loop power needed for 4-20mA sensors.
- Derating: Accuracy reduced to ±0.2% FSR at 70°C.
- Legacy Compatibility: Replaces 90-30 Series IC693ALGxxx modules.
- Thermocouples: Use IC695ALG508-Jx variant for direct TC input.
