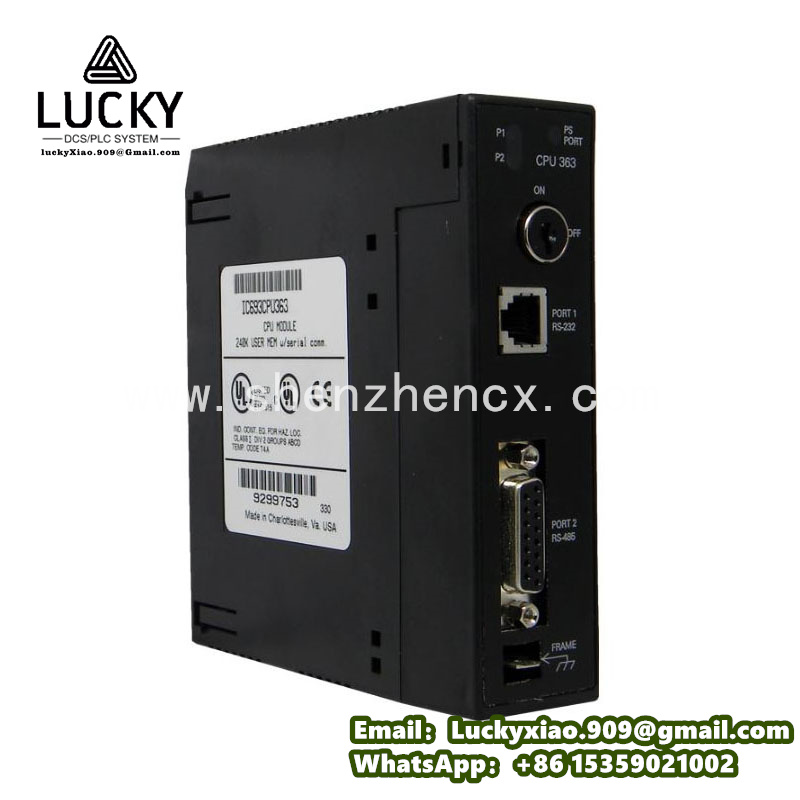

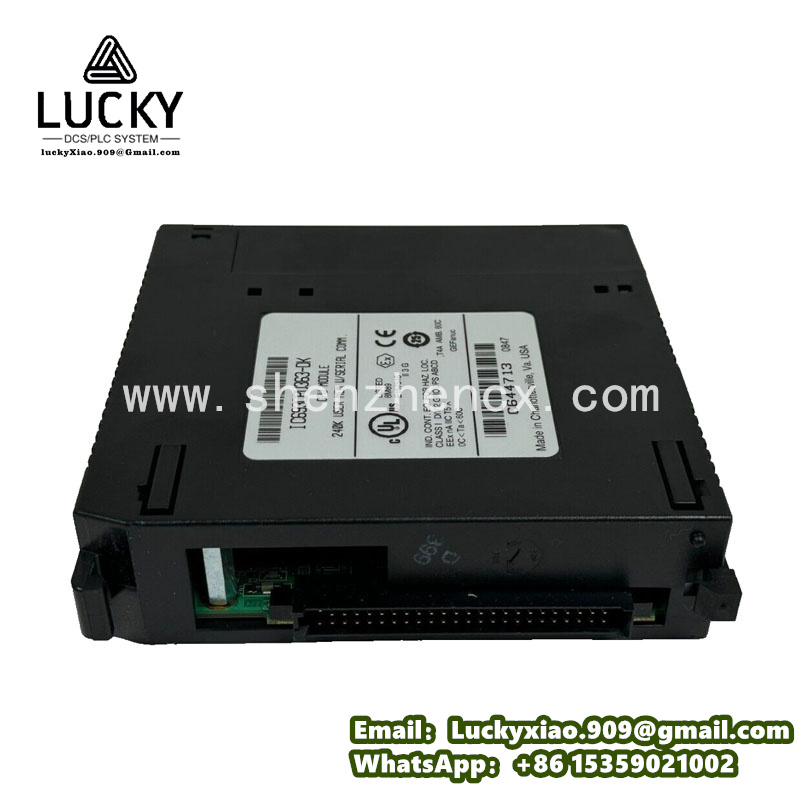

The GE IC693CPU363 is a high-performance single-slot CPU module belonging to the GE Fanuc Series 90-30 PLC automation system lineup. Serving as the core control unit for medium and small-scale industrial automation systems, this compact processor module delivers outstanding computing power, abundant memory resources, and flexible multi-protocol communication capabilities. It is widely deployed in factory automation, process control, mechanical equipment linkage and other industrial scenarios, providing stable, efficient and reliable core operation support for automated production systems.
IC693CPU363
Product Overview
Built around a 32-bit 80386EX processor with a main frequency of 25 MHz, the GE IC693CPU363 features fast program scanning and data processing capabilities, perfectly meeting the real-time control requirements of conventional and moderately complex industrial automation programs. Equipped with 240 KB of user memory, the module supports large-capacity program storage, data caching and logic operation processing, fully adapting to diversified programming and control demands.
Adopting a standard single-slot rack-mounted design, this CPU module enables quick installation and seamless compatibility with the entire Series 90-30 system baseplates and expansion modules. It supports up to seven remote and expansion baseplates for extended I/O and control functions, offering excellent system scalability. Manufactured in the USA, the product undergoes strict industrial-grade testing, featuring strong environmental adaptability and long-term operational stability, making it a mainstream reliable core controller in classic GE PLC systems.
Core Features
-
Efficient Processing Performance: Powered by a 25 MHz 32-bit 80386EX industrial processor, the module ensures fast logic operation and program scanning. It achieves a typical scan speed of 0.22 ms per 1K Boolean logic, effectively improving system response efficiency and guaranteeing precise real-time control of automated equipment.
-
Large-Capacity Built-In Memory: Integrated with 240 KB dedicated user memory, it supports complex program editing, abundant data storage and repeated program calling. The reasonably partitioned internal memory structure optimizes program operation logic and avoids operational lag caused by insufficient memory.
-
Diversified Communication Interfaces: Equipped with two independent built-in serial ports and an RJ45 interface, the module supports multiple mainstream industrial communication protocols including SNP/SNPX, Modbus RTU and DF1. It enables stable data interaction with PLC hosts, upper computers, touch screens and other field equipment, realizing convenient system networking and data transmission.
-
Powerful System Expansion Capability: It can drive up to seven remote or expansion baseplates, freely expanding local and remote I/O points, control functions and peripheral access capabilities. The flexible expansion design allows the control system to be upgraded and optimized according to on-site production demands.
-
Industrial-Grade Environmental Adaptability: Designed with a rugged industrial structure, it operates stably in a wide temperature range of -40°C to +70°C. The anti-interference and dust-proof design adapts to harsh industrial environments such as factories and workshops, resisting vibration, temperature fluctuation and electromagnetic interference.
-
Intelligent Fault Diagnosis & Stable Operation: Built-in comprehensive self-diagnosis function automatically monitors CPU operating status, program errors and communication abnormalities. It feeds back fault information in real time to help maintenance personnel quickly locate and resolve problems, minimizing equipment downtime.
-
Easy Installation & Low Maintenance: The standardized single-slot plug-in design simplifies on-site installation, disassembly and replacement. With a mature hardware structure and stable operating program, it requires minimal daily maintenance, greatly reducing enterprise operational and maintenance costs.
IC693CPU363
Technical Specifications
|
Parameter Item
|
Technical Specification
|
|
Model Number
|
GE IC693CPU363
|
|
Product Series
|
GE Fanuc Series 90-30 PLC System
|
|
Processor Core
|
32-bit 80386EX Industrial Processor
|
|
Main Frequency
|
25 MHz
|
|
User Memory
|
240 KB
|
|
Program Scan Speed
|
0.22 ms / 1K Boolean Logic
|
|
Communication Ports
|
2 × Serial Ports, 1 × RJ45 Interface
|
|
Supported Protocols
|
SNP/SNPX, Modbus RTU, DF1
|
|
Expansion Capacity
|
Supports up to 7 remote/expansion baseplates
|
|
Power Supply Requirement
|
+5 VDC, Typical Power Consumption ≤ 5W
|
|
Operating Temperature Range
|
-40°C ~ +70°C
|
|
Installation Method
|
Single-slot rack mounting
|
|
Origin
|
USA
|
Application Scenarios
As the core control module of the GE Series 90-30 PLC system, the IC693CPU363 is widely applicable to medium and small-scale industrial automation control scenarios with stable operation and moderate control complexity:
-
Factory Automation: Applied to assembly line control, conveyor system linkage, automated sorting and packaging equipment control to realize stable and continuous automated production.
-
Mechanical Equipment Control: Serves as the core controller for CNC auxiliary equipment, printing machinery, textile machinery and packaging machinery, ensuring accurate logic control and stable equipment operation.
-
Process Industry Monitoring: Used for parameter monitoring and logic control in water treatment, heating ventilation, light chemical and food processing industries, realizing standardized process operation management.
-
Building & Municipal Automation: Applied to intelligent building equipment control, municipal ventilation system and environmental monitoring system control, supporting stable operation of public facility automation systems.
Product Advantages
-
Reliable & Stable Control Performance: Adopting mature industrial processor and optimized operating logic, the module delivers fast response and stable long-term operation without crash or program disorder. It provides solid core guarantee for continuous industrial production.
-
Strong System Compatibility: Fully compatible with all modules of the GE Series 90-30 PLC system, supporting free combination and collocation of various I/O modules, functional modules and expansion modules. It adapts to diverse customized control system construction demands.
-
Flexible Networking & Expansion: Diversified communication protocols and multi-port design support flexible on-site networking, facilitating data interconnection with multiple devices. Powerful expansion capacity reserves sufficient upgrade space for later system function expansion.
-
Superior Environmental Resistance: Wide temperature operating range and industrial anti-interference design enable stable operation in complex and harsh industrial environments, effectively reducing equipment failure rates caused by environmental factors.
-
High Cost Performance: With mature technology, stable performance and low failure rate, it features long service life and low later maintenance cost. It is a cost-effective and highly reliable core CPU module for medium and small industrial automation systems.
In summary, the GE IC693CPU363 CPU module integrates high-speed processing capability, large memory capacity, flexible expansion performance and industrial-grade stability. It is a classic and reliable core control component of GE automation systems, widely recognized and applied in global industrial automation fields, helping users build stable, efficient and scalable industrial control systems.
