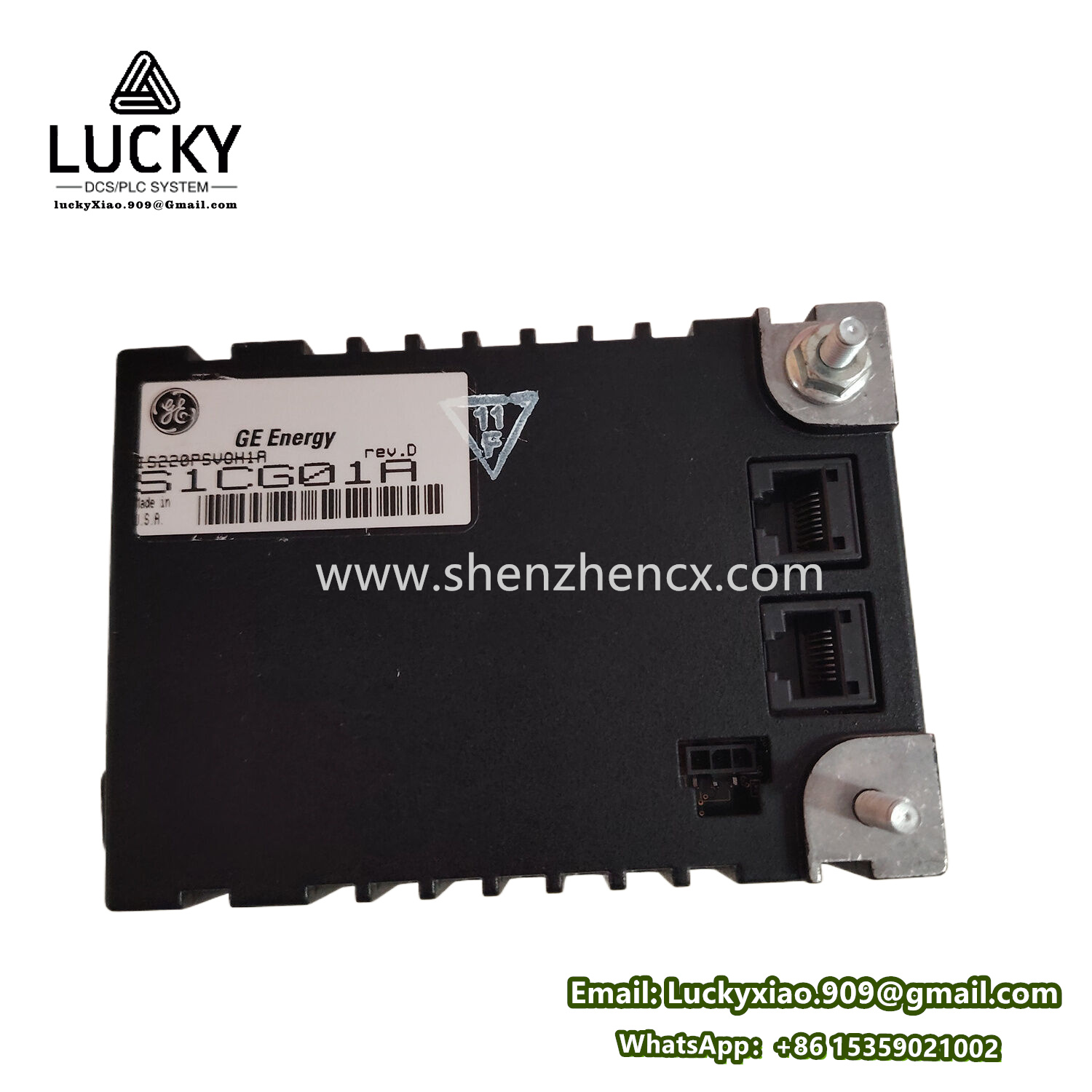

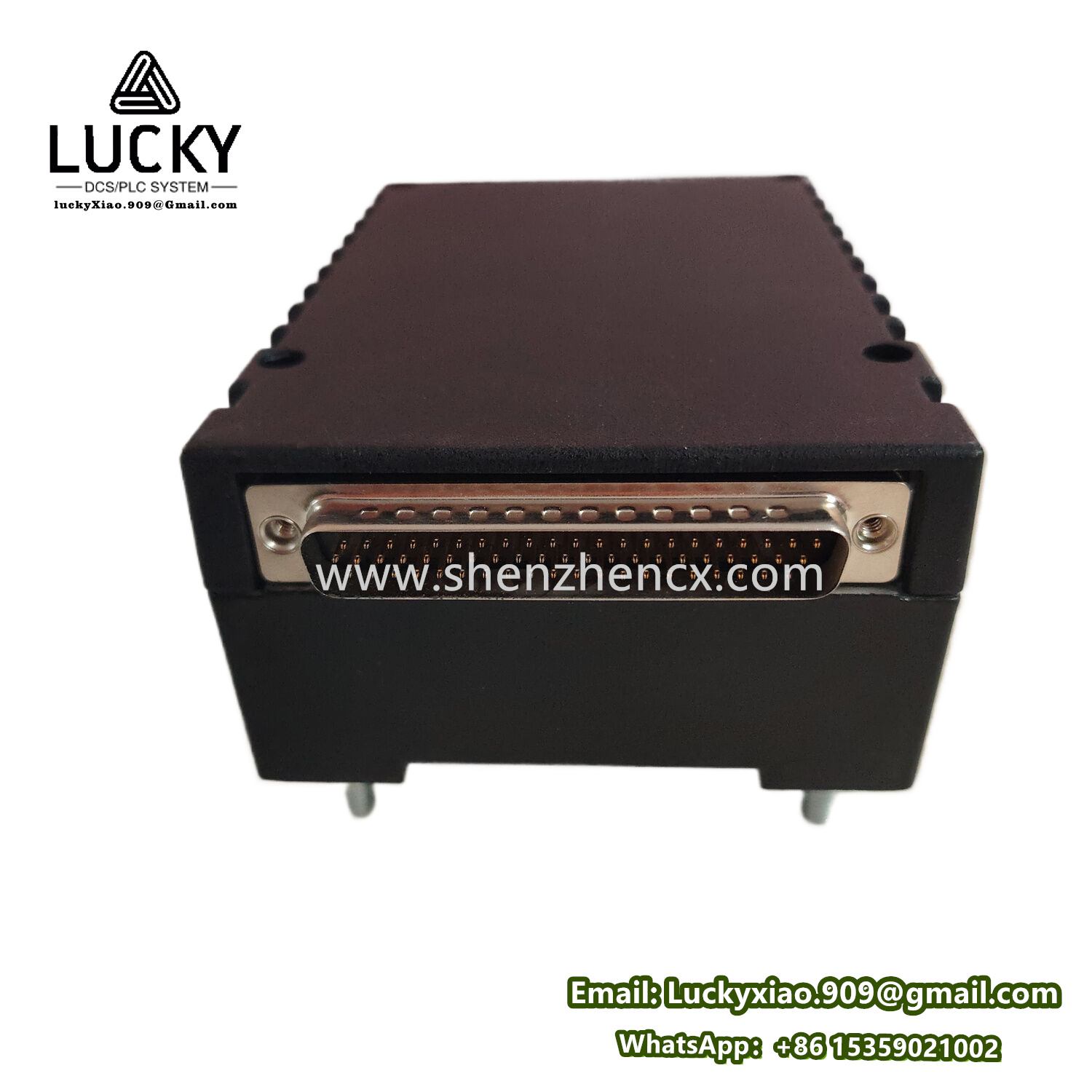

GE Mark VIe I/O Pack Series IS220PSVOH1A PROFIBUS Slave Interface Board (PVIB) Product Introduction
1. Product Description
The GE Mark VIe I/O Pack Series IS220PSVOH1A PROFIBUS Slave Interface Board (PVIB) is a crucial component within the Mark VIe control system ecosystem. It is engineered to facilitate seamless communication and interaction in industrial automation setups, specifically in scenarios where PROFIBUS – based networks are deployed. This board serves as a bridge between the PROFIBUS network and other components of the Mark VIe I/O system, ensuring efficient data transfer and control signal dissemination.
2. Function Introduction
2.1 PROFIBUS Communication
- Slave – side Connectivity: As a PROFIBUS slave interface board, the IS220PSVOH1A is designed to establish a reliable connection with the PROFIBUS master device. It can receive commands, configuration settings, and data requests from the master over the PROFIBUS network. For example, in a factory – wide automation network, the master PLC (Programmable Logic Controller) can send control instructions to the IS220PSVOH1A, which then relays these to the relevant I/O modules or devices connected to it.
- Data Transmission and Reception: It efficiently transmits data from the connected I/O modules or sensors to the PROFIBUS master and vice versa. This includes real – time process data such as sensor readings (e.g., temperature, pressure, and flow rate) and status information of connected devices. At the same time, it can receive control commands from the master, like actuation signals for valves or motors, and forward them to the appropriate output devices.
2.2 I/O Module Integration
- Electrical Interface: The PVIB provides an electrical interface between the PROFIBUS network and one or more I/O ethernet networks. This allows for seamless integration of I/O modules that communicate via ethernet with the PROFIBUS – based control system. For instance, it can connect a group of ethernet – enabled temperature sensors and actuators to the PROFIBUS network, enabling centralized control and monitoring.
- Terminal Board Connection: It is designed to work in tandem with specific terminal boards, such as the TSVO servo terminal board in some applications. This connection enables the board to manage and control the associated I/O functions related to the terminal board, like servo – valve position control in turbine – related operations.
2.3 Status Monitoring and Indicators

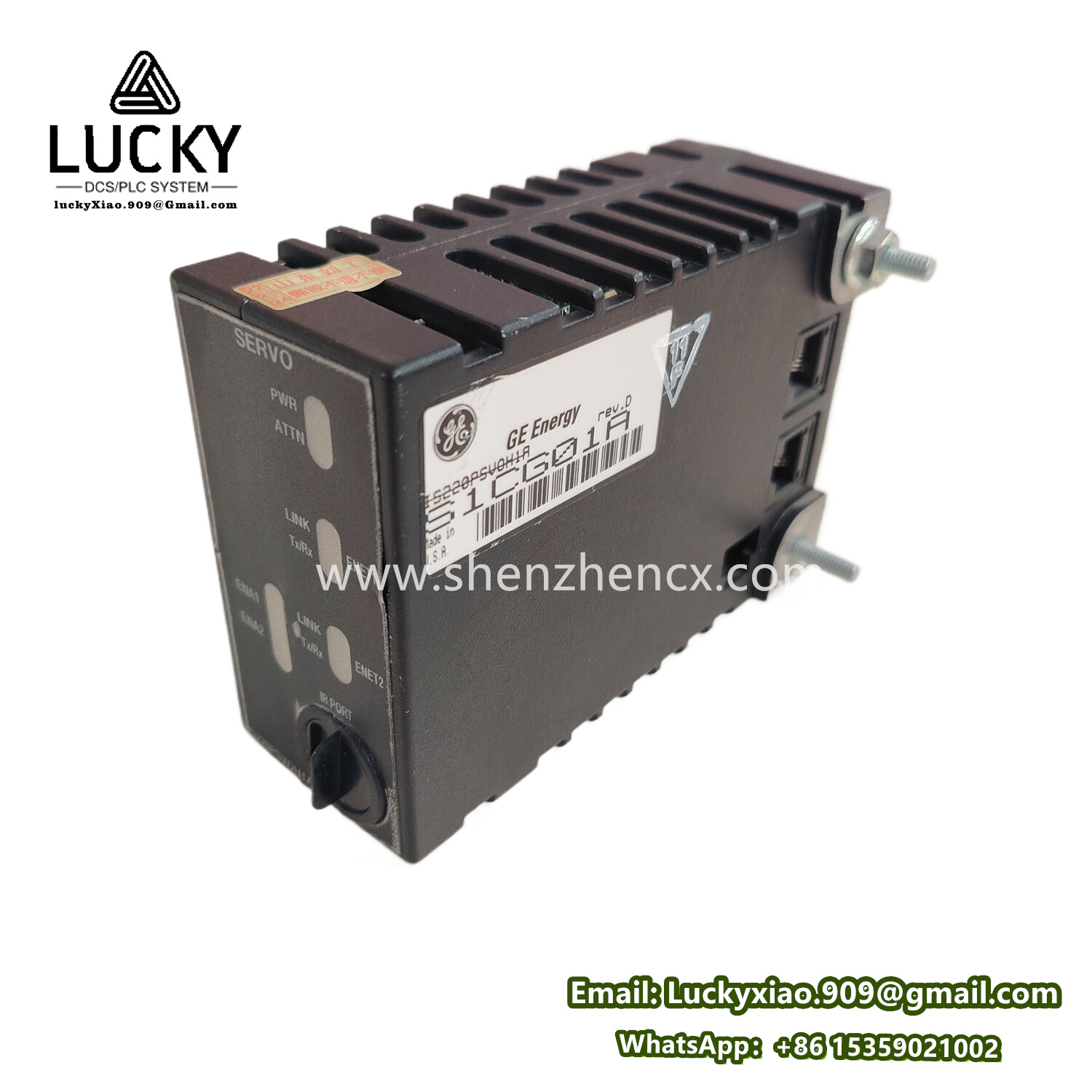

- LED Indicators: The front faceplate of the IS220PSVOH1A is equipped with multiple LED indicators. These include status indicators for the two ethernet networks (ENET 1/ENET 2), which show the connection status and data transfer activity of the ethernet interfaces. There are also LEDs for power (indicating whether the board is powered on), attention (ATTN, which may signal a need for maintenance or an error condition), and enable (ENA 1/2, which can be used to enable or disable certain functions). This visual feedback helps operators and maintenance personnel quickly assess the board’s operational status.
3. Technical Parameters
3.1 Communication – related Parameters
- PROFIBUS Compatibility: Complies with the PROFIBUS protocol standards, ensuring interoperability with a wide range of PROFIBUS master devices. It can operate at different baud rates supported by the PROFIBUS standard, typically ranging from 9.6 kbps to 12 Mbps, depending on the network configuration and requirements.
- Ethernet Interfaces: Features two ethernet interfaces (RJ – 45, 10/100Mbps). These interfaces support high – speed data transfer between the PVIB and connected I/O ethernet networks or other ethernet – enabled devices. The 10/100Mbps speed allows for quick transmission of large amounts of data, which is crucial for real – time industrial control applications.
3.2 Hardware – related Parameters
- Processor Board: Utilizes a standard processor board design. It comes with input power connectors for connecting to the power supply, local power supplies to ensure stable operation, an onboard temperature sensor to monitor the board’s internal temperature, flash memory for storing configuration data and program code, and random – access memory (RAM) for temporary data storage during operation.
- Auto – reconfiguration: The board has the capability to be auto – reconfigured when replaced. This feature can be controlled via the ToolboxST application. In case of a board replacement, the system can automatically detect the new board and configure it based on pre – set parameters, reducing downtime. Manual reconfiguration is also possible through the component editor in the control system software.
3.3 Physical Dimensions
- Size: The board has dimensions of approximately [35] cm x [Width] cm x [28] cm (actual dimensions may vary slightly depending on the specific model and manufacturing tolerances). This compact size allows for easy installation in control cabinets and enclosures, even in space – constrained industrial environments.
4. Application Areas
4.1 Power Generation
- Turbine Control: In power plants, whether they are gas – fired, steam – powered, or combined – cycle plants, the IS220PSVOH1A PVIB is used in turbine control systems. It can interface with various sensors and actuators involved in turbine operation, such as vibration sensors, pressure sensors, and servo valves. For example, it can receive vibration data from sensors installed on the turbine shaft and transmit this information to the PROFIBUS – connected control system. Based on the received data, the control system can then send commands to adjust the position of servo valves to optimize turbine performance and prevent damage due to excessive vibration.
- Generator Monitoring: It also plays a role in monitoring and controlling generator – related equipment. It can connect to sensors that measure parameters like generator temperature, voltage, and current. By transmitting this data to the central control system over the PROFIBUS network, operators can monitor the generator’s health and performance in real – time and take corrective actions if necessary.
4.2 Industrial Manufacturing
- Automated Production Lines: In manufacturing plants, especially those with highly automated production lines, the PVIB is used to integrate different I/O devices into the overall control network. For example, in an automotive manufacturing plant, it can connect to sensors that detect the position of parts on conveyor belts, as well as actuators that control robotic arms for assembly operations. The PROFIBUS – based communication allows for synchronized control of all these devices, ensuring smooth production flow and high – quality product assembly.
- Process Control in Chemical Plants: In chemical plants, where precise control of processes is essential, the IS220PSVOH1A can be used to interface with sensors and control valves in chemical reaction processes. It can receive data on temperature, pressure, and chemical composition from sensors and transmit control signals to valves to adjust the flow of reactants and products, maintaining the optimal process conditions for efficient and safe chemical production.
4.3 Water and Wastewater Treatment
- Pump and Valve Control: In water treatment plants, the PVIB can be used to control pumps and valves. It can receive signals from water level sensors, flow meters, and quality sensors and transmit control commands to pumps to adjust the water flow rate or to valves to control the direction of water flow. In wastewater treatment plants, it can perform similar functions, ensuring the proper treatment of wastewater by controlling the operation of various treatment processes such as aeration, sedimentation, and disinfection.
