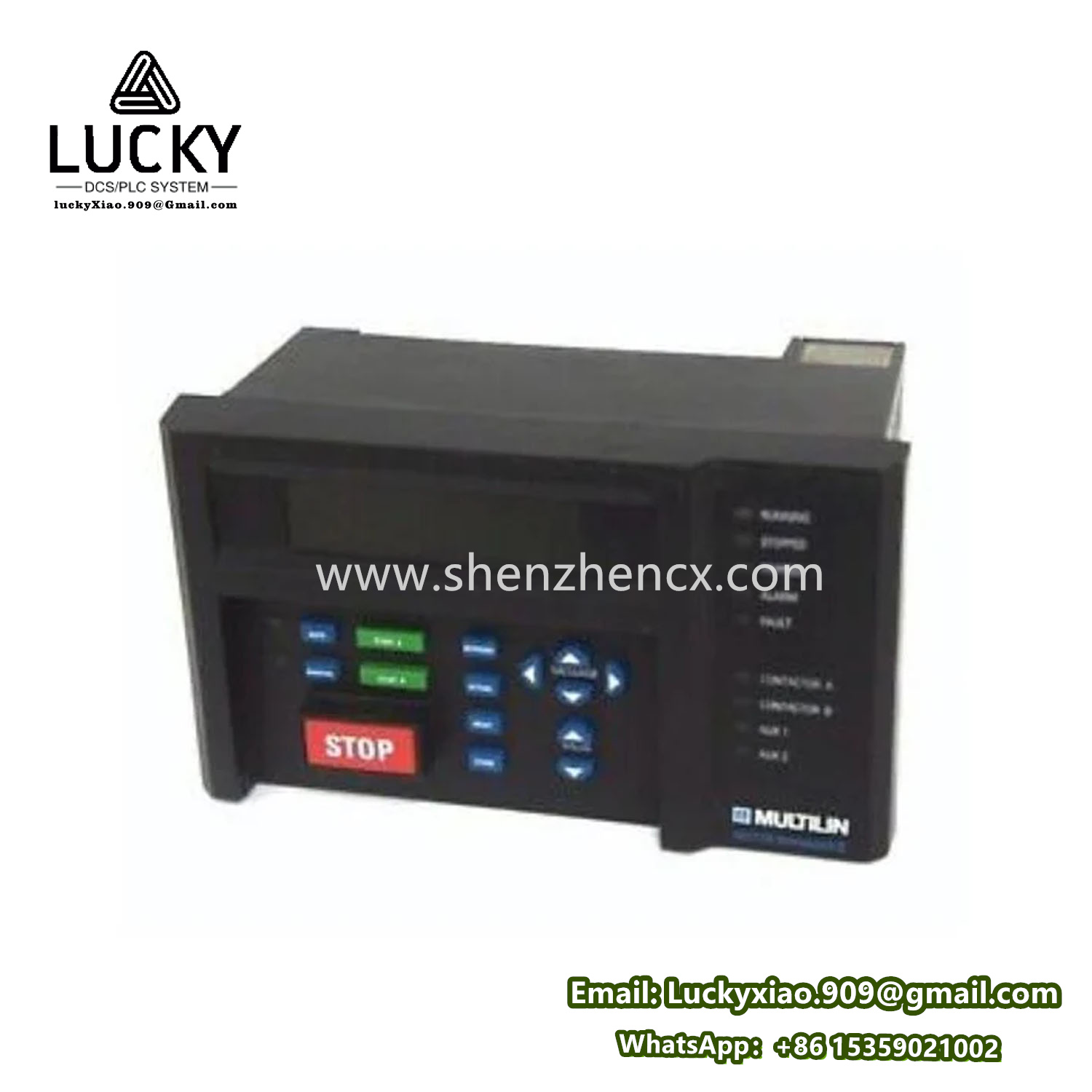

Brand: GE (General Electric)
Model: MMII-PD-1-2-120
Series: Multilin Motor Manager II (MMII) Series
Function: Intelligent MCC (Motor Control Center) controller and motor management relay. It provides comprehensive motor protection, real-time parameter monitoring, advanced control, and fault diagnosis for industrial motors.
Voltage: Input voltage is 120V AC, suitable for common industrial power supply environments.
I. Core Positioning and Overall Overview
GE MMII-PD-1-2-120 is an intelligent motor management device developed by GE Multilin. It belongs to the Motor Manager II series. It is designed to optimize industrial motor operation and ensure motor safety.
It integrates protection, monitoring, control and communication functions in one compact device. It eliminates the need for separate auxiliary equipment and extra wiring.
This product is a mature industrial-grade device, with stable spot supply (including rigorously tested refurbished parts). It provides a 12-month functional warranty.
Although it has been discontinued, it is still a reliable choice for retrofitting legacy motor control systems.
It is widely used in various industrial scenarios that require stable and safe motor operation, providing reliable motor management solutions.
II. Core Technical Specifications
All parameters comply with GE industrial equipment standards. They ensure stable operation in harsh industrial on-site conditions. The core specifications are as follows:
1. Basic Parameters
-
Product Model: MMII-PD-1-2-120
-
Manufacturer: GE Multilin (GE Industrial Automation Department)
-
Product Type: Intelligent MCC controller / Motor management relay
-
Dimensions: 7.4” x 5” x 4.4” (18.8 cm x 12.7 cm x 11.2 cm)
-
Weight: 3 lbs (1.36 kg)
-
Mounting Type: Panel mount with display
-
Origin: USA
2. Electrical Parameters
-
Input Voltage: 120V AC
-
Input Frequency: 50 Hz or 60 Hz, adapting to global power systems
-
Analog Input Range: 4–20 mA, with ±2% accuracy
-
Power Consumption: It adopts energy-saving design, with low power consumption during operation.
3. Communication and Input/Output Parameters
-
Communication Protocol: Supports RS485 Modbus Plus, with a baud rate of 1200–19200 bps.
-
Inputs: 10 process inputs, with undervoltage auto-restart and diagnostic functions.
-
Outputs: 2 contactors and 2 programmable outputs, supporting flexible control customization.
4. Software and Display Parameters
-
Software Support: Compatible with GE Enervista MMII configuration and monitoring software.
-
Display: Equipped with an LCD display, showing real-time motor parameters clearly.
-
Operation Interface: It has a keypad for manual parameter adjustment and navigation.
-
Status Indication: LED indicators are included to show system operation and alarm status.
5. Environmental Adaptability
-
Operating Temperature: 0°C to 60°C, adapting to common industrial environments.
-
Storage Temperature: -40°C to 85°C, humidity 10%~95%RH (non-condensing).
-
Reliability: MTBF (Mean Time Between Failures) is high, ensuring long-term stable operation.
-
Anti-interference Capability: It has strong anti-interference performance, resisting industrial site noise.
III. Core Functions and Advantages
1. Comprehensive Motor Protection
It provides multiple protection functions. These include overload, phase unbalance, ground fault, and locked rotor protection.
It has a hot winding thermistor circuit to prevent motor overheating.
It supports undervoltage auto-restart, reducing manual intervention after voltage recovery.
2. Real-Time Monitoring and Diagnostics
It monitors motor parameters in real time. These parameters include phase current, ground fault current, thermal capacity, and energy consumption.
It records trip and pre-trip values for fault analysis and predictive maintenance.
Built-in self-diagnosis function helps locate faults quickly, reducing maintenance time.
3. Flexible Control and Easy Configuration
It supports advanced control functions, such as soft starting and acceleration/deceleration control.
Programmable inputs and outputs allow customization according to on-site needs.
It can be configured remotely via Enervista MMII software, simplifying operation and maintenance.
4. Compact and Cost-Effective
Its compact design saves space in industrial control cabinets, facilitating intensive deployment.
It integrates multiple functions in one device, reducing the need for additional hardware and wiring costs.
5. Easy Integration and Compatibility
It supports Modbus Plus communication protocol, enabling seamless integration with existing automation systems.
It is fully compatible with GE industrial control systems, suitable for system retrofitting and upgrading.
IV. Application Scenarios
GE MMII-PD-1-2-120 is suitable for various industrial scenarios that require motor control and protection. Its main applications include:
-
Power Generation: Motor control and protection in power plants, ensuring stable operation of generator auxiliary motors.
-
Manufacturing Industry: Motor management in factories and processing facilities, such as conveyor and pump motors.
-
Oil & Gas: It is used in harsh oil and gas field environments to protect key motor equipment.
-
Water and Wastewater Treatment: Motor control in pumping stations and treatment plants.
-
HVAC Systems: Controlling fans, pumps and other motor equipment in HVAC systems.
-
Material Handling: Motor management for conveyors, cranes and other material handling equipment.
V. Product Summary
GE MMII-PD-1-2-120 is a high-performance intelligent motor management device of the GE Multilin Motor Manager II series.
It integrates comprehensive protection, real-time monitoring, flexible control and reliable communication functions.
With 120V AC input voltage, compact design and easy integration, it meets the motor management needs of various industrial scenarios.
It effectively protects motors, reduces downtime and maintenance costs, and ensures stable and efficient motor operation.
As a mature industrial device, it has stable spot supply and perfect quality assurance. It is an ideal choice for motor control system retrofitting and new installation.
