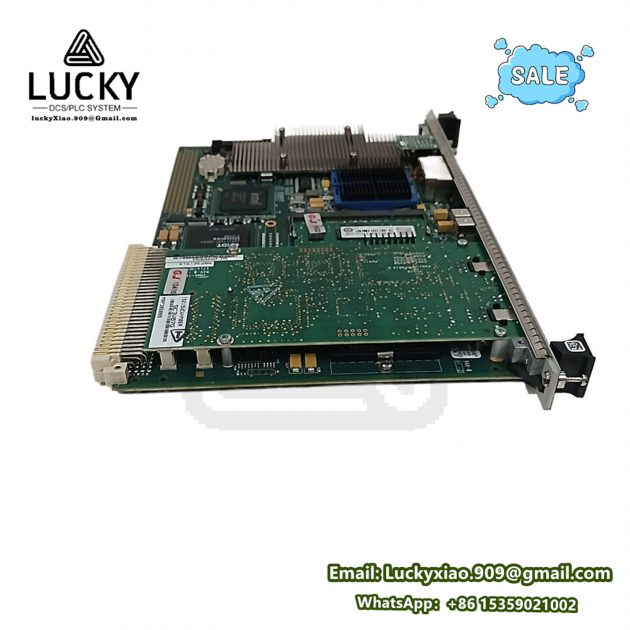

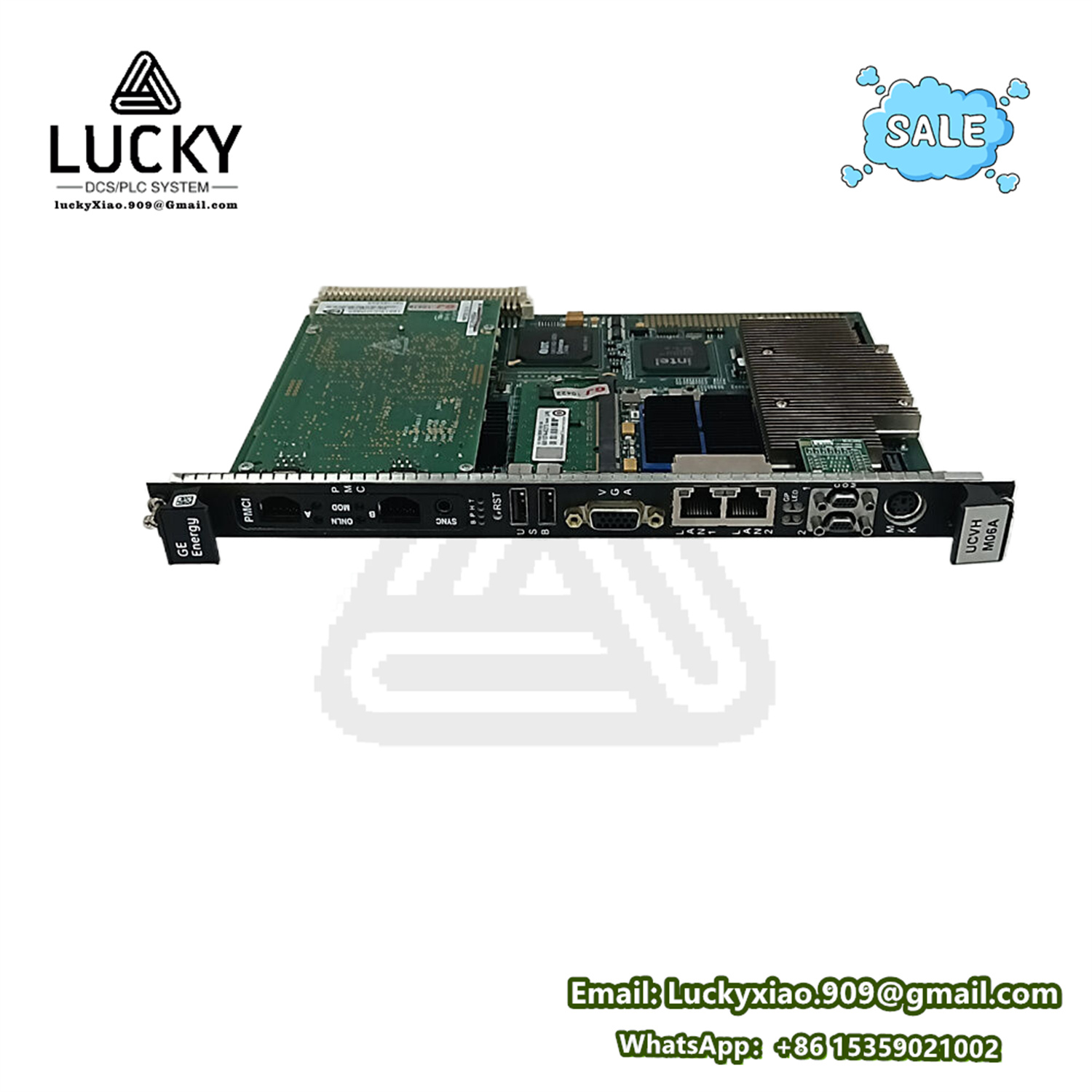

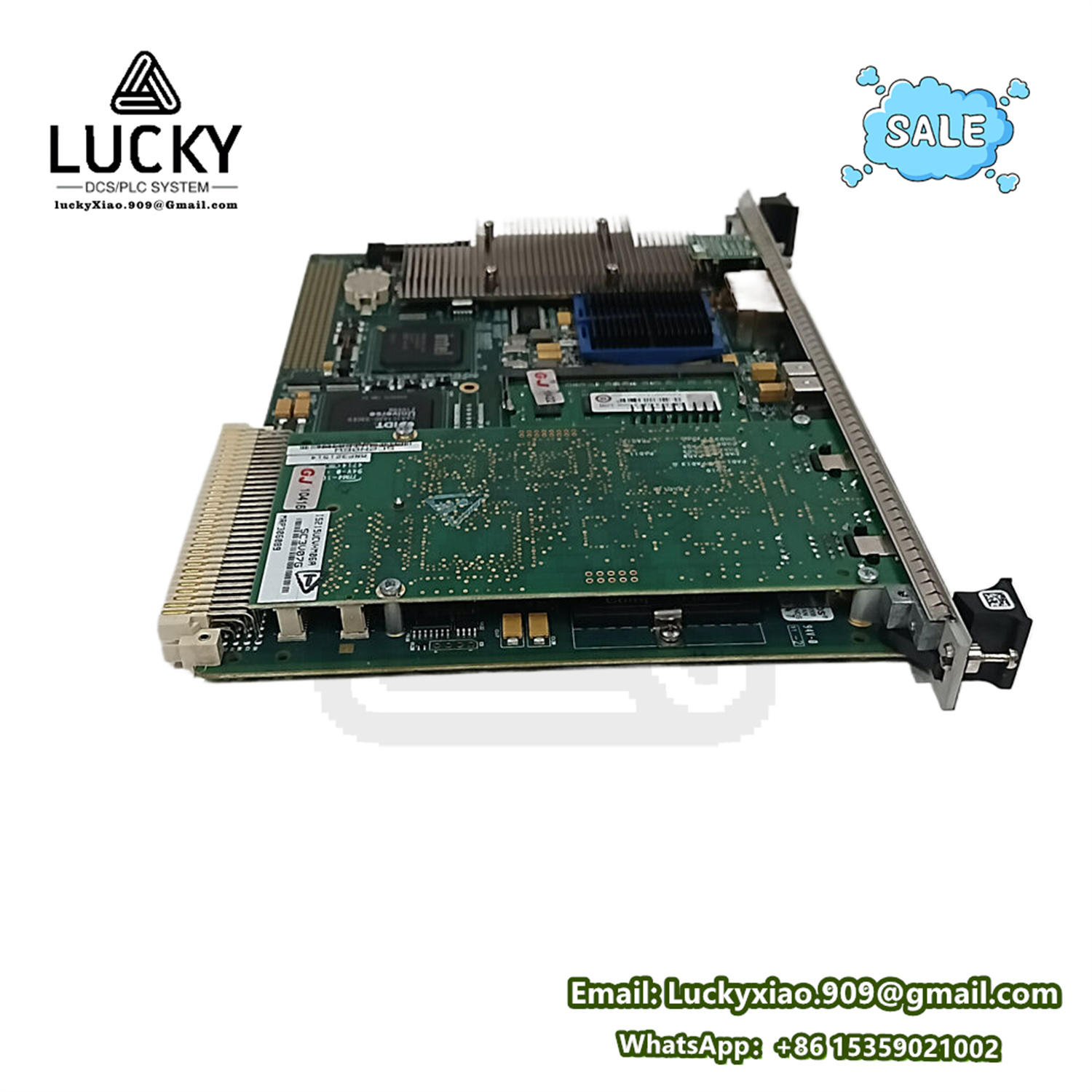

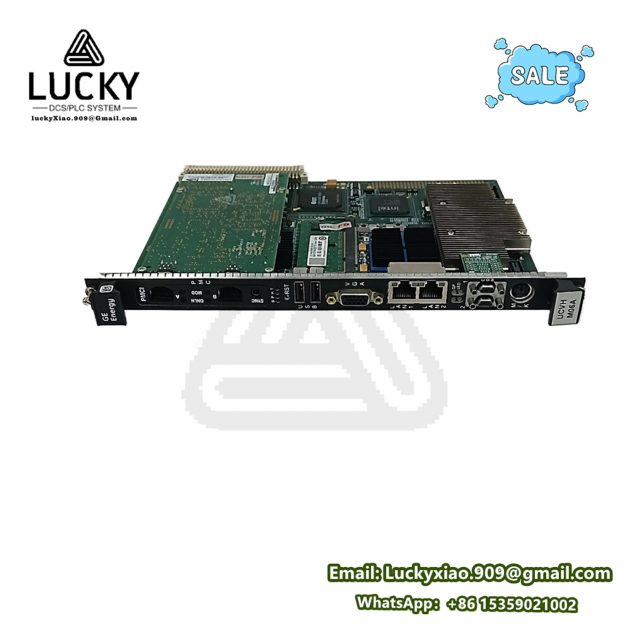

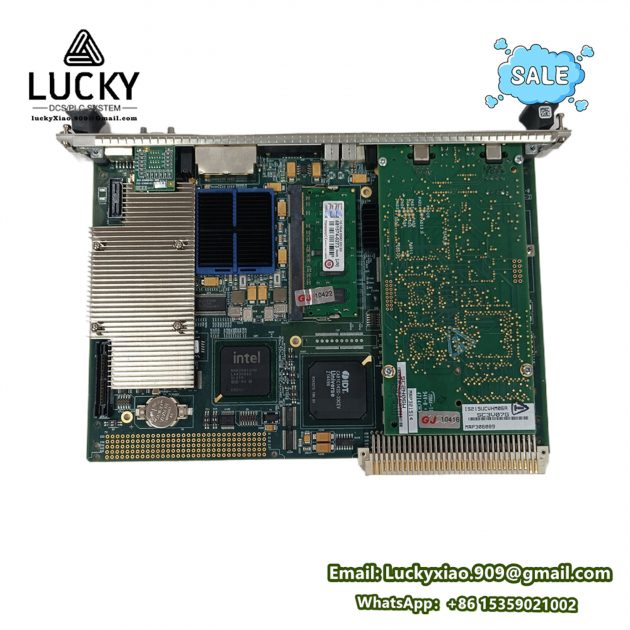

GE VMICPCI-7632-03310 IS215UCCAH3A 350-657362-003310J Single Board Computer (SBC)
GE VMICPCI-7632-03310 / IS215UCCAH3A / 350-657362-003310J Technical Specification
Specification
|
Attribute
|
Detail
|
|---|---|
|
Part Numbers
|
|
|
Manufacturer
|
General Electric (GE)
|
|
Series
|
VMIC Industrial PCs + Mark VIe Speedtronic™
|
|
Country of Origin
|
USA
|
|
Function
|
Integrated Industrial Control Computing Platform
|
Description
This hybrid assembly combines GE’s rugged VMICPCI-7632-03310 single-board computer (SBC) with the IS215UCCAH3A Mark VIe turbine controller, mounted on a 350-657362-003310J carrier board. Designed for mission-critical industrial automation, it delivers deterministic real-time control (via IS215UCCAH3A) and supervisory computing (via VMICPCI SBC), supporting dual OS environments (VxWorks + Windows Embedded). Ideal for gas turbine control, grid stability systems, and high-speed data acquisition.
Features
- Dual-Processing Architecture:
- VMIC SBC: Intel® Pentium® III 1.4 GHz, 512 MB SDRAM, 64 MB flash.
- Mark VIe Controller: PowerPC @ 800 MHz, SIL 3-certified logic.
- Hybrid Communication: PCI backplane integration (VMIC-to-Mark VIe), dual 100/1000BASE-T Ethernet, IEEE 1588 PTP synchronization.
- Expansion Capability: 2 PMC slots (PCI Mezzanine Card) + 4 Mark VIe I/O expansion ports.
- Extreme Environment: Operates at -25°C to +70°C (-13°F to +158°F) with 95% non-condensing humidity.
- Legacy Support: Windows NT 4.0 / XP Embedded compatibility (VMIC) + ToolboxST integration (Mark VIe).
- Redundancy: Optional dual-redundant power inputs (18–36V DC).
Electrical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage
|
24V DC ±10% (dual inputs)
|
|
Power Consumption
|
65W (max @ full load)
|
|
Backplane Interface
|
PCI 2.2 (32-bit/66 MHz)
|
|
Isolation
|
1500V AC (controller I/O)
|
|
SBC I/O Ports
|
2× RS-232/485, USB 1.1, VGA, Kybd/Mouse
|
Product Properties
|
Property
|
Specification
|
|---|---|
|
Integration Method
|
VMIC SBC mounted on carrier board, hosting IS215UCCAH3A via PCI
|
|
Communication Protocols
|
SRTP, DNP3, Modbus TCP/IP, PROFINET IO
|
|
Cybersecurity
|
BIOS-level password, boot sector protection
|
|
MTBF
|
150,000 hours (MIL-HDBK-217F)
|
|
Safety Certification
|
SIL 3 (IEC 61508), UL 60950-1, CE EMC 2014/30/EU
|
|
Dimensions
|
233 × 160 × 45 mm (9.2 × 6.3 × 1.8 in)
|
|
Weight
|
2.1 kg (4.6 lbs)
|
Performance Metrics
|
Metric
|
Value
|
|---|---|
|
Controller Scan Time
|
10 ms (64 I/O points)
|
|
SBC Data Throughput
|
100 MB/s (PCI peak)
|
|
Analog Input Sampling
|
100 kS/s (16-bit, PMC expansion)
|
|
Boot Time
|
<15s (VxWorks RTOS)
|
Key Applications
- Turbine Control Centers: Combined HMI and real-time turbine protection.
- Substation Automation: IEC 61850-compliant bay controllers.
- High-Speed Data Logging: Vibration/performance analytics (up to 100k samples/sec).
- Hybrid Power Plants: Synchronization of gas turbines + battery storage systems.
⚠️ Integration Notes:
- Carrier Board Critical: 350-657362-003310J enables PCI interconnect—do not separate components.
- Cooling Required: Forced airflow (min. 200 LFM) mandatory for sustained operation.
- SW Constraints: VMIC drivers require CIMPLICITY HMI v8.2; Mark VIe needs ToolboxST v7.0+.
- Legacy Alert: Pentium III limitations apply—avoid CPU-intensive non-control tasks.
- Proprietary Connectors: GE-specific backplane headers (P/N: MS3106F20-29PW).
