Introduction to ABB AO810 3BSE008522R1
AO810 3BSE008522R1 Product Overview

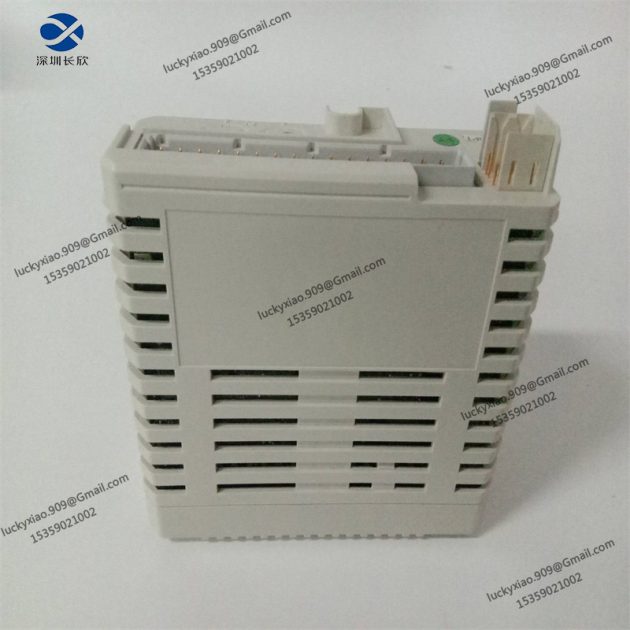

The ABB AO810 3BSE008522R1 is a high-precision analog output module from the AO series, tailored for industrial automation systems. It acts as a key interface, converting digital control signals from upper controllers into continuous analog signals to precisely regulate field actuators like valves and motors. Its robust modular design ensures reliable operation in harsh industrial conditions with high temperatures, humidity and electromagnetic interference. Highly compatible, it seamlessly integrates with ABB DCS such as System 800xA, and is widely used in petrochemical, metallurgy, power generation and manufacturing to improve process control accuracy and efficiency.
AO810 3BSE008522R1 Technical Parameters
-
Product Model: AO810 3BSE008522R1
-
Product Type: Analog Output Module (AO Series)
-
Core Functions: Digital-to-analog conversion, high-precision signal output, signal isolation & amplification, channel monitoring, fault diagnosis & alarm
-
Power Supply: 24V DC input (19.2V-28.8V DC range); ≤5W power consumption; Overcurrent & reverse polarity protection
-
Output Specifications: 8 channels; Configurable 4-20mA current / 0-10V voltage output; ±0.1% full-scale accuracy; 16-bit resolution; ≤10ms response time; 600Ω max current load, 10kΩ min voltage load
-
Communication Protocols: PROFIBUS DP, Modbus RTU; Real-time data exchange with upper controllers
-
Environmental Ratings: Operating temp: -25°C to +70°C; Storage temp: -40°C to +85°C; 5%-95% non-condensing humidity; 2G vibration resistance (10-150Hz); 15G shock resistance
-
Mechanical & Installation: DIN rail-mounted; Approx. 120×100×45mm; 0.45kg net weight; Plug-in terminals; LED indicators for power, operation & fault
-
Protection Features: Output overcurrent & short-circuit protection; Channel-power supply isolation; Anti-EMI design; Fault self-diagnosis
-
Compatibility: ABB System 800xA DCS, AC800M controllers, AO series modules, standard industrial actuators
-
Certifications: CE certified; Complies with IEC 61131-2; EMC tested
-
Applications: Petrochemical, metallurgy, power generation, water treatment, manufacturing; Process control & factory automation
Recommended ABB Same-Series Models
-
ABB AO820 3BSE008523R1: 16-channel module for large-scale process control
-
ABB AO830 3BSE008524R1: Ultra-precise regulation with ±0.05% full-scale accuracy
-
ABB AO815 3BSE008525R1: 4-channel compact design for space-constrained installations
-
ABB AO840 3BSE008526R1: High-speed response (≤5ms) for fast-control systems
-
ABB AO850 3BSE008527R1: Dual-channel redundancy for safety-critical applications
-
ABB AO860 3BSE008528R1: Enhanced isolation for high-interference environments
-
ABB AO811 3BSE008529R1: Single-channel for independent precision regulation
-
ABB AO821 3BSE008530R1: Mixed 8 analog + 8 digital outputs for complex scenarios
-
ABB AO831 3BSE008531R1: 0-20V high-voltage output for special actuators
-
ABB AO841 3BSE008532R1: Energy-saving low-power design for low-consumption systems
-
ABB AO851 3BSE008533R1: Ethernet/IP support for distributed control
-
ABB AO861 3BSE008534R1: Integrated signal amplification for long-distance transmission
-
ABB AO812 3BSE008535R1: 2-wire compatibility with 4-20mA loop-powered actuators
-
ABB AO822 3BSE008536R1: 1000Ω high-load capacity for heavy-duty actuators
-
ABB AO832 3BSE008537R1: Self-calibration and status monitoring functions
-
ABB AO842 3BSE008538R1: HART communication support for intelligent field devices
-
ABB AO852 3BSE008539R1: Explosion-proof design for hazardous industrial areas
