Bently Nevada 3500/25 125792-01 Product Overview
3500/25 125792-01 Product Introduction

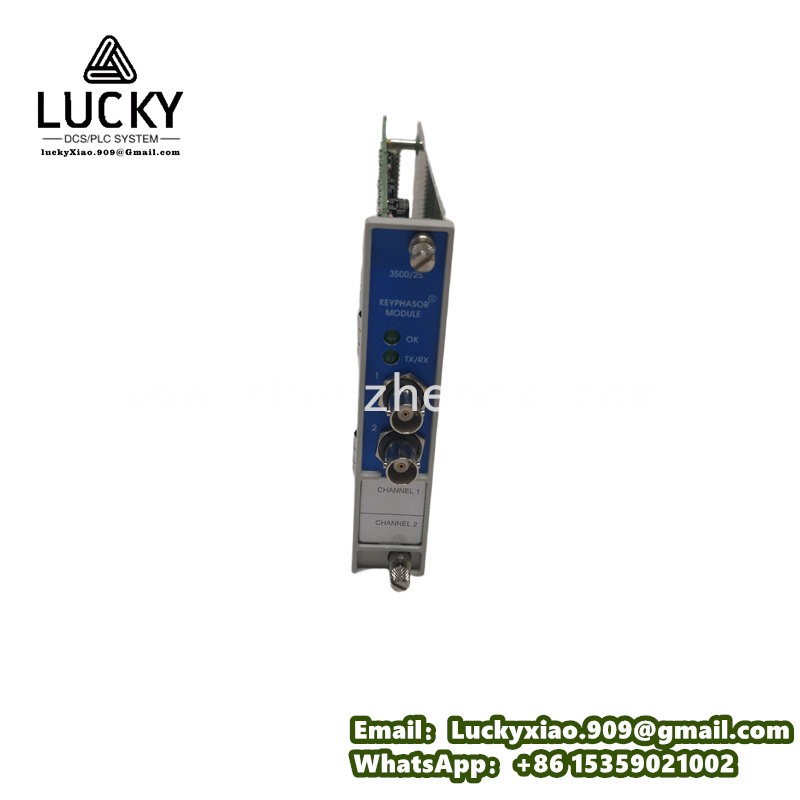

Bently Nevada 3500/25 125792-01 is an enhanced dual-channel Keyphasor module designed for the Bently Nevada 3500 machinery condition monitoring and protection system. As a core timing and phase reference component, it acquires pulse signals from proximity probes and magnetic pickups installed on rotating shafts, converting raw field signals into accurate digital Keyphasor timing signals. These precision phase reference data support vibration analysis, shaft speed calculation, and operational fault diagnosis for turbines, compressors and other rotating equipment. Adopting a compact half-height rack-mounted design, the module features comprehensive self-diagnostics and strong anti-interference capability, ensuring stable long-term operation in harsh industrial environments and improving the accuracy of mechanical condition monitoring.
3500/25 125792-01 Technical Specifications
-
Product Model: 3500/25, Part Number 125792-01 (Enhanced Keyphasor Module)
-
Channel Configuration: 2 independent Keyphasor signal input channels
-
Compatible Sensors: Proximity probes and magnetic pickup sensors
-
Core Function: Shaft phase reference acquisition, speed timing and signal conversion
-
Structural Type: Half-height rack-mounted module for standard 3500 rack slots
-
Diagnostic Performance: Built-in full self-test function for real-time module status monitoring
-
Power Supply: 24V DC backplane power supply with low power consumption
-
Operating Temperature: -30°C to +65°C, adaptable to industrial cabinet environments
-
Application Scenarios: Precision phase monitoring for industrial rotating machinery
-
System Compatibility: Fully compatible with all Bently Nevada 3500 series monitoring racks
Recommended Bently Nevada Same-Series Models
-
3500/15: Redundant power supply module providing stable and continuous power for system racks
-
3500/22: Transient data interface module for high-speed data collection and network transmission
-
3500/40M: Multi-functional vibration and position monitoring module for rotating equipment
-
3500/42M: Enhanced vibration monitoring module supporting high-precision mechanical fault analysis
-
3500/50: Speed monitoring module for real-time rotational speed detection and overspeed protection
-
3500/53: Multi-channel temperature monitoring module for equipment thermal condition tracking
-
3500/32: Relay output module for on-site alarm triggering and protection interlock control
-
3500/60: Industrial communication gateway module for remote system data interaction
-
135137-01: 4-channel position monitoring module for mechanical displacement signal acquisition
-
135489-01: Universal vibration acquisition module for conventional mechanical vibration monitoring
