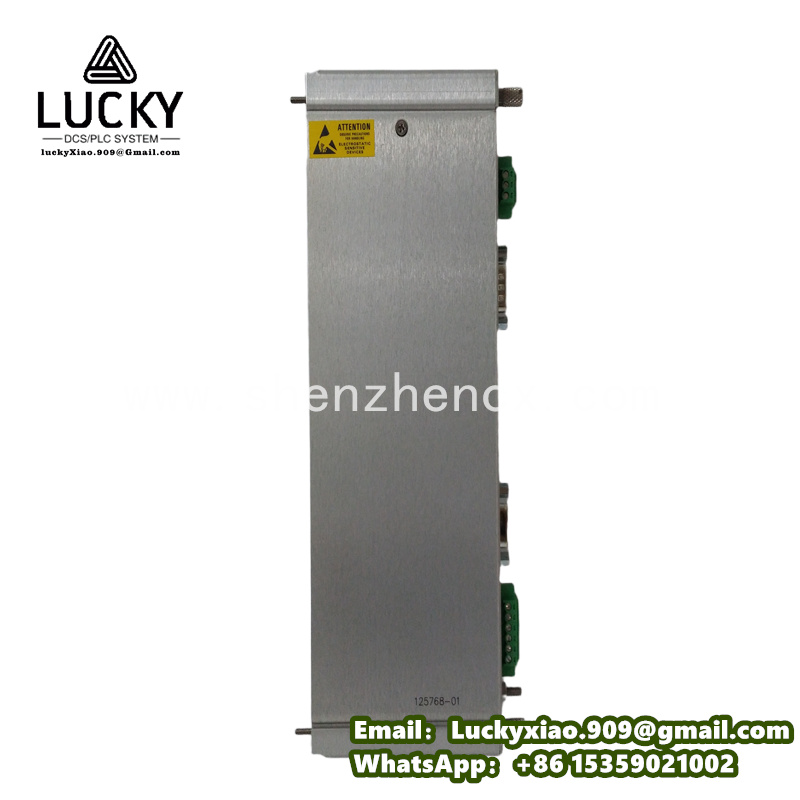

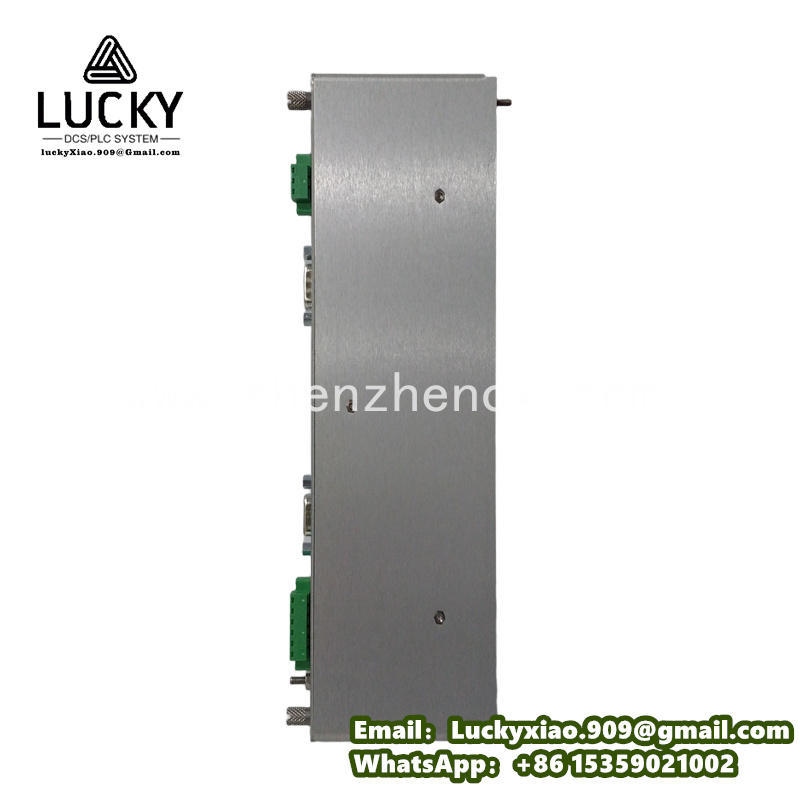

Bently Nevada 125768-01 Product Overview
125768-01 Product Introduction
Bently Nevada 125768-01 is a professional Rack Interface Module (RIM) built for the Bently Nevada 3500 series machinery monitoring and protection systems. Equipped with dual RS232 and RS422 serial communication interfaces, it acts as the core data exchange and configuration hub for the entire system rack. This module manages internal module communication, system parameter configuration, and real-time status reporting, enabling seamless connection between on-site monitoring hardware and upper-level industrial control software. Adopting industrial-grade anti-interference circuit design, it delivers stable and reliable data transmission in complex factory environments. It supports continuous long-term operation and flexible mode switching, ensuring systematic and efficient management of rotating machinery monitoring data in petrochemical, power and industrial manufacturing fields.
125768-01 Technical Specifications
-
Product Model: 125768-01 (3500 Series Rack Interface Module)
-
Core Function: System rack management, parameter configuration and serial data interaction
-

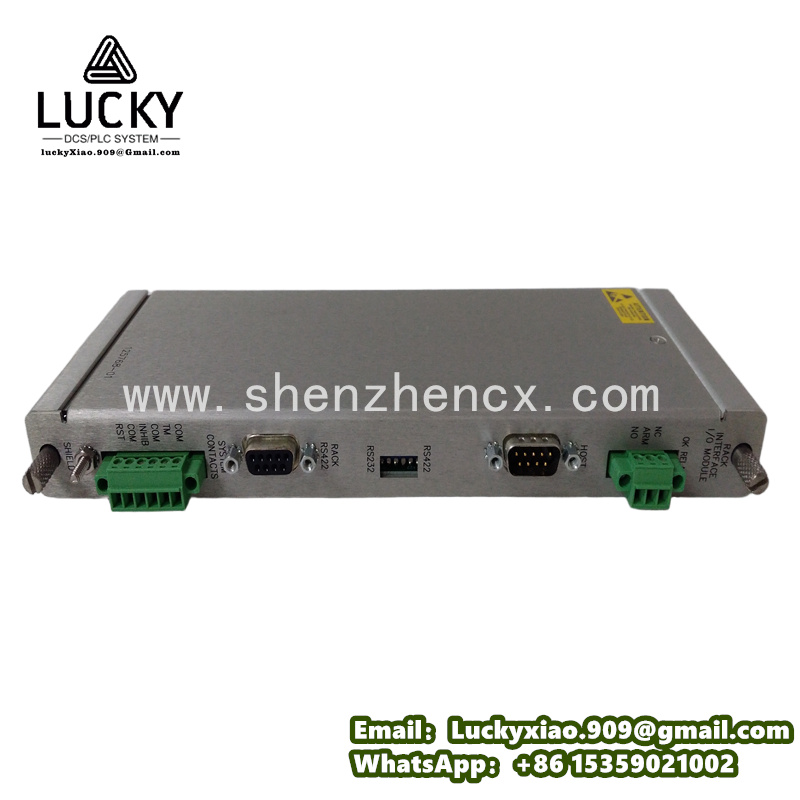

Communication Ports: Integrated RS232 and RS422 dual serial interfaces
-
Operating Mode: Supports RUN real-time monitoring and PROGRAM configuration modes
-
Protection Design: Built-in key lock function to prevent accidental configuration modification
-
Power Consumption: Low power consumption design for long-term stable operation
-
Operating Temperature: -30°C to +65°C, adaptable to standard industrial cabinet environments
-
Signal Stability: Strong electromagnetic interference resistance for on-site data transmission
-
System Compatibility: Fully compatible with all modules of Bently Nevada 3500 series rack systems
Recommended Bently Nevada Same-Series Models
-
3500/15: Redundant power supply module providing stable and continuous power for system racks
-
3500/22: Transient data interface module for high-speed waveform collection and network transmission
-
3500/25: Dual-channel Keyphasor module for shaft phase reference and rotational timing acquisition
-
3500/40M: Multi-functional monitoring module for vibration and axial displacement detection
-
3500/42M: High-precision seismic monitoring module for mechanical vibration fault analysis
-
3500/50: Specialized speed monitoring module for real-time speed detection and overspeed protection
-
3500/53: Multi-point temperature module for real-time thermal status monitoring of equipment
-
3500/32: Relay output module for on-site alarm and protection interlock signal output
-
125760-01: Digital input module for collecting on-site discrete equipment status signals
-
146031-01: High-efficiency communication module supporting remote system data interaction
