3500/45 176449-04 Product Introduction

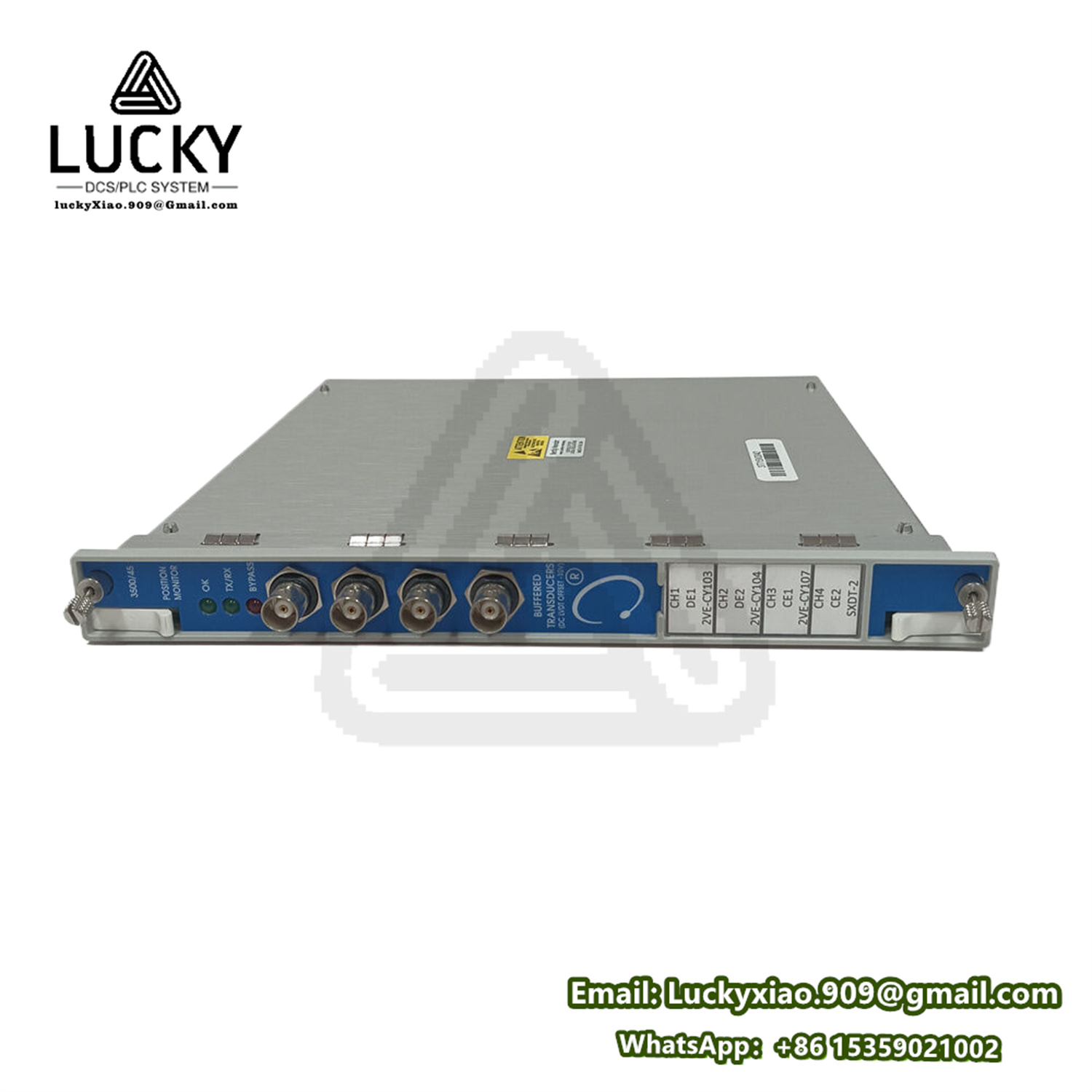

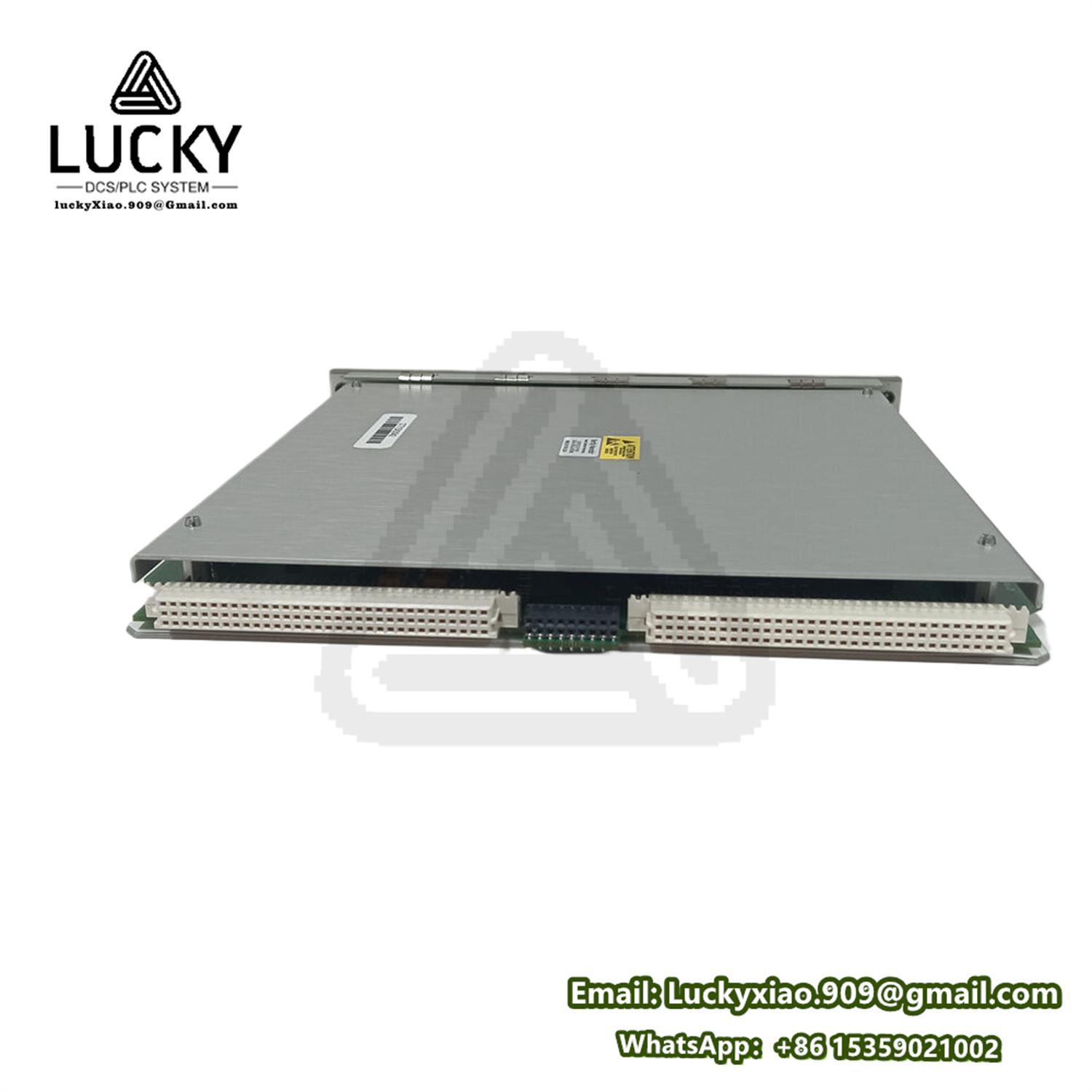

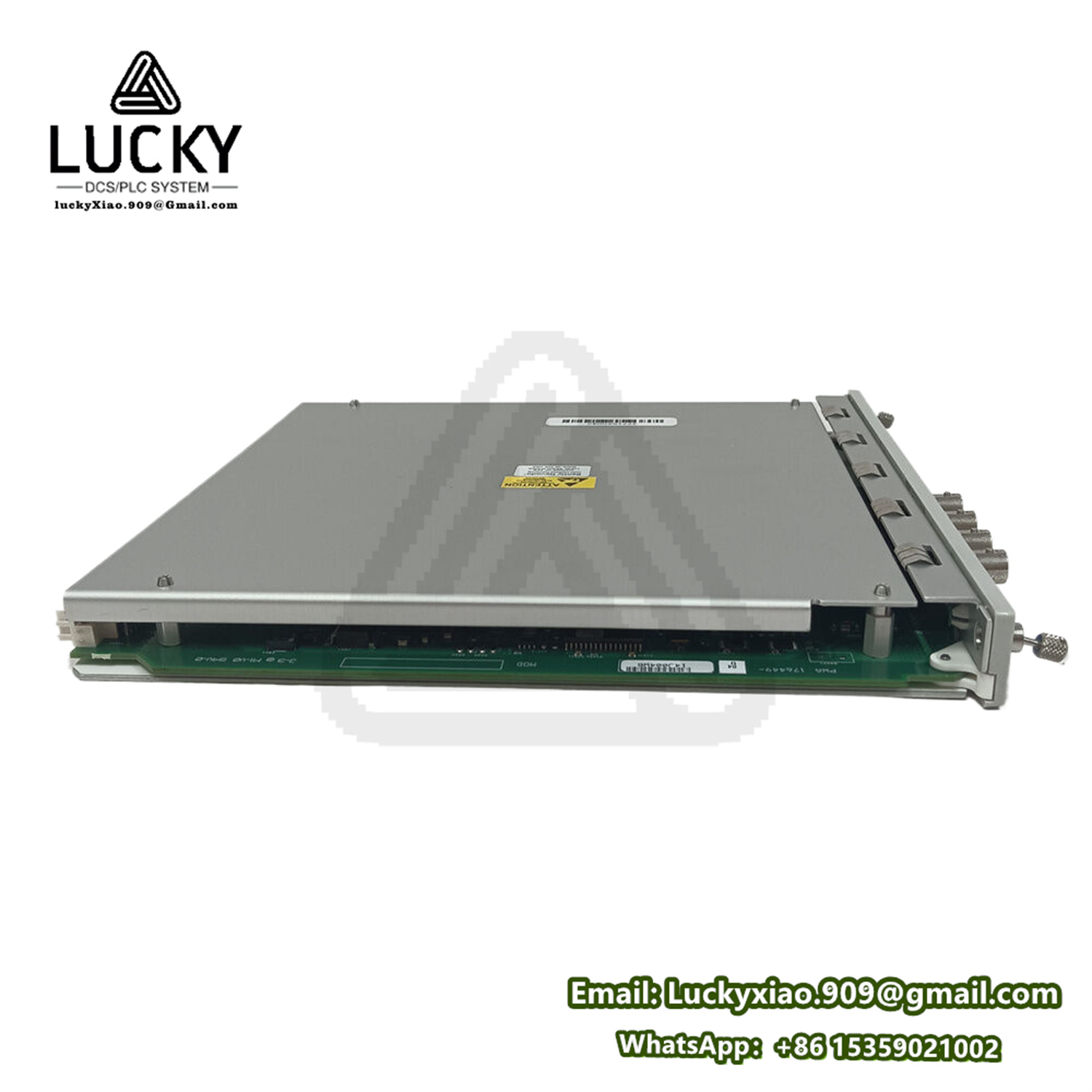

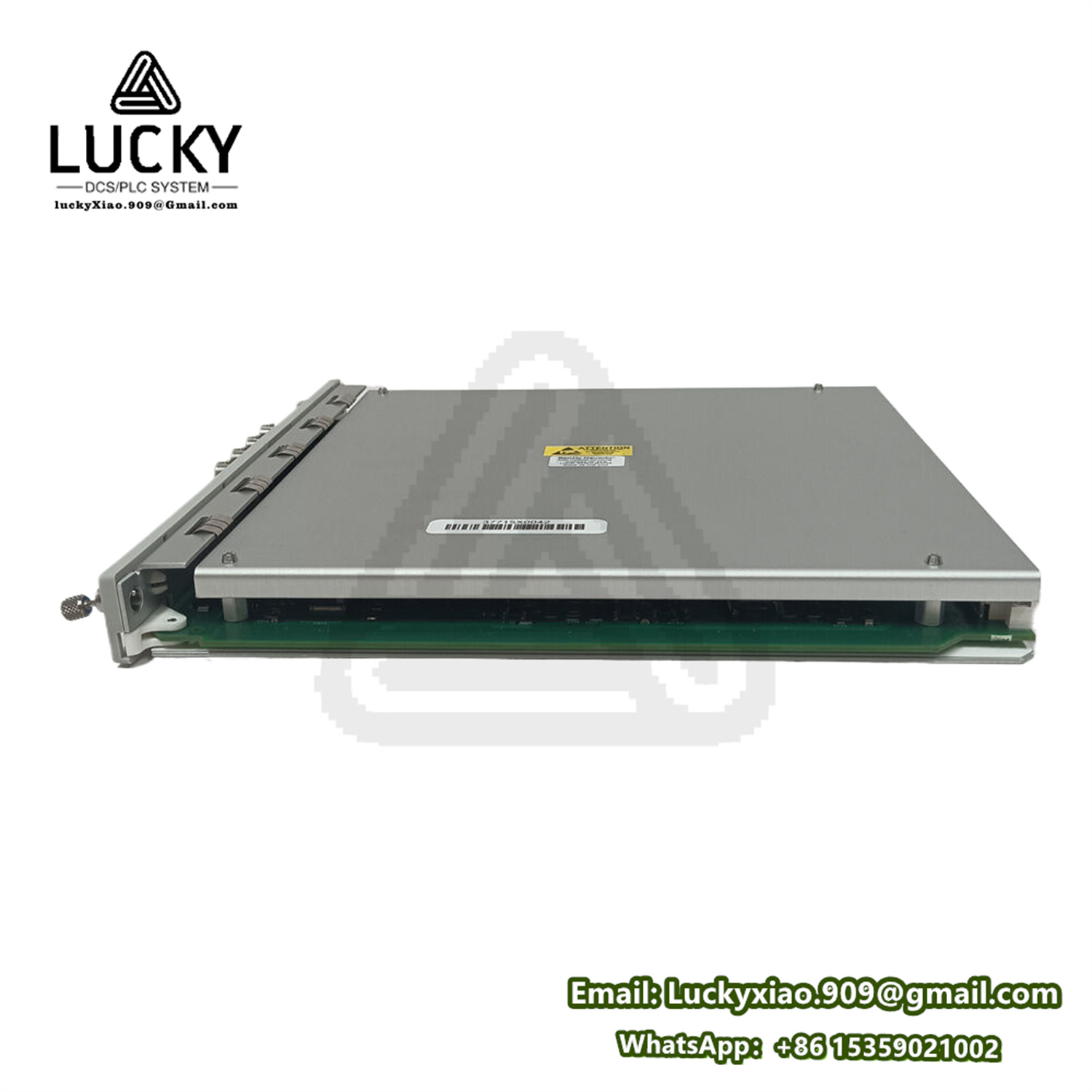

Bently Nevada 3500/45 176449-04 is a versatile dual-channel position monitoring module in the 3500 series machinery protection system. It is engineered to measure critical mechanical positional parameters for rotating and reciprocating equipment, supporting axial thrust position, differential expansion, case expansion and valve position monitoring. The module features flexible software-based channel configuration, allowing users to customize monitoring modes to match diverse machine structures and operating conditions. With high-precision signal processing and built-in filter circuits, it eliminates on-site signal noise and delivers stable measurement results. Certified for industrial functional safety applications, it provides reliable condition tracking and alarm protection for turbines, compressors and other high-value equipment in energy and petrochemical industries.
3500/45 176449-04 Technical Specifications
-
Product Model: 3500/45, Part Number 176449-04 (Dual-Channel Position Monitoring Module)
-
Channel Configuration: 2 configurable measurement channels for paired functional setup
-
Monitoring Types: Thrust position, differential expansion, case expansion and valve position
-
Measurement Accuracy: Typical ±0.33% full scale, maximum ±1% full scale error
-
Signal Sensitivity: Configurable sensitivity for position and expansion measurement scenarios
-
Frequency Response: Equipped with dedicated direct and gap filter circuits for noise suppression
-
Safety Rating: Compliant with industrial SIL functional safety standards
-
Operating Temperature: -30°C to +65°C for standard industrial cabinet environments
-
Working Humidity: 5%–95% non-condensing relative humidity tolerance
-
System Compatibility: Fully compatible with Bently Nevada 3500 series racks and configuration software
