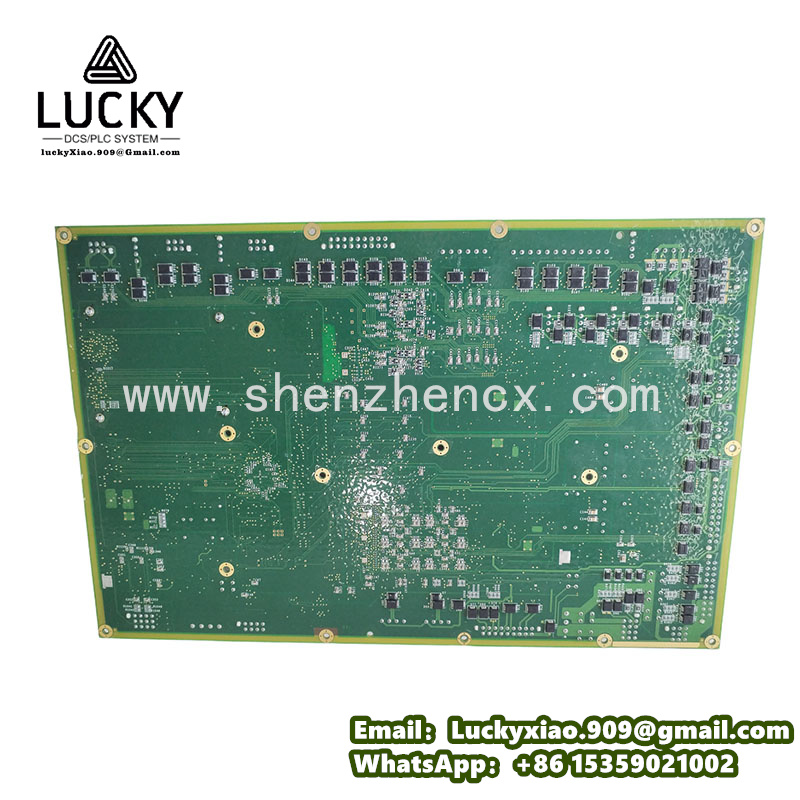

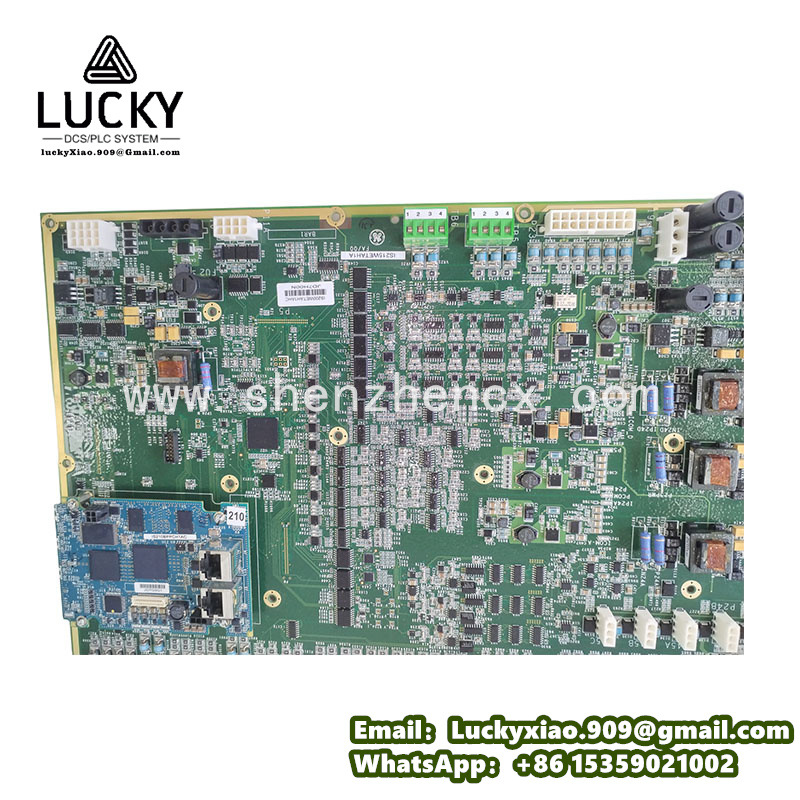

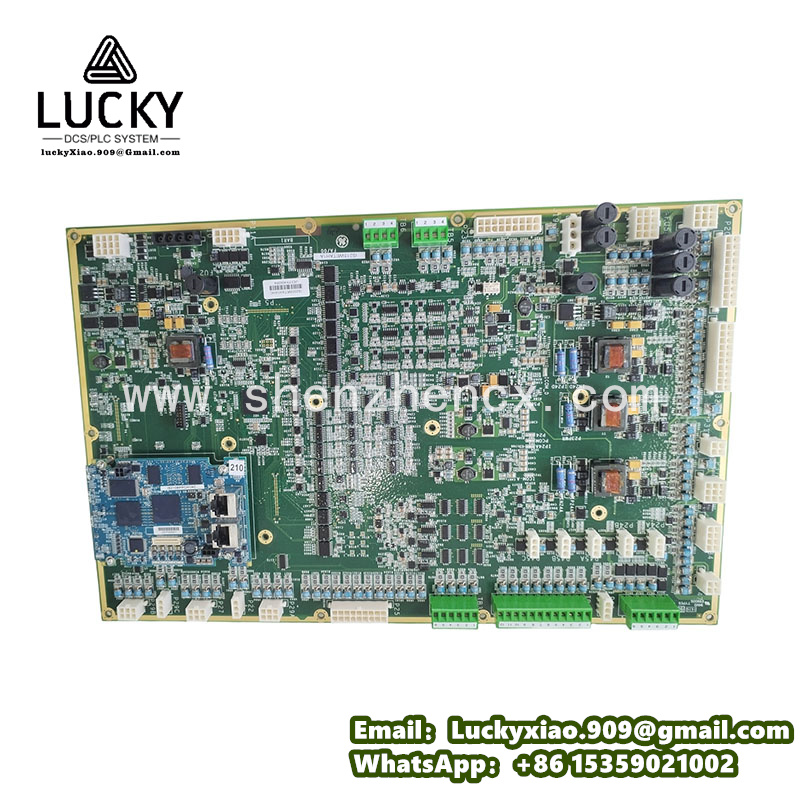

GE IS215WETAH1A Product Introduction
The GE IS215WETAH1A is a high-reliability wind turbine control board, belonging to GE’s Mark VIe Speedtronic series and now managed by GE Vernova. As a critical core component in industrial automation, it is specifically designed for wind power generation systems, responsible for processing control logic, managing I/O signals, and interfacing with on-site sensors and actuators to optimize wind turbine performance. It supports both simplex and triple modular redundant (TMR) configurations, ensuring efficient, stable and safe operation of wind turbines in renewable energy applications.
GE IS215WETAH1A
Technical Parameters & Specifications
|
Item
|
Specifications
|
|---|---|
|
Product Model
|
IS215WETAH1A
|
|
Product Type
|
Wind Turbine Control Board (WETA), Mark VIe Speedtronic Series
|
|
Manufacturer
|
General Electric (GE), now managed by GE Vernova
|
|
Power Supply
|
24 VDC, supplied by Mark VIe system; typical power consumption: 1-2 A at 5 VDC
|
|
Operating Temperature
|
-30°C to +65°C (-22°F to +149°F), adaptable to harsh wind power field environments
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to +185°F), ensuring stable storage in extreme temperature conditions
|
|
Relative Humidity
|
5% – 95% (non-condensing), effectively preventing moisture damage to internal components
|
|
Protection Rating
|
IP67 (IEC 60529), watertight and dustproof, suitable for outdoor wind turbine working conditions
|
|
Dimensions (L×W×H)
|
Approx. 159mm × 178mm × 35mm (6.26in × 7.01in × 1.38in), compact for rack installation
|
|
Net Weight
|
Approx. 0.5kg (1.1lbs), lightweight design facilitating installation and transportation
|
|
Communication Interfaces
|
Ethernet (Ionet), supports Control ST protocols for stable data transmission
|
|
Core Functions
|
Process control logic, manage I/O for wind turbine, interface with sensors (wind speed, blade pitch) and actuators, support simplex/TMR configurations
|
|
Mounting Type
|
Single slot in Mark VIe rack, DIN-rail or panel mount
|
|
Certifications
|
CE, UL, CSA, Class I Div 2, complying with industrial safety and quality standards
|
|
Compatibility
|
Mark VIe/Mark VIeS turbine control system, ToolboxST software; equipped with multi-pin connectors and terminal blocks
|
GE IS215WETAH1A
Product Features
The GE IS215WETAH1A integrates high reliability, professional adaptability and easy maintainability, perfectly meeting the core needs of wind power generation control:
1. High Reliability: Adopts industrial-grade surface-mount components and conformal coating for environmental protection, with EMI shielding and surge suppression, ensuring long-term stable operation in harsh outdoor wind power environments.
2. Professional Wind Power Adaptability: Specifically designed for wind turbine control, it can accurately process signals from wind speed, blade pitch and other sensors, optimize turbine operation efficiency, and support both simplex and TMR configurations to avoid single-point failures.
3. Stable Communication Performance: Equipped with Ethernet (Ionet) interface and supports Control ST protocols, realizing seamless data interaction with Mark VIe control system, ensuring real-time and accurate transmission of control signals.
4. Durable & Protective: With IP67 protection rating and stainless steel construction, it is waterproof and dustproof, capable of withstanding harsh outdoor working conditions such as humidity, dust and temperature changes.
5. Easy Installation & Compatibility: Compact size, supports rack, DIN-rail or panel mount, easy to install and disassemble; perfectly compatible with Mark VIe series systems and ToolboxST software, facilitating system integration and maintenance.
Other GE Similar Models
In addition to the GE IS215WETAH1A, GE provides a series of high-quality control modules and matching products for wind power and industrial automation scenarios:
1. GE IS215ACLEH1A: An analog I/O control module, with high-precision signal collection and output capabilities, suitable for key parameter monitoring in power, petrochemical and metallurgical industries.
2. GE IS215WETAH1C: A wind turbine control board of the same series, with consistent performance and compatibility, suitable for different wind turbine models and control requirements.
3. GE IS200WETBH1B: A top box B module, matching the IS215WETAH1A to realize comprehensive wind turbine control and signal processing.
4. GE IS400AEBMH1AJD: A high-reliability industrial control module, widely used in industrial automation systems, providing stable control and communication support.
