Woodward 9907-838 Product Introduction
Woodward 9907-838 is a high-reliability load sharing module (LSM) designed for industrial generator systems and engine control applications. It is engineered to optimize the performance of paralleled generator sets by providing both isochronous and droop load sharing capabilities. The isochronous mode ensures equal load distribution among multiple paralleled generators, while the droop mode automatically reduces output under no-load and full-load conditions. This module is compatible with Caterpillar engines equipped with digital speed controls and Woodward power generation accessories, such as the SPM-A synchronizer, enabling seamless integration and reliable operation in harsh industrial, power generation and marine environments.

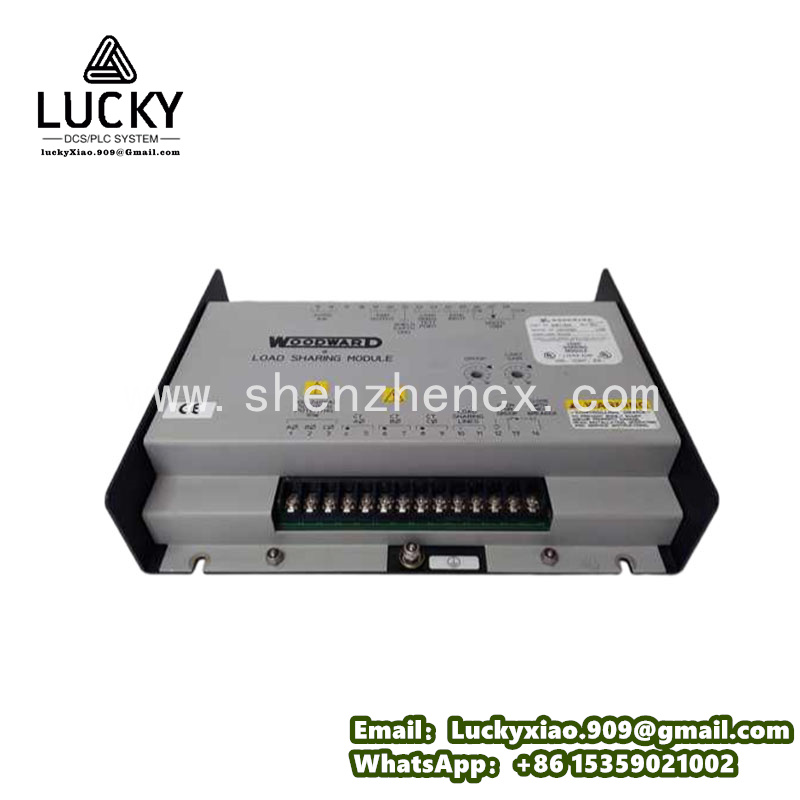

Woodward 9907-838
Technical Specifications
-
Product Model: 9907-838 (Woodward)
-
Product Type: Load Sharing Module (LSM)
-
Operating Voltage: 18-32 V DC (standard 24 V DC)
-
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
-
Input: 3-phase PT inputs (95-130 V AC)
-
Output: +0.5 to +4.5 V DC analog output to speed control
-
Sync Input: Compatible with Woodward SPM-A synchronizer
-
Dimensions: 273.6 mm × 59.2 mm × 214.1 mm
-
Air Quality: Pollution degree 2
-
Shock Resistance: Up to 40 g (11-millisecond sawtooth pulse)
-
Key Features: PWM output surge protection, isochronous and droop load sharing
Recommended Woodward Same-Series Models
-
9907-175: 24 V DC load sharing module without PWM output surge protection, suitable for basic load sharing needs
-
5464-850: Digital speed sensor for measuring rotational speed of engines and turbines, providing precise speed feedback
-
5462-758B: Output module converting control signals to drive external devices like actuators and valves
-
2301A: Full authority speed control with isochronous and droop control for diesel and gas engines
-
2301E: Digital load sharing and speed control with PC configuration for diesel and gaseous engine-driven generators
-
723 Plus: Digital control for reciprocating engines in power generation and marine propulsion applications
-
EasyGen 3100: Versatile genset controller supporting load sharing for up to 32 paralleled gensets
-
EasyGen 2000: Compact genset controller for load sharing up to 16 gensets in island operation
