Bently Nevada 3500/53 133388-01 Product Overview
3500/53 133388-01 Product Introduction

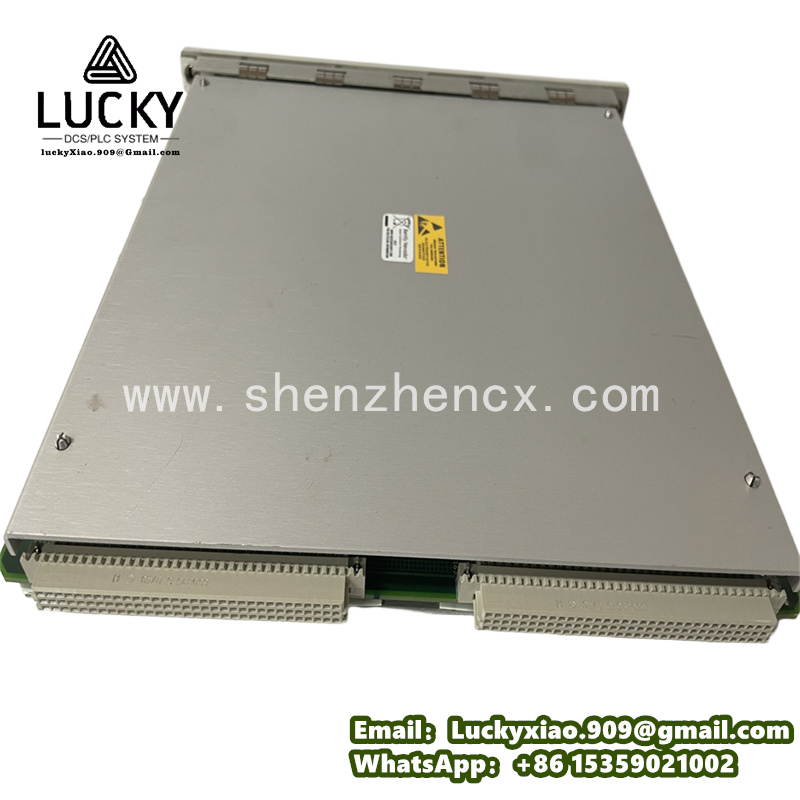

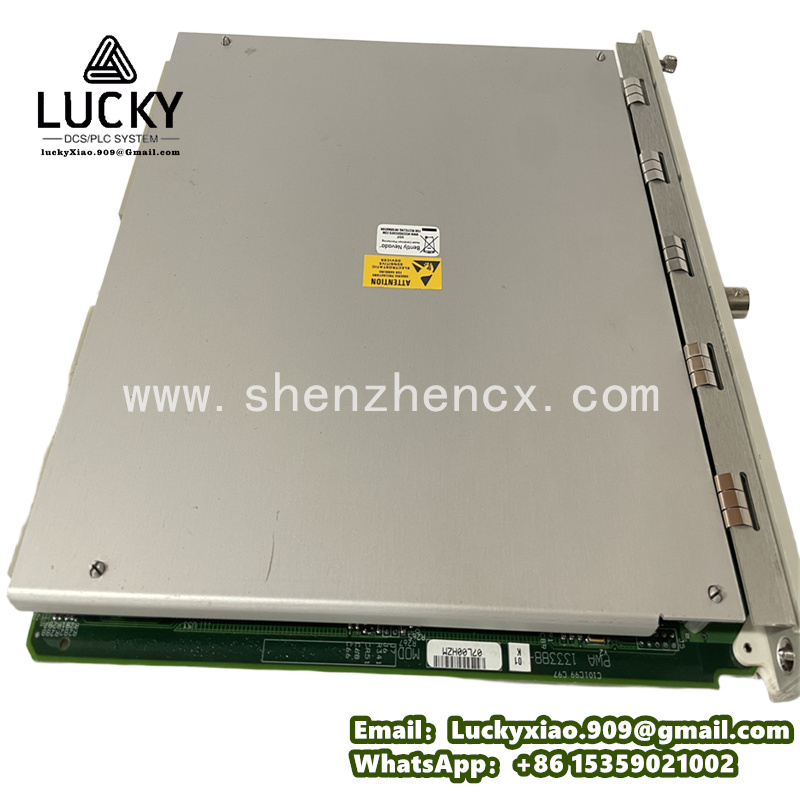

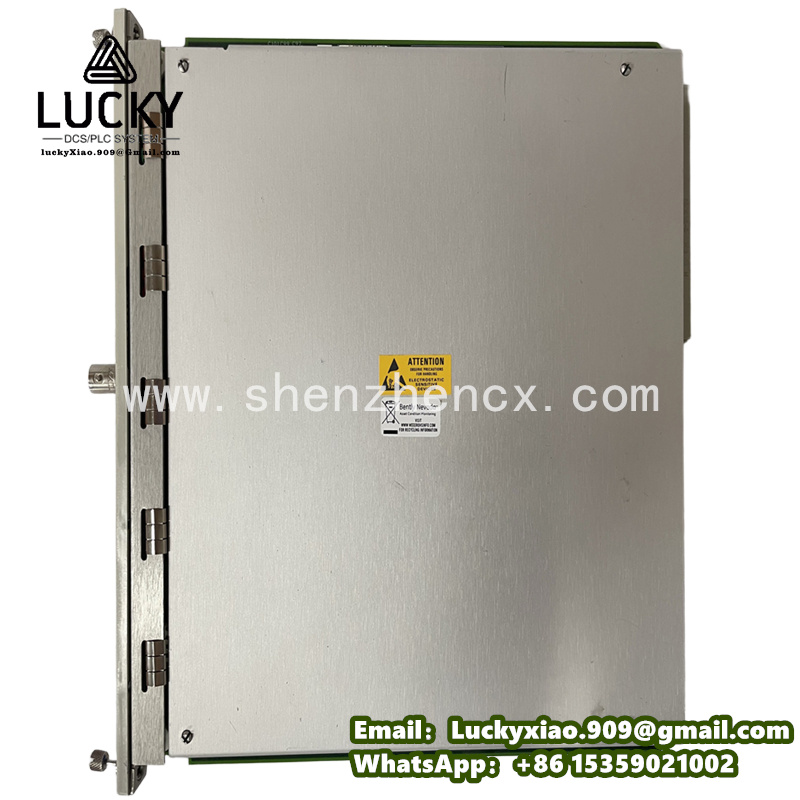

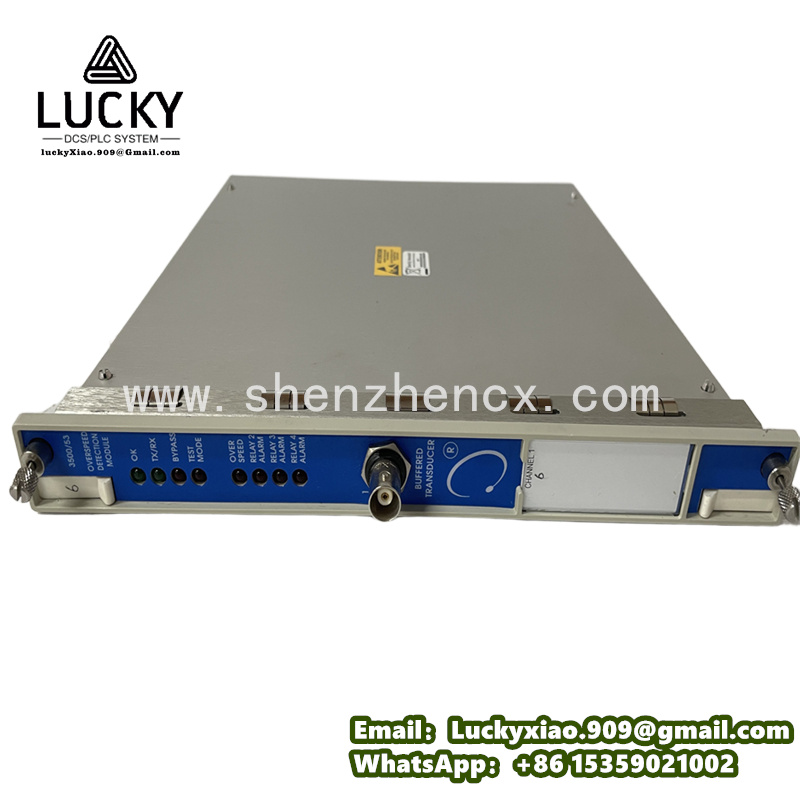

Bently Nevada 3500/53 133388-01 is a dedicated overspeed detection and speed monitoring module within the 3500 series machinery protection system. Designed for critical rotating machinery, this module processes pulse signals from magnetic pickups and proximity sensors to deliver accurate shaft speed measurement and overspeed protection. It provides fast response and reliable judgment logic to prevent equipment damage caused by excessive rotational speed. With industrial-grade anti-interference design and stable signal processing capability, it operates steadily in harsh factory environments. Widely applied in turbines, compressors and other core rotating equipment, it ensures operational safety and continuous production stability for power, petrochemical and process industries.
3500/53 133388-01 Technical Specifications
-
Product Model: 3500/53, Part Number 133388-01 (Overspeed Detection Module)
-
Core Function: Real-time shaft speed monitoring and overspeed fault protection interlock
-
Compatible Sensors: Magnetic pickup sensors and proximity probe transducers
-
Signal Input: Single-channel pulse signal acquisition for rotational speed calculation
-
Response Performance: Fast signal response for timely protection triggering
-
Operating Voltage: 24 VDC industrial standard power supply
-
Operating Temperature: -40°C to +85°C for wide-range industrial environmental adaptation
-
Protection Grade: IP20 industrial enclosure protection rating
-
Working Humidity: 5%–95% non-condensing relative humidity tolerance
-
System Compatibility: Fully compatible with Bently Nevada 3500 series rack systems
